SKU: HSURC214-2

Simpson HSURC214-2 Double 2x14 Concealed Flange Joist Hanger Skewed Right - Galvanized

Simpson HSURC214-2 Double 2x14 Concealed Flange Joist Hanger Skewed Right - Galvanized!

Continue Browsing

SUR/SUL/HSUR/HSUL Skewed 45 Degree Hangers
SKU: HSURC214-2

Simpson HSURC214-2 Double 2x14 Concealed Flange Joist Hanger Skewed Right - Galvanized

$70.33

Request Bulk Pricing
Request Bulk Pricing
Made to Order
Ships in 3-5 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Face - (26) 0.162" x 3-1/2" Nails Joist - (8) 0.162" x 2-1/2" Nails
For Treated Lumber: No
Height: 12-11/16"
Joist size: Double 2X14
Manufacturer name: Simpson Strong-Tie
Description

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product

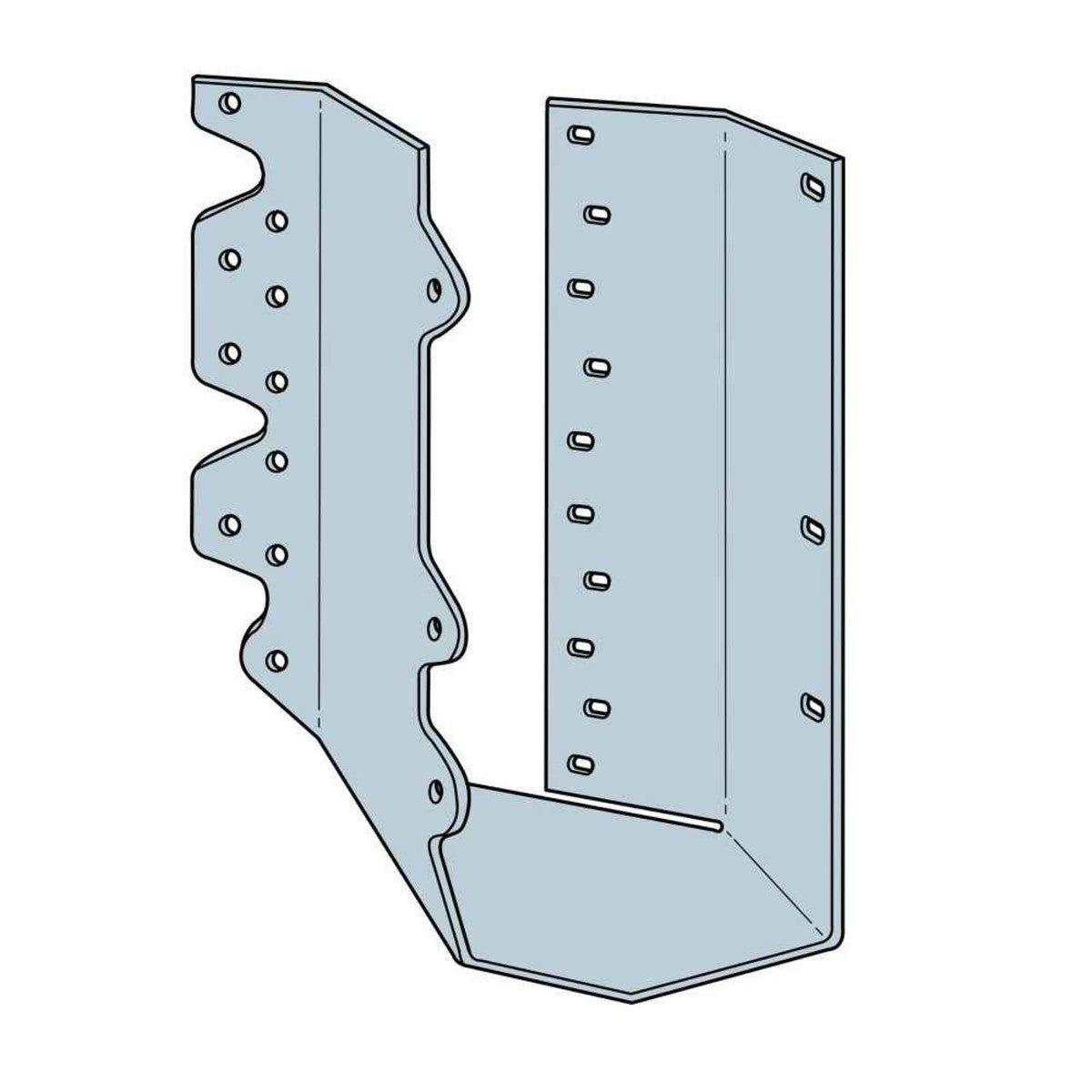

    • Simpson Strong-Tie HSURC joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. A concealed flange on one side of the hanger provides a cleaner looking installation. The Strong-Tie HSURC214-2 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


    Installation:
    • Use all specified fasteners.
    • These hangers will normally accommodate a 40° to 50° skew.

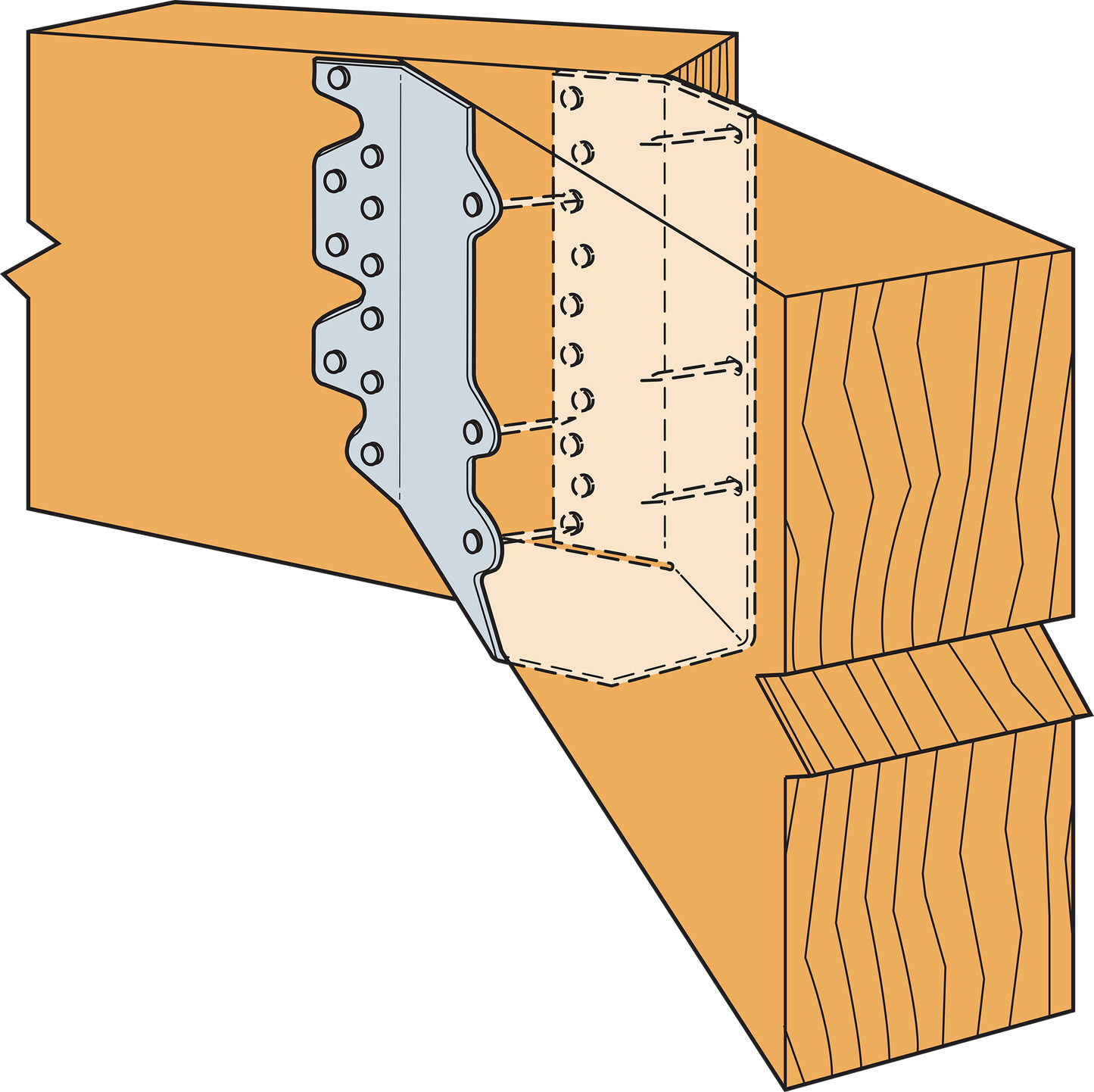

    • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
    • The joist end may be square cut or bevel cut.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
