Simpson DSP Double-Stud-Plate Connector - G90 Galvanized
Simpson DSP Double-Stud-Plate Connector - G90 Galvanized!
Simpson DSP Double-Stud-Plate Connector - G90 Galvanized
Specifications

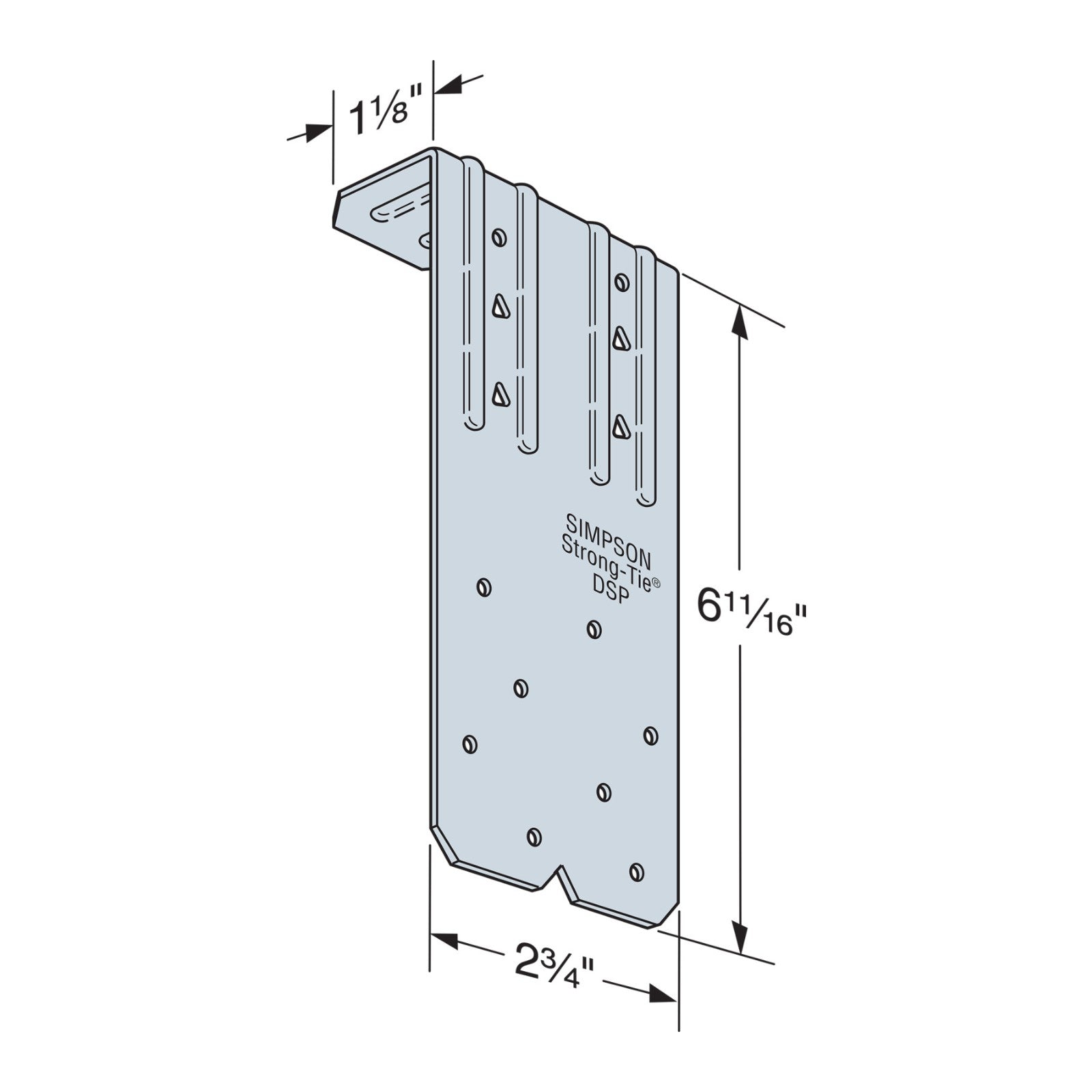

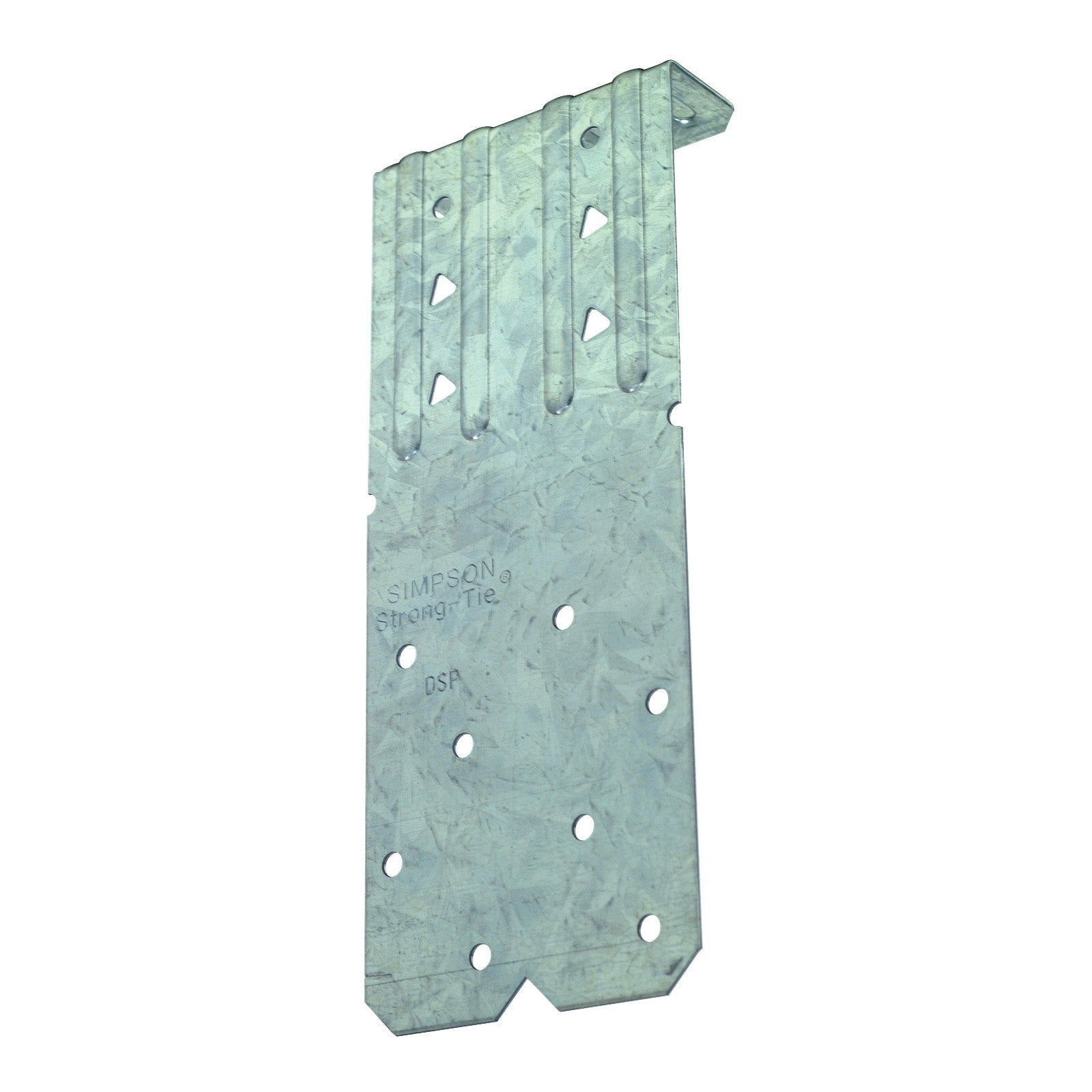

The Simpson DSP is a pre-bent, high-strength connector designed to tie double studs to top or bottom plates, forming a continuous load path for uplift resistance. Engineered for flexibility and ease of installation, it’s ideal for structural framing where code-compliant uplift protection is critical. The DSP is suitable for both new builds and retrofits, offering a clean and secure tie-down solution with enhanced corrosion protection.
Key Features
- Pre-bent steel strap ties double studs to top or sill plates for continuous load path integrity.
- Features a top flange to engage both plate surfaces for better load distribution.
- Contoured embossments at the bend increase strength without adding bulk.
- Available in 18-gauge galvanized steel or ZMAX® finish for added corrosion resistance.
Applications

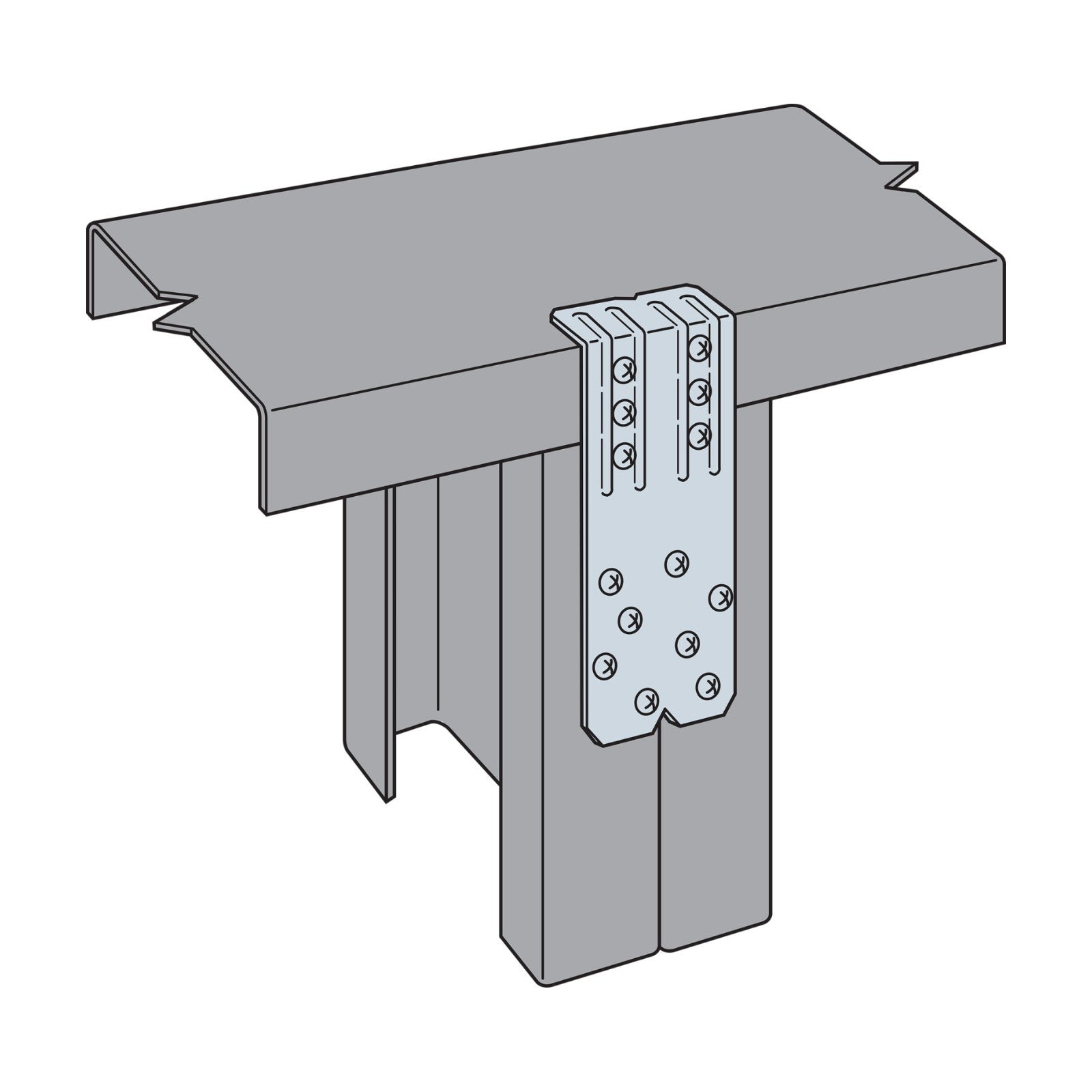

- Used in framing to reinforce double-stud connections at the top or bottom plate.
- Designed to resist uplift forces and maintain structural performance under load.
- Can be installed before or after wall placement - ideal for field adjustments.
Installation
- Use all required fasteners as specified in the installation instructions or engineer's plan.

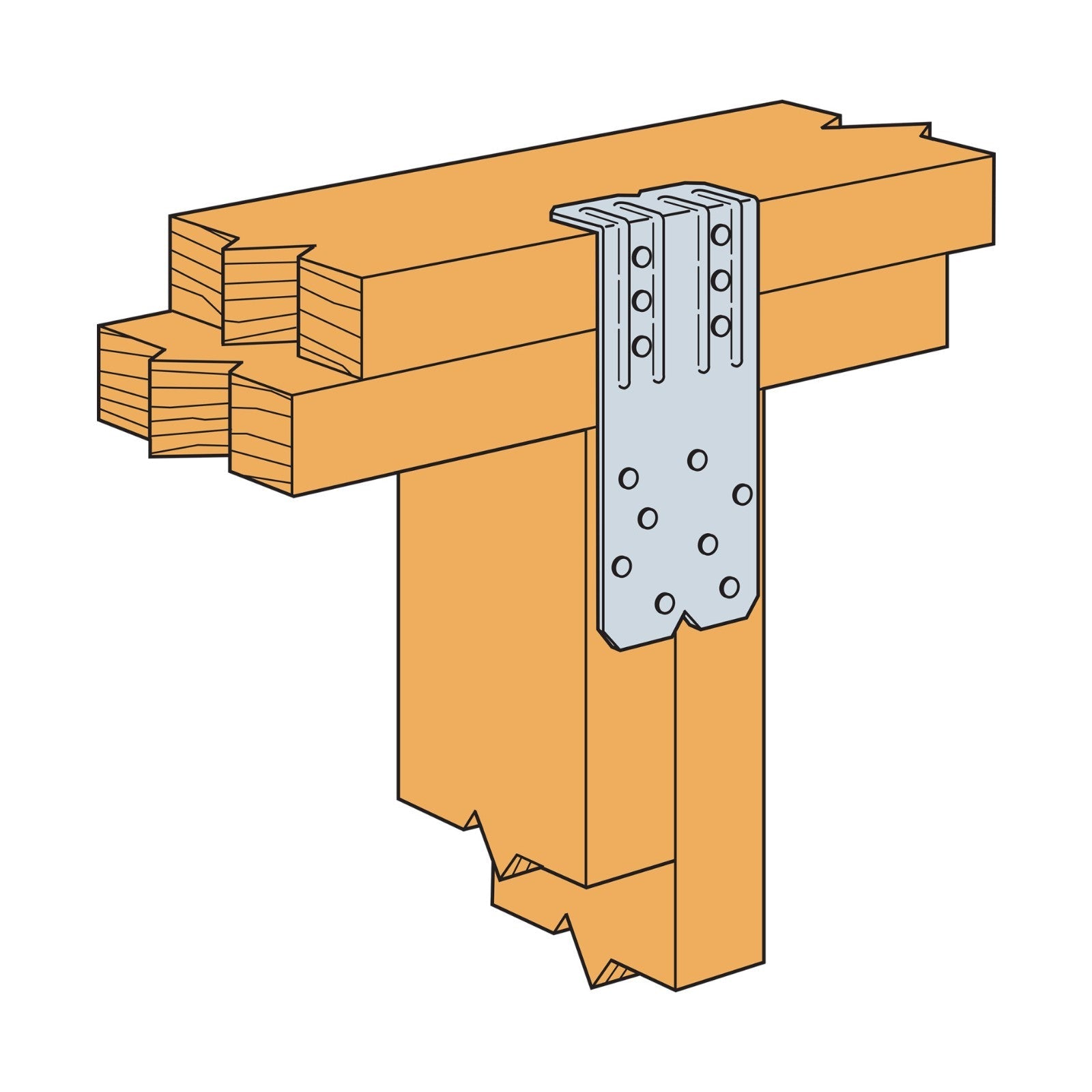

- For top plate applications: fill both round and triangular holes.

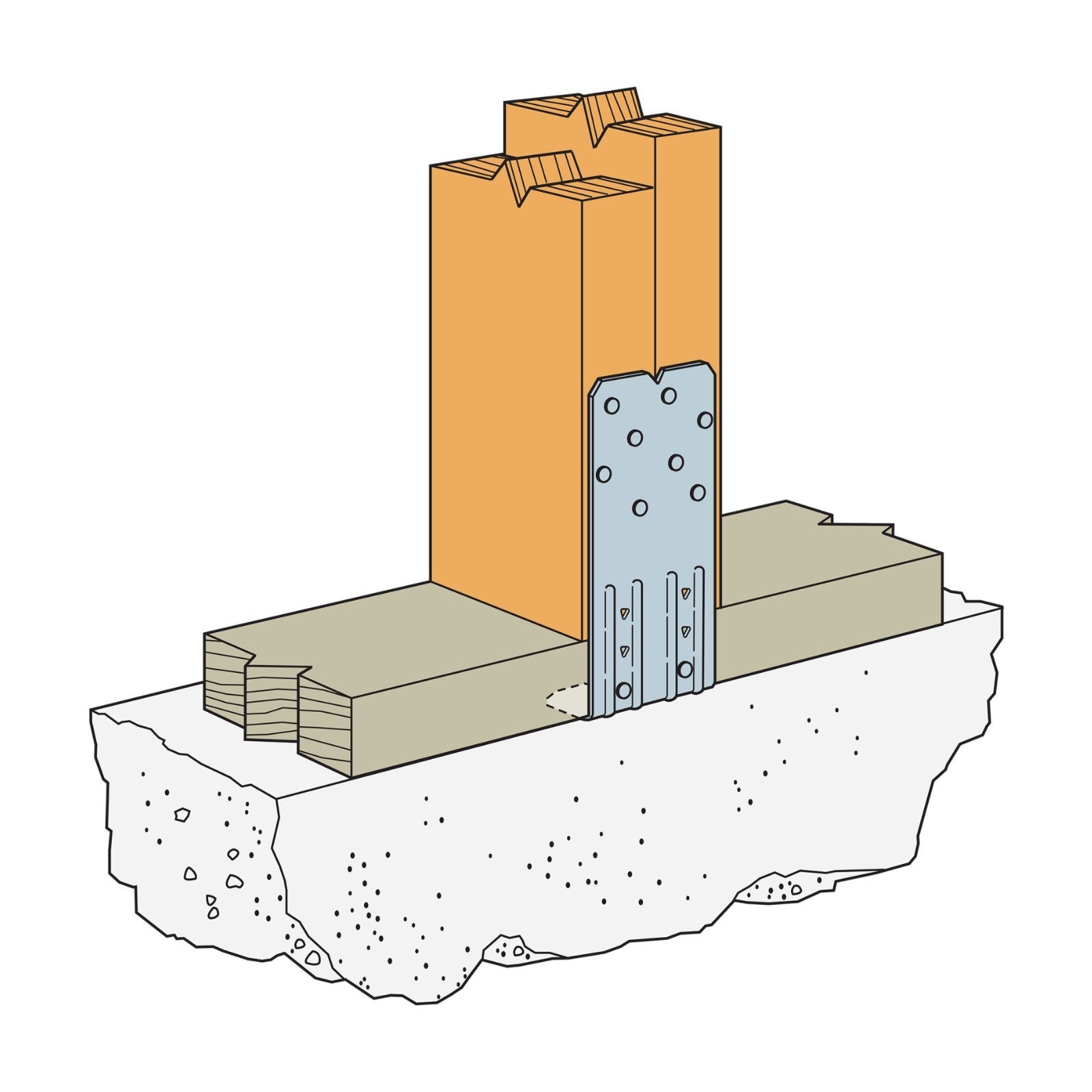

- For sill plate installations: fill only the round holes.
