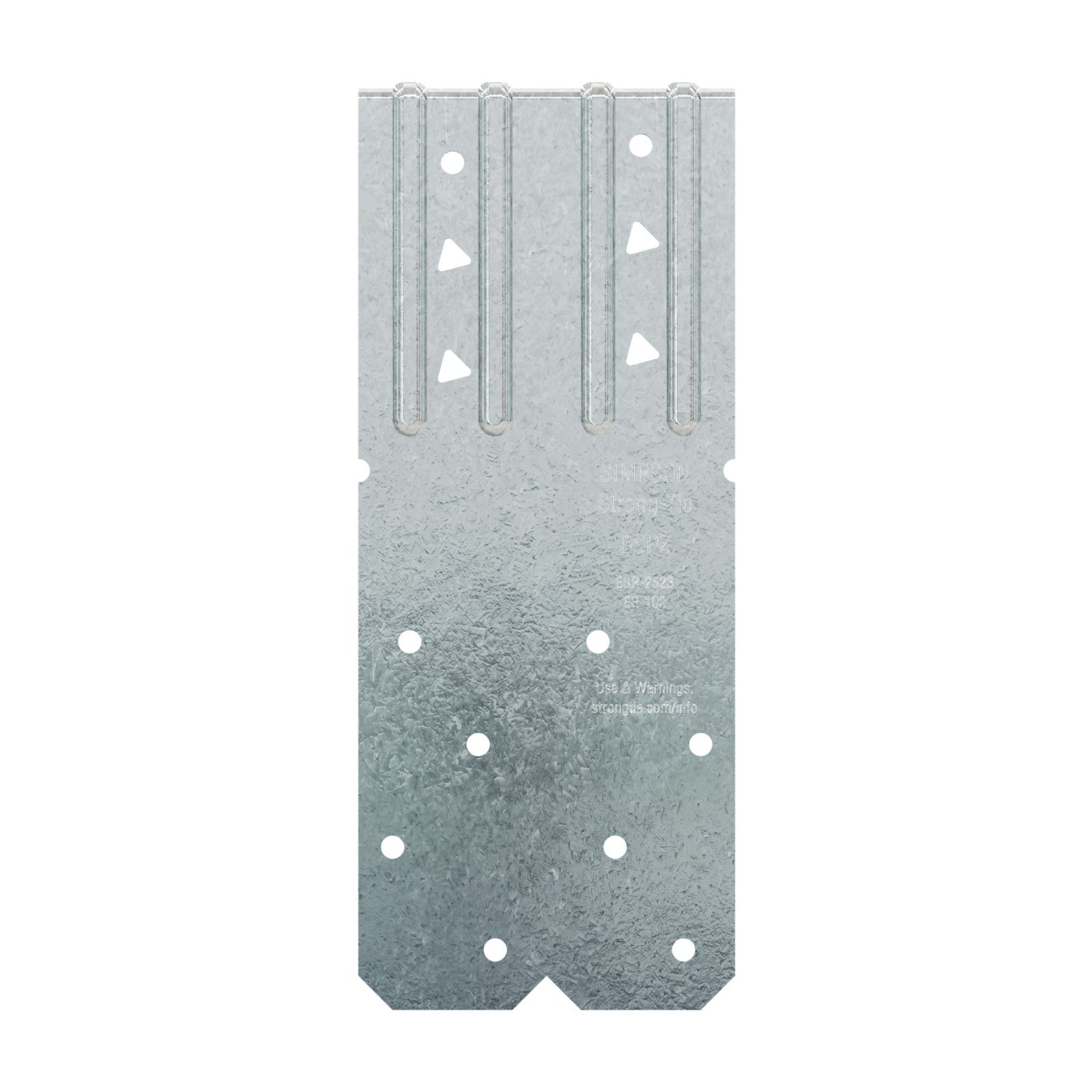

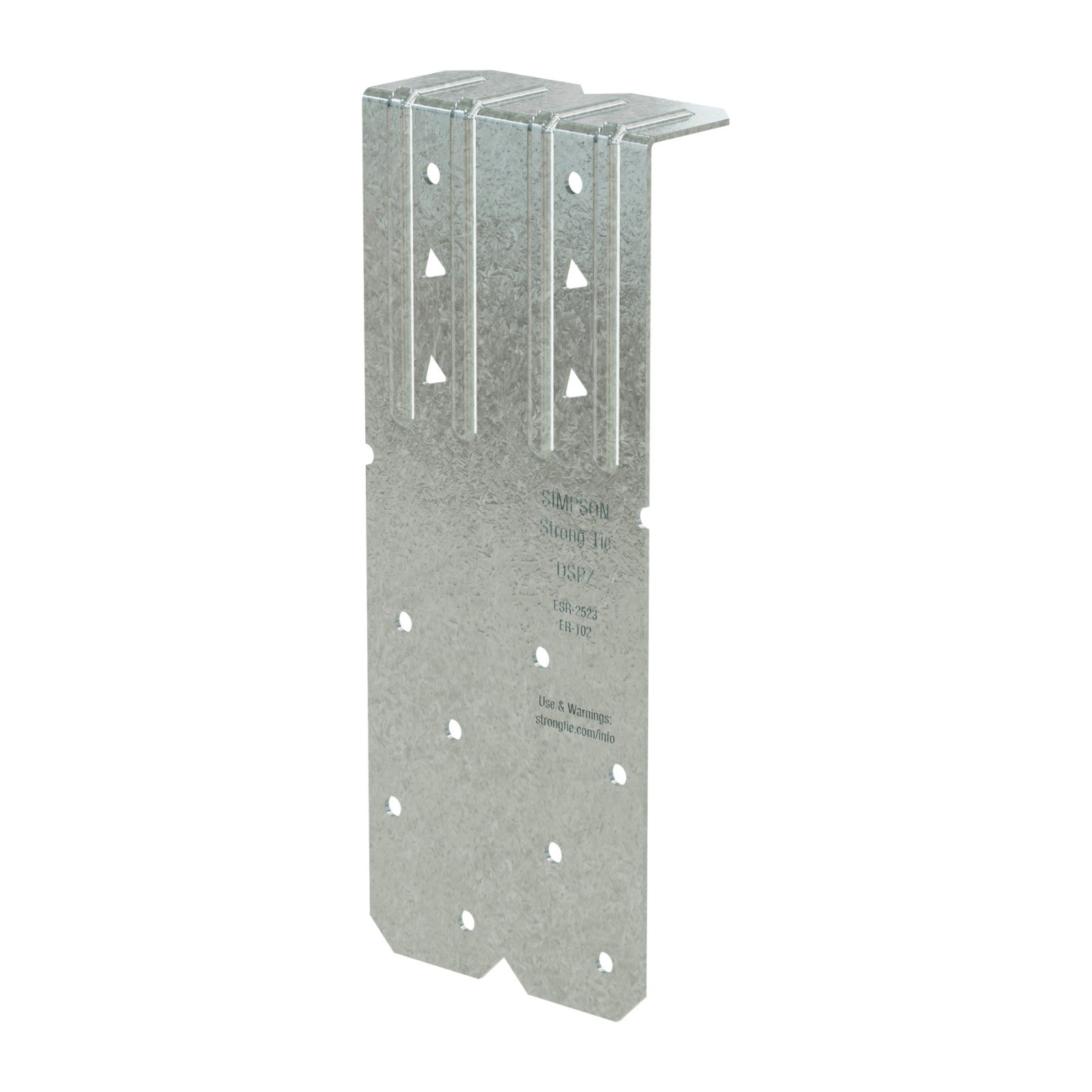

The Simpson DSPZ Double-Stud Plate Connector is designed to tie double studs to top or bottom plates, forming a continuous load path that resists uplift forces. Manufactured from 18-gauge steel and finished with ZMAX coating, this connector is ideal for exterior or treated wood applications where enhanced corrosion protection is essential. It offers flexible installation - either before or after wall placement - making it a practical solution on any jobsite.

Key Features

• Pre-bent design connects double studs to top or sill plates for improved structural integrity.
• Embossments at the bend increase strength while maintaining a slim profile.
• ZMAX coating provides superior corrosion resistance, especially for outdoor use or contact with pressure-treated lumber.
• Available in multiple sizes for different framing configurations.

Applications

• Used in wood framing to create a continuous load path for uplift resistance in double-stud wall assemblies.
• Ideal for construction in moist, coastal, or chemically treated environments.
• Can be installed before or after wall placement to accommodate framing workflows.

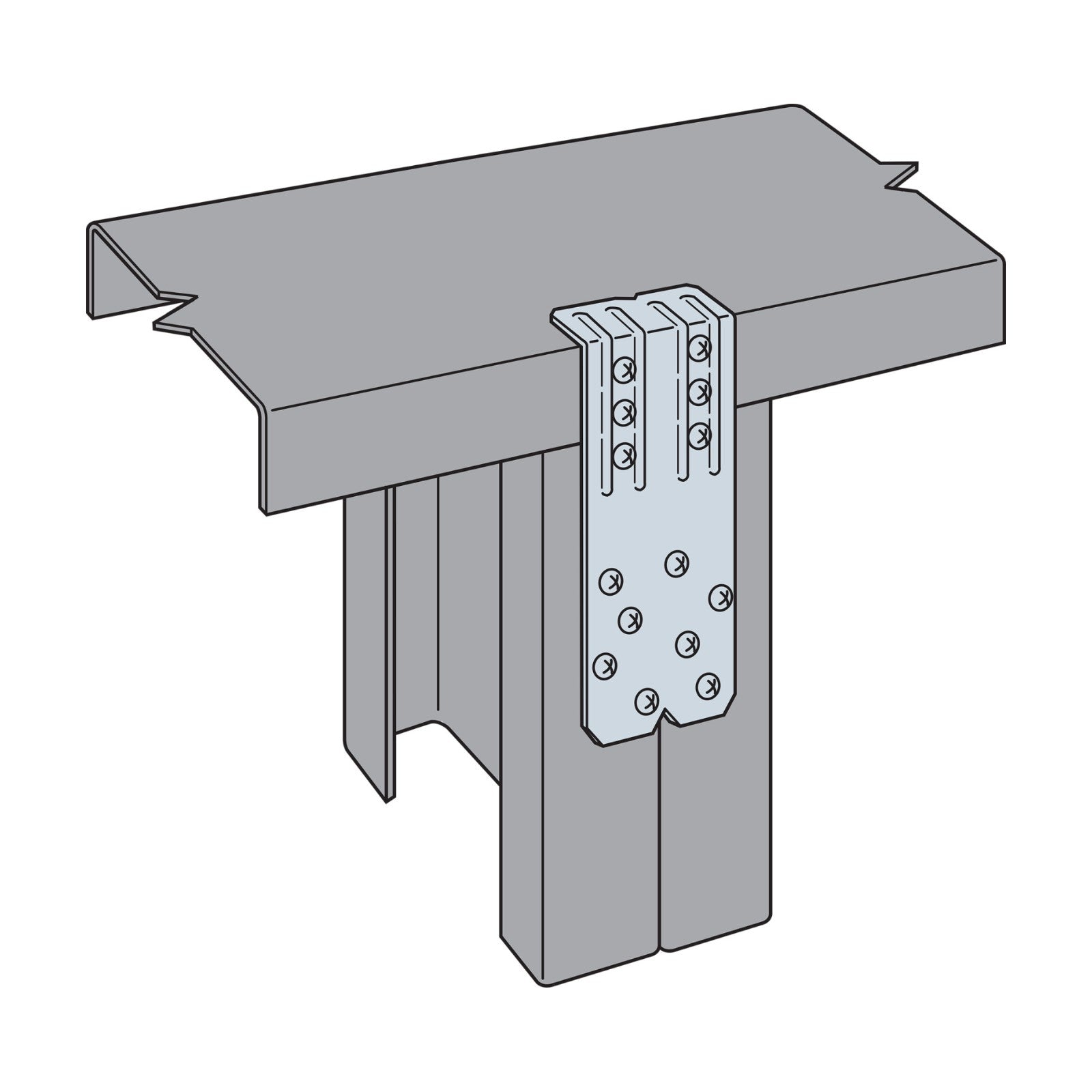

Installation

1. Use all required fasteners as specified by the manufacturer or structural plans.

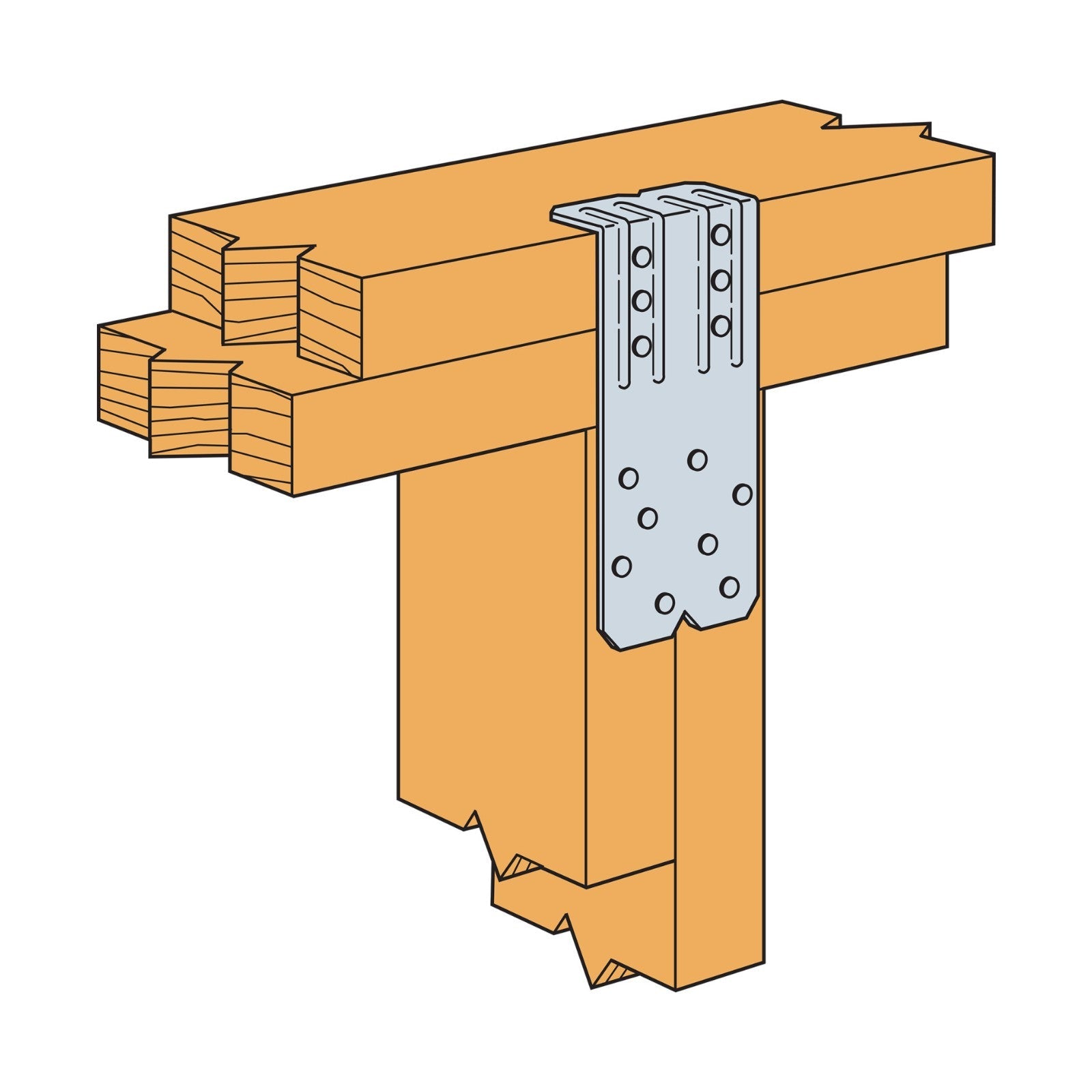

2. For top plate applications: fill both round and triangular holes.

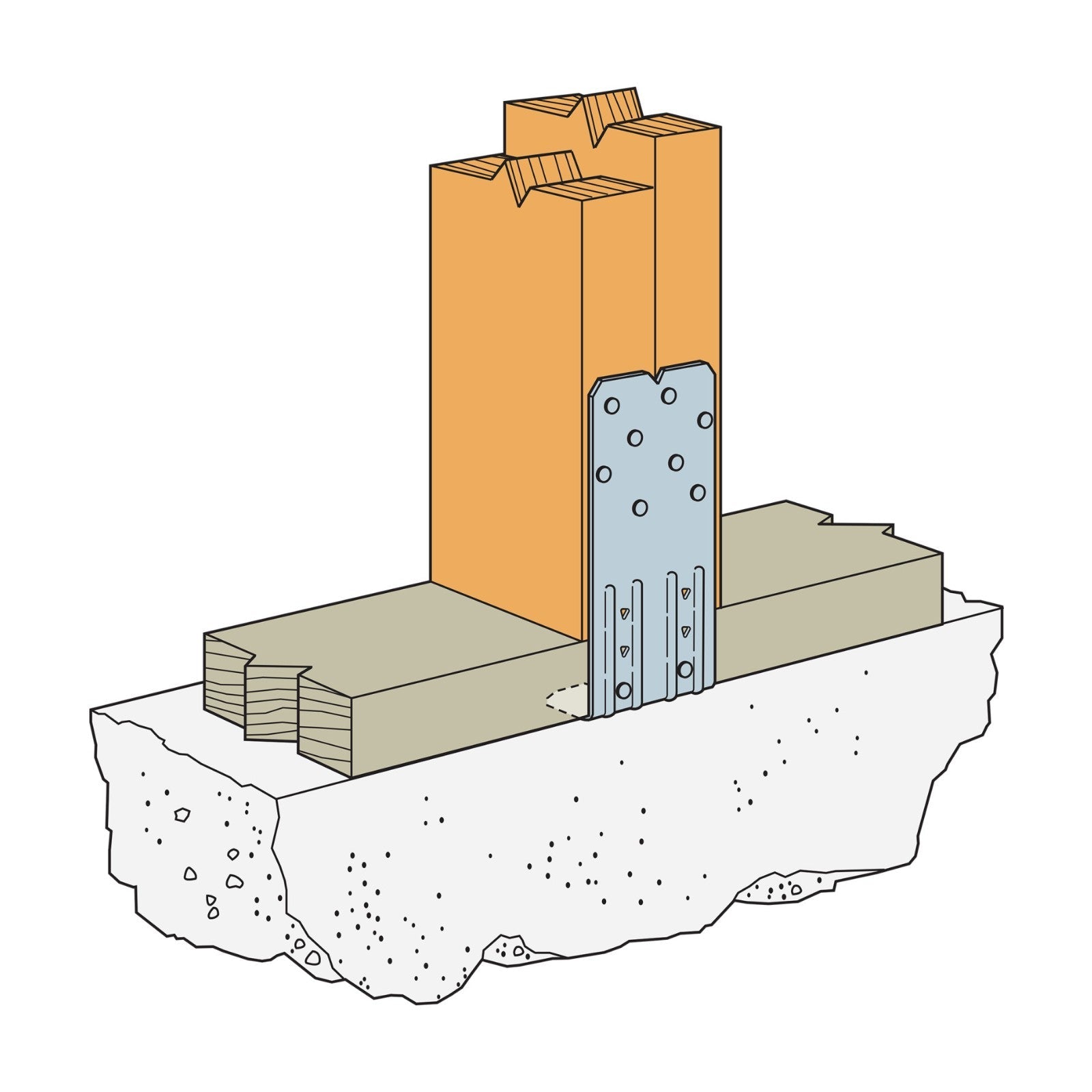

3. For sill plate applications: fill only the round holes.
