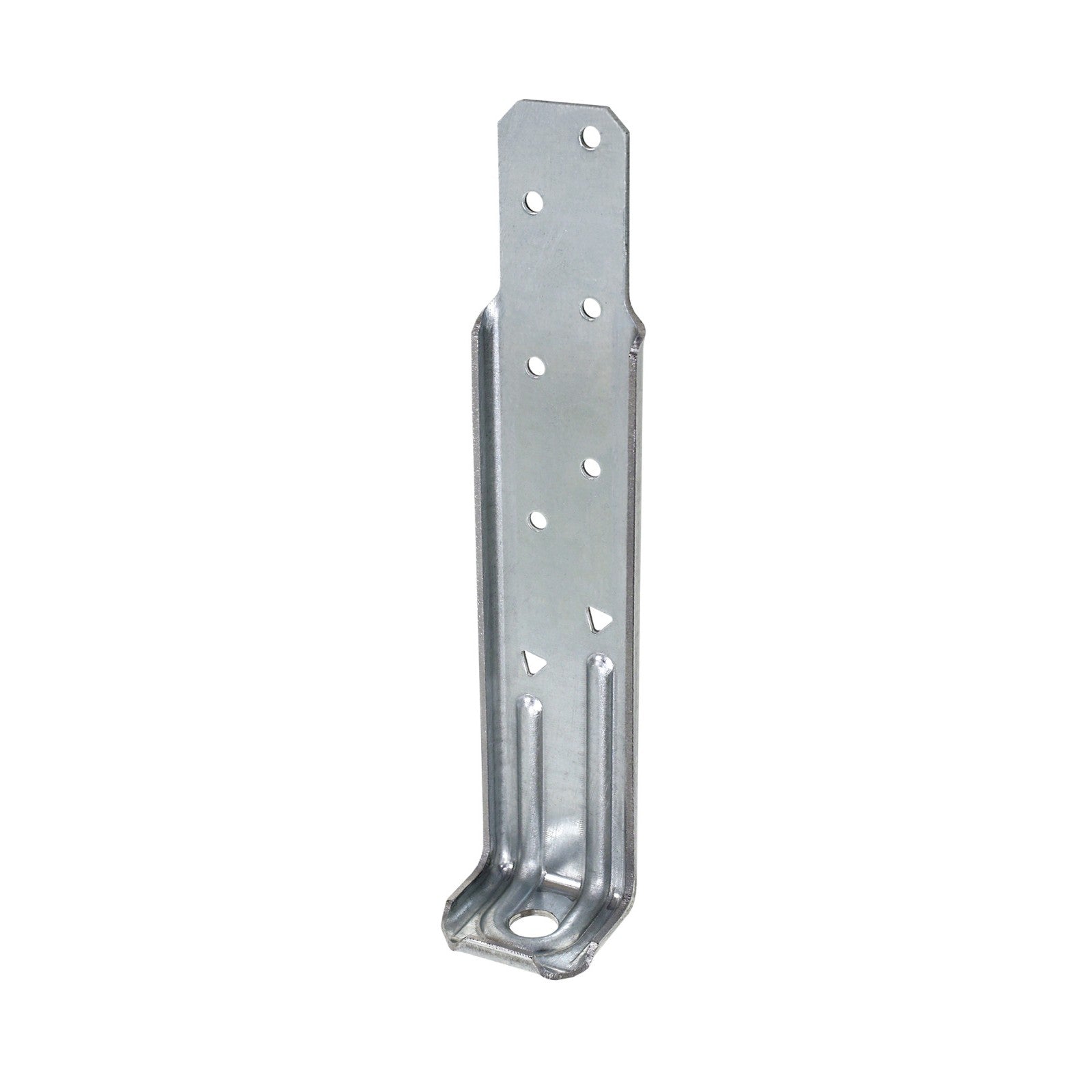

Simpson DTT1Z Deck Tension Tie - ZMAX Finish

SKU: DTT1Z

$3.53

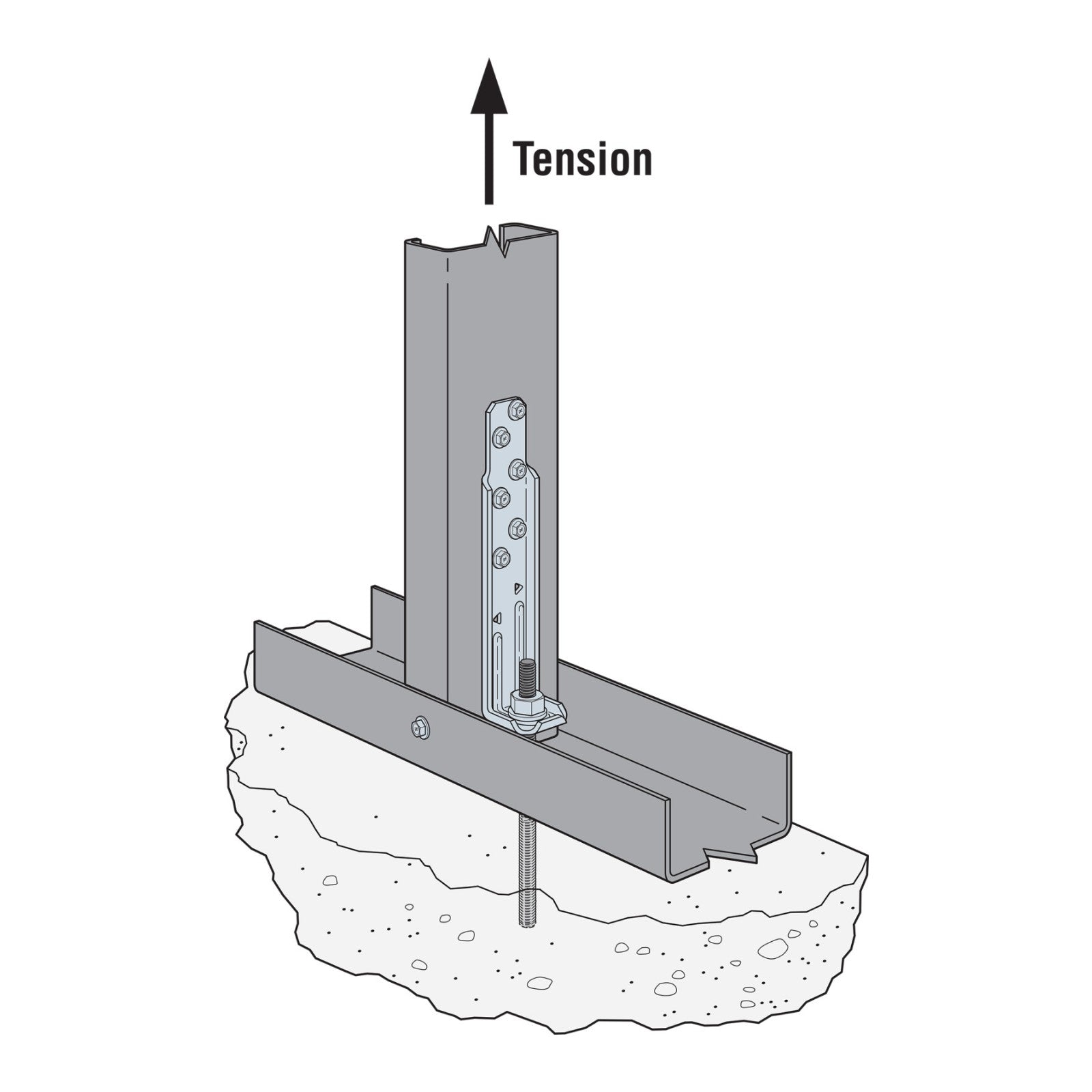

The Simpson Strong-Tie DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. These versatile DTT connectors are also load rated as a holdown for light-duty shearwalls and braced wall panel applications. Also available in a Deck Tension Tie Kit (which includes all required fasteners), the Strong-Tie DTT1Z deck tension tie features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

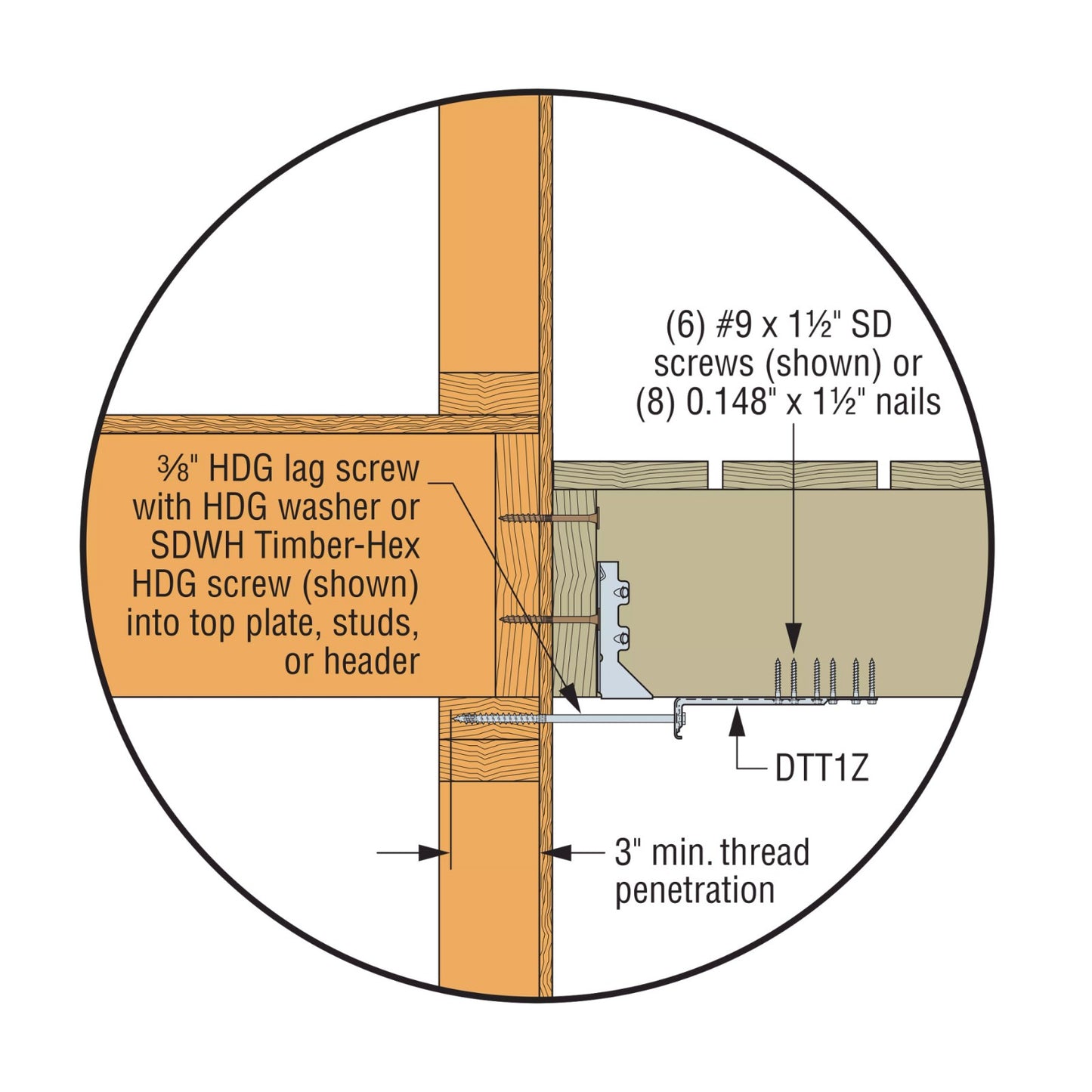

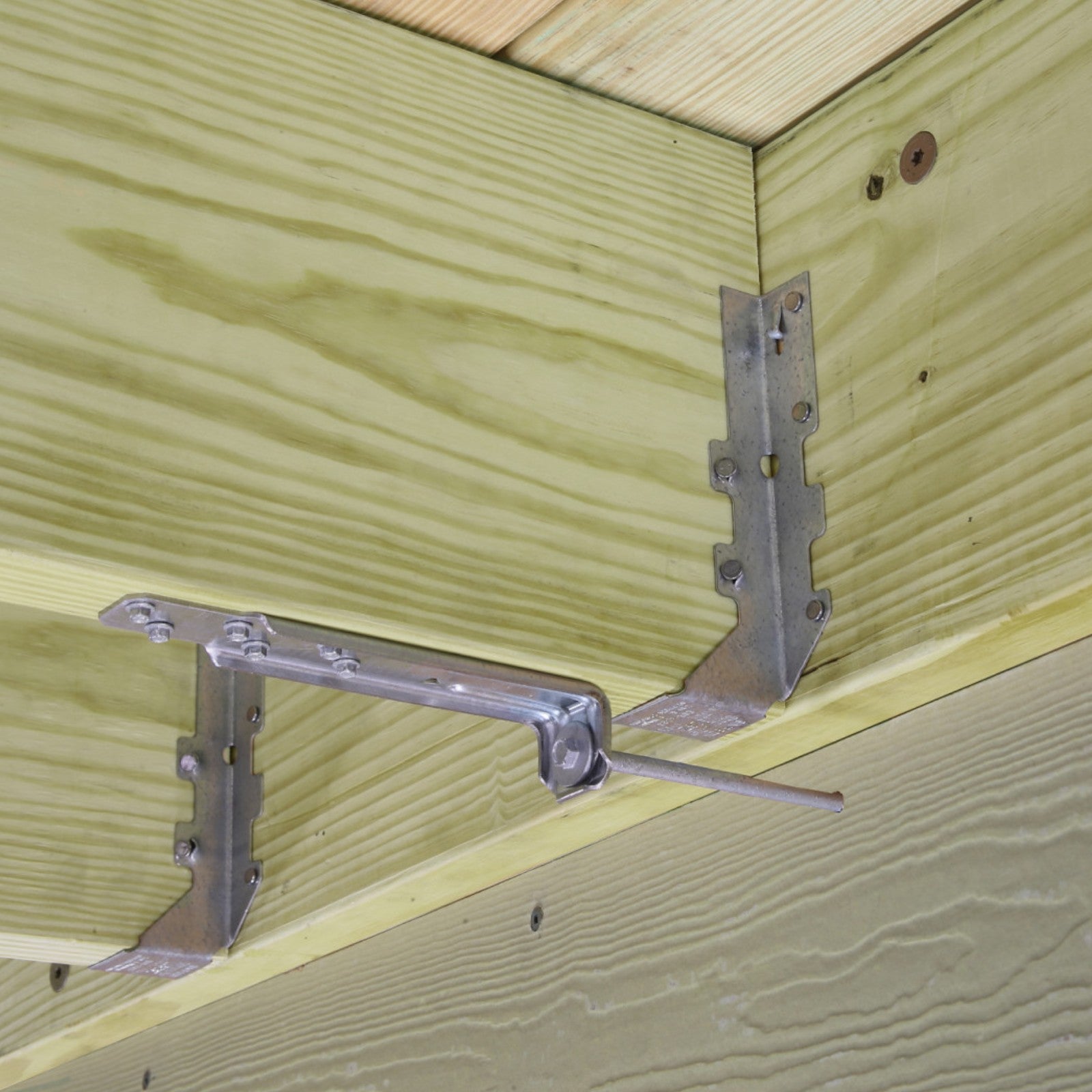

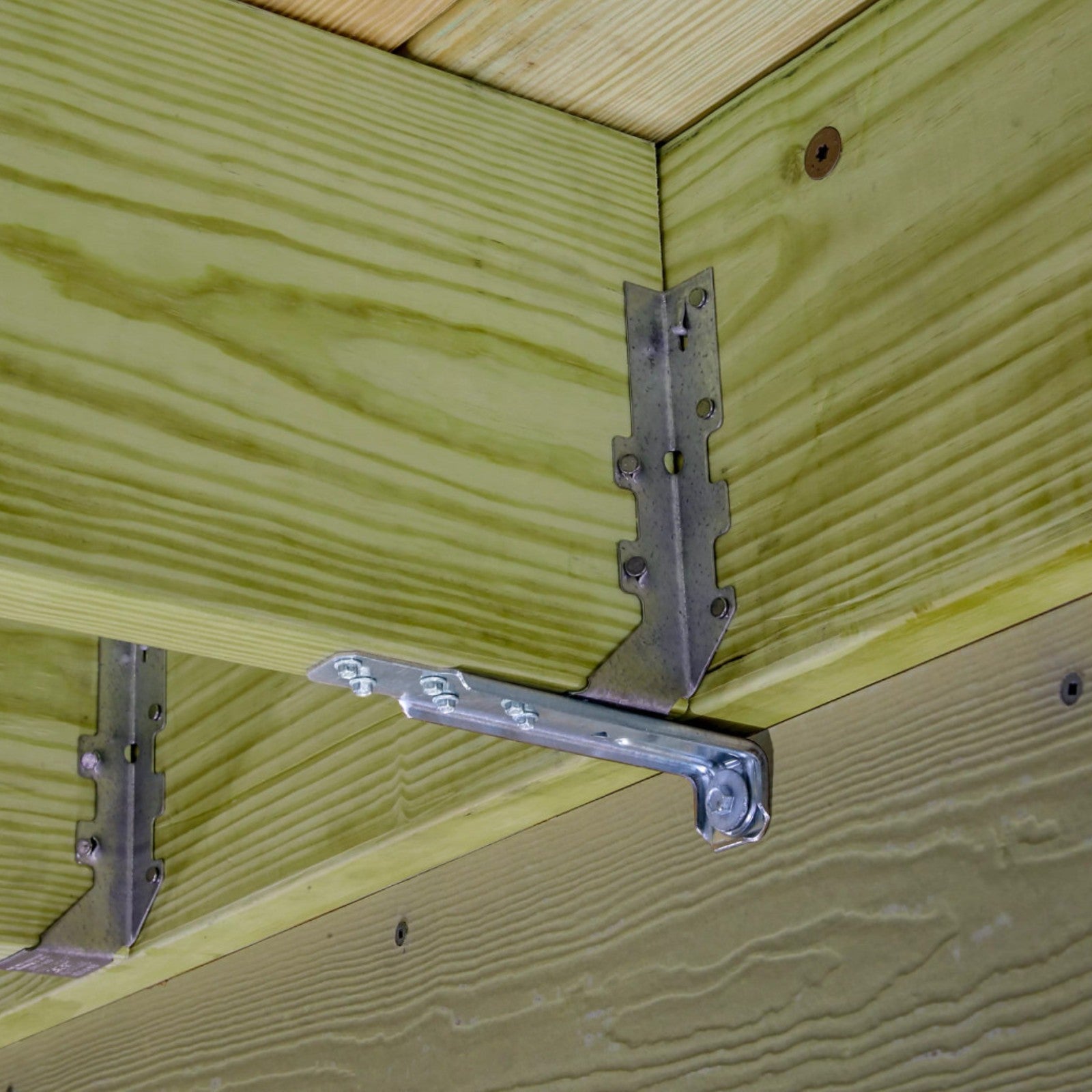

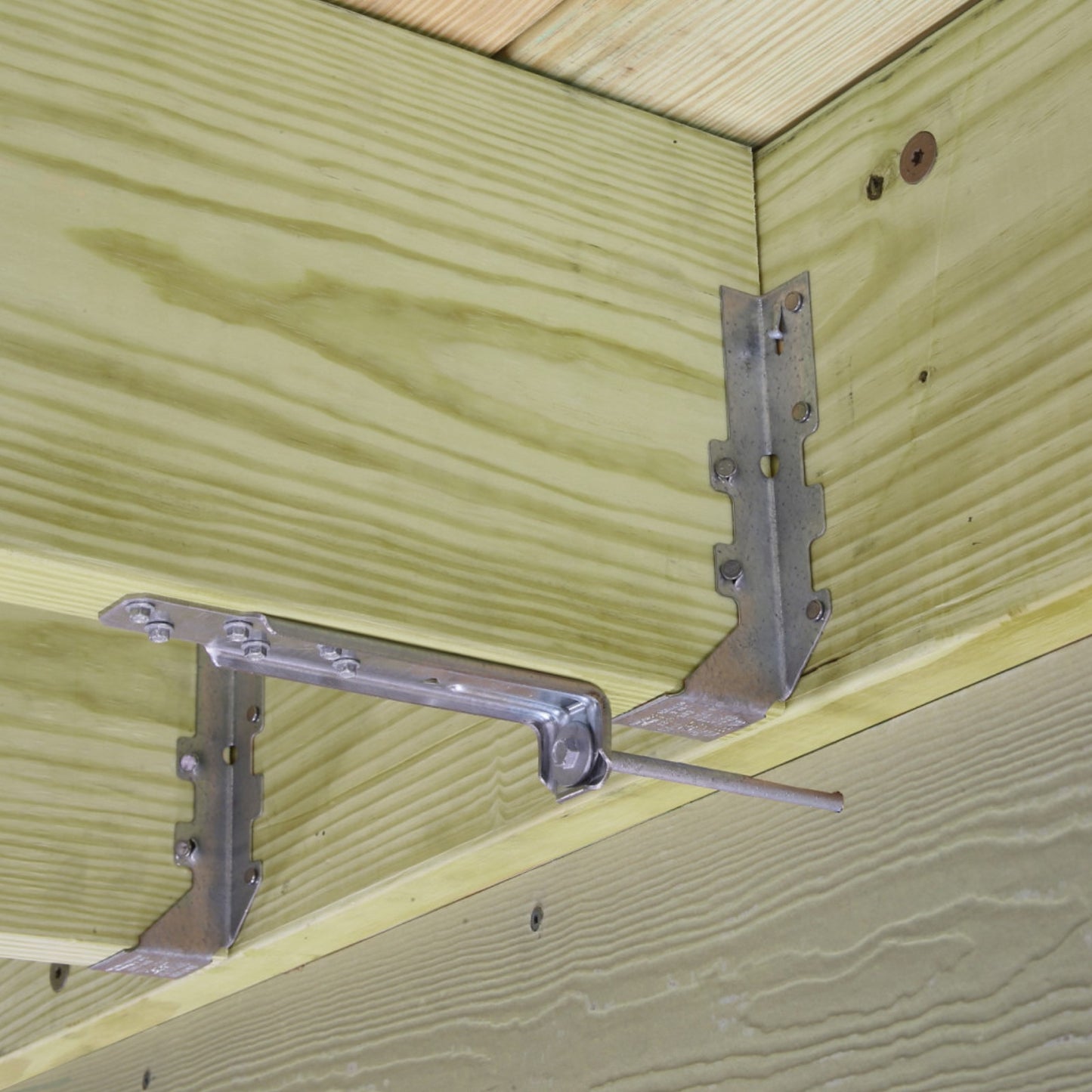

Installation:
  • Use all specified fasteners (see the full DTT1Z Deck Tension Tie Kit).
  • A standard cut washer (included) must be installed between the nut and the seat.

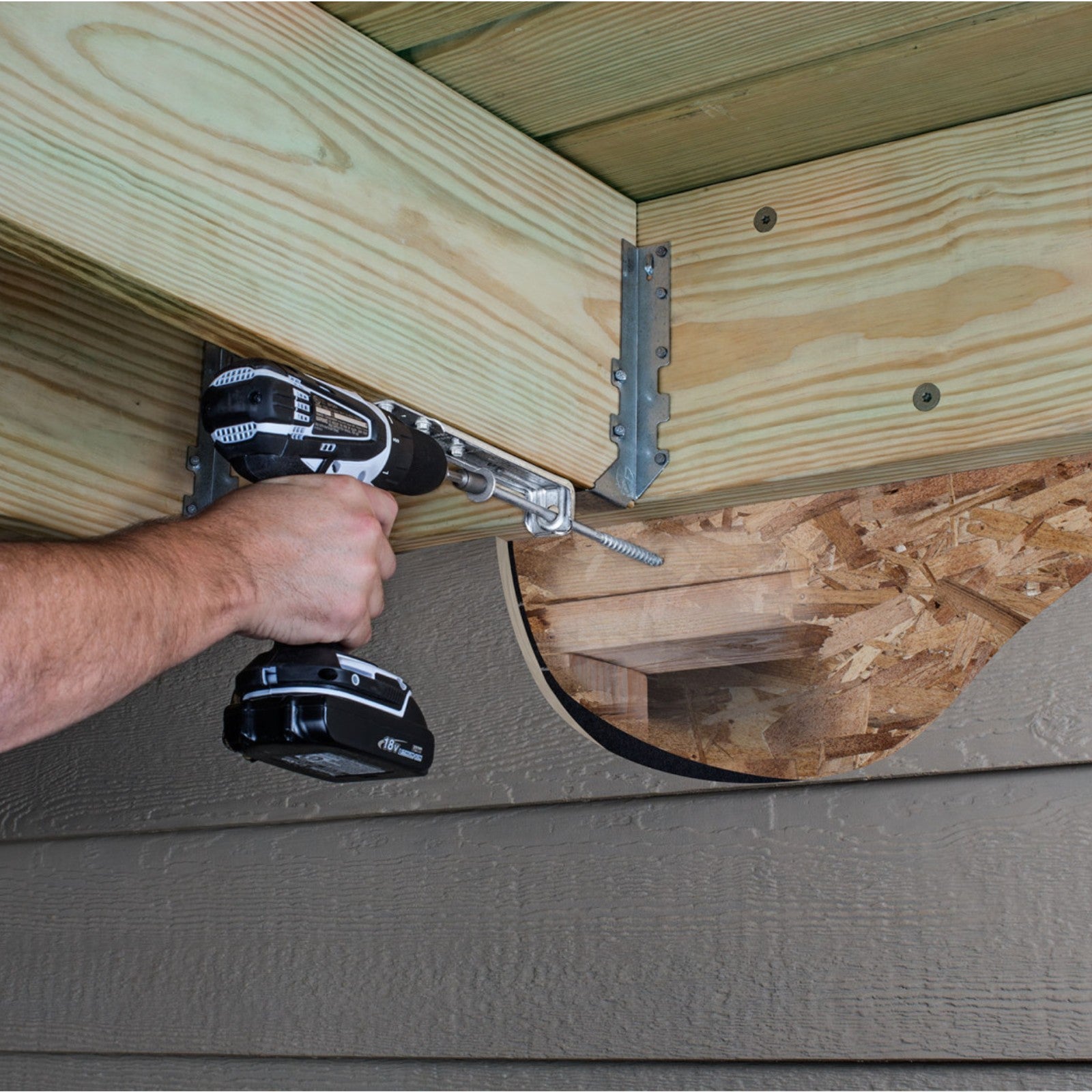

  • Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws install best with a low speed high torque drill with a 3/8" hex head driver.
  • Strong-Drive SD Connector screws install with a 1/4" hex head driver.
  • Strong-Drive SDWH Timber-Hex HDG screws install with a 3/8" hex head driver.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The Simpson Strong-Tie DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. The...

Read More

The Simpson Strong-Tie DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. These versatile DTT connectors are also load rated as a holdown for light-duty shearwalls and braced wall panel applications. Also available in a Deck Tension Tie Kit (which includes all required fasteners), the Strong-Tie DTT1Z deck tension tie features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners (see the full DTT1Z Deck Tension Tie Kit).
  • A standard cut washer (included) must be installed between the nut and the seat.
  • Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws install best with a low speed high torque drill with a 3/8" hex head driver.
  • Strong-Drive SD Connector screws install with a 1/4" hex head driver.
  • Strong-Drive SDWH Timber-Hex HDG screws install with a 3/8" hex head driver.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Anchor - (1) 3/8" Anchor Post - (6) 0.148" x 1-1/2" or SD9112 Screws

Finish Spec:
ZMAX

Manufacturer Name:
Simpson Strong-Tie

Product Guide Document:
HDU-DTT-Load-Table.pdf

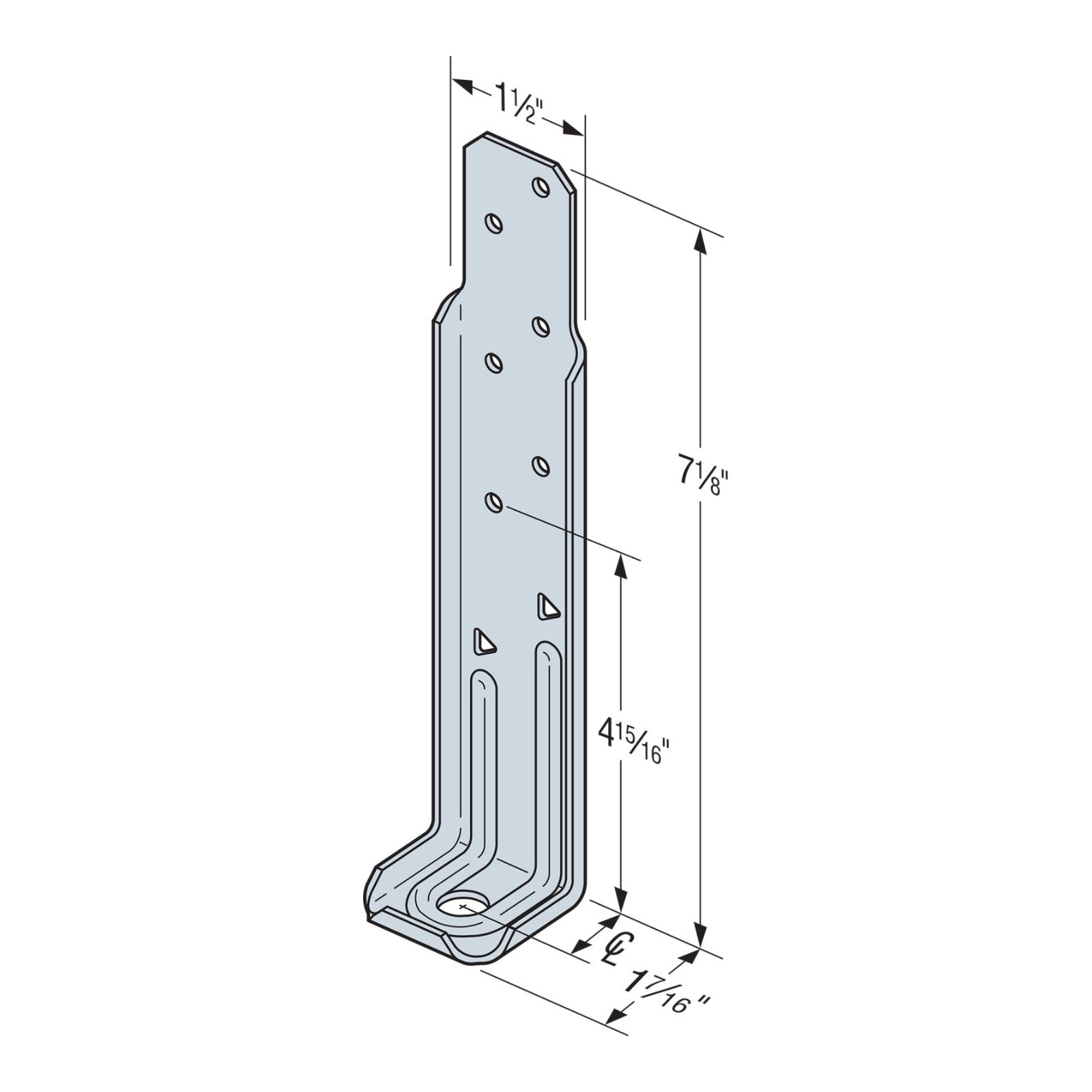

Thickness:
14 Gauge

Product Guide:
