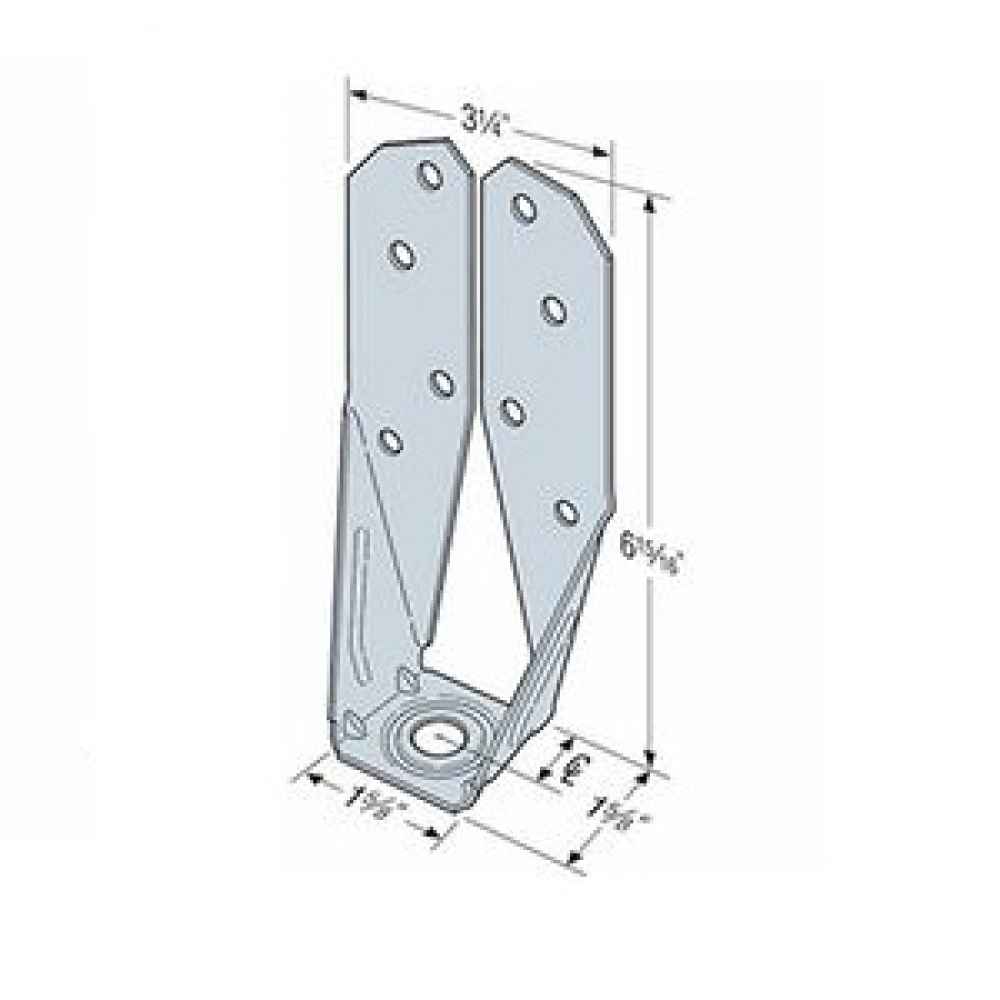

Simpson DTT2Z-SDS2.5 Deck Tension Tie W/2.5" SDS Screws- ZMAX Finish

SKU: DTT2Z-SDS2.5

$13.18

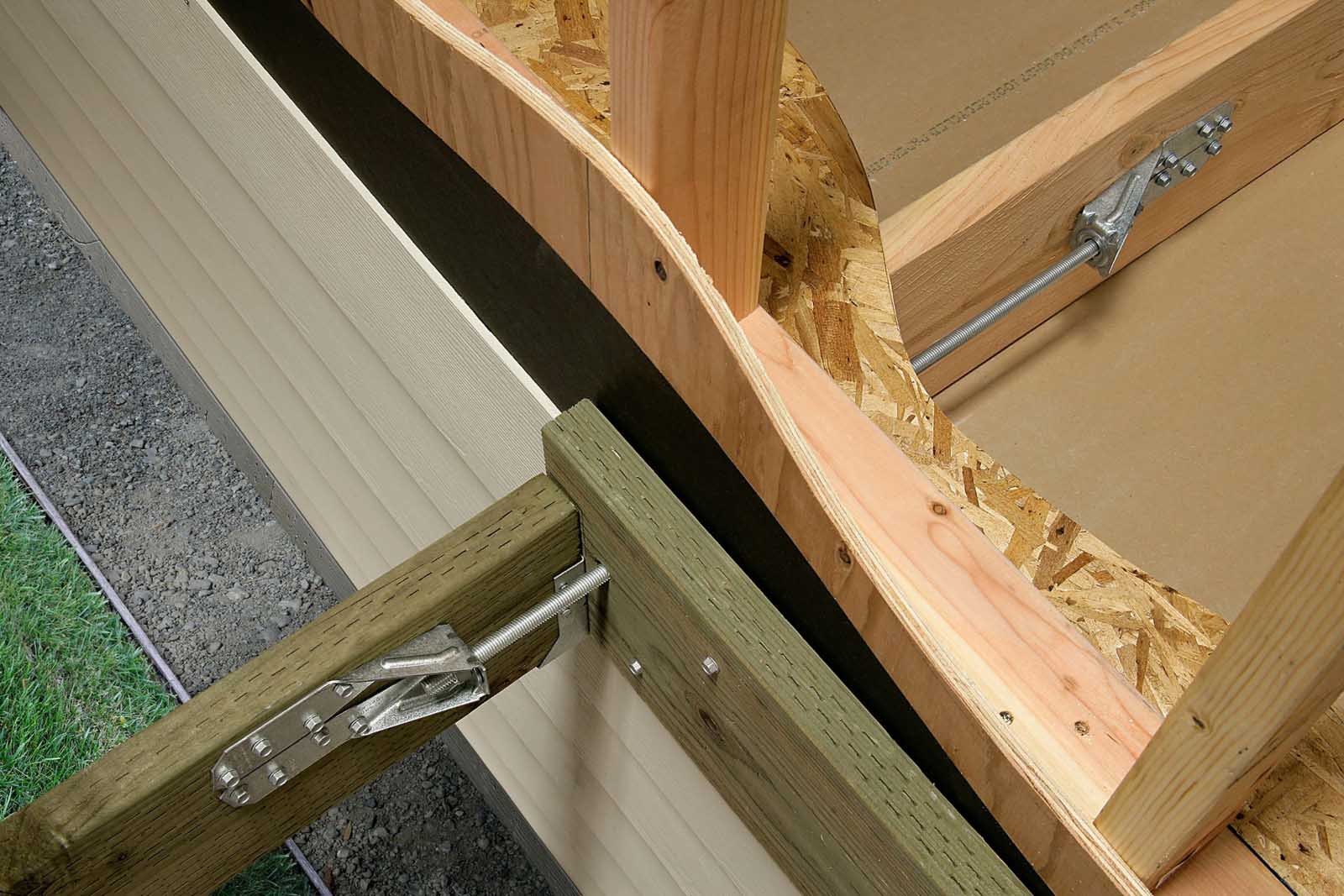

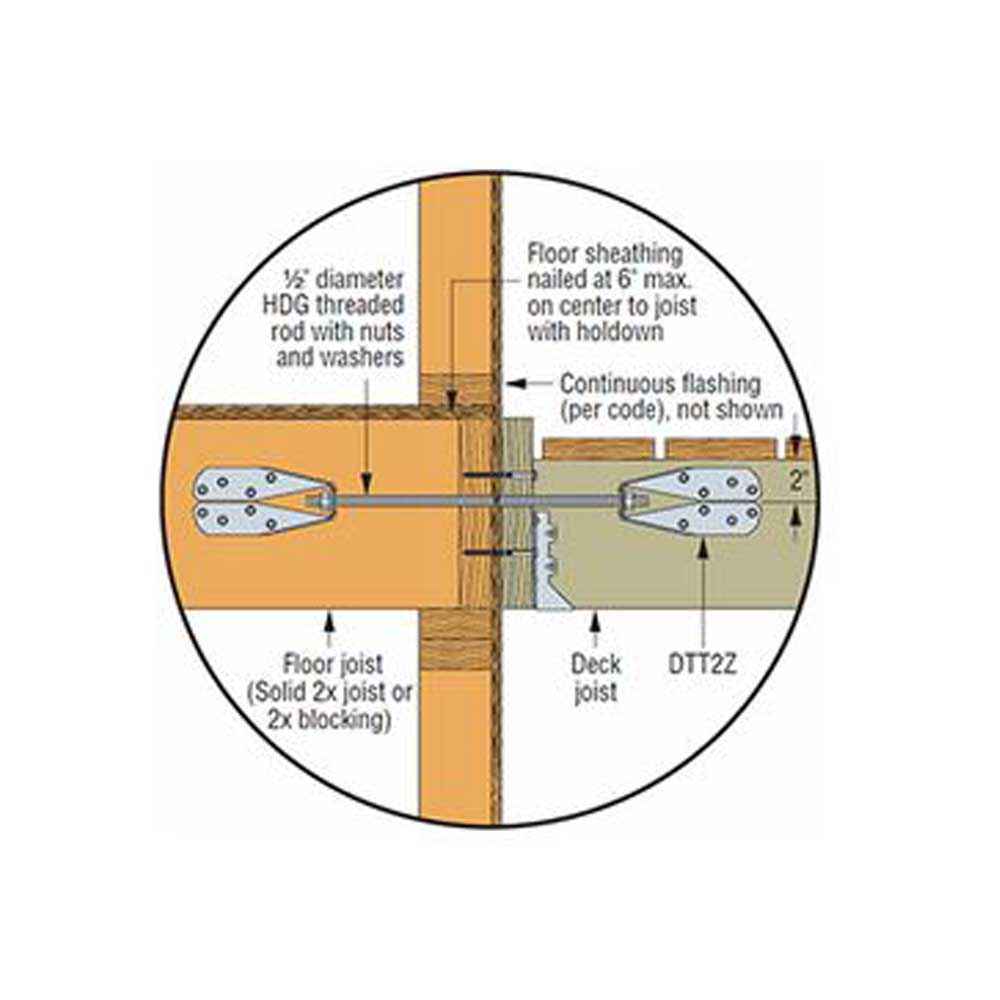

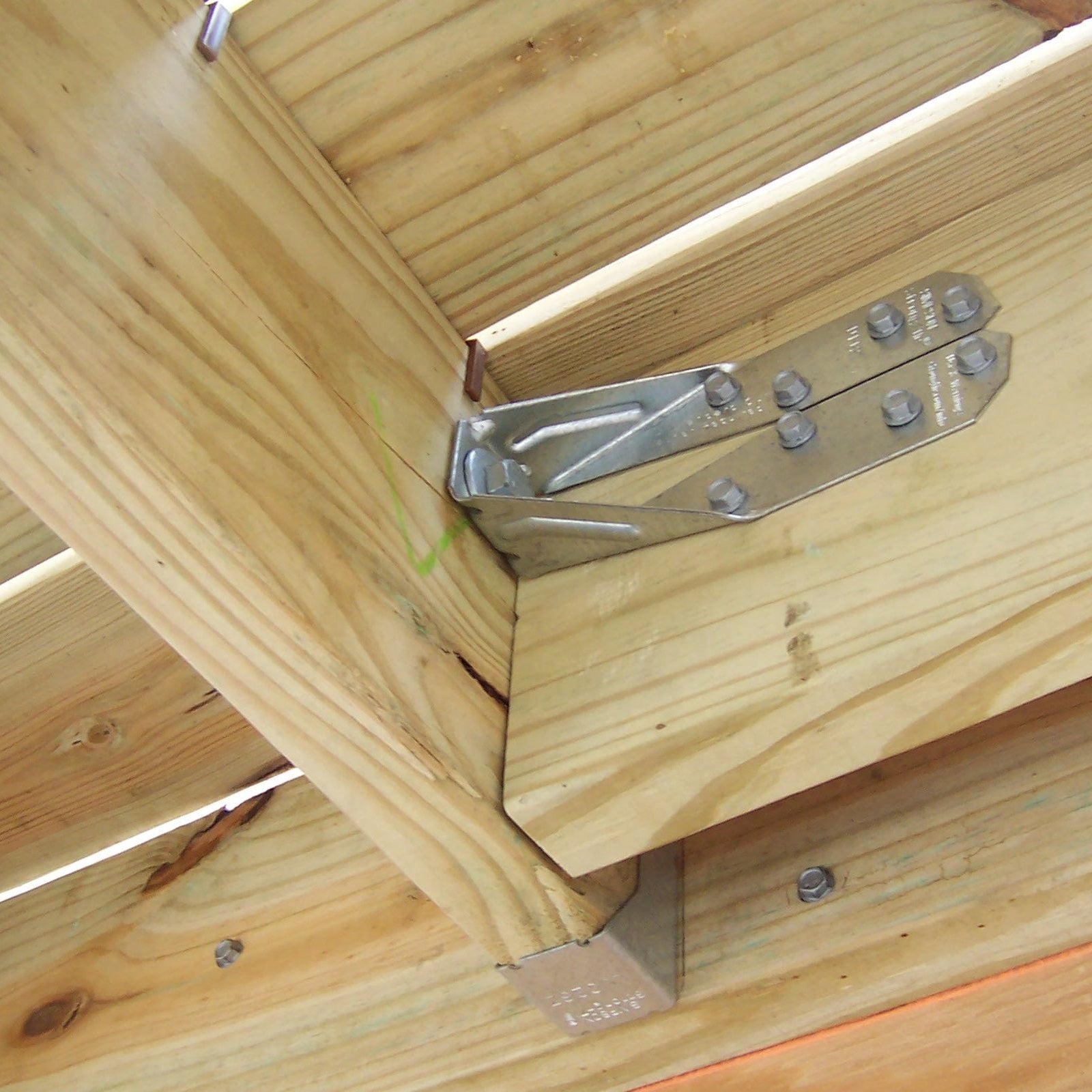

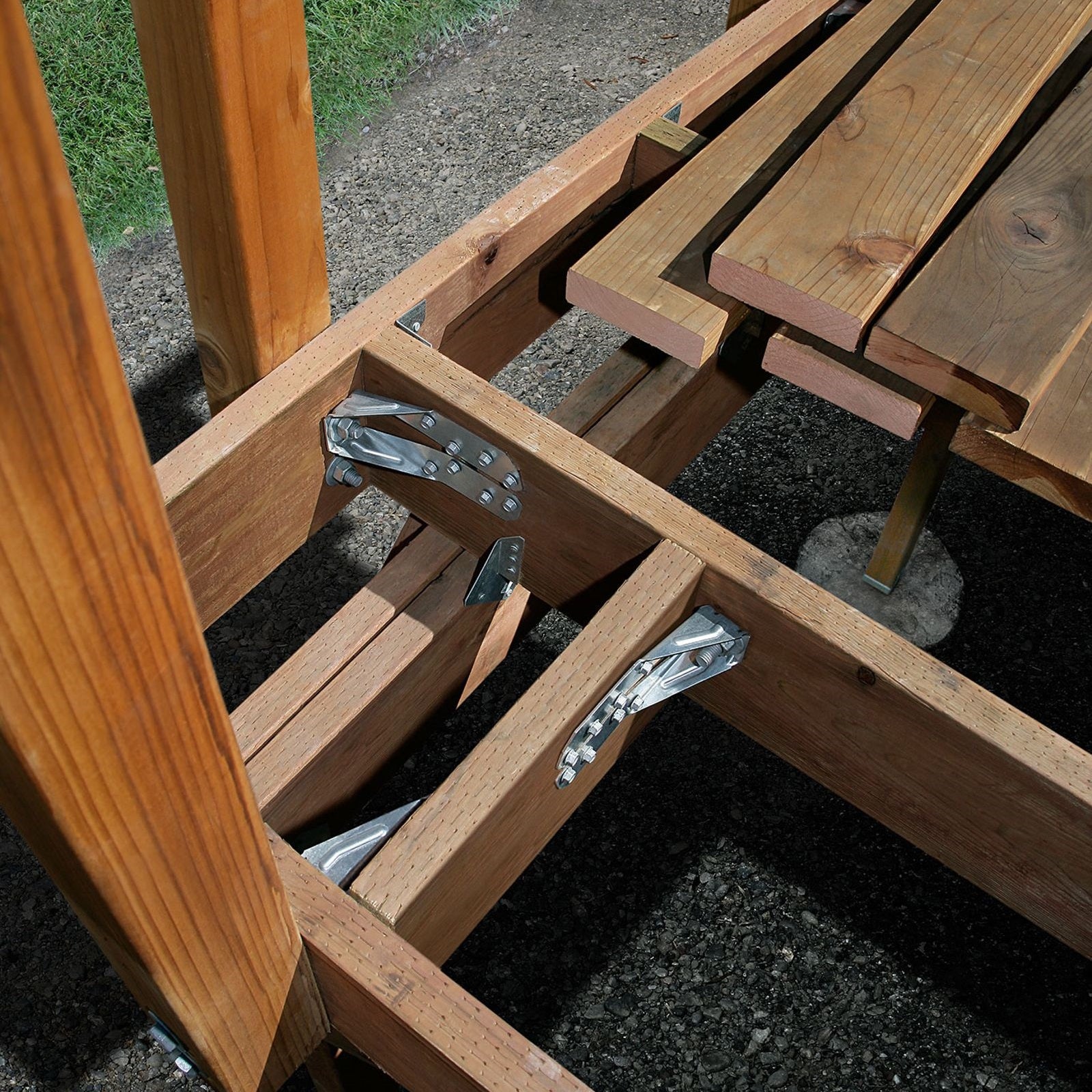

The Simpson Strong-Tie DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. These versatile DTT connectors are also load rated as a holdown for light-duty shearwalls and braced wall panel applications. The Strong-Tie DTT2Z-SDS2.5 deck tension tie features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:

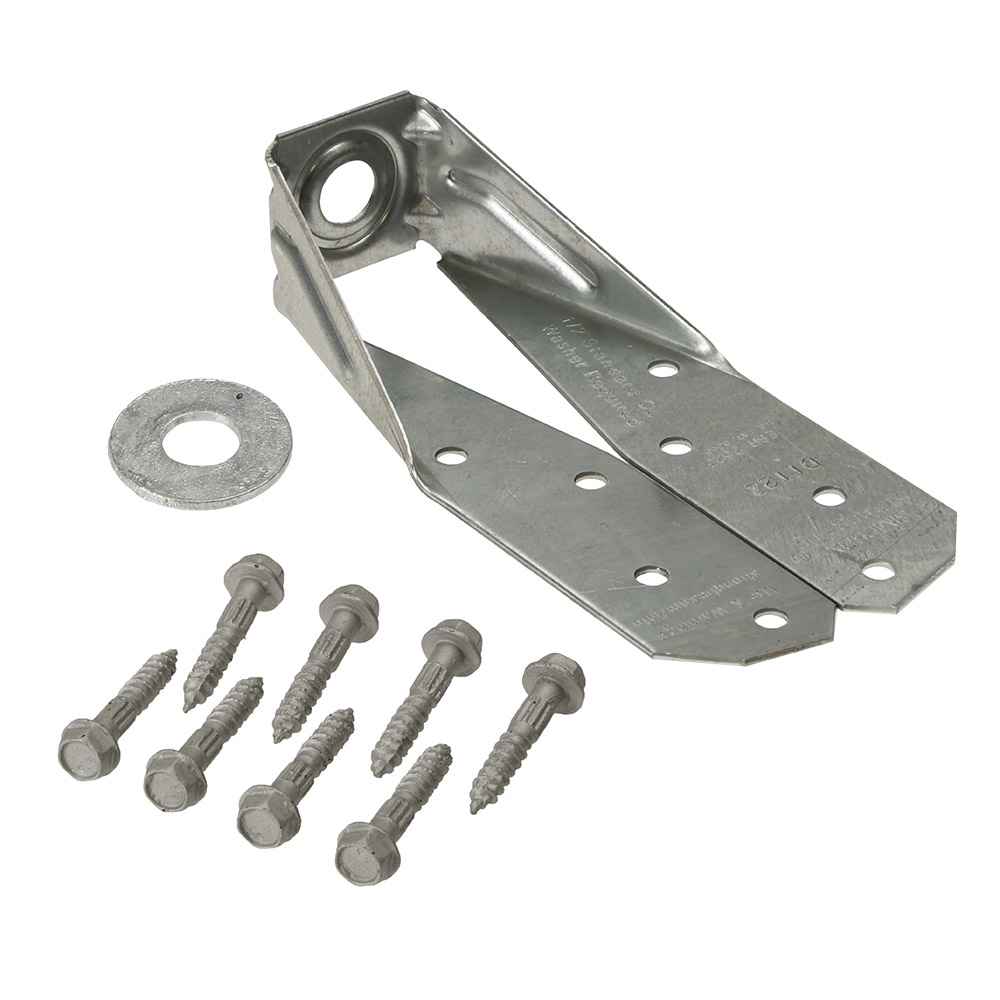

  • 2-1/2" SDS screws included

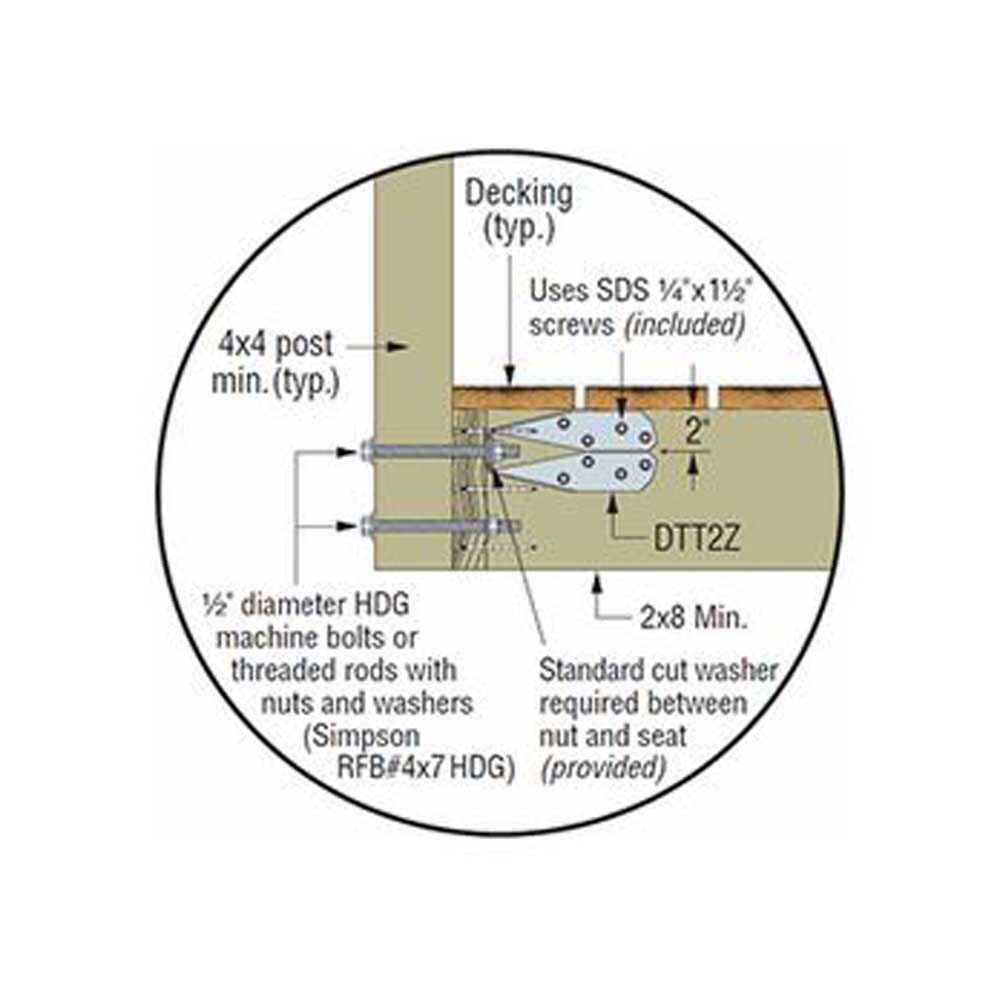

  • A standard cut washer (included) must be installed between the nut and the seat.
  • Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws install best with a low speed high torque drill with a 3/8" hex head driver.
  • Strong-Drive SD Connector screws install with a 1/4" hex head driver.
  • Strong-Drive SDWH Timber-Hex HDG screws install with a 3/8" hex head driver.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The Simpson Strong-Tie DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. The...

Read More

The Simpson Strong-Tie DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. These versatile DTT connectors are also load rated as a holdown for light-duty shearwalls and braced wall panel applications. The Strong-Tie DTT2Z-SDS2.5 deck tension tie features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • 2-1/2" SDS screws included
  • A standard cut washer (included) must be installed between the nut and the seat.
  • Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws install best with a low speed high torque drill with a 3/8" hex head driver.
  • Strong-Drive SD Connector screws install with a 1/4" hex head driver.
  • Strong-Drive SDWH Timber-Hex HDG screws install with a 3/8" hex head driver.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Finish Spec:
ZMAX

Manufacturer Name:
Simpson Strong-Tie

Product Guide Document:
HDU-DTT-Load-Table.pdf

Thickness:
14 Gauge

Product Guide:

Read More

Show Less
