Simpson DTT2SS Deck Tension Tie W/1.5" SDS Screws - Stainless Steel

SKU: DTT2SS

$37.72

The Simpson Strong-Tie DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. These versatile DTT connectors are also load rated as a holdown for light-duty shearwalls and braced wall panel applications. The Strong-Tie DTT2SS deck tension ties are made of 316L stainless steel to provide maximum corrosion resistance in the harshest of climates


Installation:
  • 1-1/2" SDS screws included
  • A standard cut washer (included) must be installed between the nut and the seat.
  • Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws install best with a low speed high torque drill with a 3/8" hex head driver.
  • Strong-Drive SD Connector screws install with a 1/4" hex head driver.
  • Strong-Drive SDWH Timber-Hex HDG screws install with a 3/8" hex head driver.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The Simpson Strong-Tie DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. The...

Read More

The Simpson Strong-Tie DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. These versatile DTT connectors are also load rated as a holdown for light-duty shearwalls and braced wall panel applications. The Strong-Tie DTT2SS deck tension ties are made of 316L stainless steel to provide maximum corrosion resistance in the harshest of climates


Installation:
  • 1-1/2" SDS screws included
  • A standard cut washer (included) must be installed between the nut and the seat.
  • Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws install best with a low speed high torque drill with a 3/8" hex head driver.
  • Strong-Drive SD Connector screws install with a 1/4" hex head driver.
  • Strong-Drive SDWH Timber-Hex HDG screws install with a 3/8" hex head driver.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Finish Spec:
316L Stainless Steel

Manufacturer Name:
Simpson Strong-Tie

Product Guide Document:
HDU-DTT-Load-Table.pdf

Thickness:
14 Gauge

Product Guide:

Read More

Show Less

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dipak Shah
One of the best product

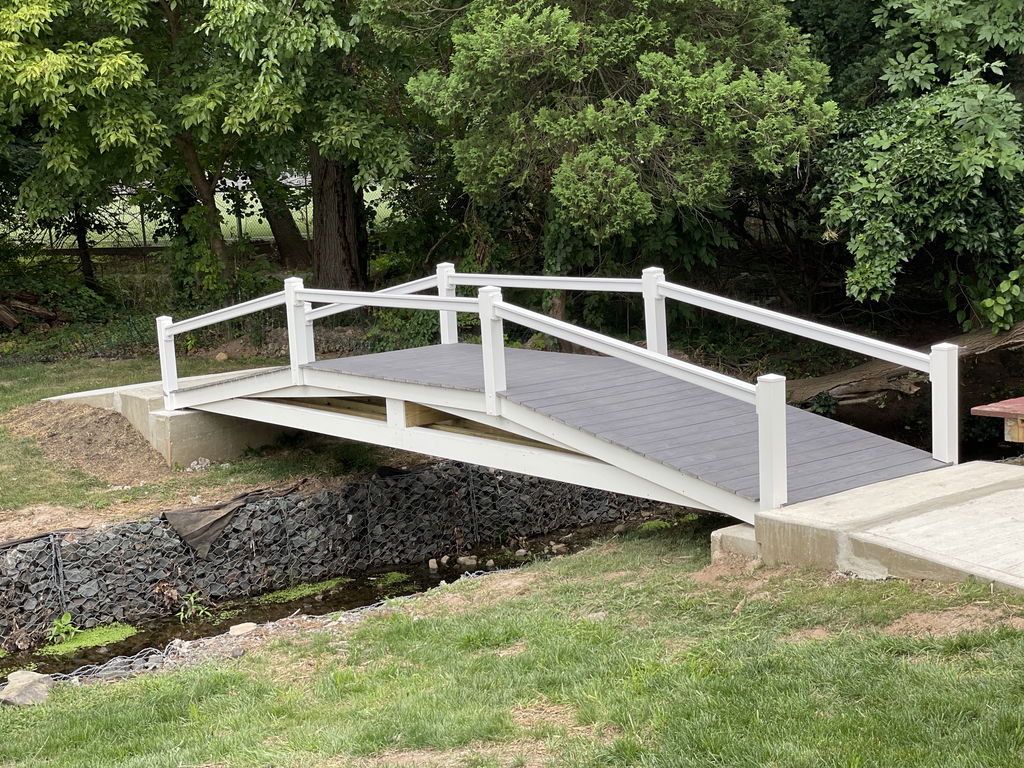

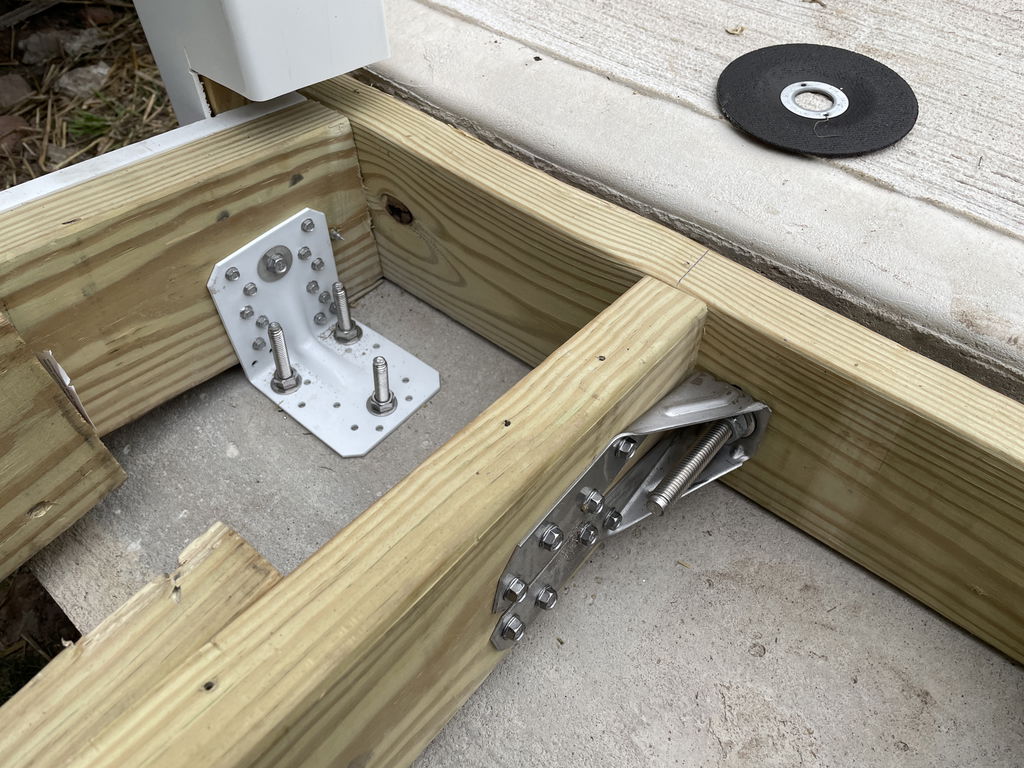

Perfect item for my project. I used total 8 under the bridge to anchor 4 beams to the concrete to protect lateral move on both side of the bridge. It comes with 316SS screws and washer too. I used 2 of them on each side of bridge end beams to anchor the bridge with concrete base. I used 1/2" 316SS Wedge anchor for concrete.
