Shop more ECCQ End Column Caps
SKU: ECCQ106SDS2.5

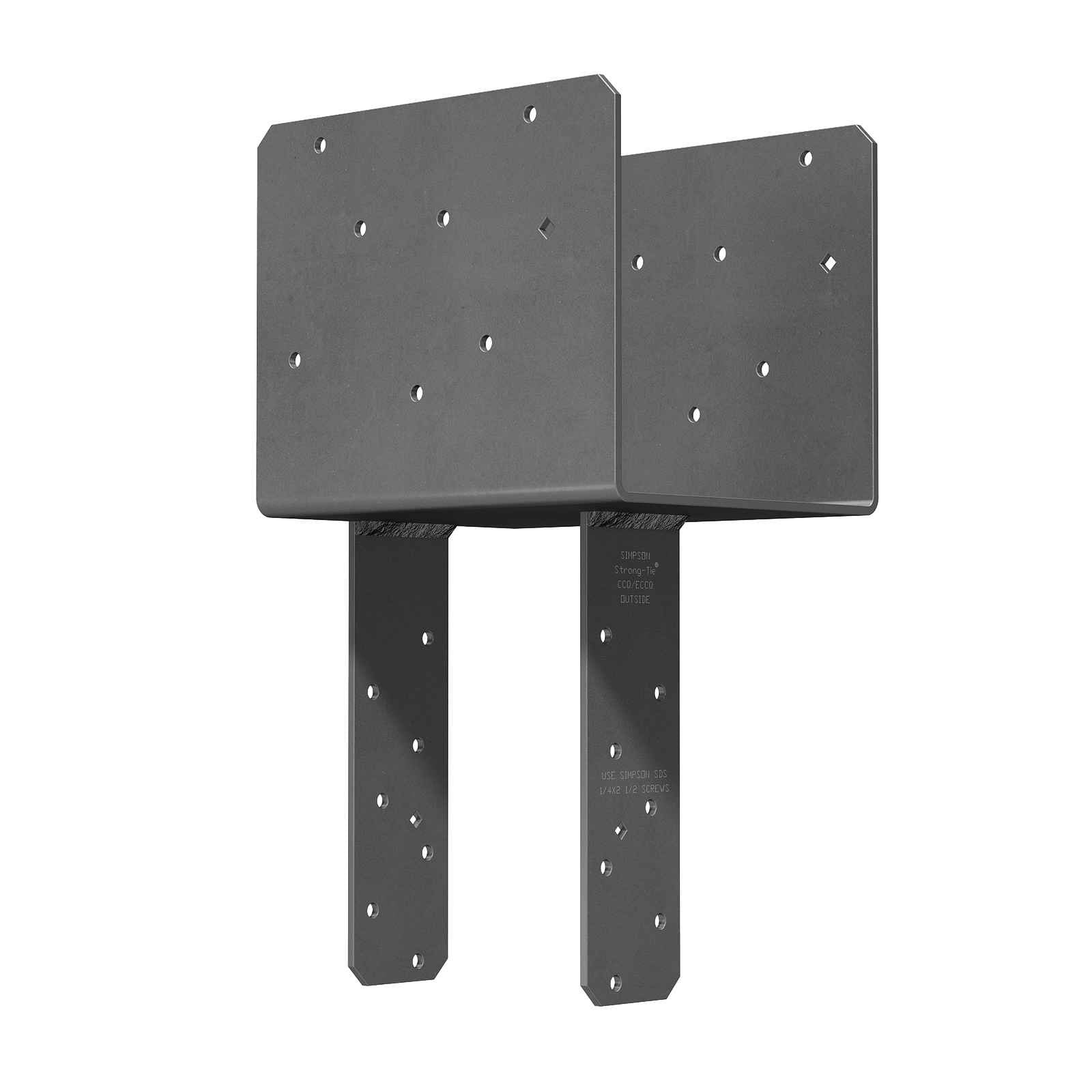

Simpson ECCQ106SDS2.5 End Column Cap w/SDS Screws - Gray Paint

Simpson ECCQ106SDS2.5 End Column Cap w/SDS Screws - Gray Paint

Regular price $269.35
Sale price $269.35 Regular price
0% off
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Made to Order
Ships in 2-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Please Note: This item is made to order and is non-returnable. Please call us for more information on lead times and availability.

The Simpson ECCQ106SDS2.5 End Column Cap w/SDS Screws - Gray Paint enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in end-of-beam applications for wood construction.

The seat of the column cap features additional surface area beyond the side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection.

This product is intended for use with 4x posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber. Included with this column cap are the necessary Simpson Strong-Drive SDS connector screws to provide fast installation and lower profile than standard bolts.

Features:

  • Connection Type: Provides strong end-of-beam connection for column-to-beams and the extended area of the column seat offers additional surface area of bearing to distribute the load.
  • Lumber Size: Intended for use with 10x beams and 4x posts/columns.
  • Material and Finish: Made from Steel for durability and finished with Gray Paint coating.
  • Performance: Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
  • Installation Design:Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.

California Residents: WARNING

Specifications:

Material: Steel
Post Size: 4x
Height: 7"
Fasteners required: Beam - (14) 1/4" x 2 -1/2" SDS Screws; Post - (14) 1/4" x 2-1/2" SDS Screws
Thickness: 3 Gauge
Quantity: 1
Finish: Gray Paint
Length: 8-1/2"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Beam size: 10x
Additional information:
Width (1): 5-1/4"
Width (2): 3-5/8"
Product Guide: View Spec Sheet

Features

•The SDS screws provide a lower profile than standard through bolts
•Certified welds for confidence in strength and loading
•Uplift loads have been increased for earthquake or wind loading
•Diamond holes for temporary fastening

Installation

•Fasten with 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap. (Lag screws will not achieve the same load.) Use stainless-steel Strong-Drive screws with stainless-steel connectors.
•For rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimension on straps rotated 90° is limited by the W1 dimension.)
