SKU: ECCQ3X-SDS2.5HDG

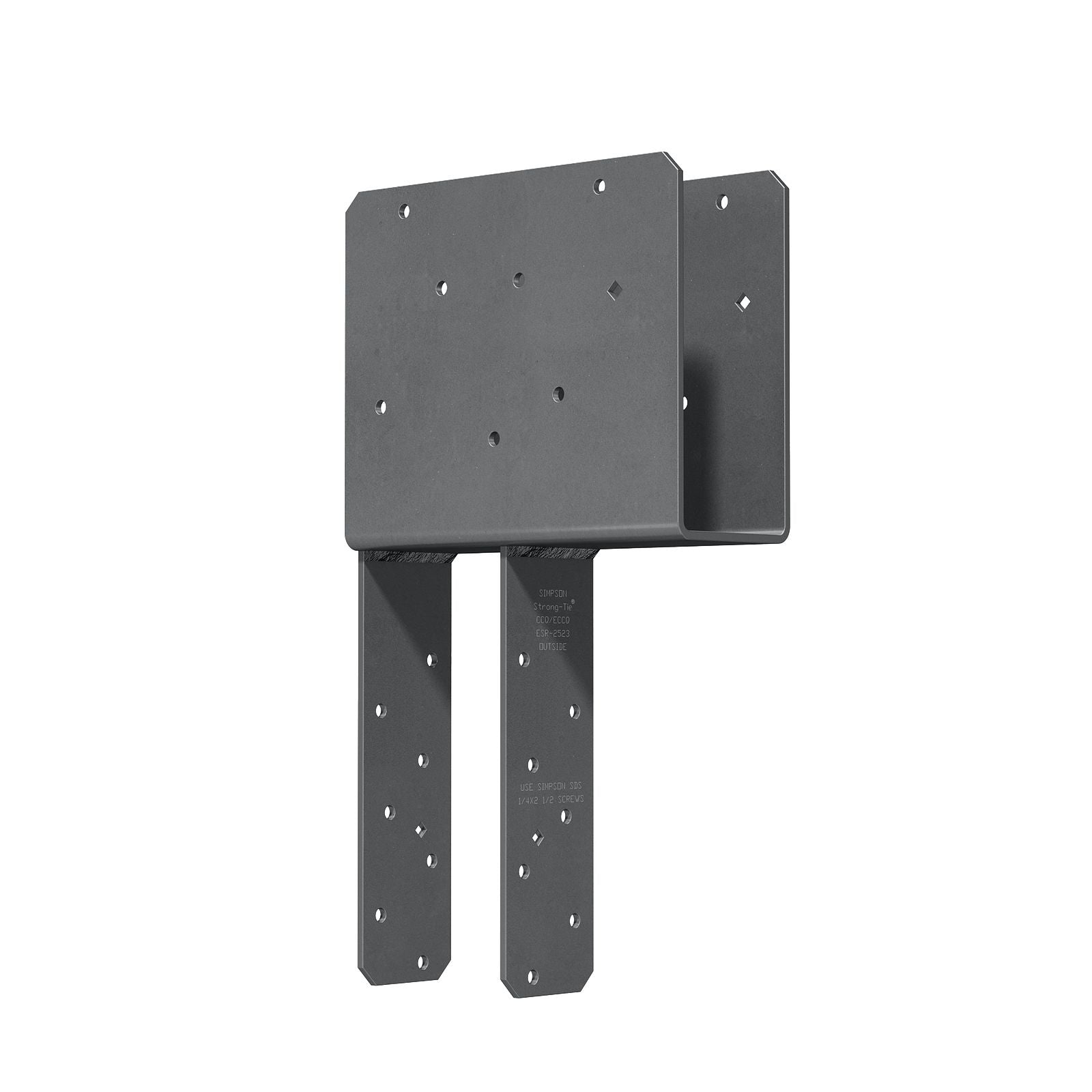

Simpson ECCQ3X-SDS2.5HDG End Column Cap for 3-1/8" Beam, Variable Post, Custom Non-Returnable

Simpson ECCQ3X-SDS2.5HDG End Column Cap for 3-1/8" Beam, Variable Post, Custom Non-Returnable!

  • Simpson ECCQ3X-SDS2.5HDG End Column Cap for 3-1/8" Beam
  • Simpson ECCQ3X-SDS2.5HDG End Column Cap for 3-1/8" Beam
  • Simpson Platinum DistributorSimpson AC6Z Adjustable Post Cap for 6X Beam - ZMAX
1 3
SKU: ECCQ3X-SDS2.5HDG

Simpson ECCQ3X-SDS2.5HDG End Column Cap for 3-1/8" Beam, Variable Post, Custom Non-Returnable

Call for Price

Request Bulk Pricing
Call to Order
Request Bulk Pricing
Ships in 21-28 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Hot Dip Galvanized
Beam size: 3-1/8"
Fasteners required: Beam - (14) 1/4" x 2 -1/2" SDS Screws; Post - (14) 1/4" x 2-1/2" SDS Screws
Height: 7"
Manufacturer name: Simpson Strong-Tie
Thickness: 7 Gauge

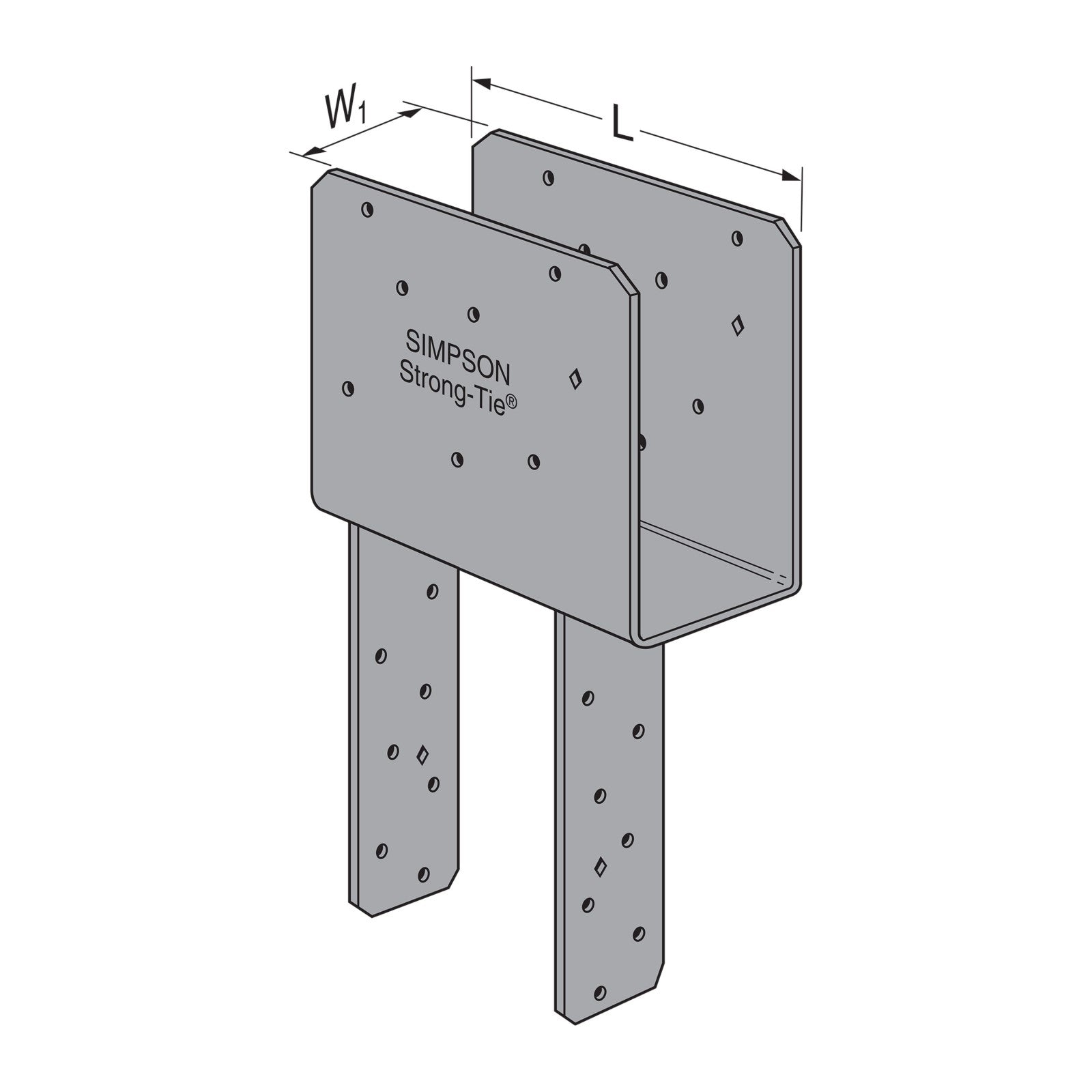

Width: (See Image 2) W1: 3.25" - 3.5625"; W2: 3.625" - 7.875"
Description



  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product



Simpson Strong-Tie ECCQ End Column caps provide a high-capacity connection for column-beam combinations. This design uses Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and provides a greater net section area of the column compared to bolts. The SDS screws provide for a lower profile compared to standard through bolts. The Strong-Tie ECCQ3X-SDS2.5HDG post base features a hot dip galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

Installation:

  • Install 1/4"x2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap. (Lag screws will not achieve the same load.)
  • CCOQ and ECCOQ column cap only (no straps) may be ordered for field-welding to pipe or other columns. Dimensions are same as CCQ and ECCQ.
  • For rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimension on straps rotated 90° is limited by the W1 dimension.)


NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson ECCQ End Column Caps.
