SKU: EGQ5.62X-SDS

Simpson Strong-Tie EGQ5.62X-SDS High Capacity Top-Flange Hanger w/ Screws , Made to Order Non-Returnable, Qty 1

Name: Simpson Strong-Tie EGQ5.62X-SDS High Capacity Top-Flange Hanger w/ Screws , Made to Order Non-Returnable, Qty 1
SKU: EGQ5.62X-SDS
Availability: InStock

ICC Certified

Widths

3-5/8" 3-11/16" - 5-1/4" 5-3/8" - 5-9/16" 5-1/2" 5-5/8" - 6-13/16" 6-7/8" - 6-15/16" 7" - 7-1/4"

Call for Price

Call to Order888-794-1590

Ships in 3-5 business days.

Description

This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product

The EGQ High-Capacity Top-Flange Hanger is engineered for high-load applications involving engineered wood beams. With a load capacity approaching 20,000 lb., this hanger ranks among the strongest in the Simpson Strong-Tie lineup. Ideal for commercial, industrial, and heavy residential framing, it ensures a secure connection and peace of mind in your structural builds.

Designed to install with Simpson Strong-Tie’s Strong-Drive SDS Heavy-Duty Connector screws, the EGQ eliminates the need for joist nails and reduces installation time while increasing strength. Available in standard Structural Composite Lumber (SCL) widths and customizable to various heights, this hanger meets the demands of diverse project requirements and engineered specifications.

When you need a top-flange hanger that delivers on strength, ease of installation, and versatility, the EGQ is the professional’s go-to solution for heavy-duty beam-to-beam and beam-to-column connections.

Features:

Exceptional Load Capacity: One of Simpson Strong-Tie’s highest-rated hangers, supporting up to 20,000 lb.
Top-Flange Configuration: Provides structural stability while preventing beam rotation.
SDS Screw Installation: Designed for use with Strong-Drive SDS screws—no joist nails required.
Custom Sizing Options: Available in standard SCL widths and modifiable heights to meet your project specs.
Heavy-Duty Performance: Ideal for engineered wood framing in commercial, industrial, and multi-family structures.

Applications:

The EGQ Hanger is built for high-capacity wood framing where structural performance is critical. Common use cases include:

Commercial beam-to-girder connections
Multi-story residential framing
Glulam, PSL, and LVL beam connections
Heavy-load roof and floor systems

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

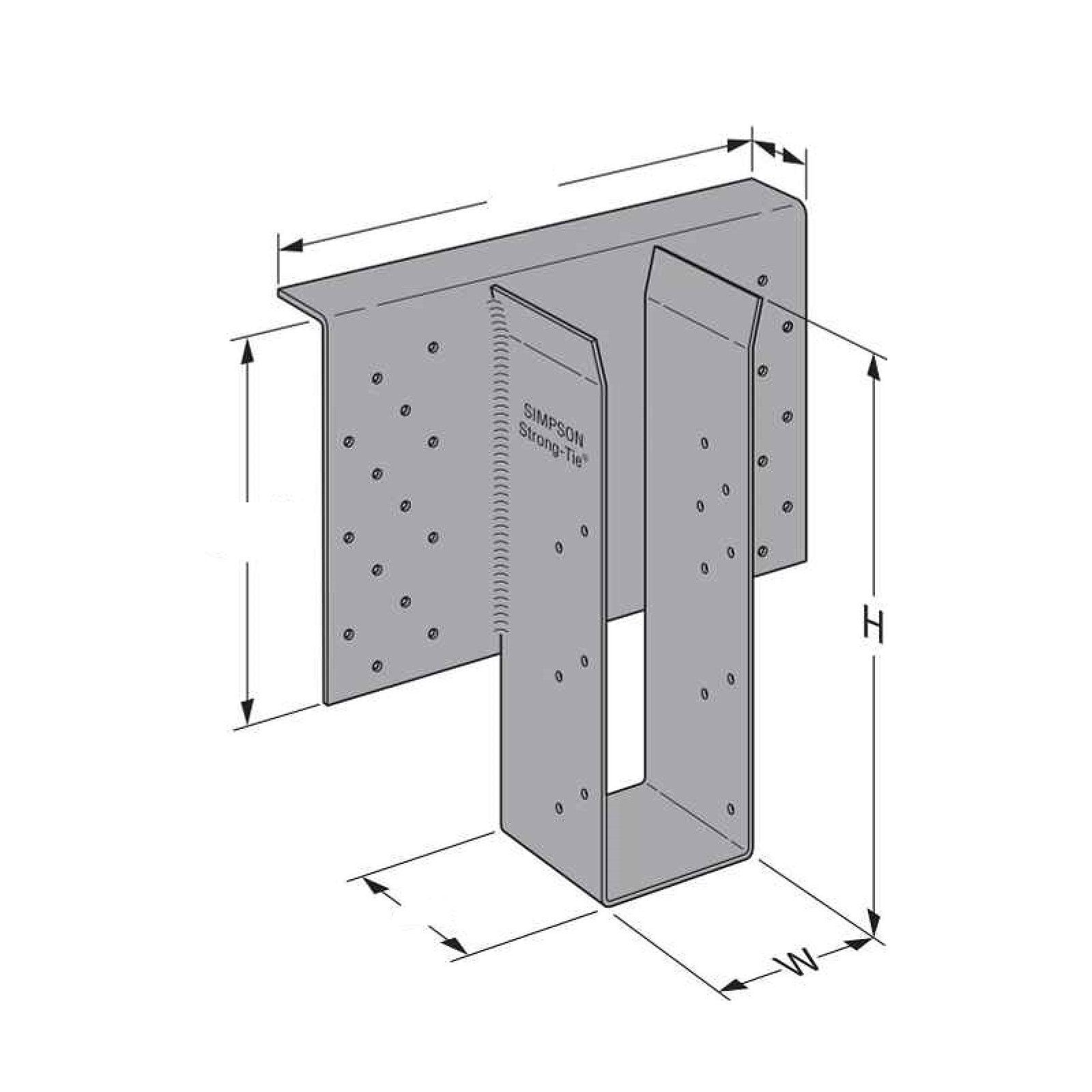

Specifications

Width: 5-5/8" - 6-13/16"

Height: 11-1/4" - 32"

Thickness: Flange: 3 Gauge; Stirrup: 7 Gauge

Joist Size: 5-1/2"

For Treated Lumber: No

Finish: Gray Paint

Manufacturer Name: Simpson Strong-Tie

Quantity: 1

View Spec Sheet

Simpson ICC Certification ESR 2615

Simpson Strong-Tie Limited Warranty
