Simpson EGQ7.25-SDS3 High Capacity Top-Flange Hanger w/ Screws - Non-Returnable - 7" High Capacity, Qty 1
Simpson EGQ7.25-SDS3 High Capacity Top-Flange Hanger w/ Screws - Non-Returnable - 7" High Capacity, Qty 1!
Continue Browsing
EG/LEG/MEG/EGQ Top Flange Beam Hanger
Specifications
- This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

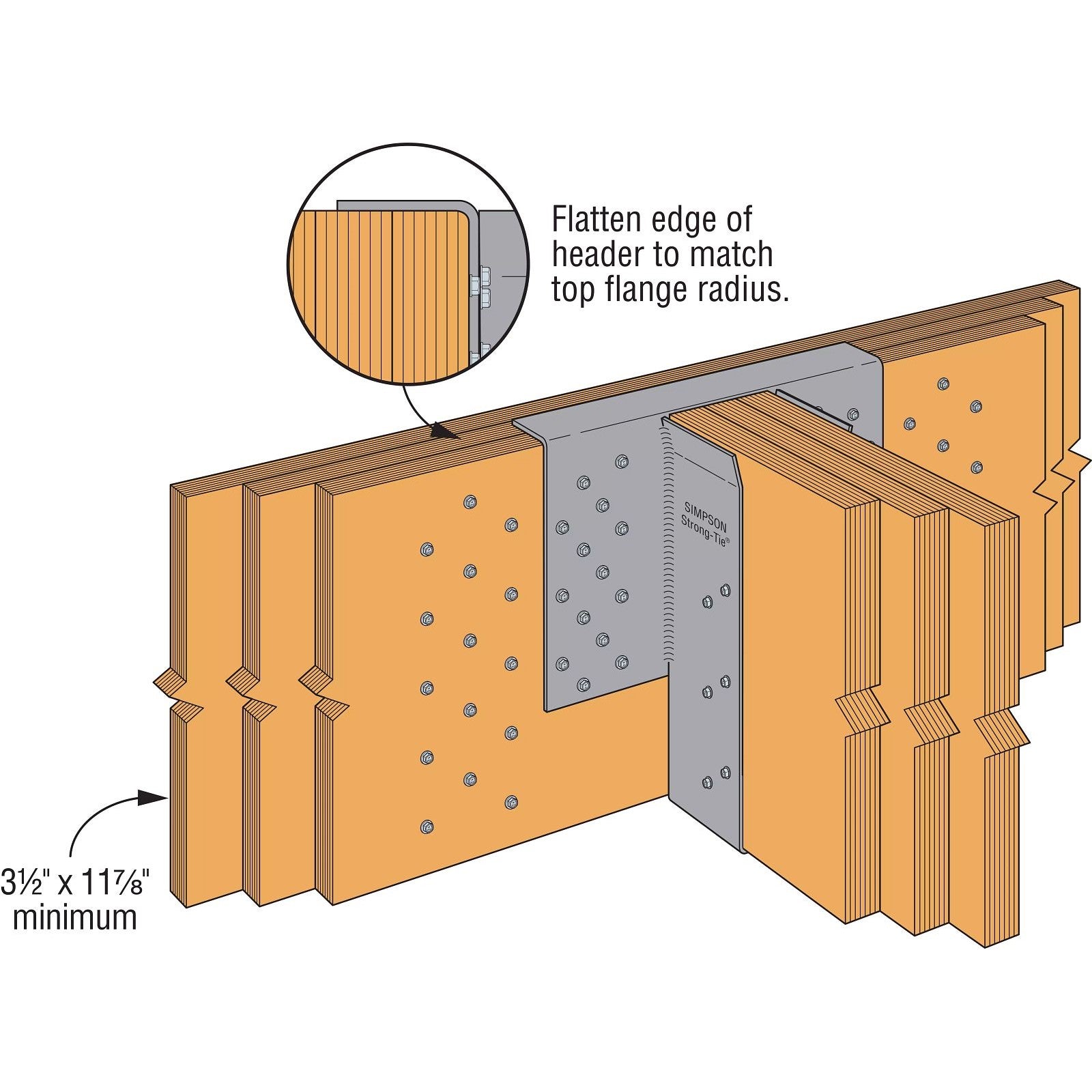

Simpson Strong Tie EGQ is a high-capacity top-flange connector designed for use with engineered wood beams. The EGQ model contains a 7 Gauge stirrup and a 3 Gauge top-flange with a Simpson Strong-Tie gray paint finish.
- Use all specified fasteners.
- Strong-Drive SDS screws are included
- Install with 1/4" x 3" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the EGQ. (Lag screws will not achieve the same load.)
- EGQ series can be skewed or sloped up to 45°
- For a skewed installation, the EGQ can be skewed a maximum of 45°. The maximum allowable download is 16,300 lb. and the maximum allowable uplift is 5,770 lb. Joist must be bevel cut for skewed seat installation
- For a sloped installation, the EGQ can be sloped up or down a maximum of 45°. The maximum allowable download is 15,360 lb. and the allowable uplift is 100% of the table load. Sloped seat installation requires an additional 14 joist screws (supplied with the connector)
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
