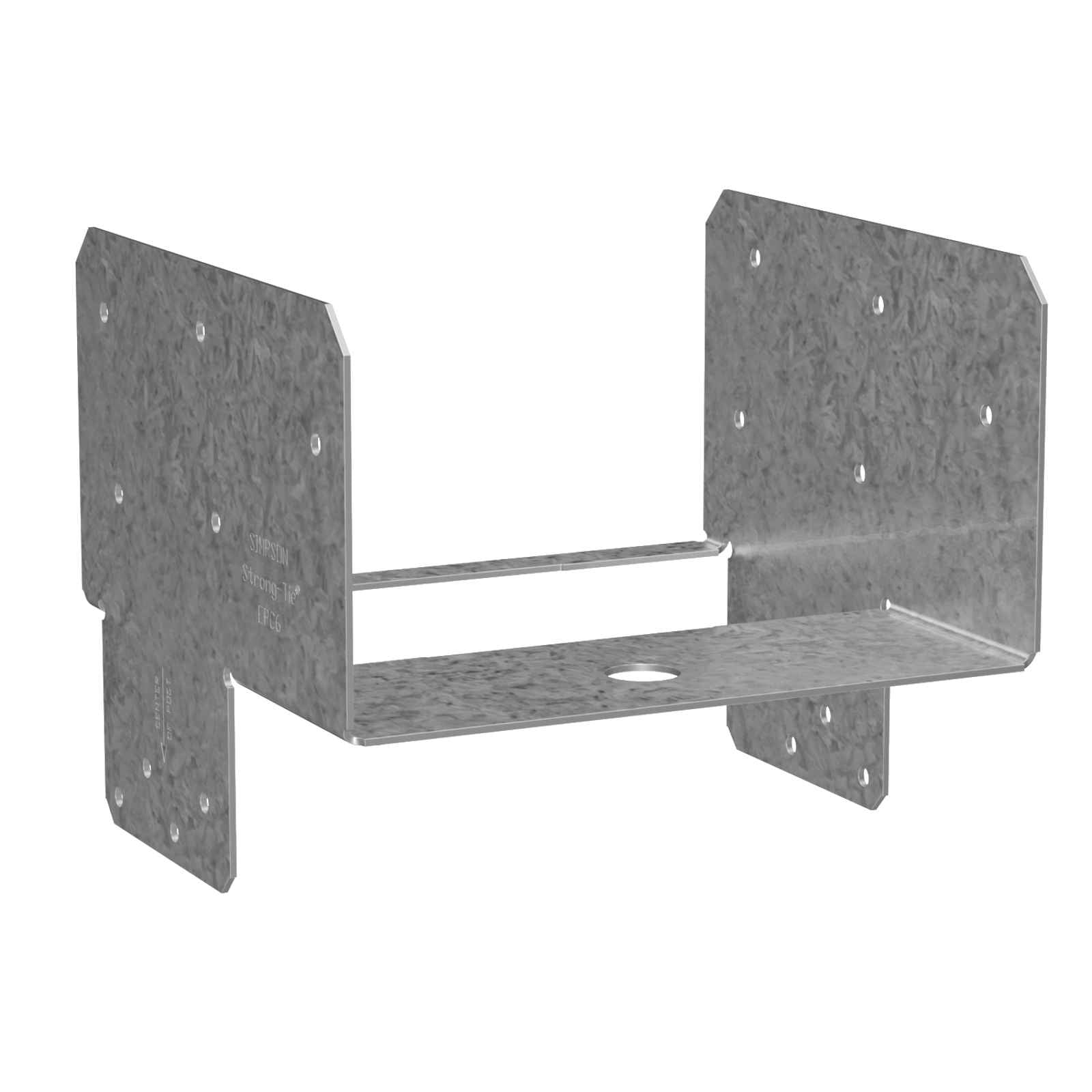

Simpson EPC6RZ 6X Rough End Post Cap - ZMAX Finish

SKU: EPC6RZ
$59.99
Made to Order
Standard Lead Time 2-5 days.

The Simpson Strong-Tie EPCZ series of post caps are used to attach the top of posts to beams. The next-generation EPC6RZ, for rough size lumber, post caps are designed with their post and beam flanges in-line so that one EPC6RZ model can accommodate several post sizes. The EPC6RZ now uses easier-to-install 10d common nails. An alternate choice of fasteners is Strong-Drive® #9x1 1/2" SD Connector screws. The EPC6RZ post cap is approved to be installed with the specified nails or with Strong-Drive SD connector screws. The Strong-Tie EPC6RZ post base features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Do not install bolts into pilot holes.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson PCZ & EPCZ Post Caps.


California Residents: WARNING

The Simpson Strong-Tie EPCZ series of post caps are used to attach the top of posts to beams. The next-generation EPC6RZ, for rough size lumber, p...

Read More

The Simpson Strong-Tie EPCZ series of post caps are used to attach the top of posts to beams. The next-generation EPC6RZ, for rough size lumber, post caps are designed with their post and beam flanges in-line so that one EPC6RZ model can accommodate several post sizes. The EPC6RZ now uses easier-to-install 10d common nails. An alternate choice of fasteners is Strong-Drive® #9x1 1/2" SD Connector screws. The EPC6RZ post cap is approved to be installed with the specified nails or with Strong-Drive SD connector screws. The Strong-Tie EPC6RZ post base features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Do not install bolts into pilot holes.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson PCZ & EPCZ Post Caps.


California Residents: WARNING

Show Less

finish spec:
ZMAX

manufacturer name:
Simpson Strong-Tie

fasteners required:
Beam - (10) 0.148 x 3" Nails OR (10) SD9112 Screws
Post - (8) 0.148 x 3" Nails OR (8) SD9112 Screws

thickness:
16 Gauge

Product Spec Sheet:
