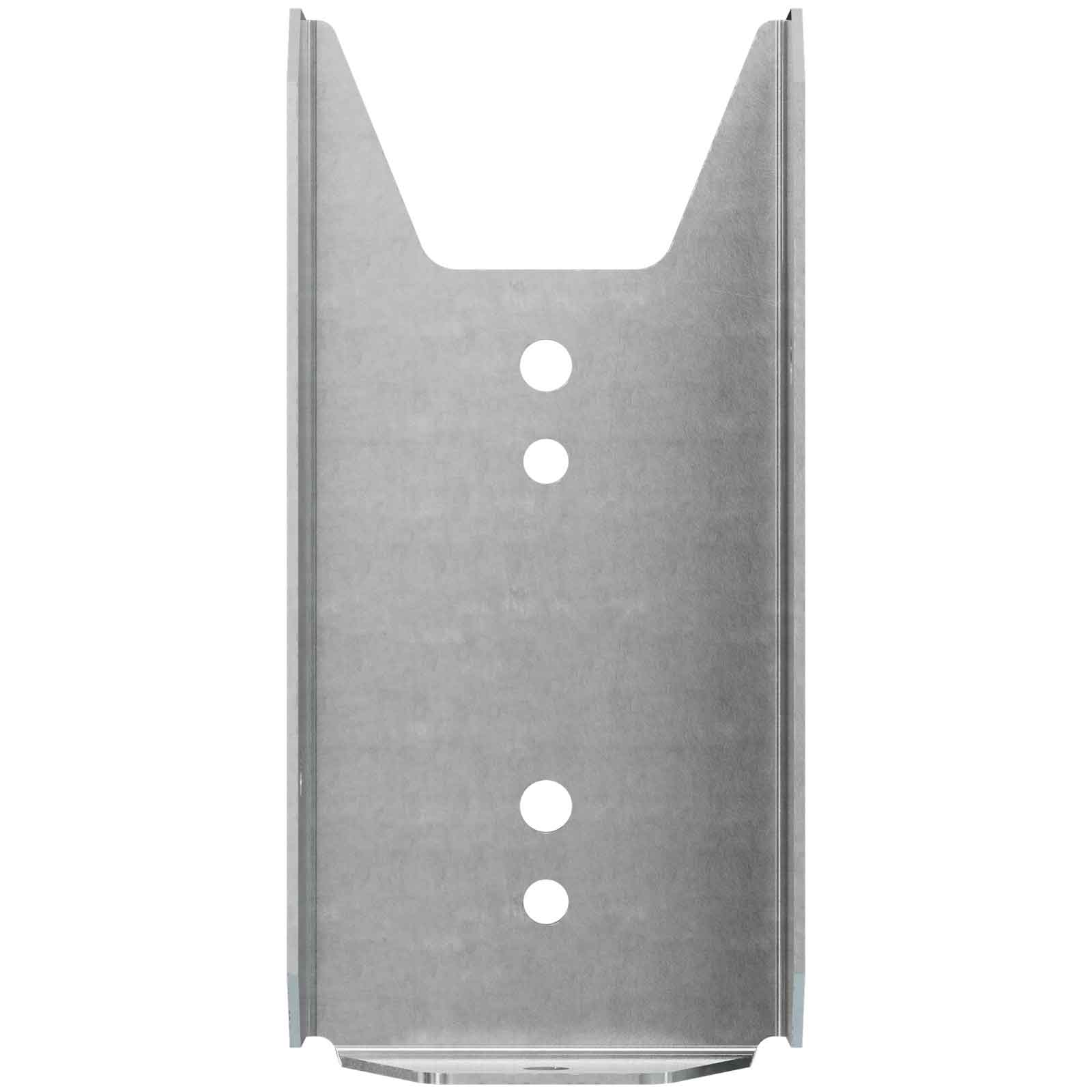

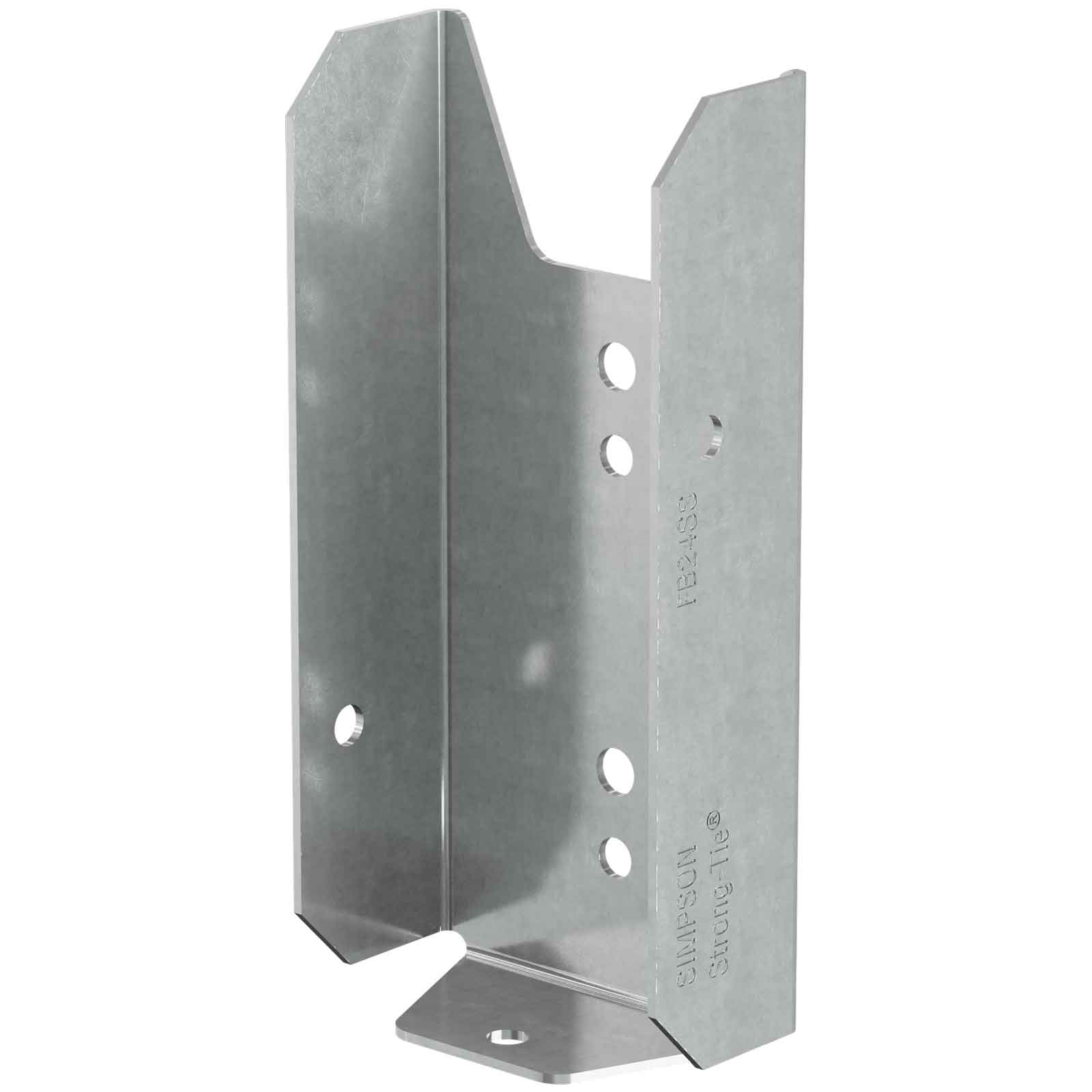

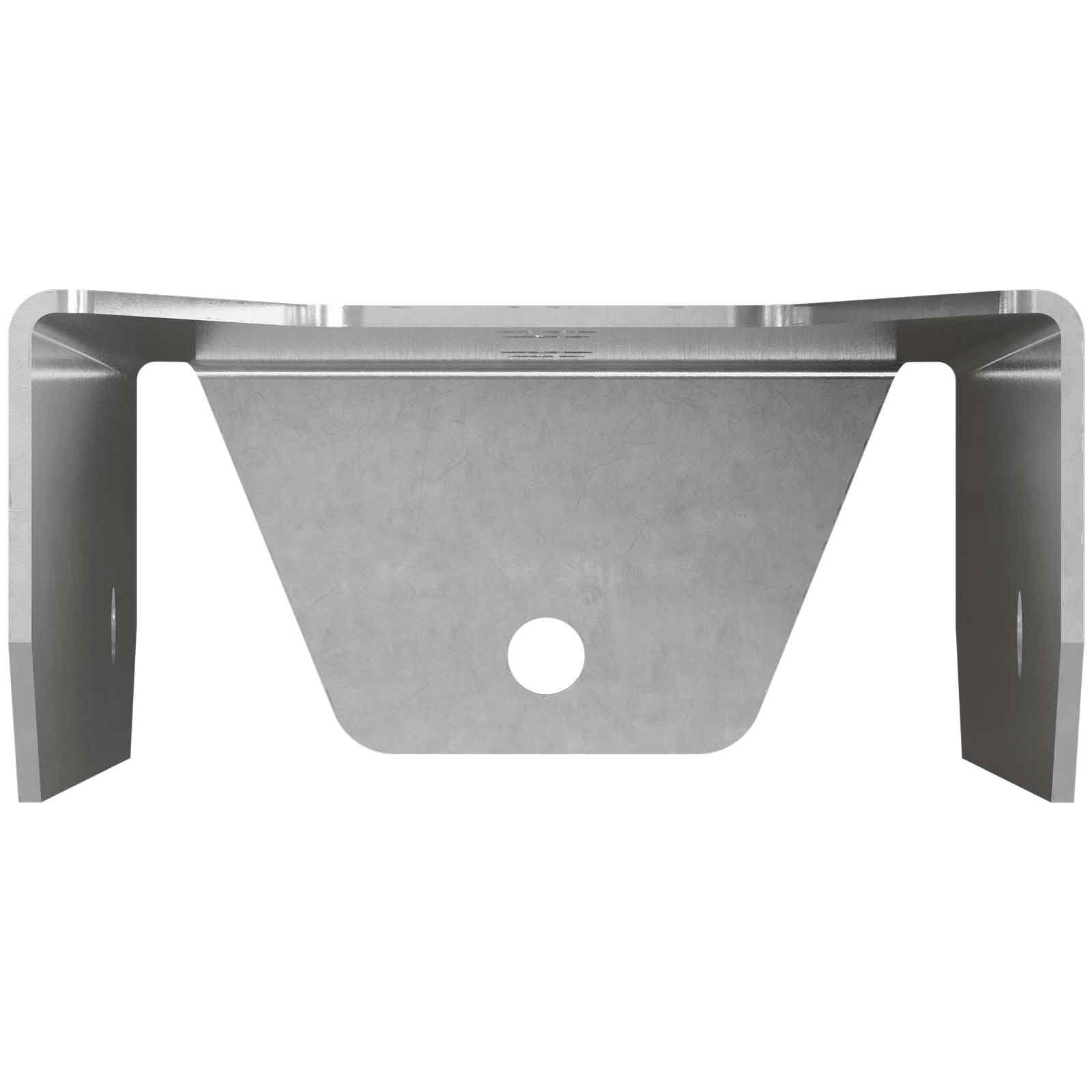

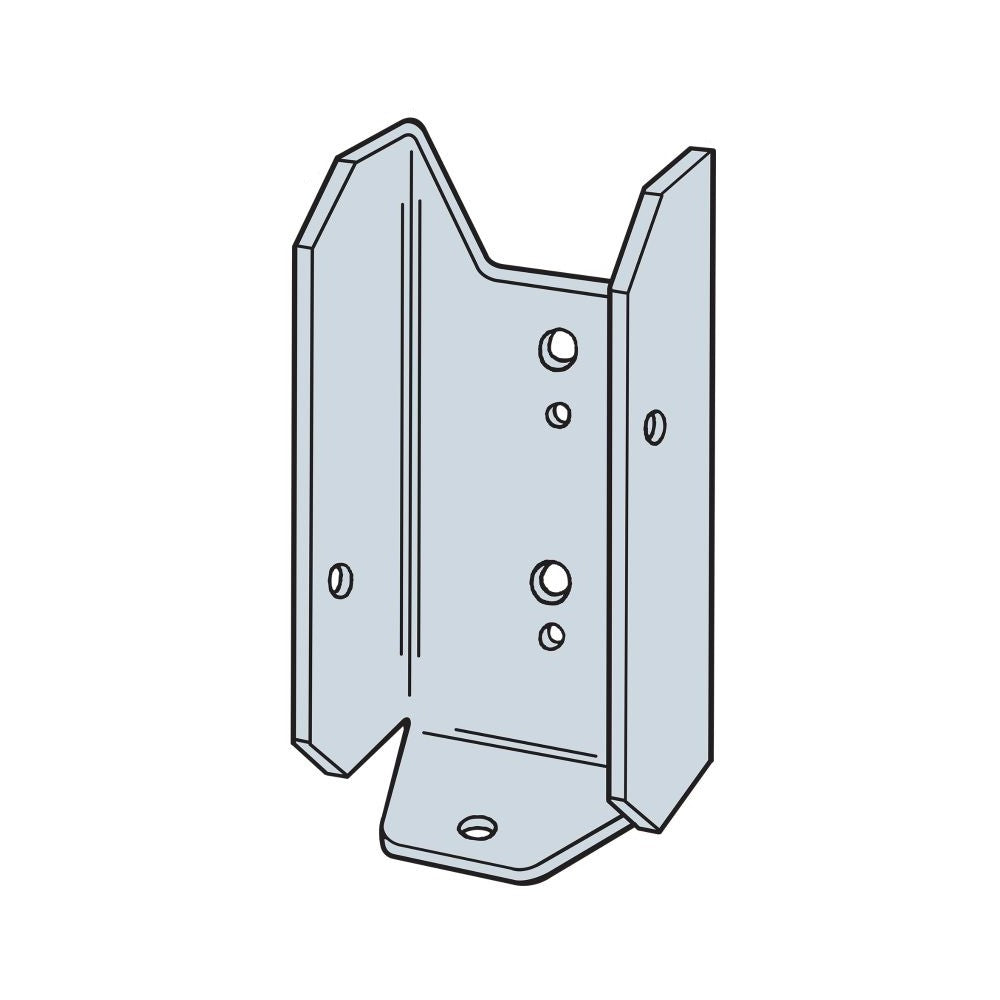

Simpson FB24SS 2x4 Fence Bracket - Stainless Steel

SKU: FB24SS

$9.32

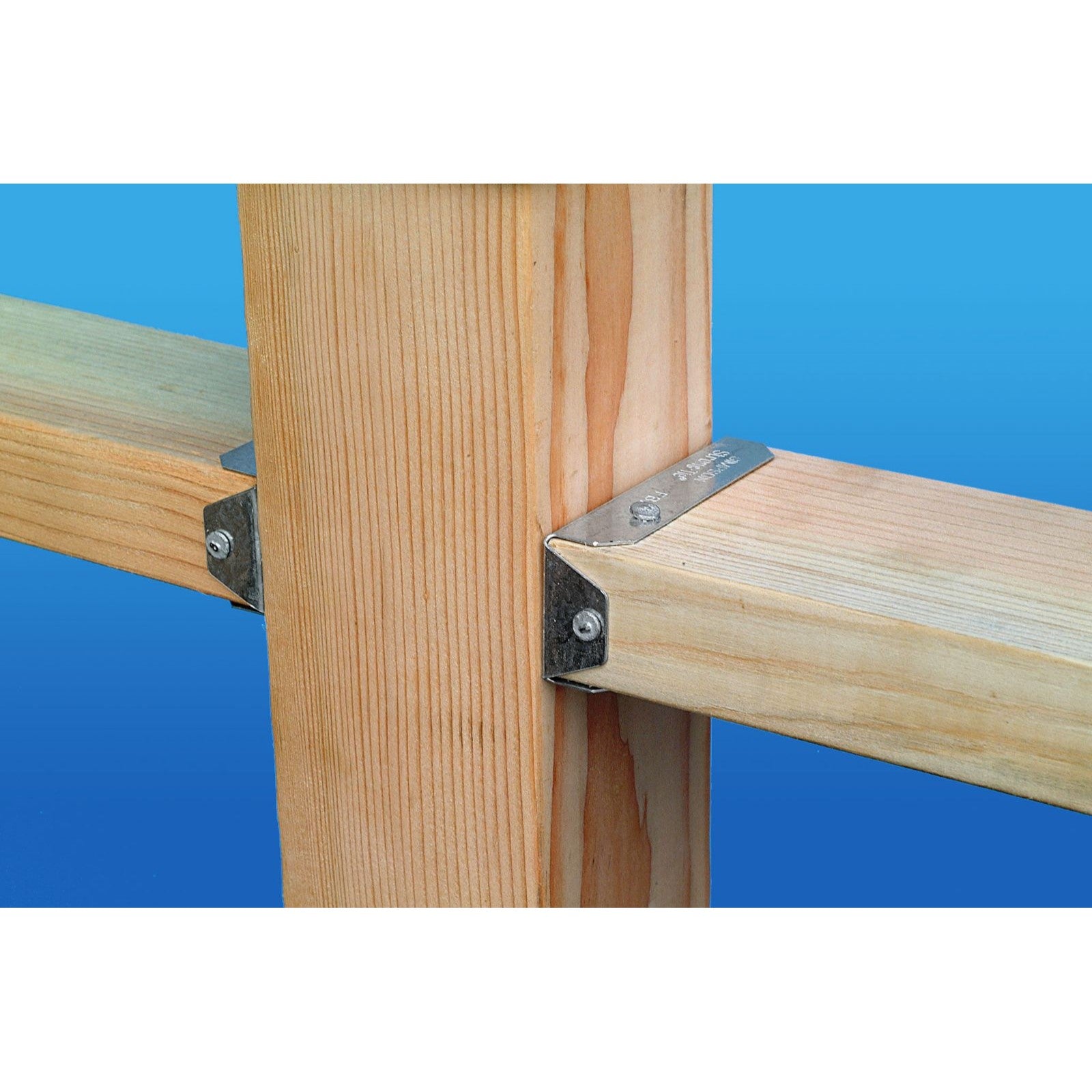

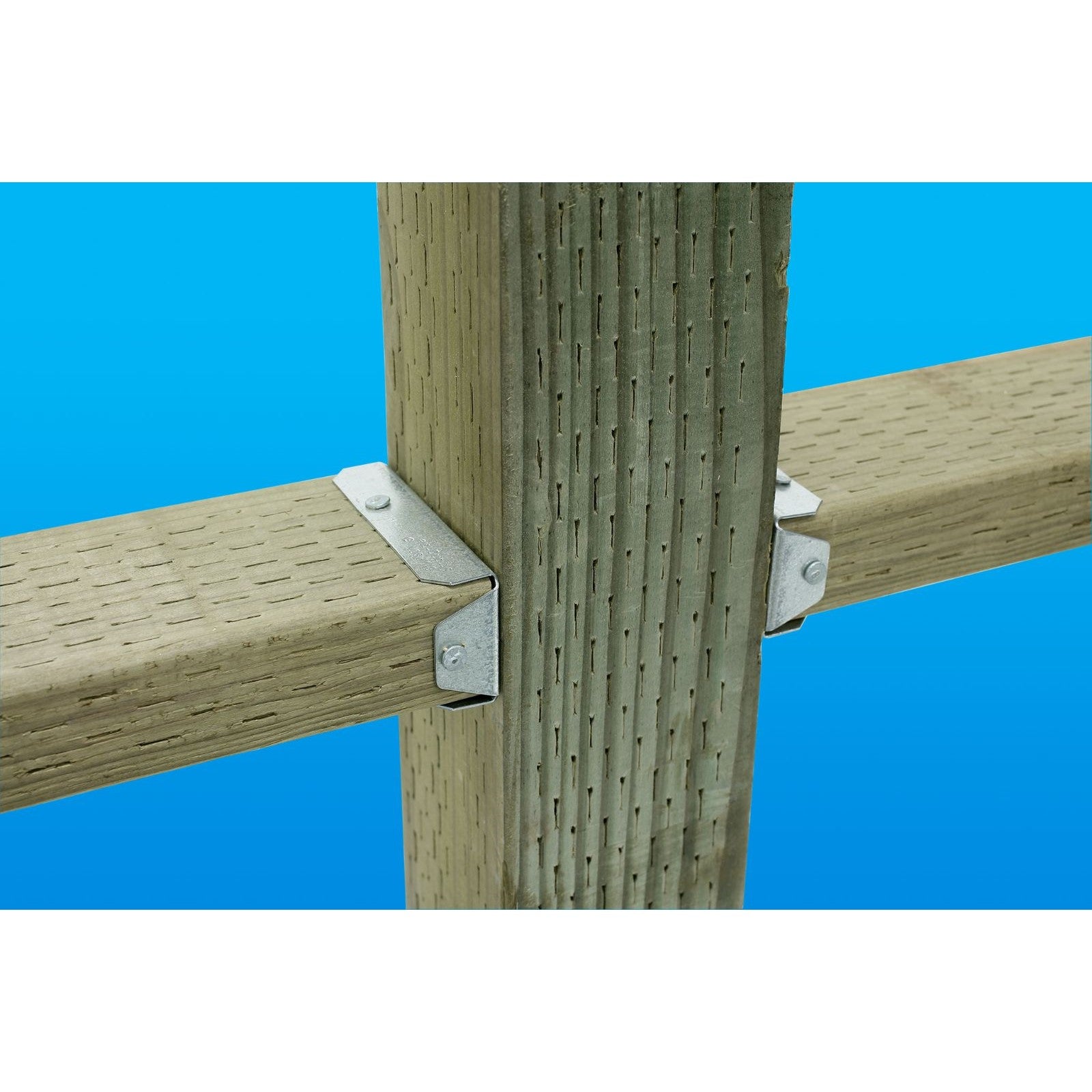

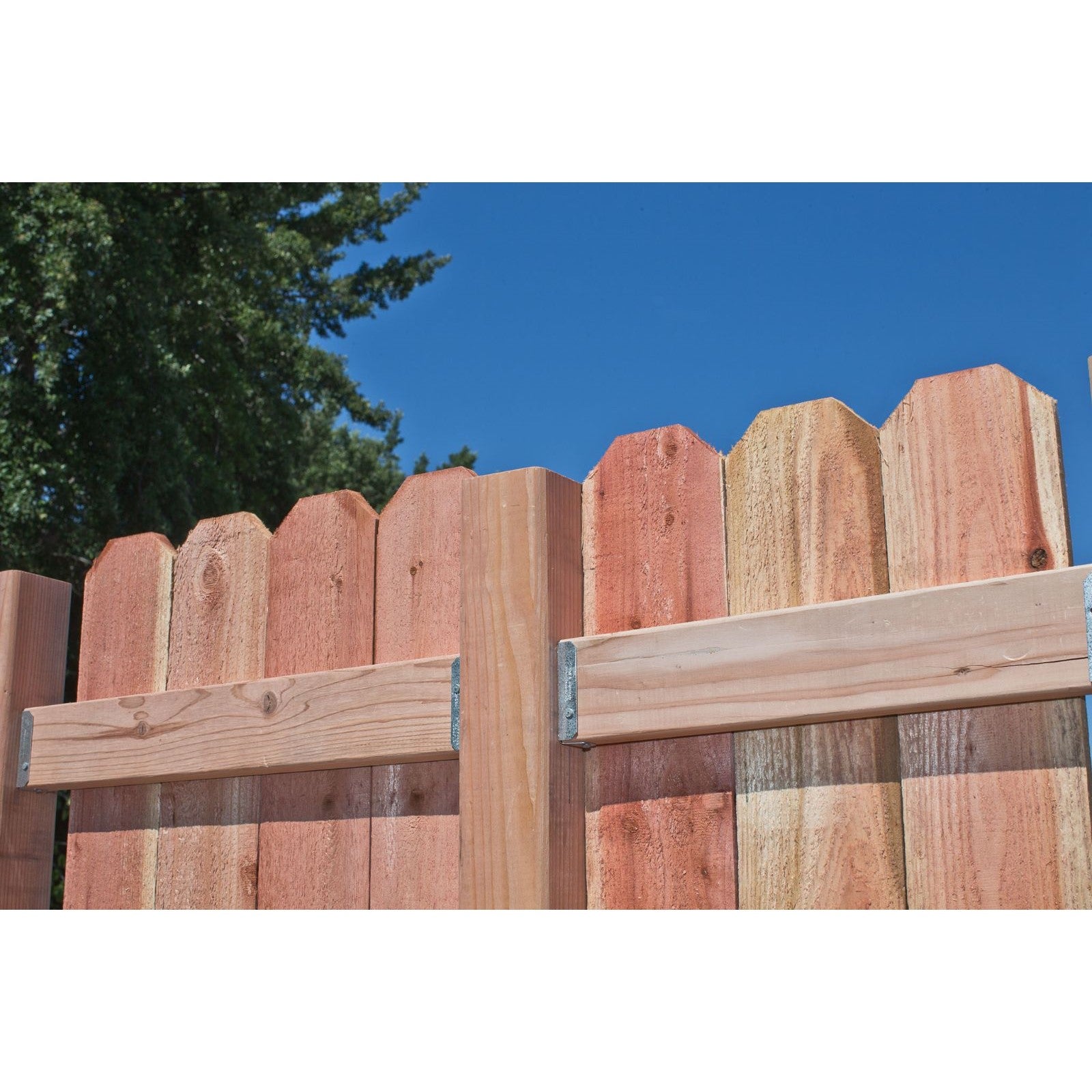

Simpson Strong-Tie FB and FBR fence brackets make the connection between fence rails and posts simple and strong. Eliminates the need for toe nailing or screwing. Clean, versatile connections make planning and building fences, deck/porch railings and louvers easier and faster. The Strong-Tie FB24SS fence brackets are made of 316L stainless steel to provide maximum corrosion resistance in the harshest of climates. Stainless steel fasteners are required to install this hanger.


Installation:
  • Use all specified fasteners.
  • Holes are sized for 8dx1-1/2", 8d commons or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws into the supporting member.
  • FB24R is sized for 10dx1-1/2" or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws.
  • Some products may be installed with the Strong-Drive SD Connector screw. See model table.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie FB and FBR fence brackets make the connection between fence rails and posts simple and strong. Eliminates the need for toe nailing ...

Read More

Simpson Strong-Tie FB and FBR fence brackets make the connection between fence rails and posts simple and strong. Eliminates the need for toe nailing or screwing. Clean, versatile connections make planning and building fences, deck/porch railings and louvers easier and faster. The Strong-Tie FB24SS fence brackets are made of 316L stainless steel to provide maximum corrosion resistance in the harshest of climates. Stainless steel fasteners are required to install this hanger.


Installation:
  • Use all specified fasteners.
  • Holes are sized for 8dx1-1/2", 8d commons or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws into the supporting member.
  • FB24R is sized for 10dx1-1/2" or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws.
  • Some products may be installed with the Strong-Drive SD Connector screw. See model table.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
(5) 0.131 x 1-1/2" Nails OR (5) 0.131 x 2-1/2" Nails

For Treated Lumber:
yes

Finish Spec:
316L Stainless Steel

Manufacturer Name:
Simpson Strong-Tie

Thickness:
20 Gauge

Product Guide:

Read More

Show Less
