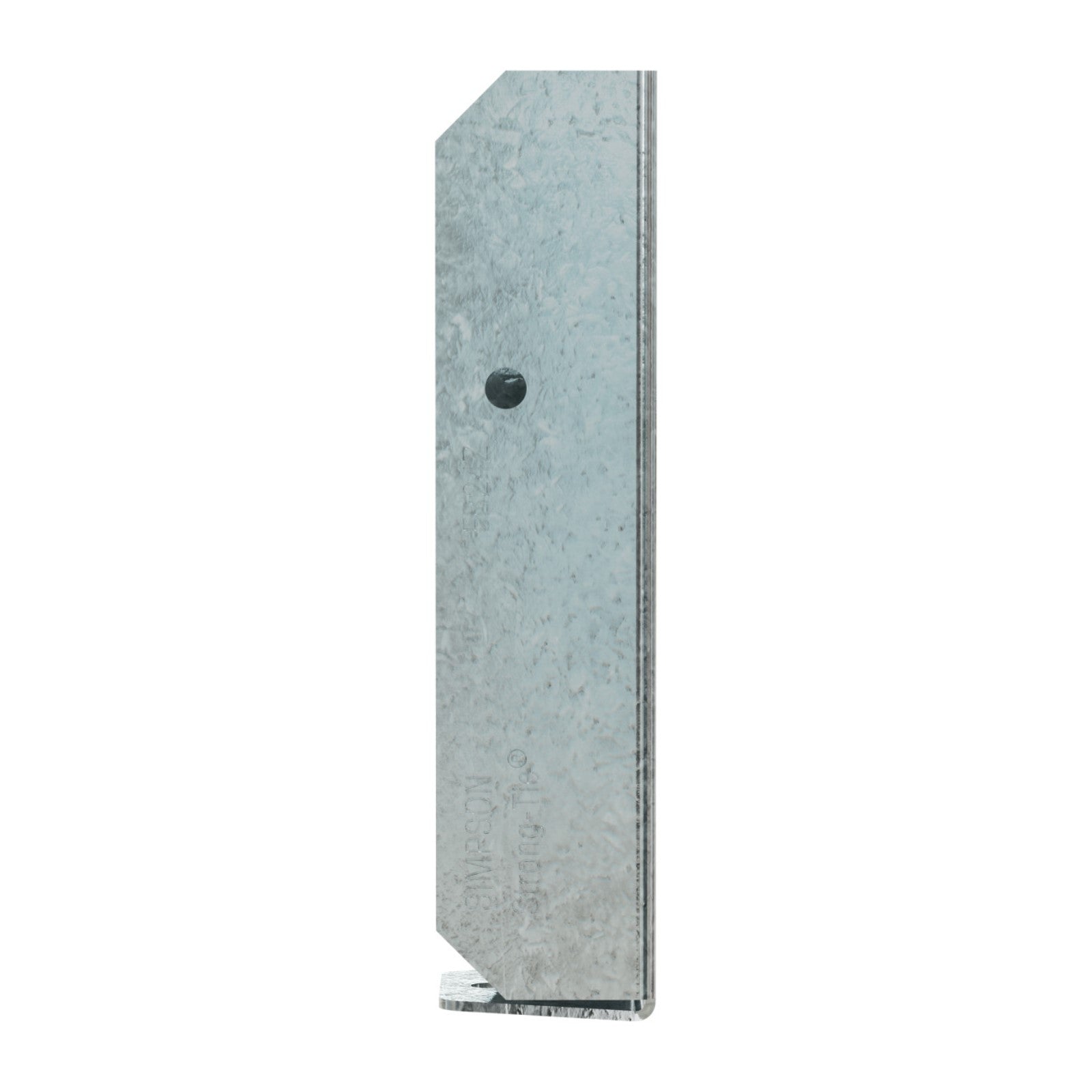

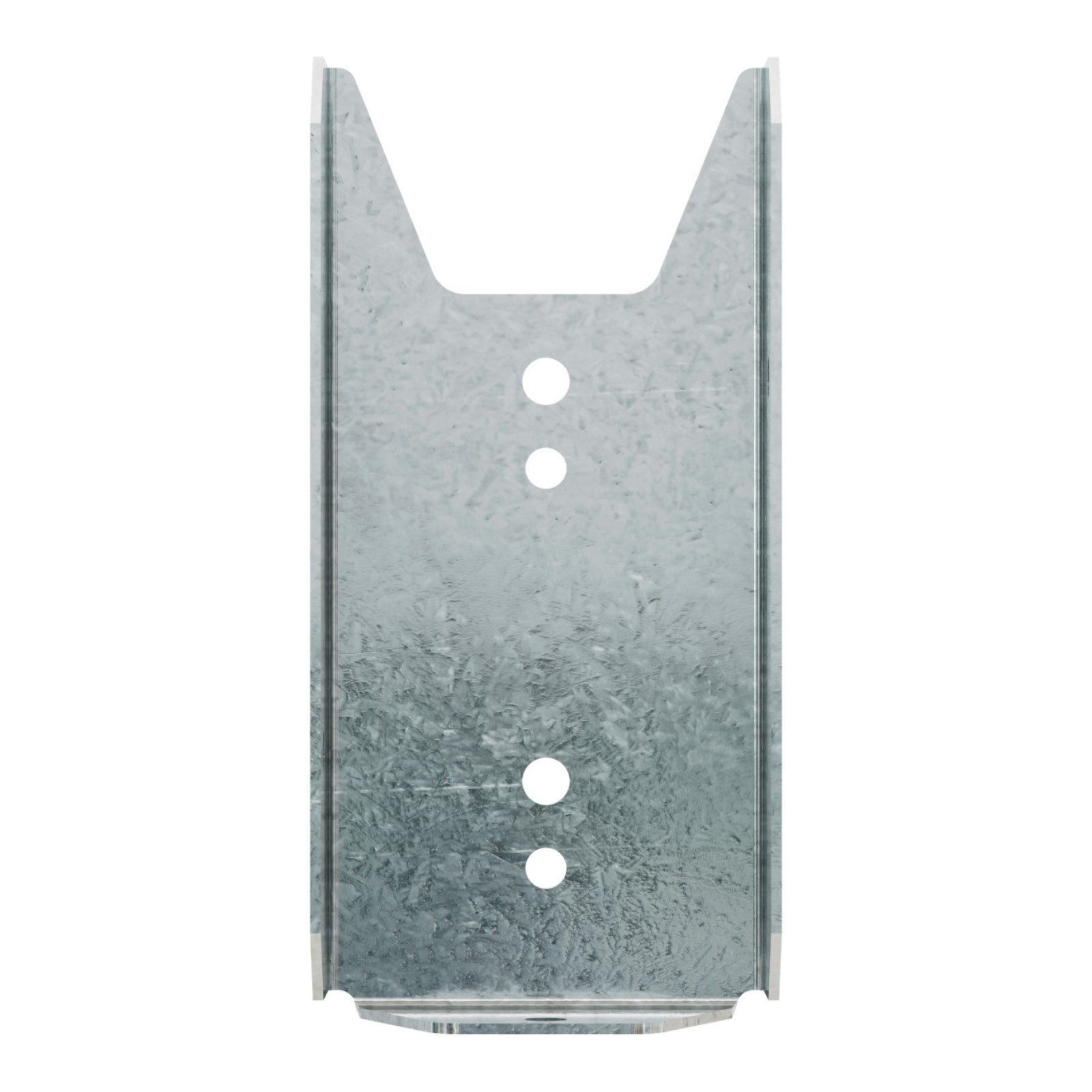

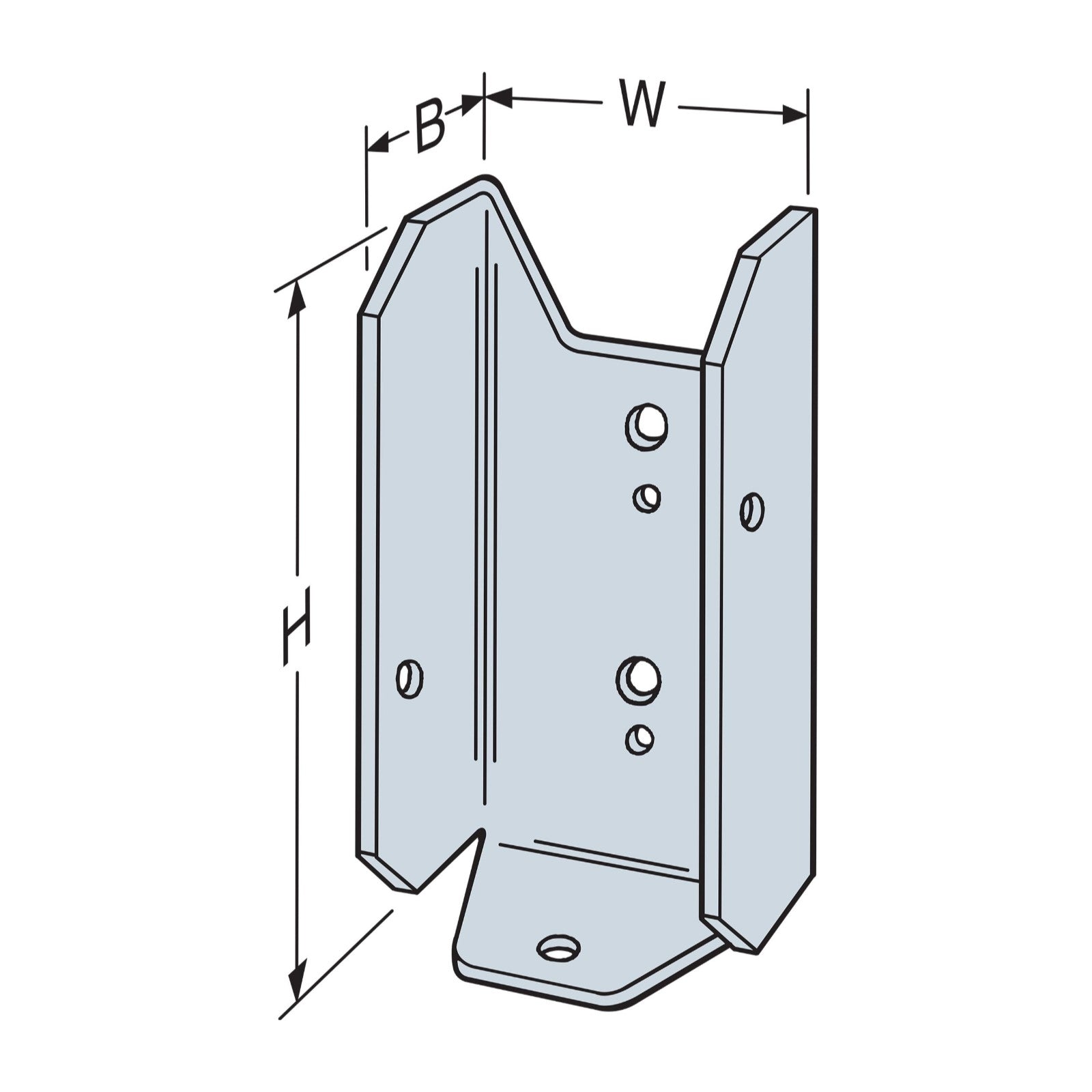

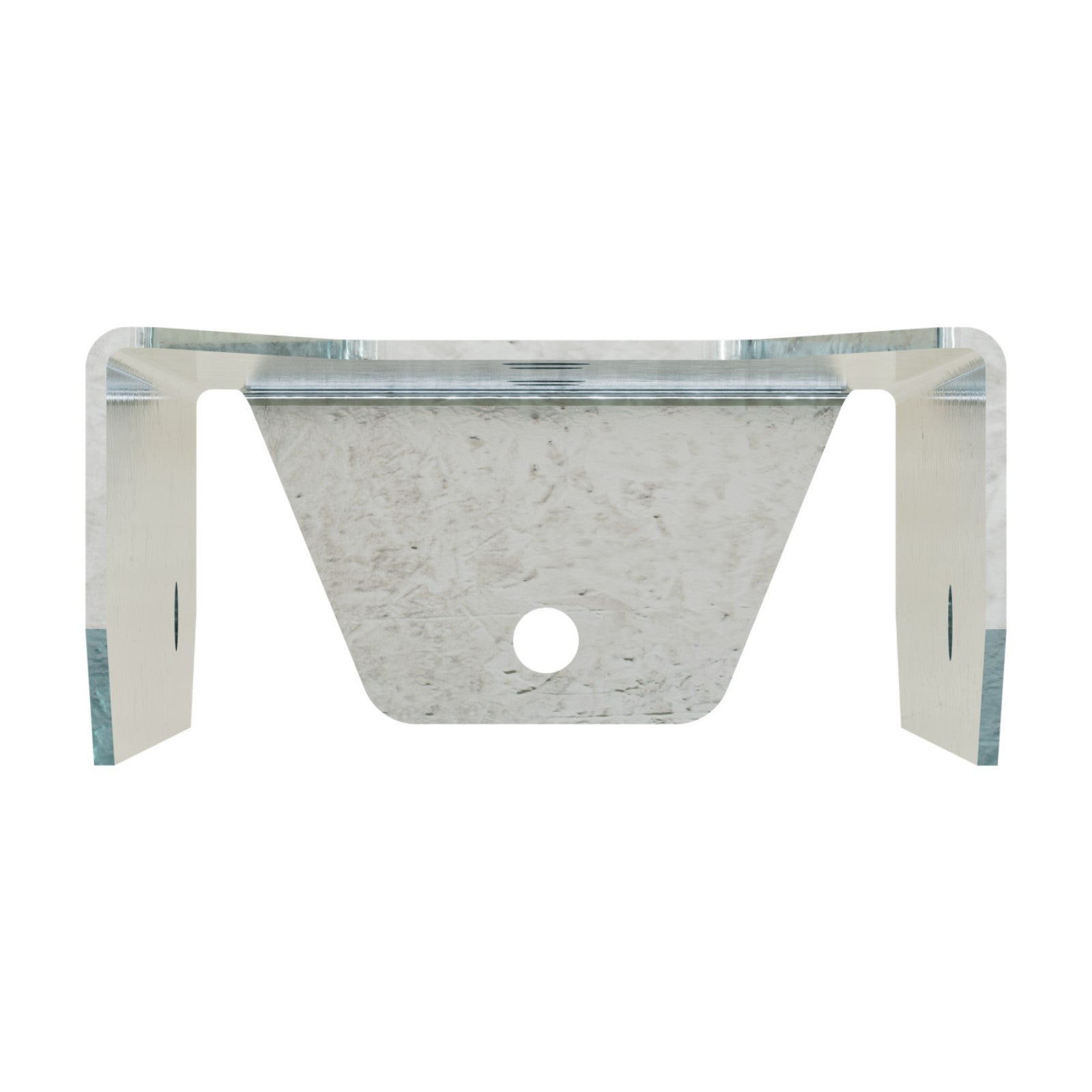

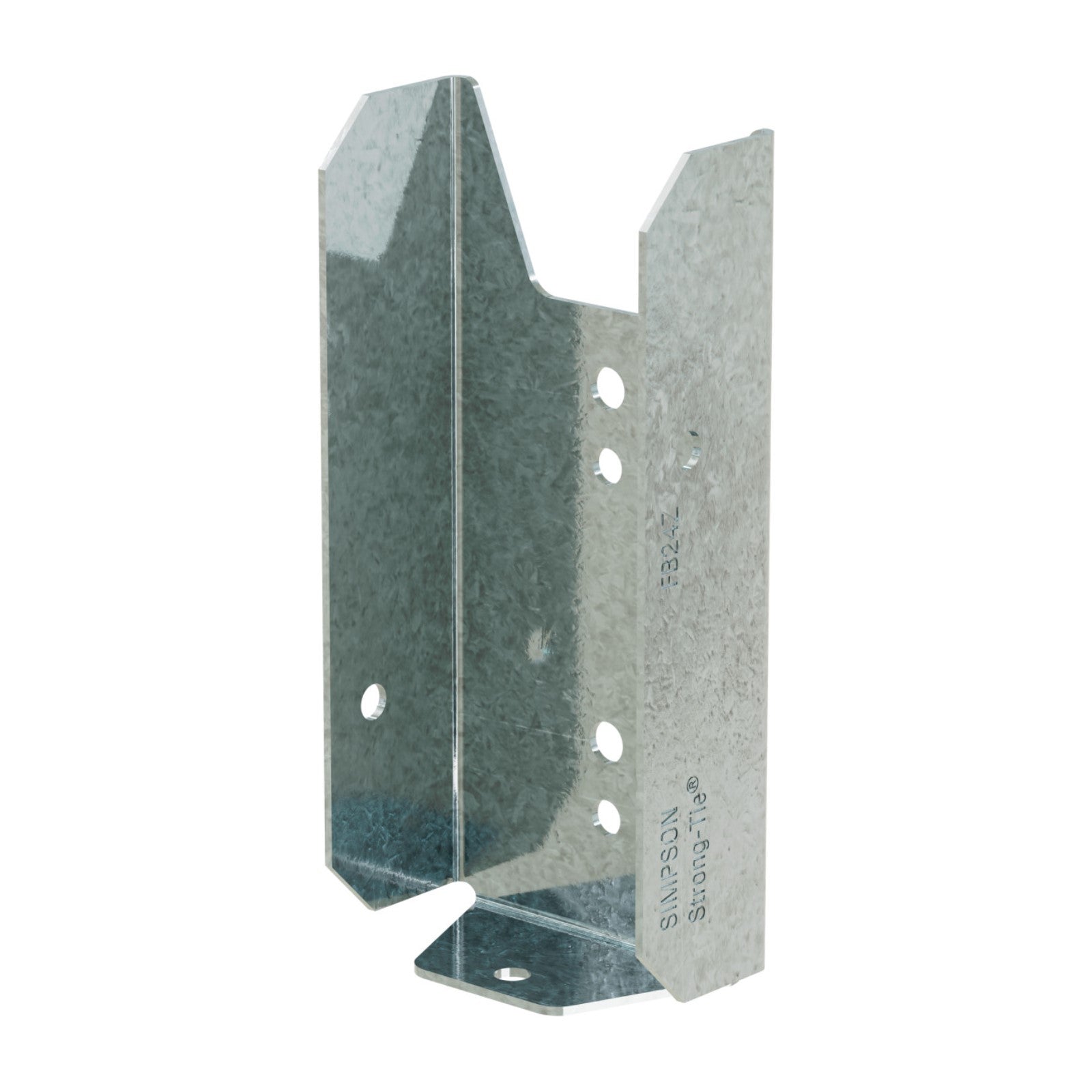

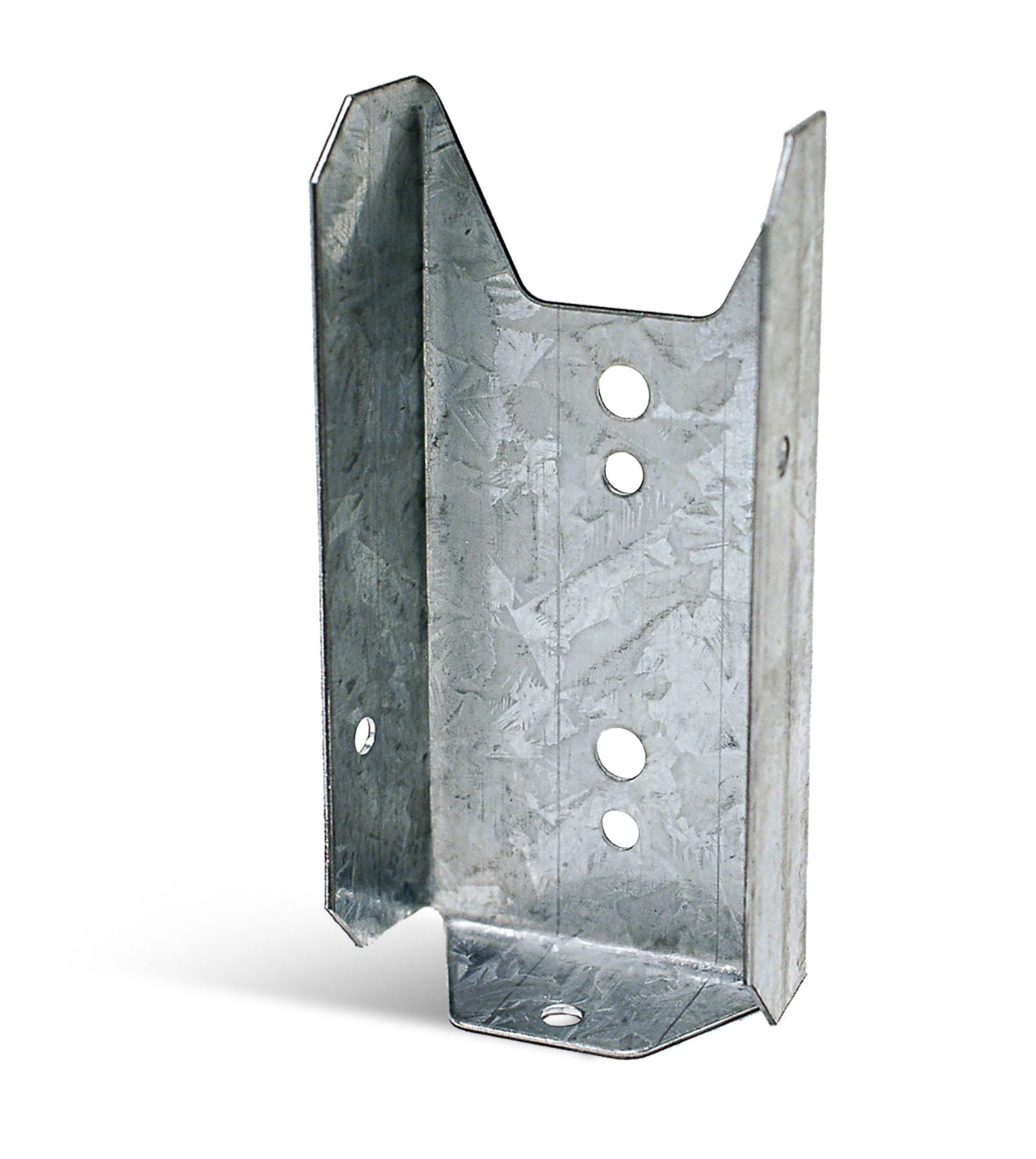

Simpson FB24Z 2x4 Fence Bracket - ZMAX Finish

SKU: FB24Z

$0.73

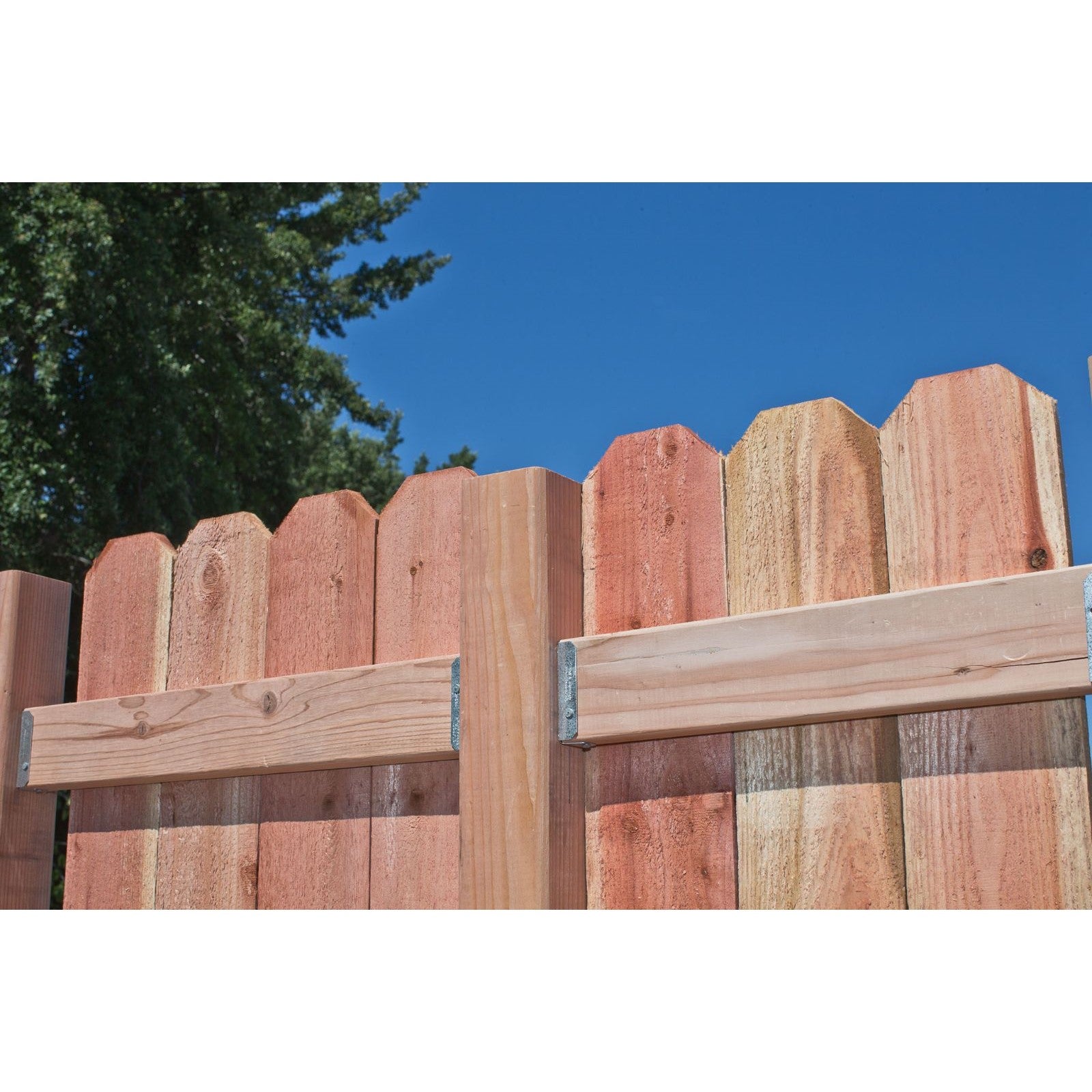

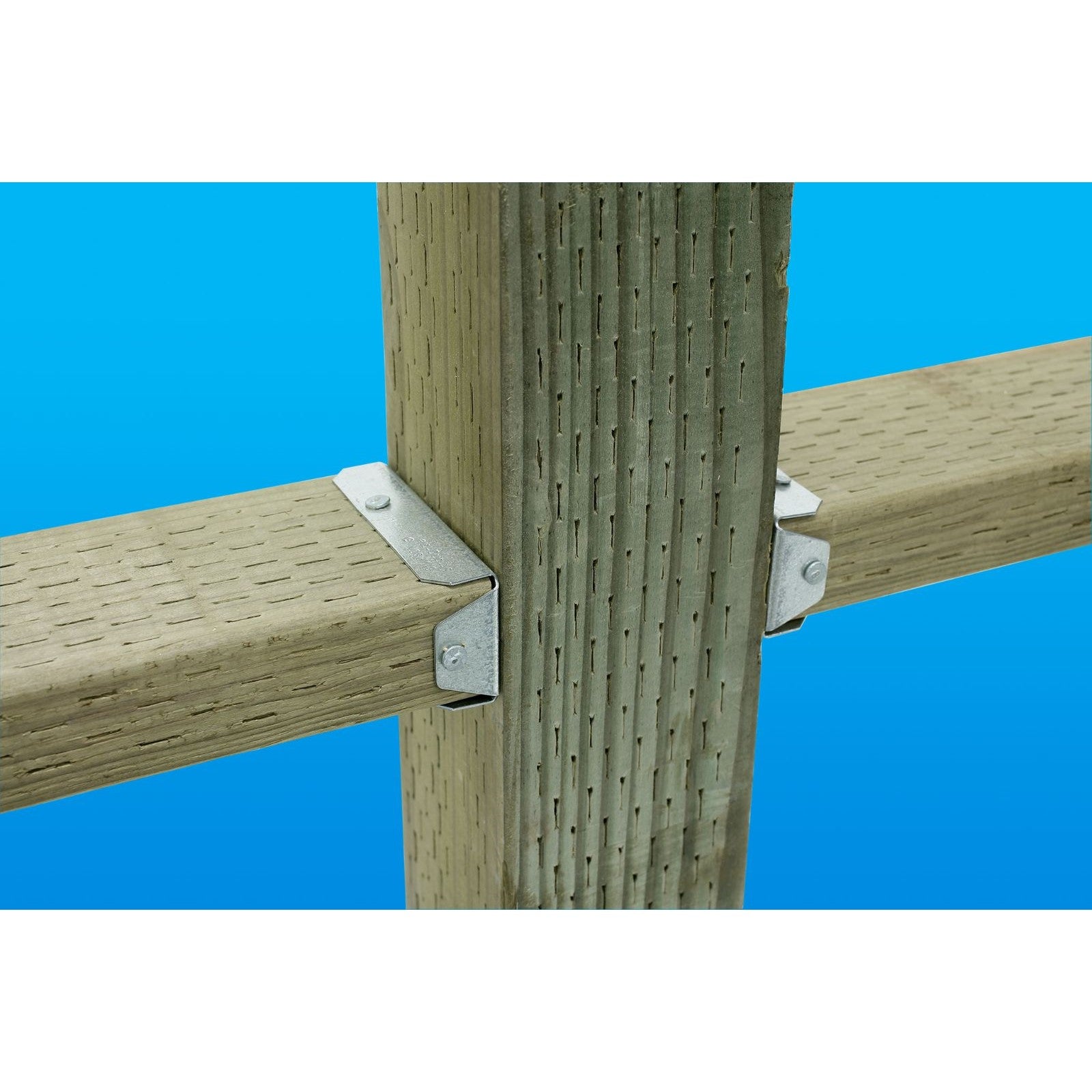

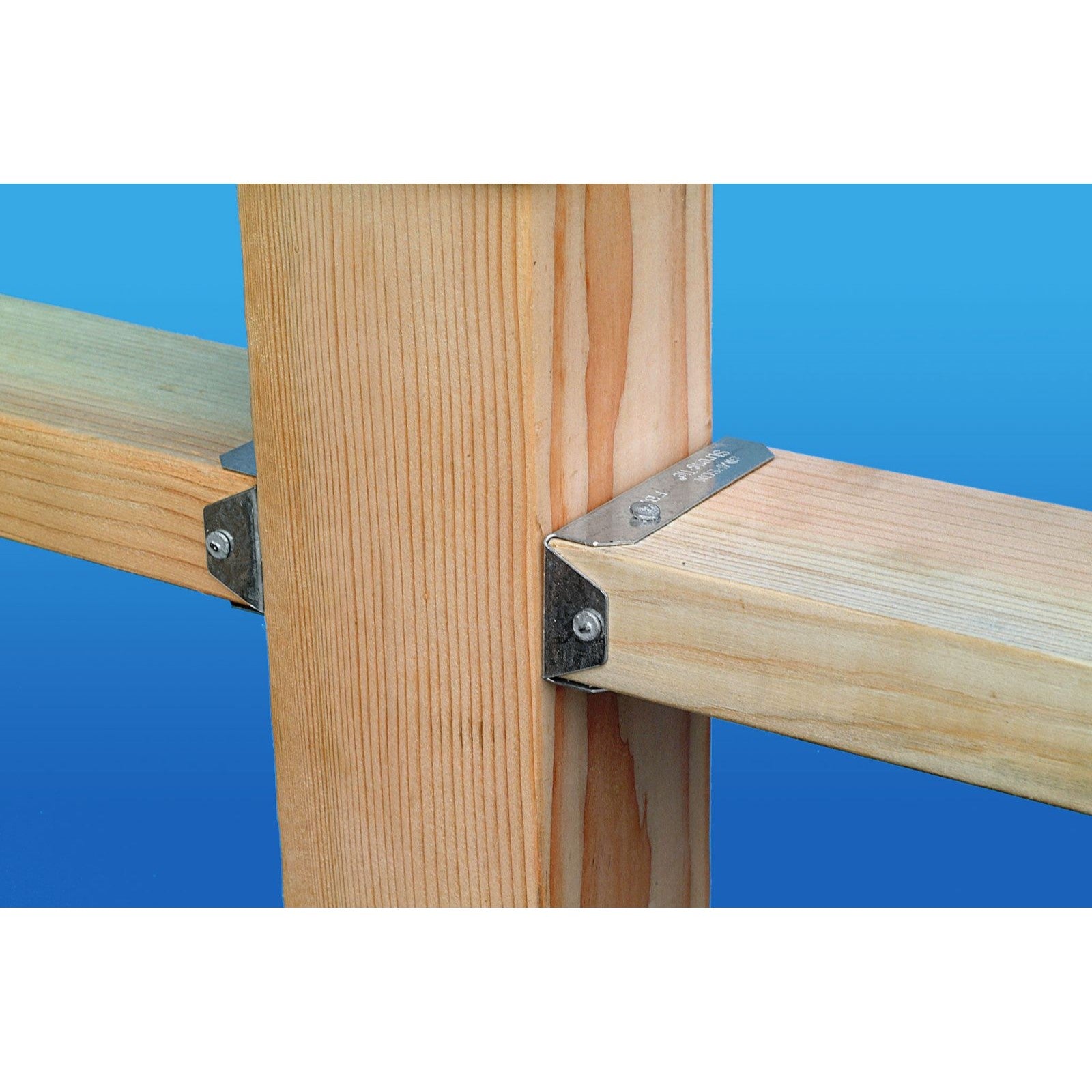

Simpson Strong-Tie FB and FBR fence brackets make the connection between fence rails and posts simple and strong. Eliminates the need for toe nailing or screwing. Clean, versatile connections make planning and building fences, deck/porch railings and louvers easier and faster. The Strong-Tie FB24Z fence brackets feature a G185 ZMAX galvanized finish for added corrosion resistance and require the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

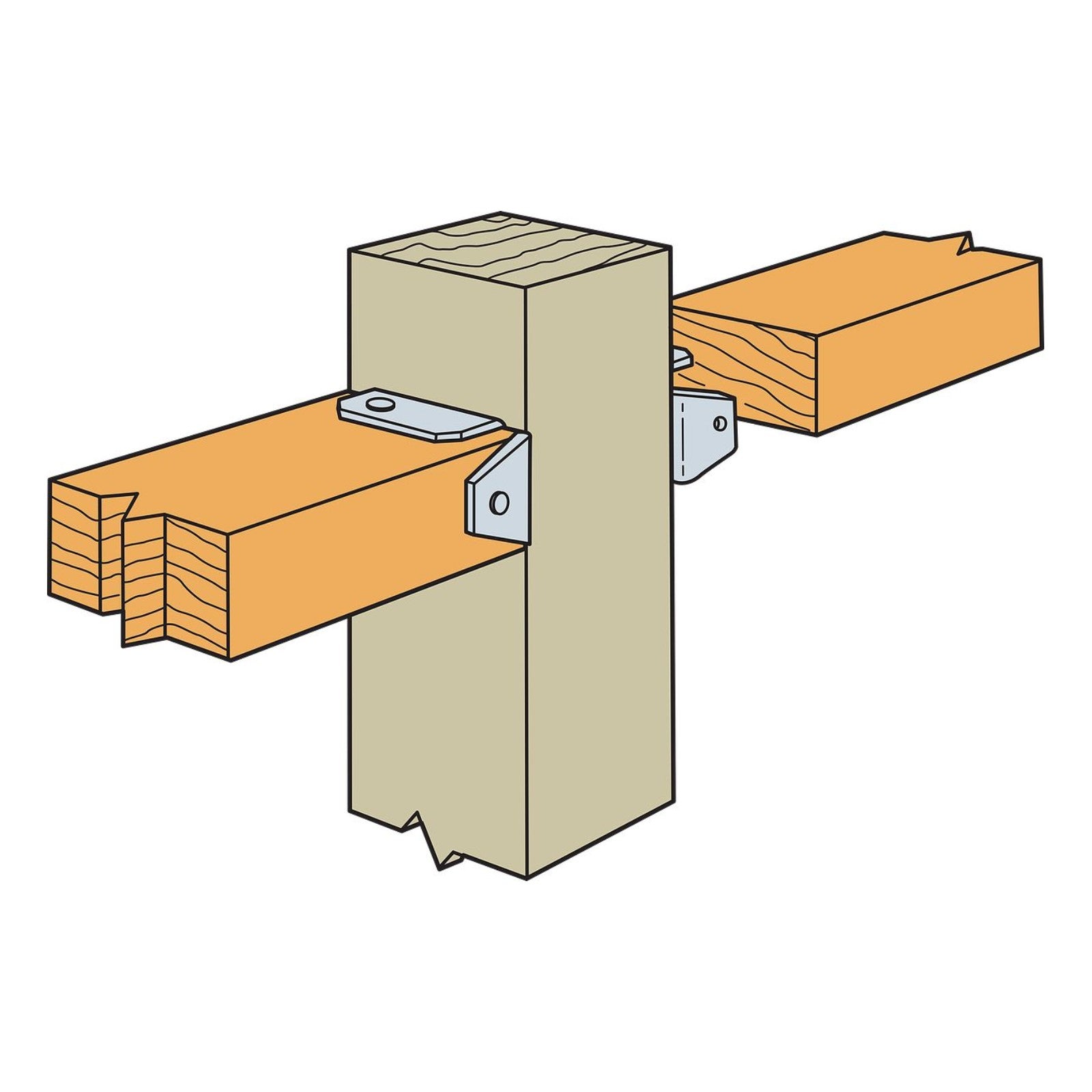

Installation:
  • Use all specified fasteners.
  • Holes are sized for 8dx1-1/2", 8d commons or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws into the supporting member.
  • FB24R is sized for 10dx1-1/2" or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws.
  • Some products may be installed with the Strong-Drive SD Connector screw. See model table.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie FB and FBR fence brackets make the connection between fence rails and posts simple and strong. Eliminates the need for toe naili...

Read More

Simpson Strong-Tie FB and FBR fence brackets make the connection between fence rails and posts simple and strong. Eliminates the need for toe nailing or screwing. Clean, versatile connections make planning and building fences, deck/porch railings and louvers easier and faster. The Strong-Tie FB24Z fence brackets feature a G185 ZMAX galvanized finish for added corrosion resistance and require the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Holes are sized for 8dx1-1/2", 8d commons or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws into the supporting member.
  • FB24R is sized for 10dx1-1/2" or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws.
  • Some products may be installed with the Strong-Drive SD Connector screw. See model table.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
(5) 0.131 x 1-1/2" Nails OR (5) 0.131 x 2-1/2" Nails

For Treated Lumber:
yes

Finish Spec:
ZMAX

Manufacturer Name:
Simpson Strong-Tie

Thickness:
20 Gauge
