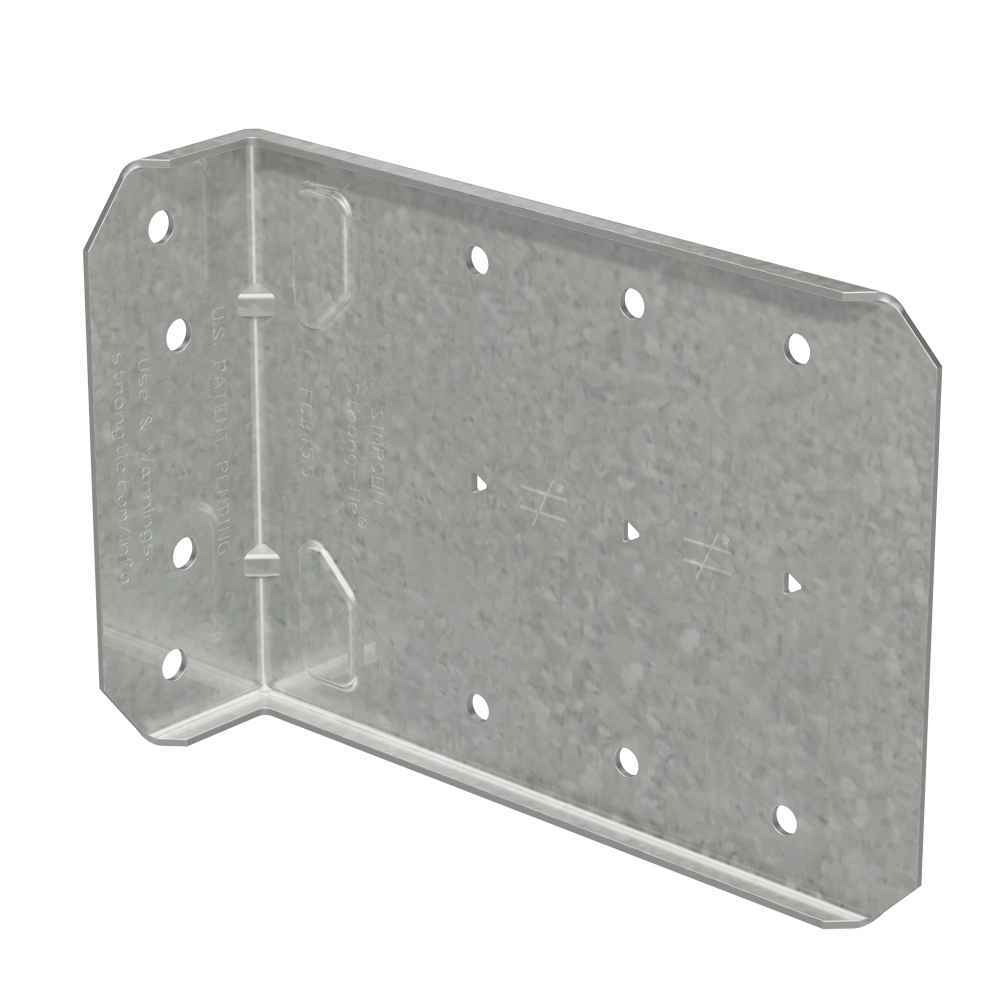

Simpson FCB45.5-R25 Bypass Framing Fixed-Clip Connector, Pkg 25

SKU: FCB45.5-R25

$79.73

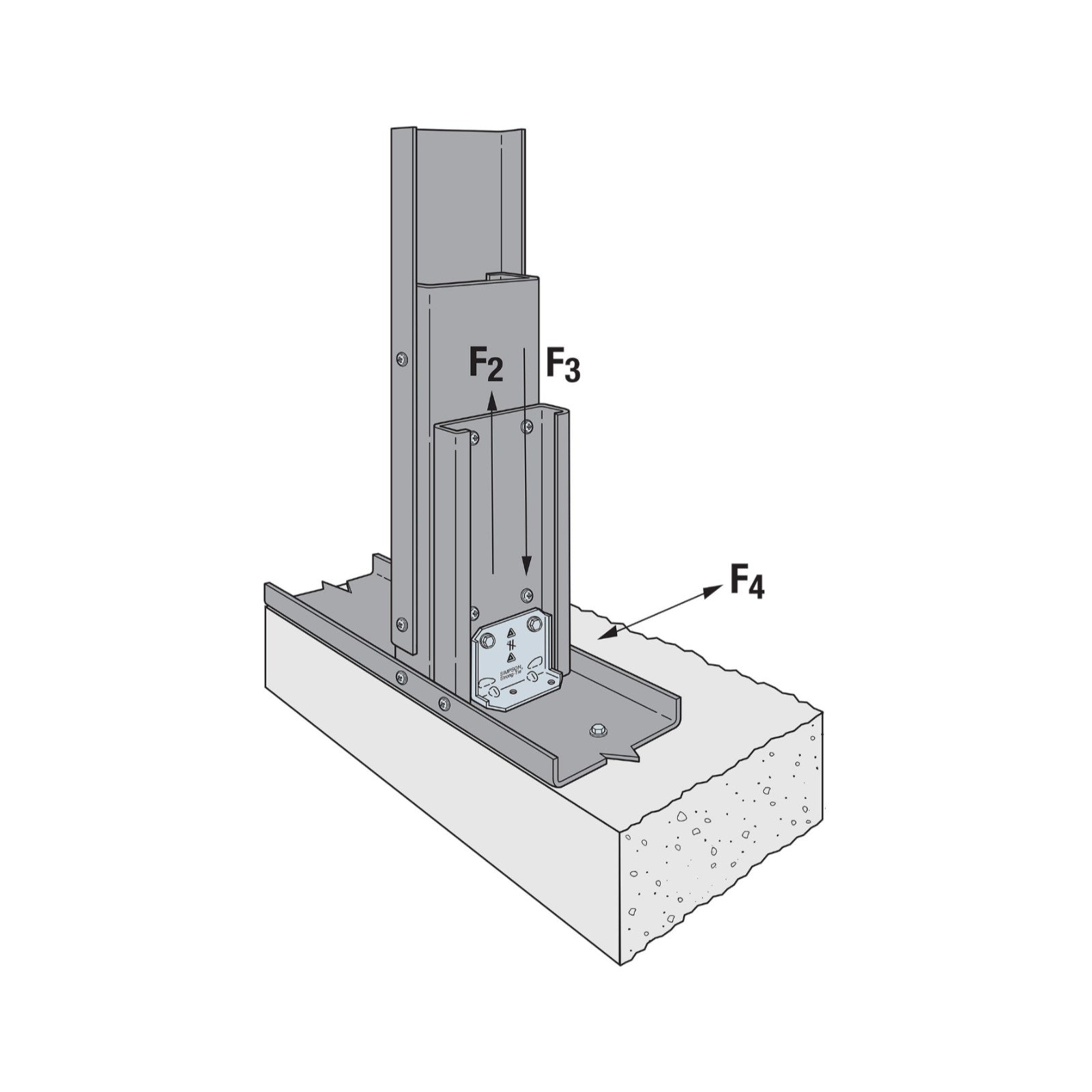

The FCB clip is an economical, high-performance fixed-clip connector that can be used for a variety of framing applications. It is rated for tension, compression and shear loads and offers the Designer the flexibility of specifying different screw and anchorage patterns that conform to desired load levels. The FCB45.5-R25 bypass framing fixed-clip connector features a G90 Galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use the specified type and number of anchors.

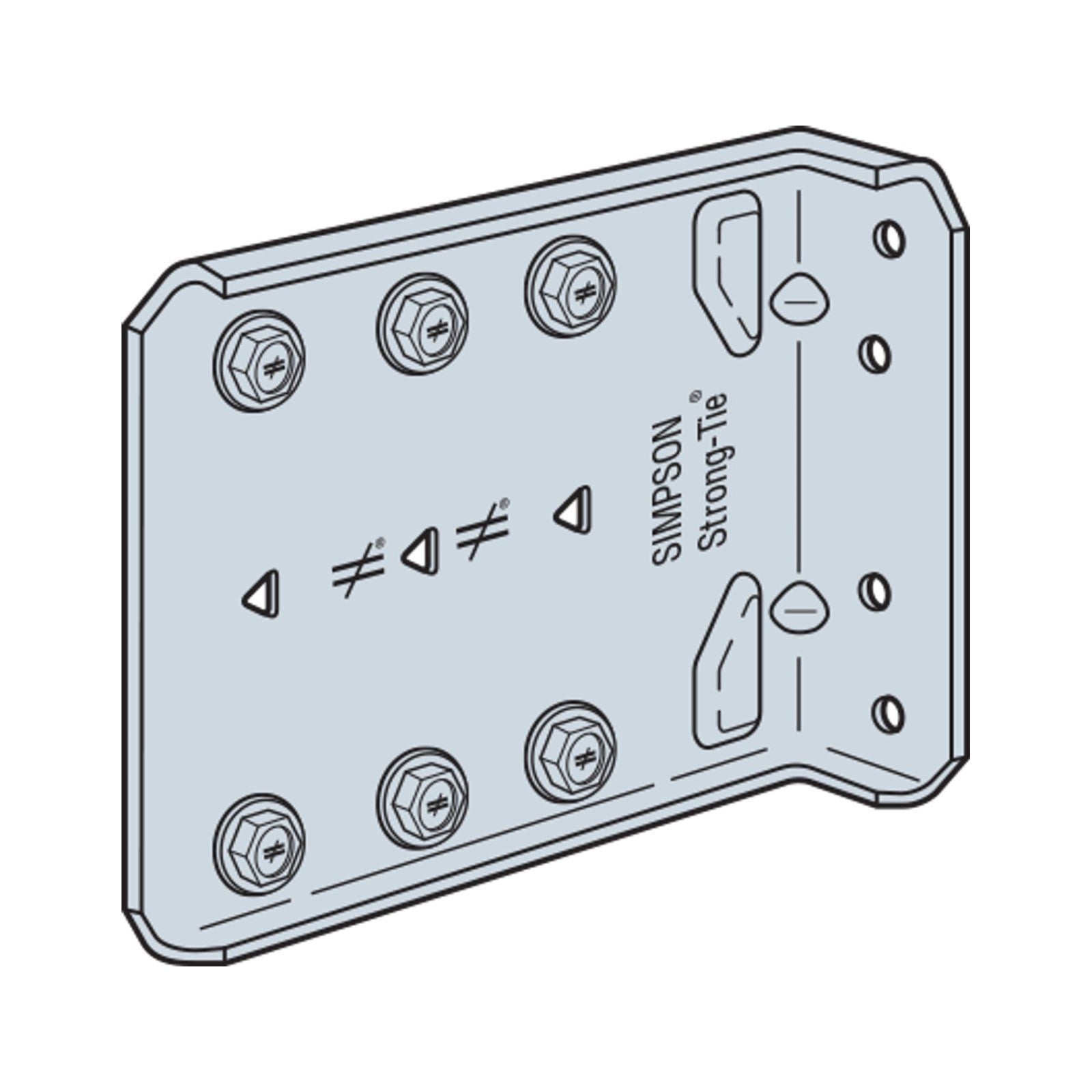

  • Use the specified number of #12 self-drilling screws to CFS framing.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The FCB clip is an economical, high-performance fixed-clip connector that can be used for a variety of framing applications. It is rated for tensio...

Read More

The FCB clip is an economical, high-performance fixed-clip connector that can be used for a variety of framing applications. It is rated for tension, compression and shear loads and offers the Designer the flexibility of specifying different screw and anchorage patterns that conform to desired load levels. The FCB45.5-R25 bypass framing fixed-clip connector features a G90 Galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use the specified type and number of anchors.
  • Use the specified number of #12 self-drilling screws to CFS framing.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Finish Spec:
G90 Galvanized

Length Spec:
5-1/2"

Manufacturer Name:
Simpson Strong-Tie

Height:
4"

Thickness:
54 mil (16 ga.)

Product Guide:

Read More

Show Less
