Shop more FCB Bypass Framing Fixed-Clip Connectors
SKU: FCB47.5-R25

Simpson FCB47.5-R25 Bypass Framing Fixed-Clip Connector, Pkg 25

Simpson FCB47.5-R25 Bypass Framing Fixed-Clip Connector, Pkg 25

Regular price $90.54
Sale price $90.54 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 25 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

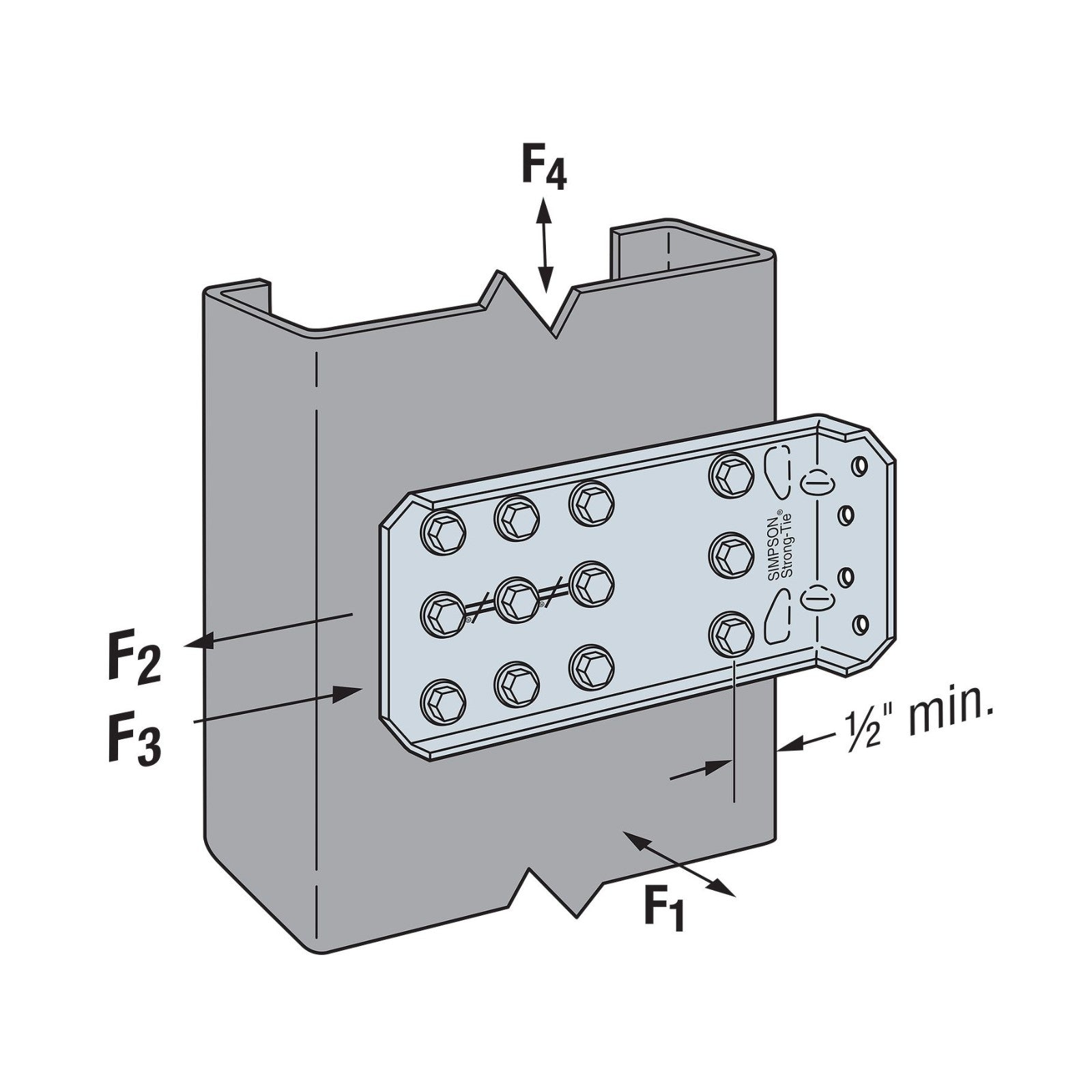

The FCB clip is an economical, high-performance fixed-clip connector that can be used for a variety of framing applications. It is rated for tension, compression and shear loads and offers the Designer the flexibility of specifying different screw and anchorage patterns that conform to desired load levels. The FCB47.5-R25 bypass framing fixed-clip connector features a G90 Galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use the specified type and number of anchors.
  • Use the specified number of #12 self-drilling screws to CFS framing.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 4"
Finish: G90 Galvanized
Length: 7-1/2"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet

Installation

-Use the specified type and number of anchors.
-Use the specified number of #12 self-drilling screws to CFS framing.

View full details
