Shop more FRFP/URFP Retrofit Foundation Plates
SKU: FRFPHDG

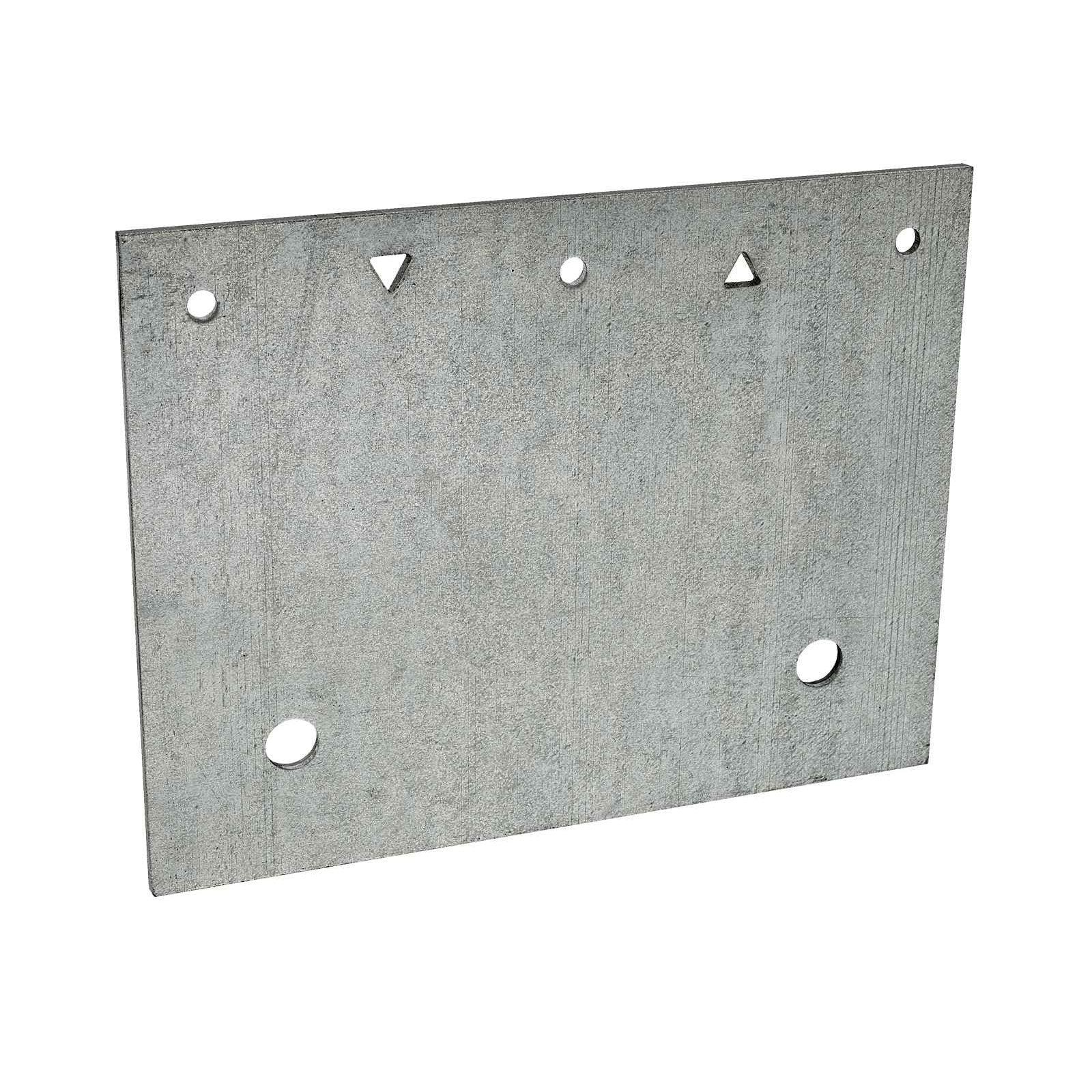

Simpson FRFPHDG Flat Retrofit Foundation Plate - Hot Dip Galvanized

Simpson FRFPHDG Flat Retrofit Foundation Plate - Hot Dip Galvanized

Regular price $40.73
Sale price $40.73 Regular price
0% off
Made to Order
Ships in 28-42 business days.

Description:

This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

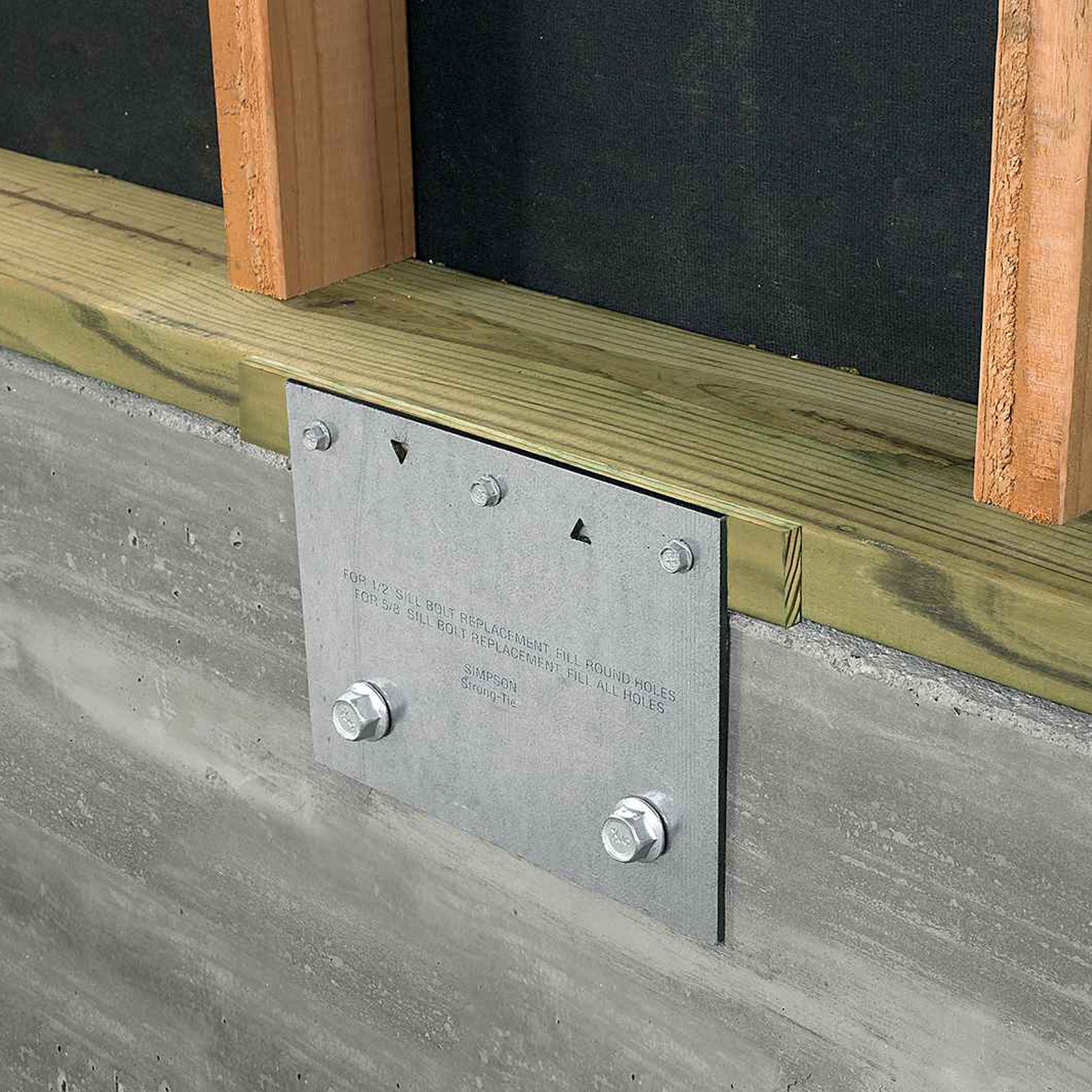

The FRFPHDG flat retrofit foundation plate connects the mudsill to the foundation and provides lateral load resistance. The design allows the Designer to maintain prescriptive requirements. It can be used by filling the three holes, or as an alternate, filling the two optional triangle holes to allow designers to utilize increased loads and greater allowable spacing.



NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:

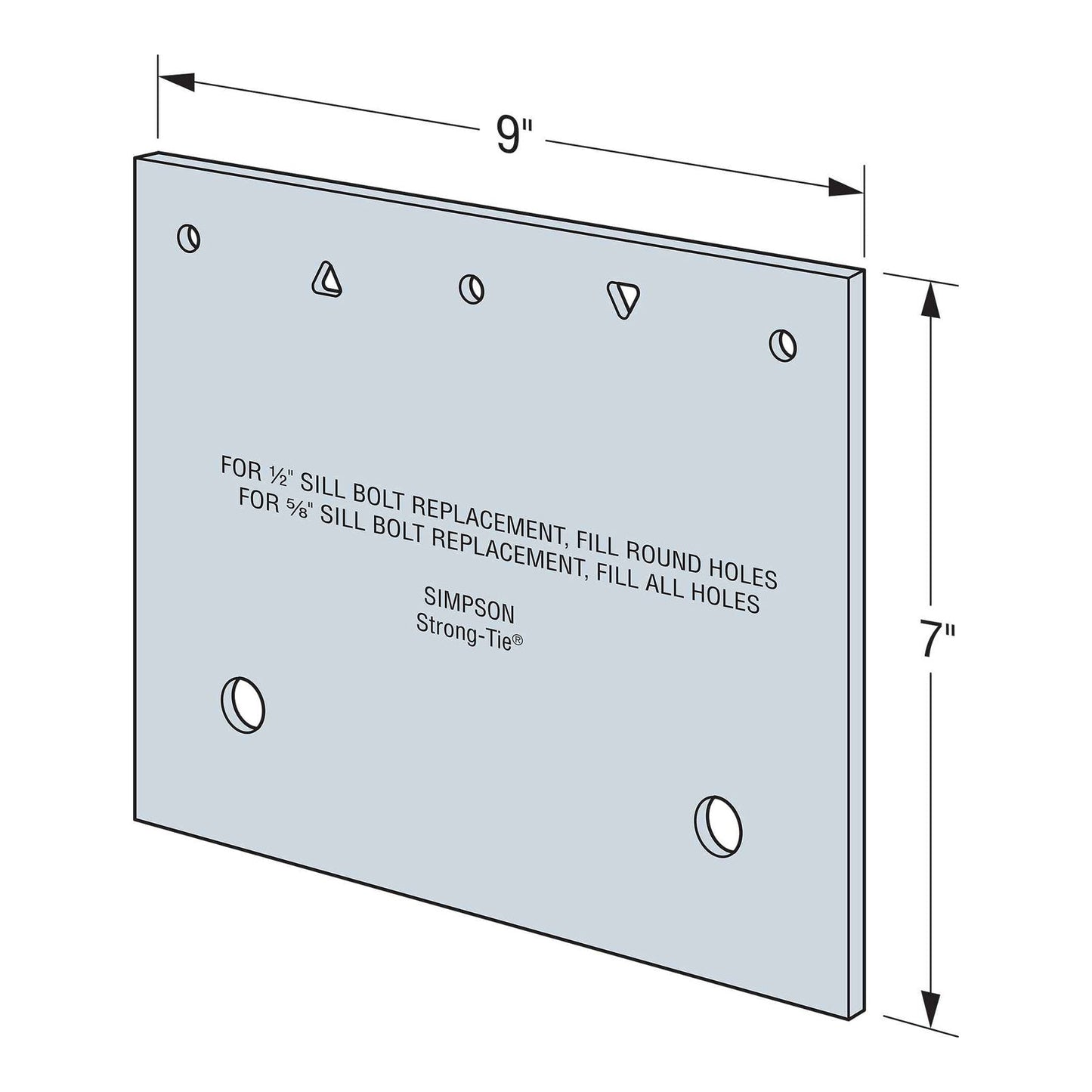

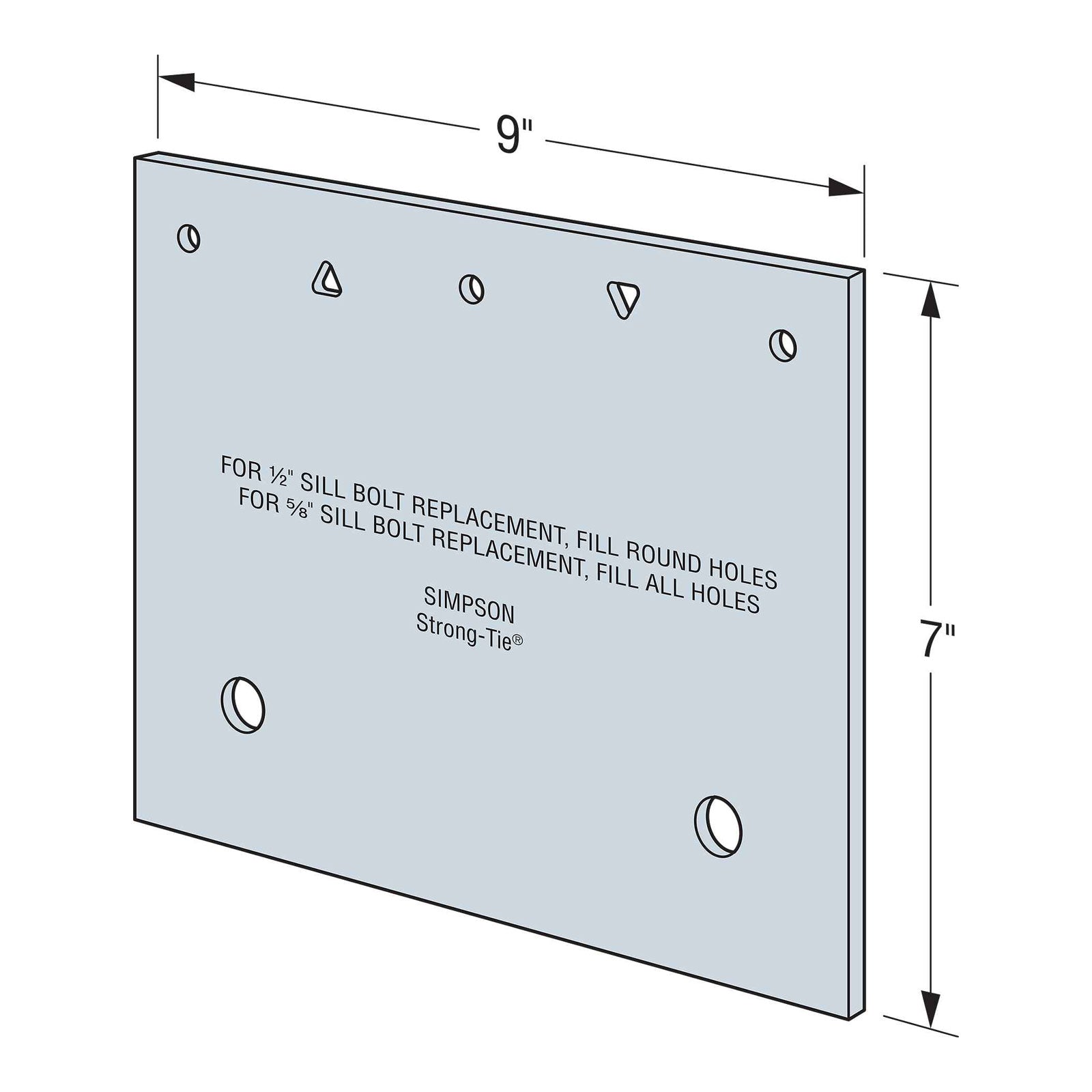

Material: Galvanized Steel
Height: 7"
Fasteners required: Strong-Drive SDS Heavy-Duty Connector screw minimum length of 2 1/2" plus shim thickness
Thickness: 7 Gauge
Quantity: 1
Width: 9"
Finish: Hot Dip Galvanized
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet

Features

•Made from durable galvanized steel for lasting and reliable use and to resist corrosion
•Optional fastening options provide design flexibility
•Increased loads for wind or earthquake loading
•Can accommodate up to a 1 1/2″ offset sill plate

Installation

•Use all specified fasteners; see General Notes.
•FRFP shall use a minimum Strong-Drive® SDS Heavy-Duty Connector screw length of 2 1/2" plus the shim thickness. Follow code requirements for predrilling. Fasteners are sold separately.
