Simpson URFP-SDS3 Universal Retrofit Foundation Plate w/SDS Screws
Simpson URFP-SDS3 Universal Retrofit Foundation Plate w/SDS Screws
No reviews
Regular price
$28.63
Sale price
$28.63
Regular price
Unit price
/
per
0% off
Ships today when you order in the next
8 hours
42 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:

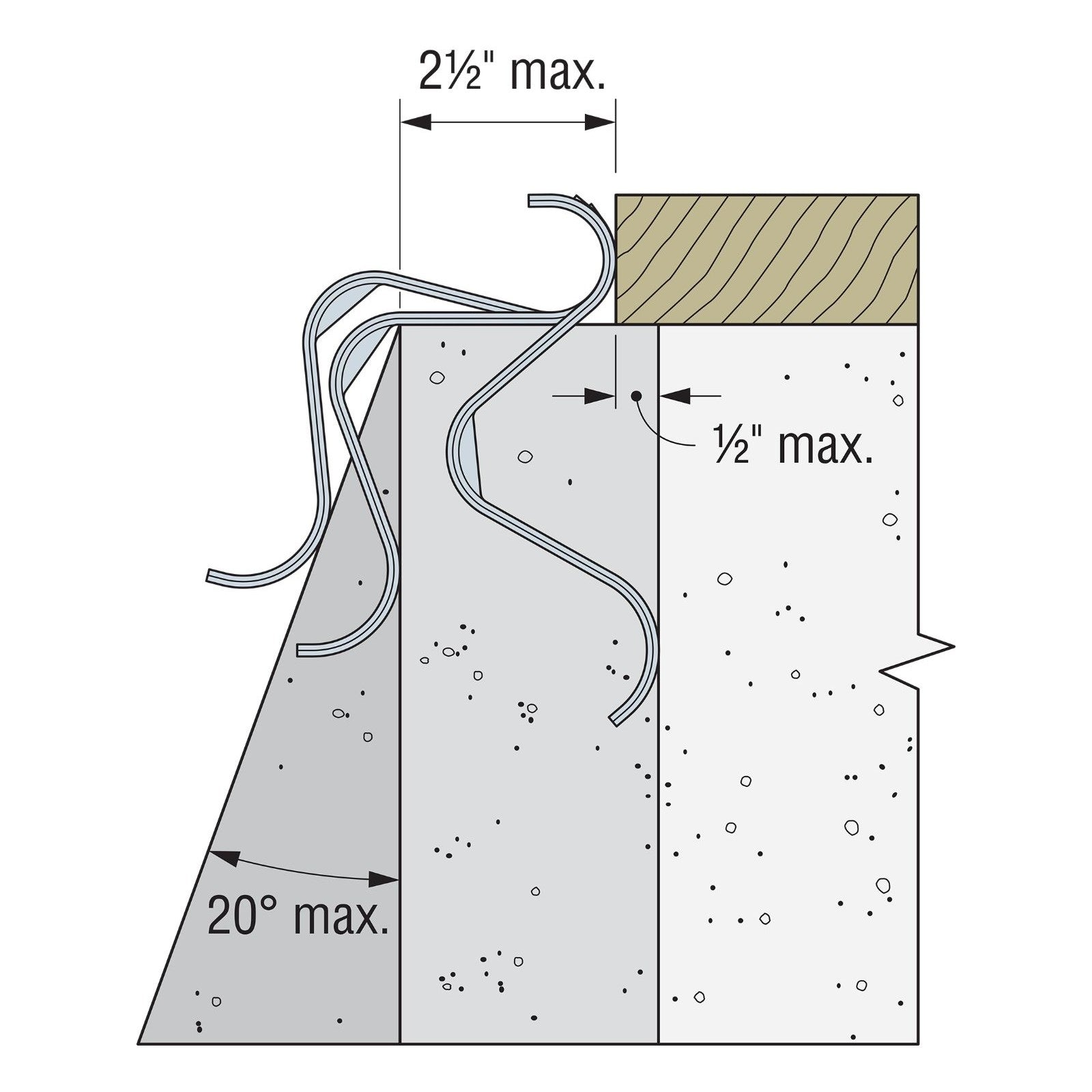

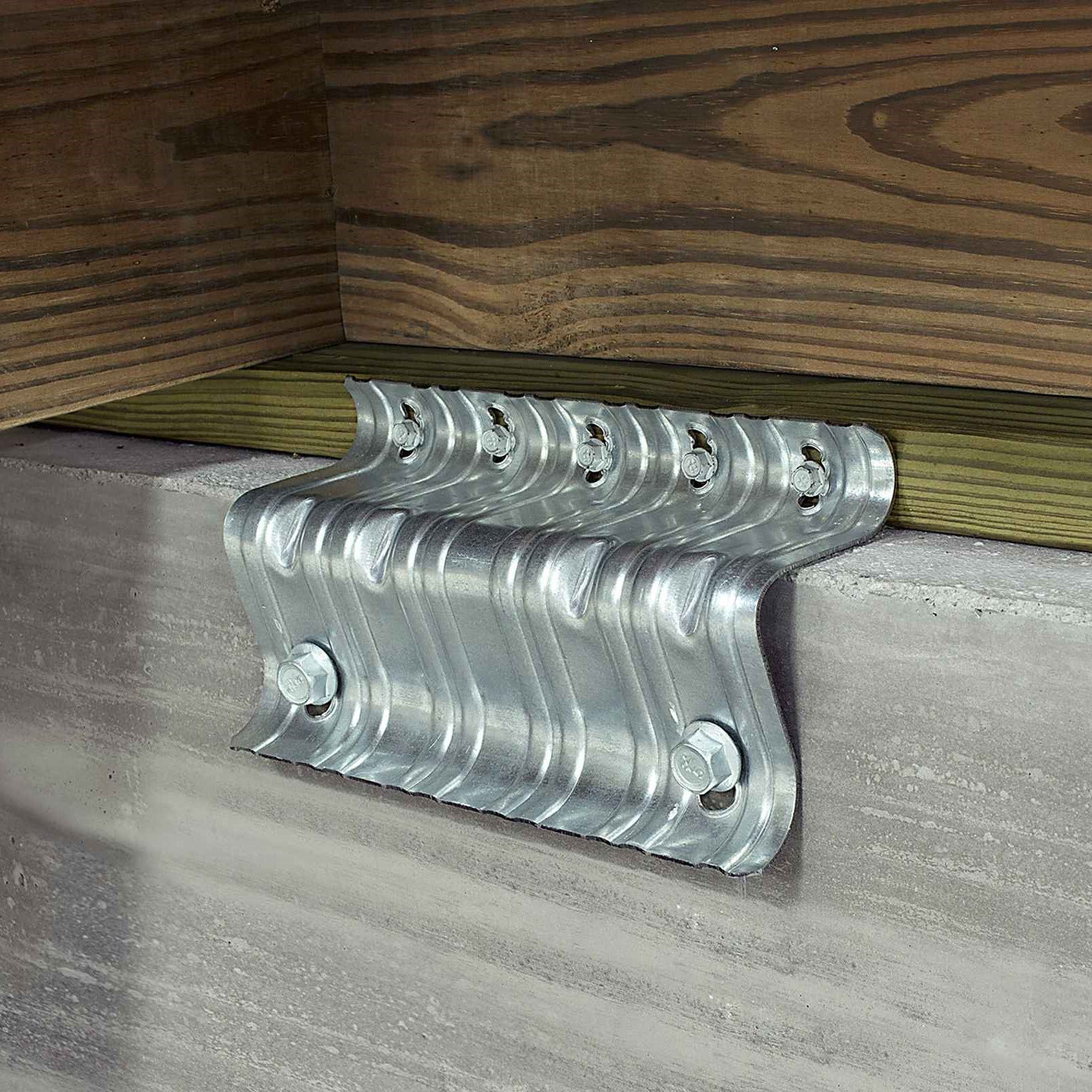

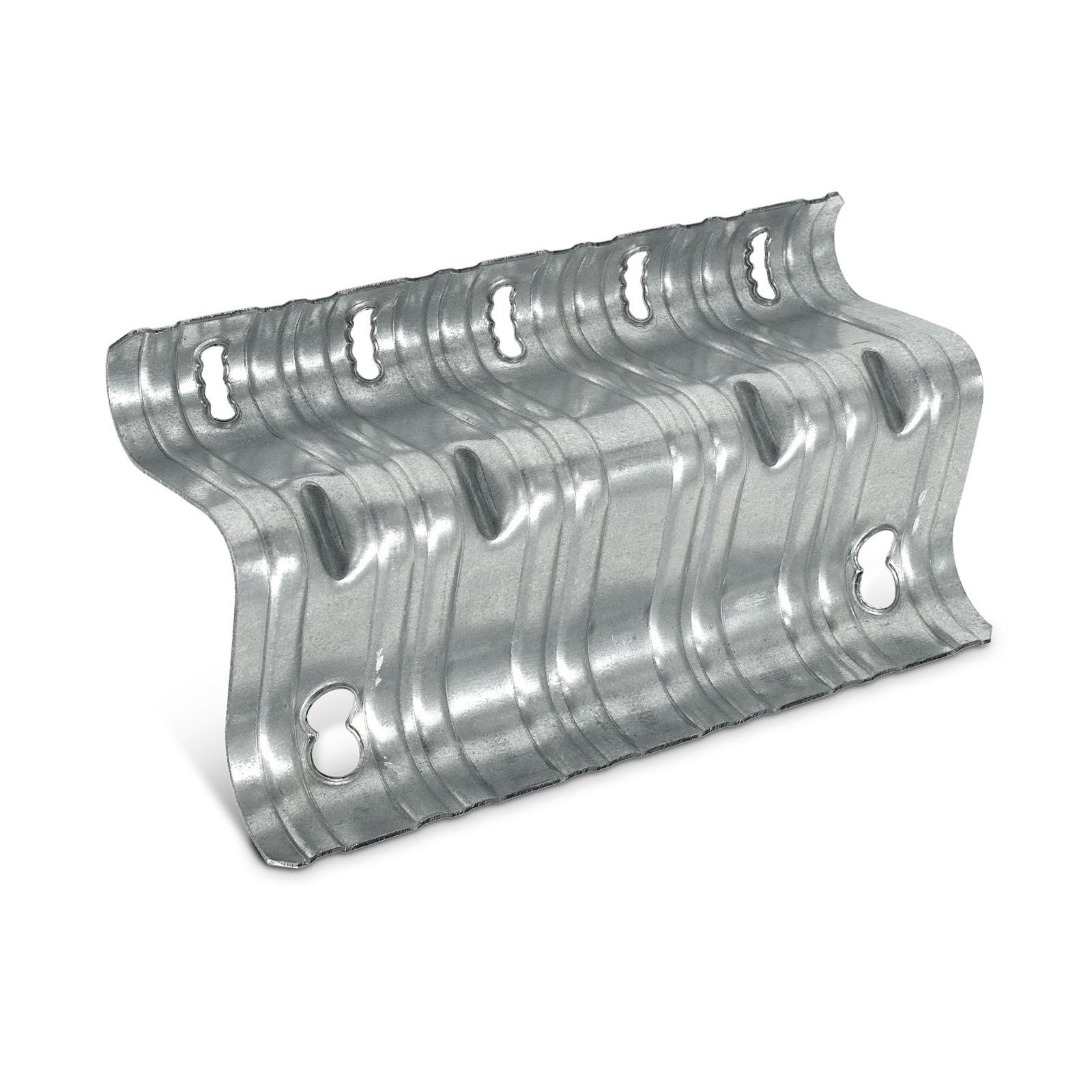

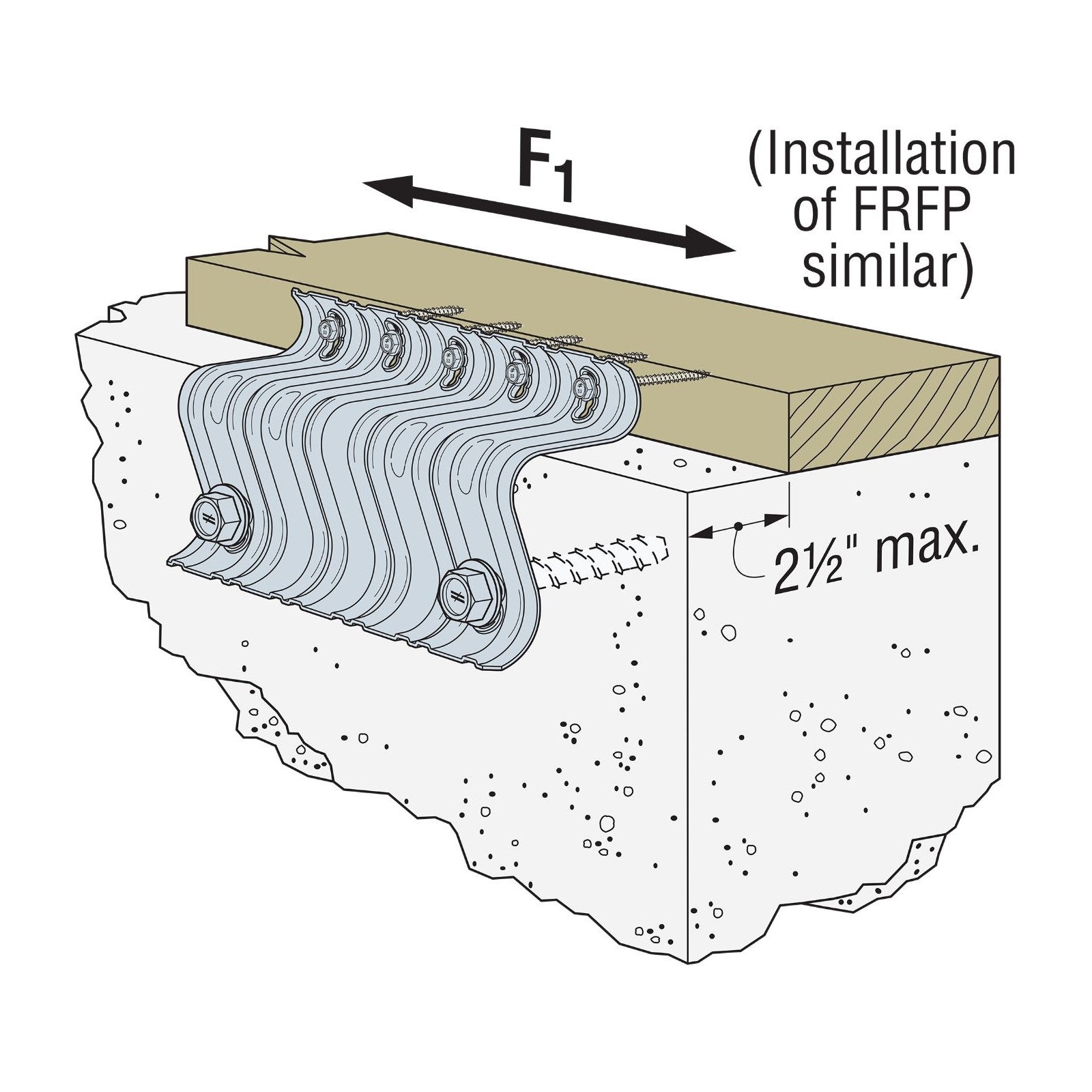

Ideal where there is minimum vertical clearance, the URFP universal retrofit foundation plate provides a retrofit method to secure the mudsill to the foundation. This design allows installation flexibility when the mudsill is offset or inset from the foundation edge. With its combination of longitudinal embossments, stiffening darts and scalloped slotted holes, the URFP allows for a one-for-one replacement of 1/2" or 5/8" mudsill anchors as well as fixity to both the SDS screws and required concrete anchorage.
Installation:
- Use all specified fasteners.
- Install using 1/4" x 3" Strong-Drive SDS Heavy-Duty Connector screws (included).
- Alternate lag screws will not achieve published loads.
Specifications:
Specifications:
Fasteners required: All Fasteners Included

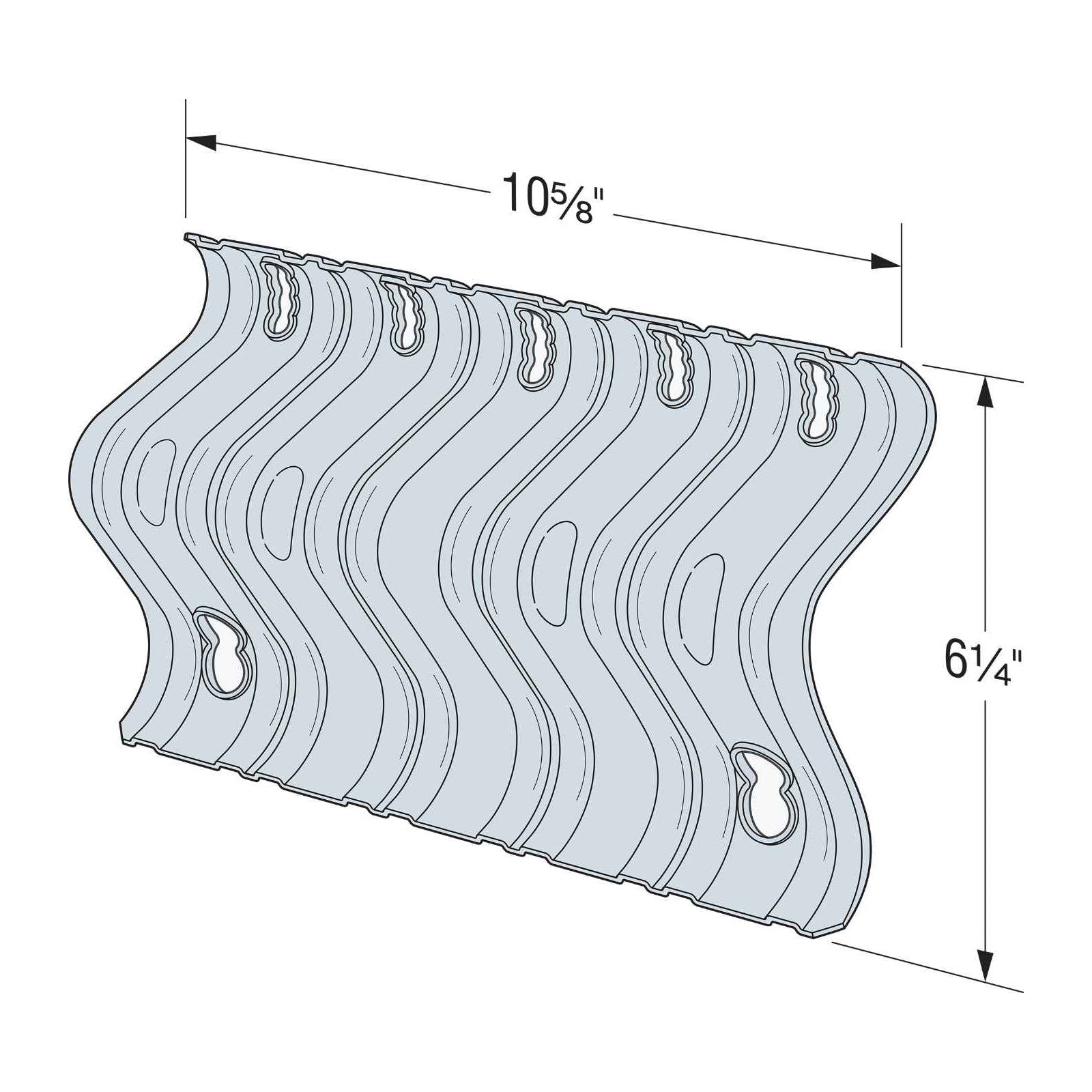

Width: 10-5/8"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
