SKU: HCSTR2

Simpson HCSTR2 Hinge Connector Strap, 7 gauge - Galvanized

Simpson HCSTR2 Hinge Connector Strap, 7 gauge - Galvanized!

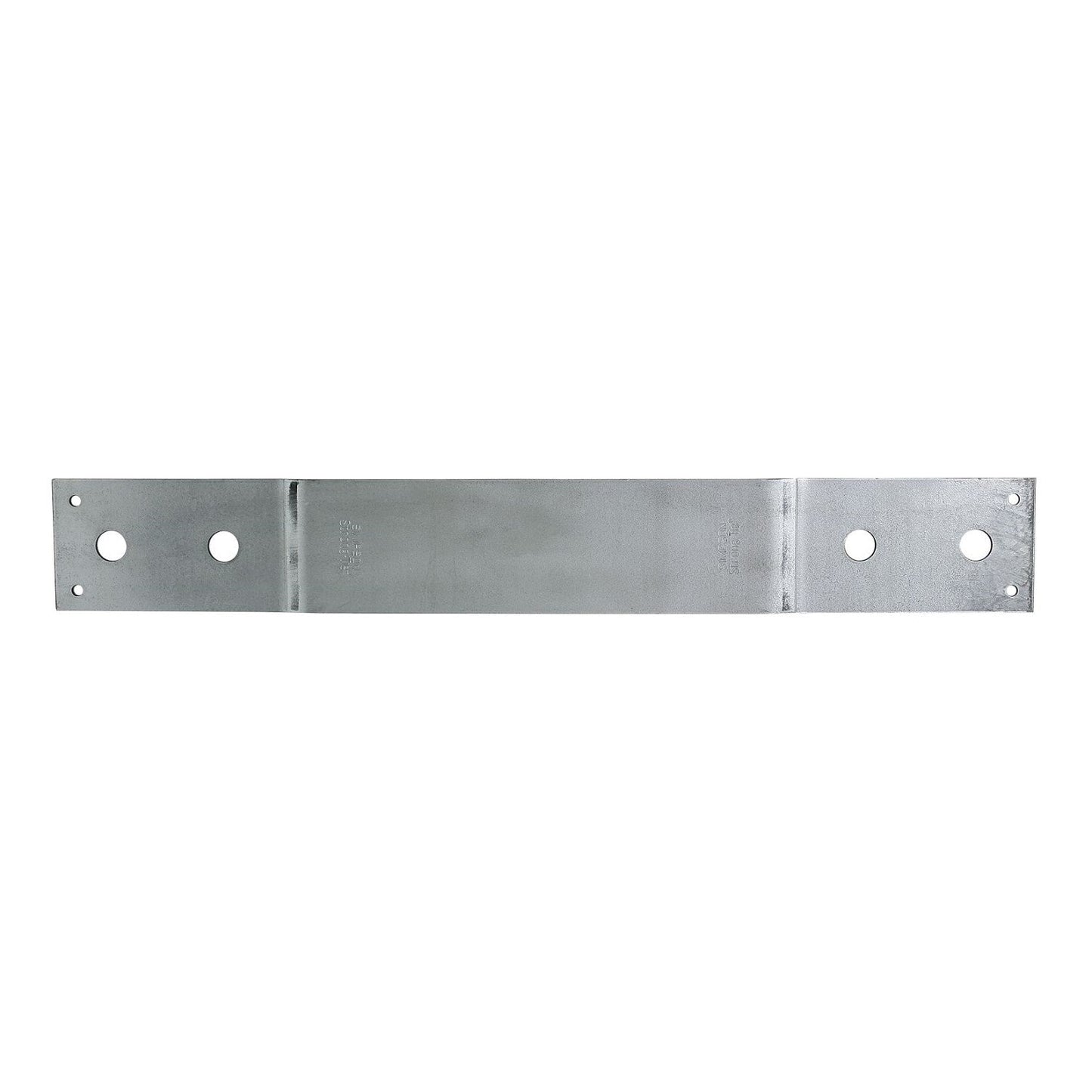

  • HCSTR Hinge Connector Strap - HCSTR2 shown

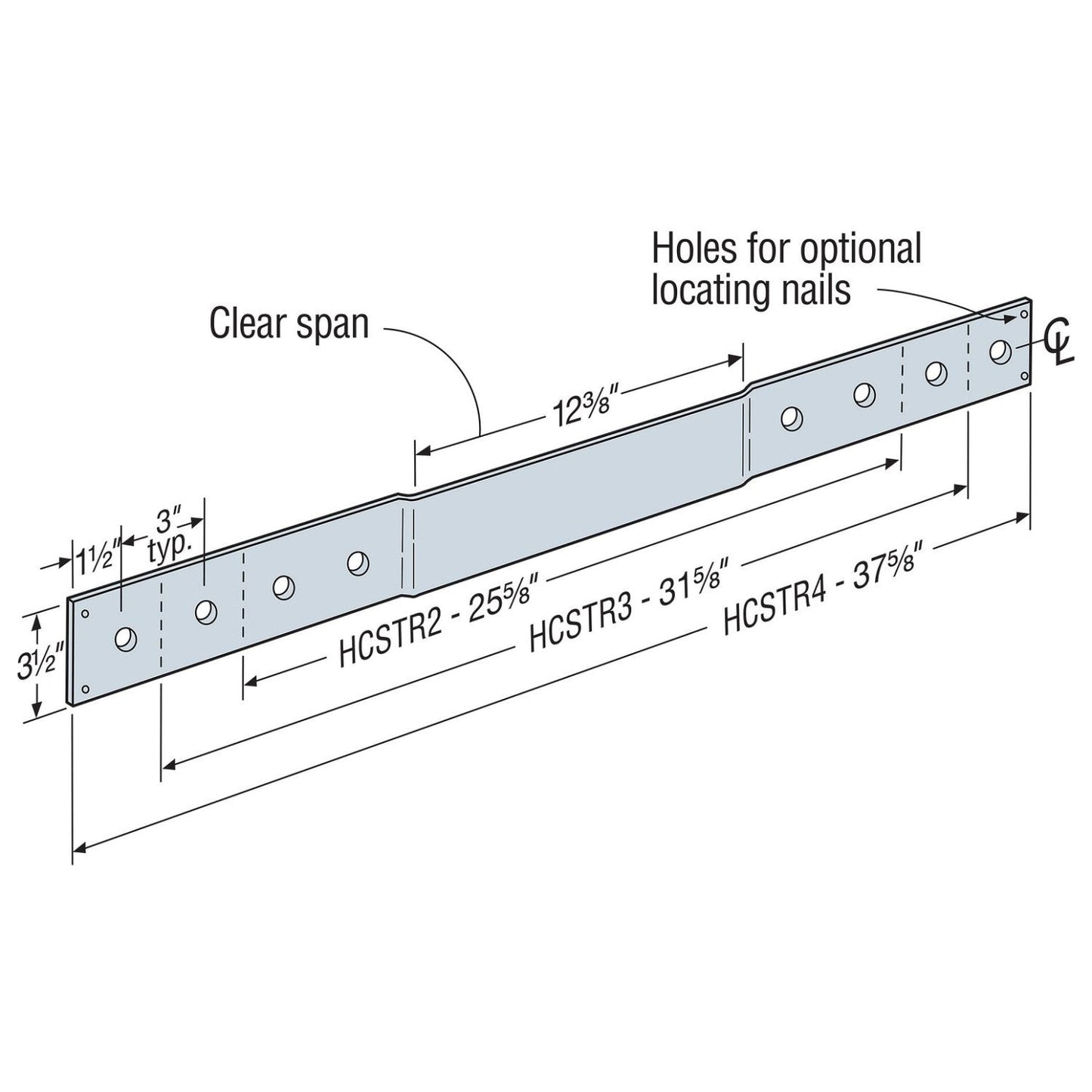

  • HCSTR Hinge Connector Strap callout

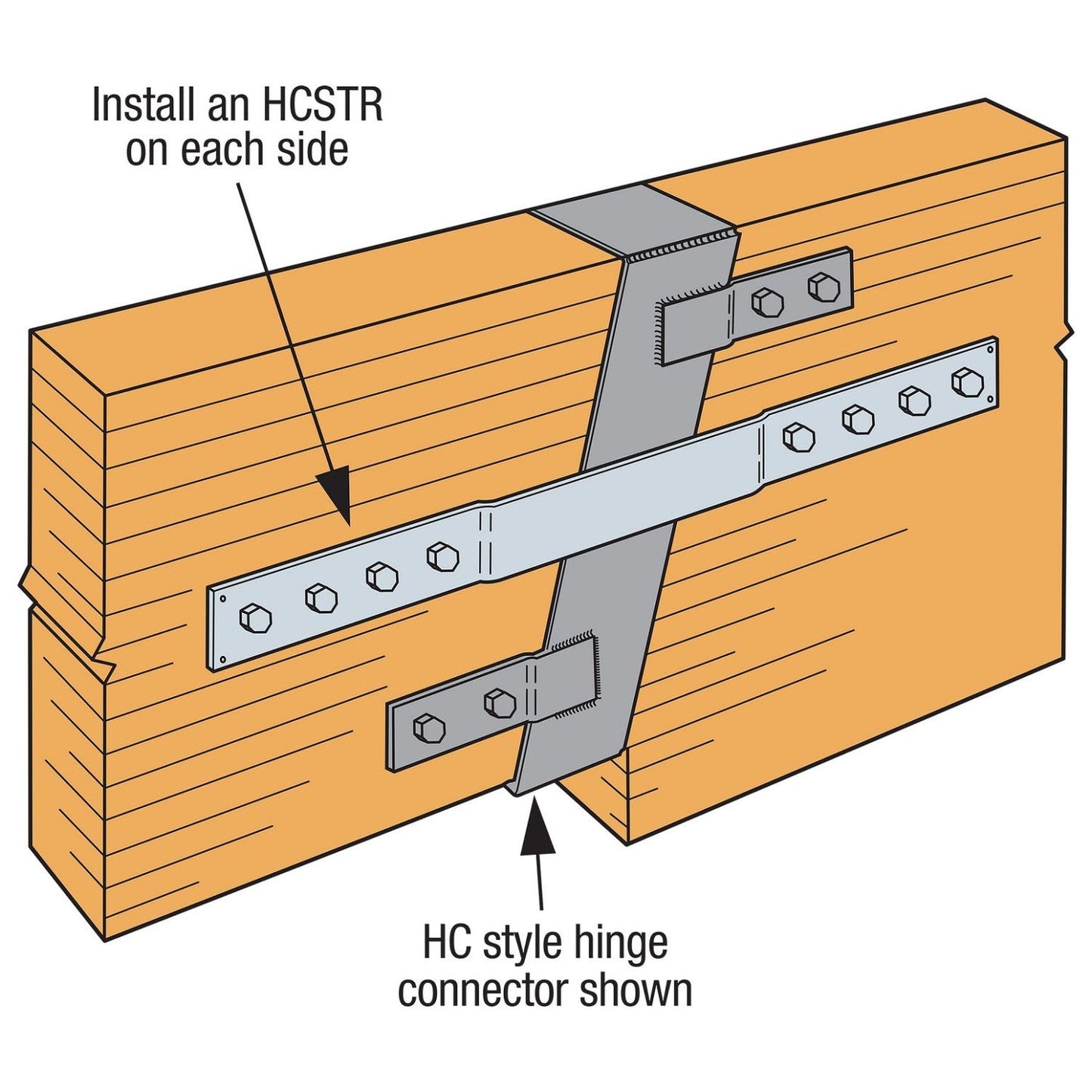

  • Typical HCSTR Installation - HCSTR4 shown
1 3

Continue Browsing

MSTA/MSTC/MSTI Strap Ties
SKU: HCSTR2

Simpson HCSTR2 Hinge Connector Strap, 7 gauge - Galvanized

$55.98

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 13 when you add 4 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Length: 25-5/8"
Fasteners required: (4) 3/4" Diameter
Manufacturer name: Simpson Strong-Tie Company Inc
Thickness: 7 Gauge
Width: 3-1/2"
Description

Use the Simpson HCSTR Hinge Connector Straps for retrofit applications to strap horizontal wood members together where a hinge connector interferes. All bolt holes shall be 1/32" (minimum) and 1/16" (maximum) larger than the bolt diameter (2015 NDS 11.1.3.2).

  • For use with Simpson Strong-Tie HC hinge connectors.
  • Use all specified fasteners.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
