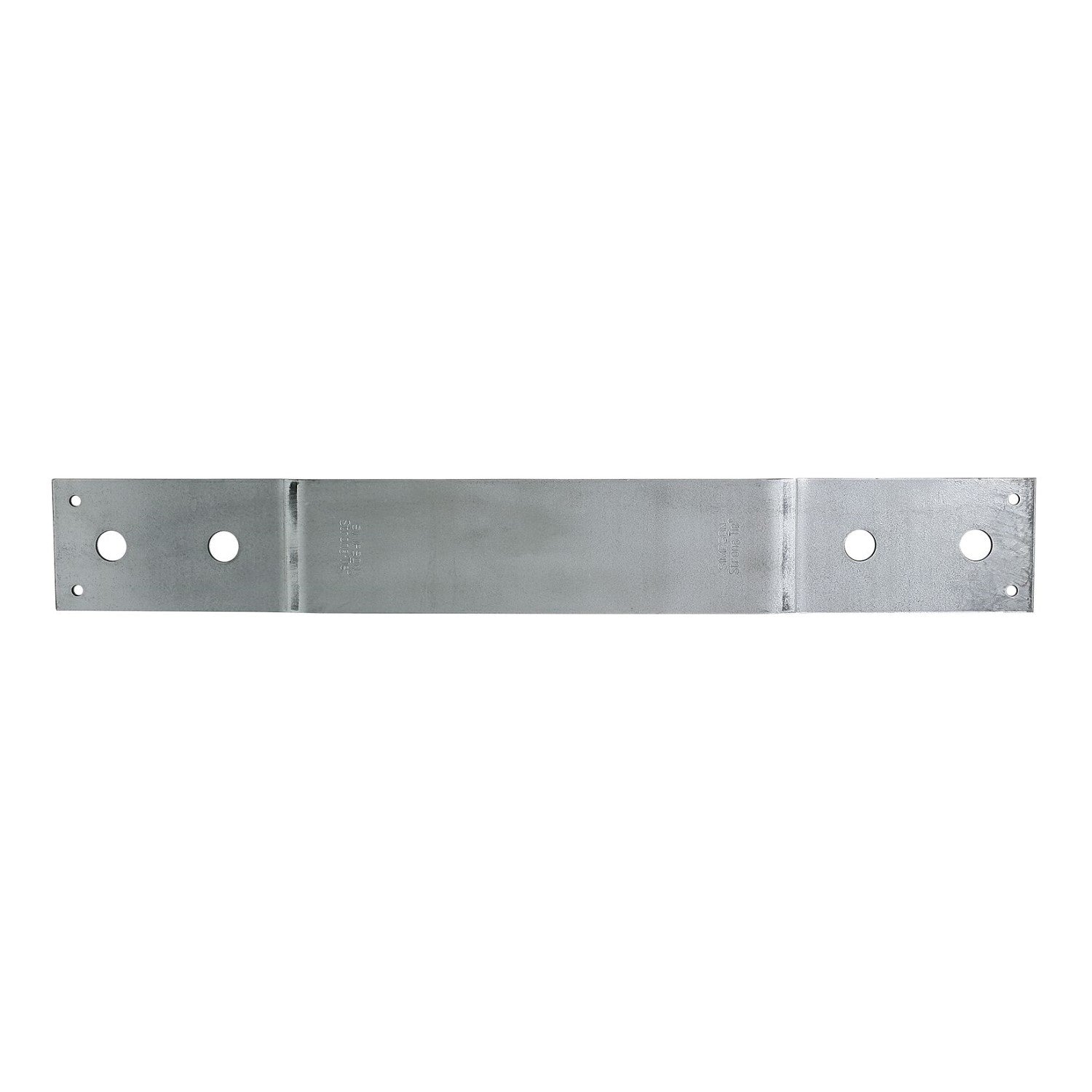

• HCSTR Hinge Connector Strap - HCSTR2 shown

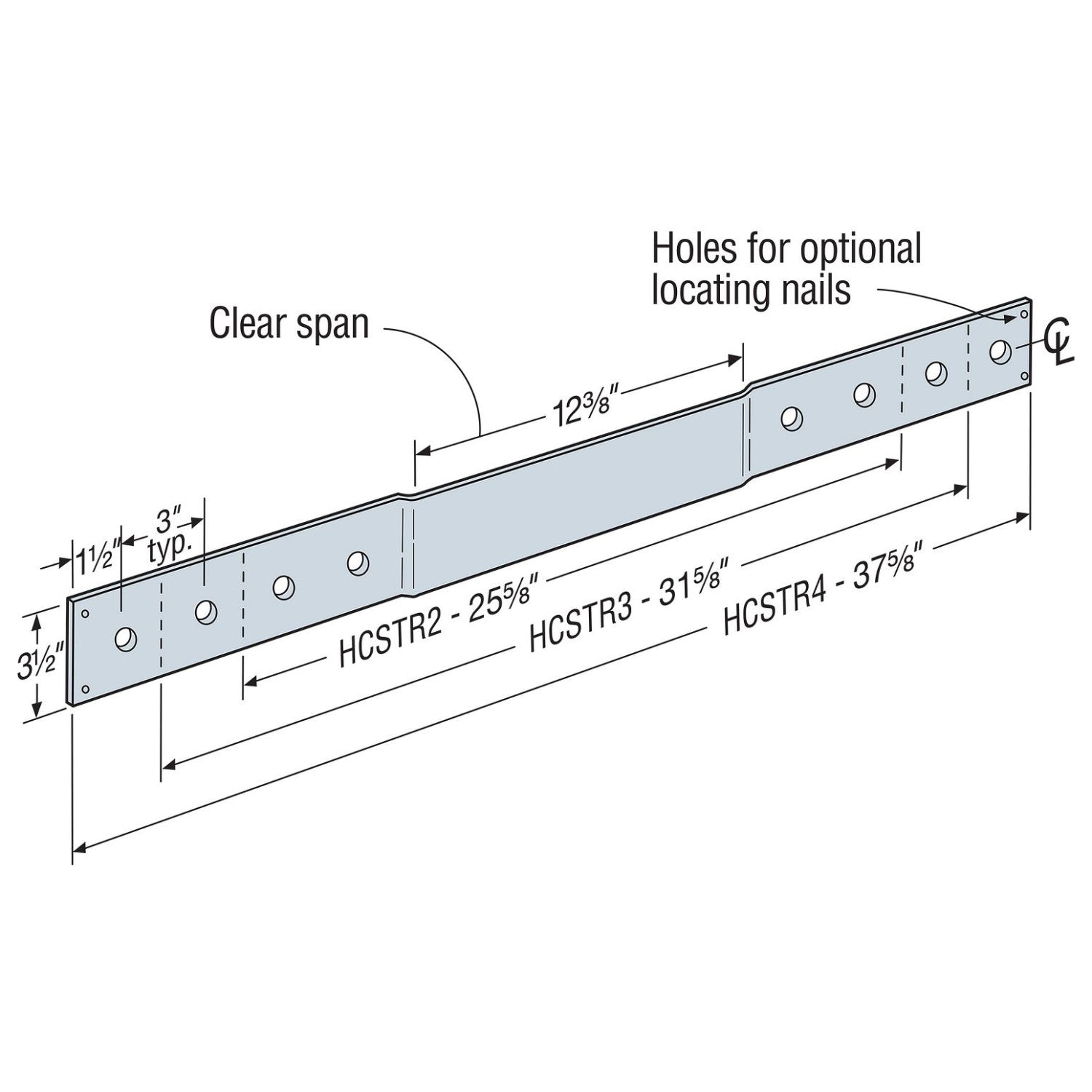

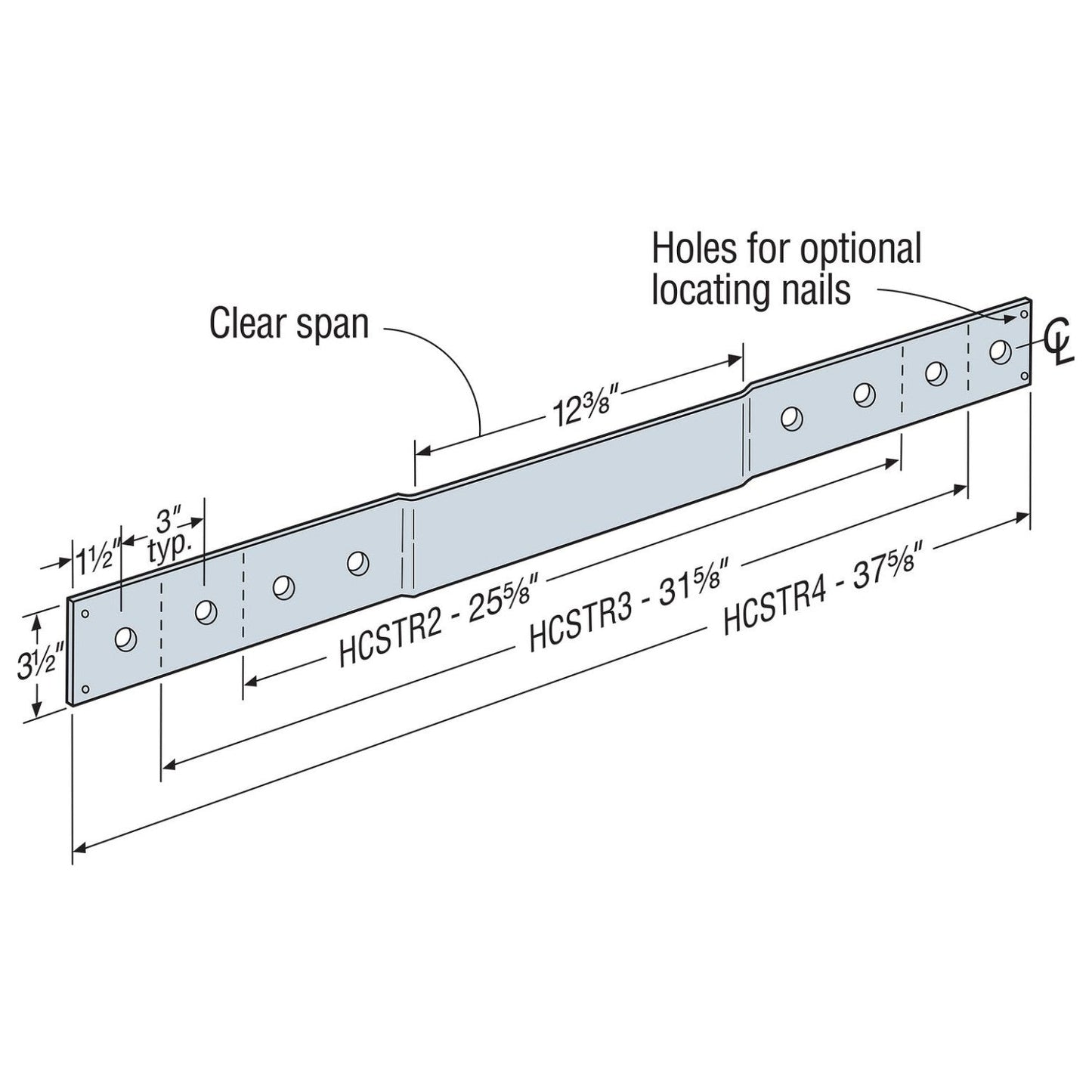

  • HCSTR Hinge Connector Strap callout

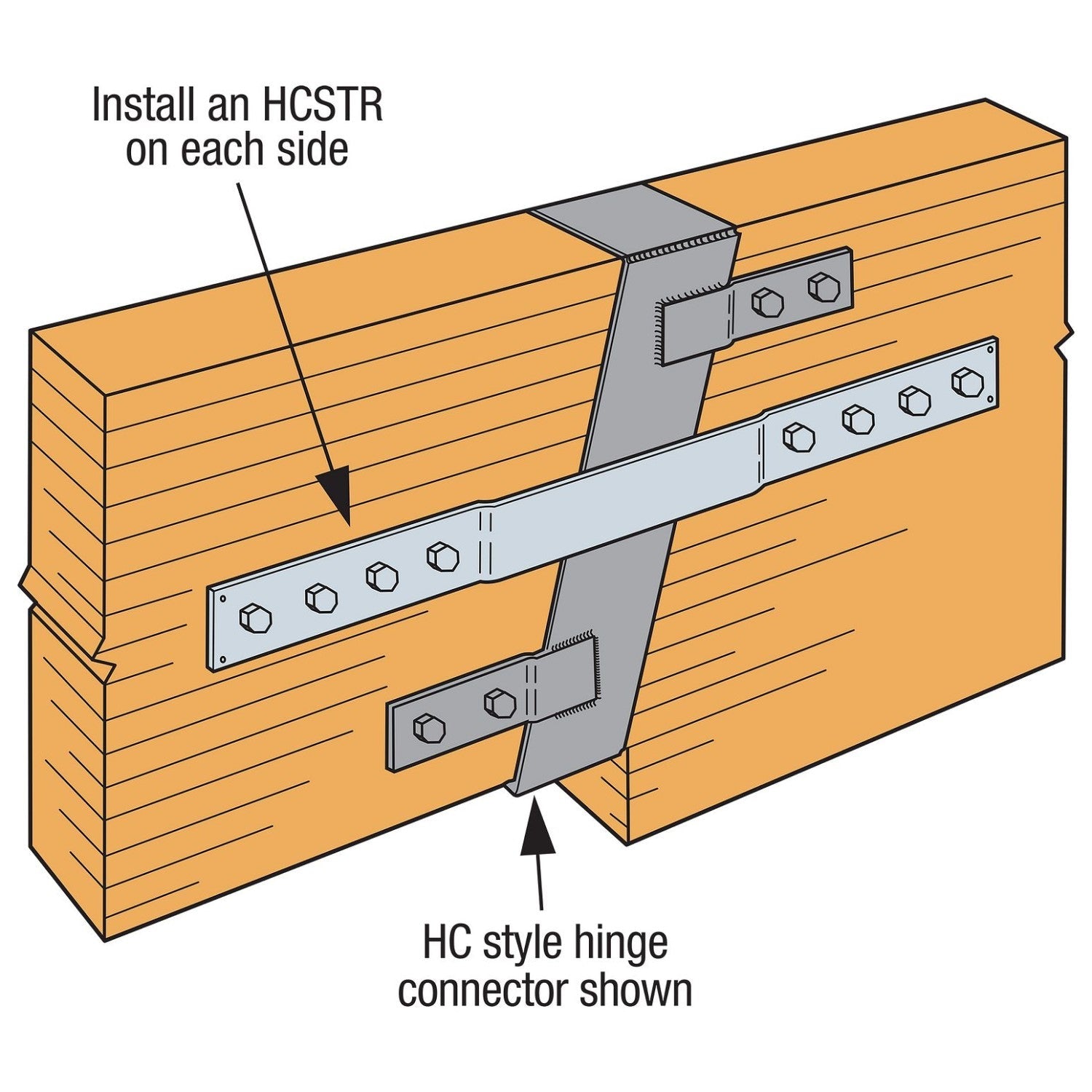

  • Typical HCSTR Installation - HCSTR4 shown
1 3
Shop more MSTA/MSTC/MSTI Strap Ties
SKU: HCSTR4

Simpson HCSTR4 Hinge Connector Strap, 3 Gauge - Gray Paint

Simpson HCSTR4 Hinge Connector Strap, 3 Gauge - Gray Paint

$62.41
$62.41
0% off

Description:

Use the Simpson HCSTR Hinge Connector Straps for retrofit applications to strap horizontal wood members together where a hinge connector interferes. All bolt holes shall be 1/32" (minimum) and 1/16" (maximum) larger than the bolt diameter (2015 NDS 11.1.3.2).

  • For use with Simpson Strong-Tie HC hinge connectors.
  • Use all specified fasteners.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Fasteners required: (8) 3/4" Diameter
Thickness: 3 Gauge
Width: 3-1/2"
Length: 37-5/8"
Manufacturer name: Simpson Strong-Tie Company Inc
