Shop more HSLQ Heavy Shear Transfer Angle
SKU: HSLQ312-SDS2.5

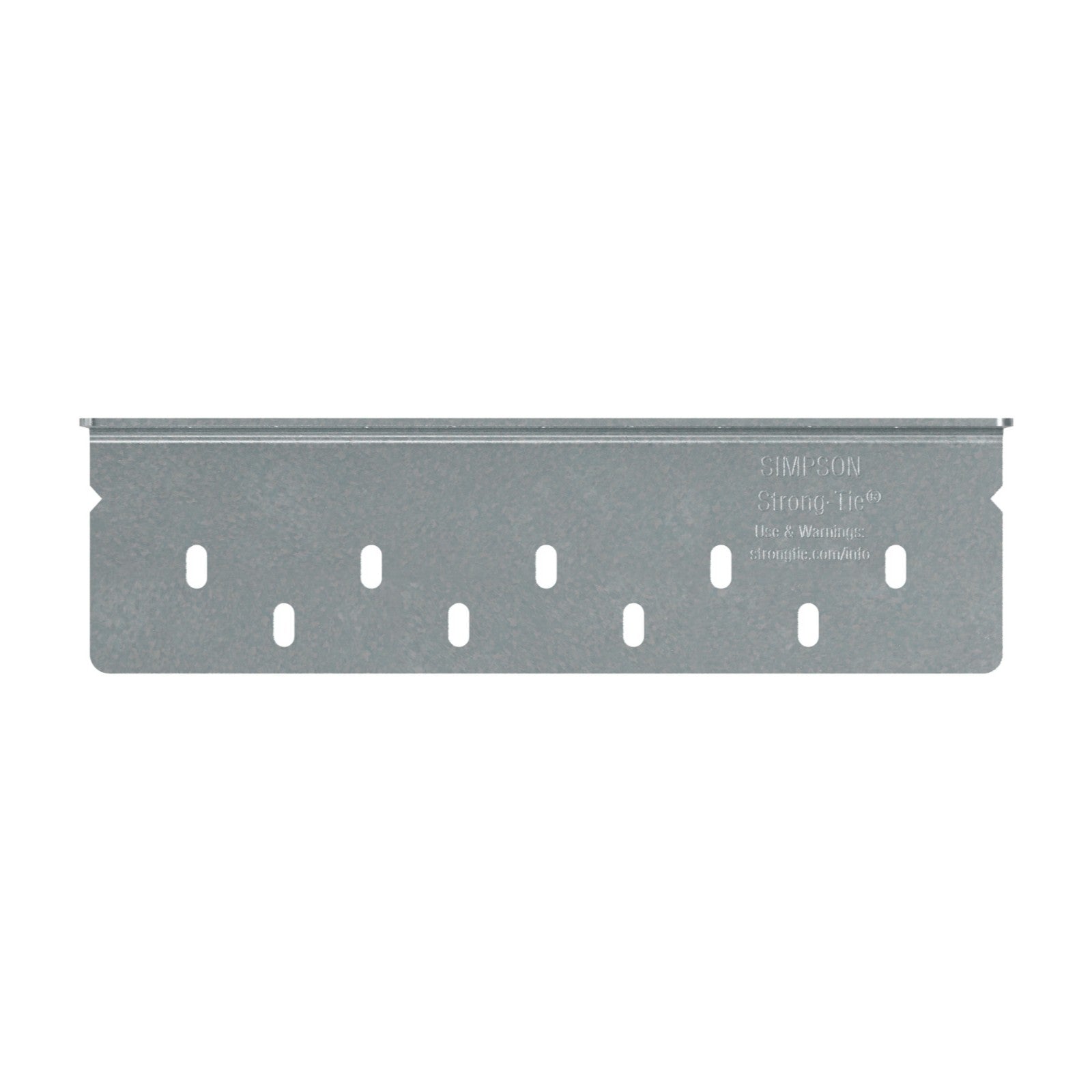

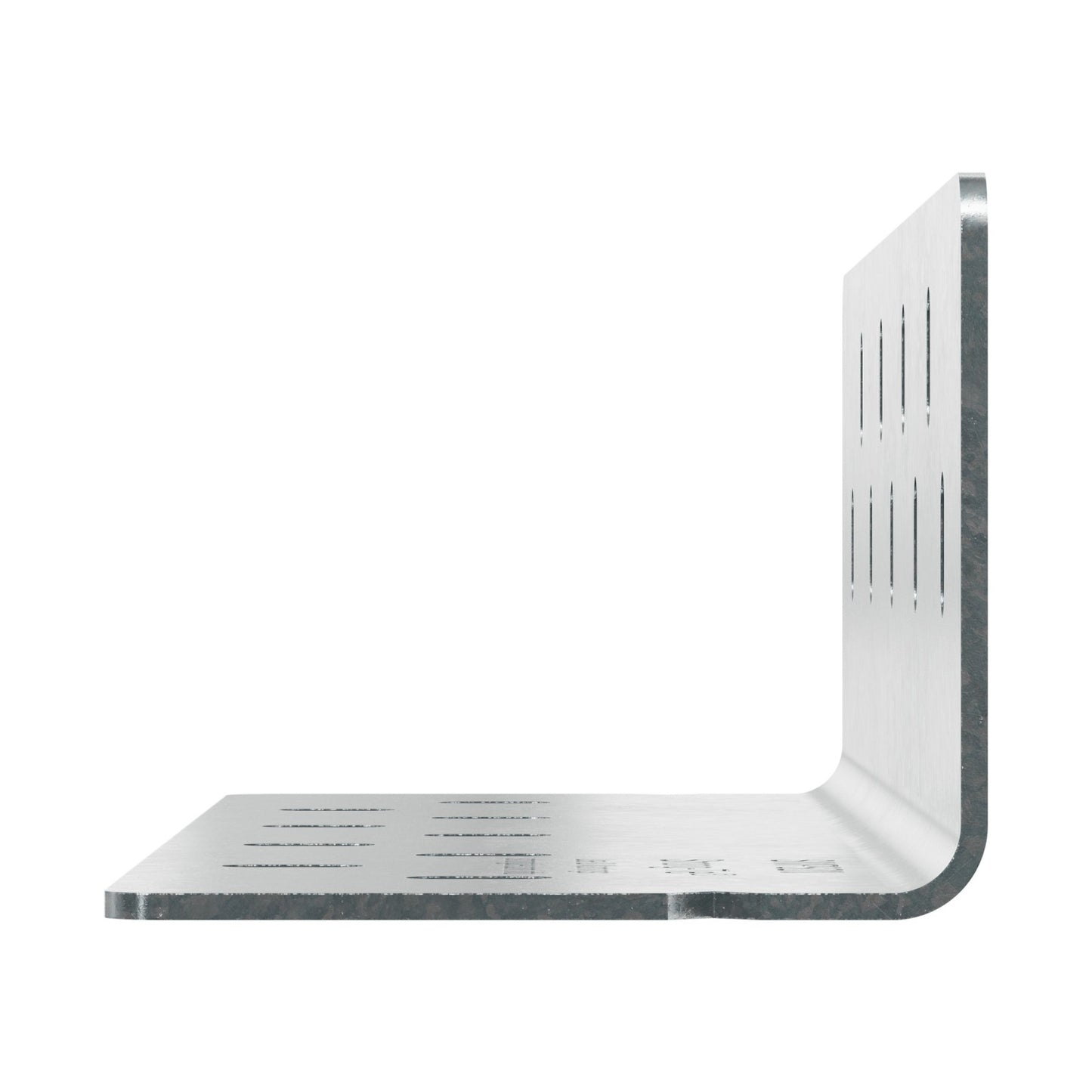

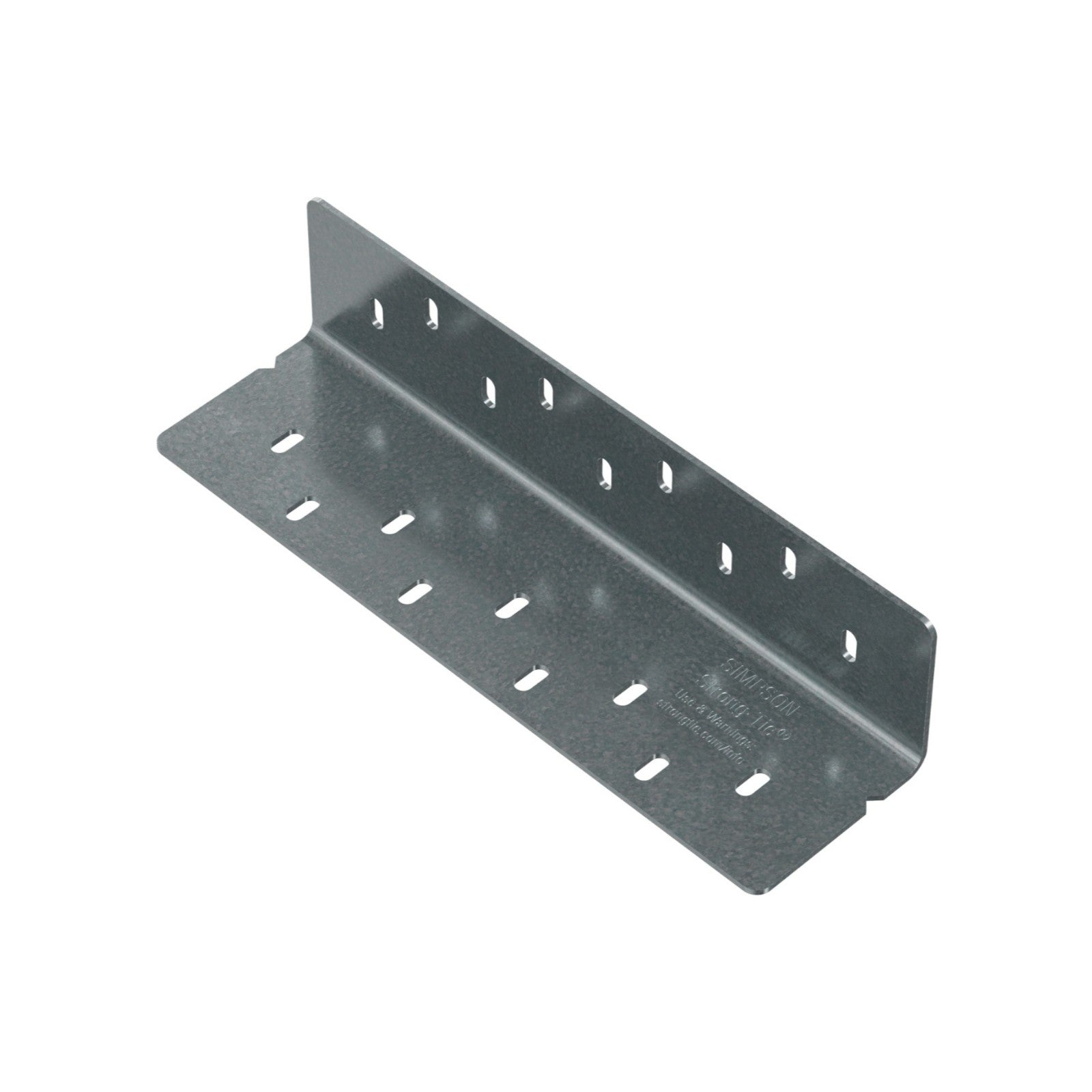

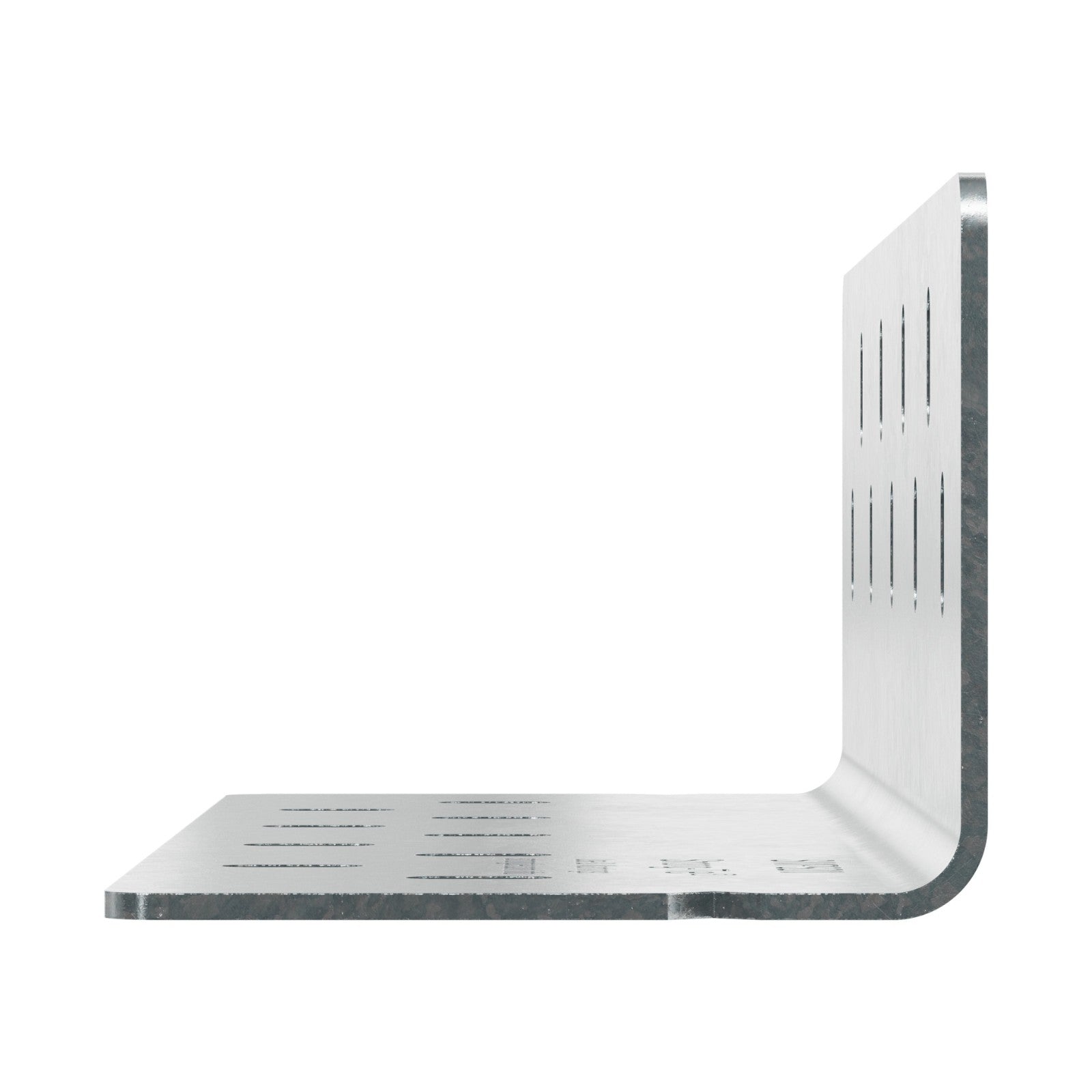

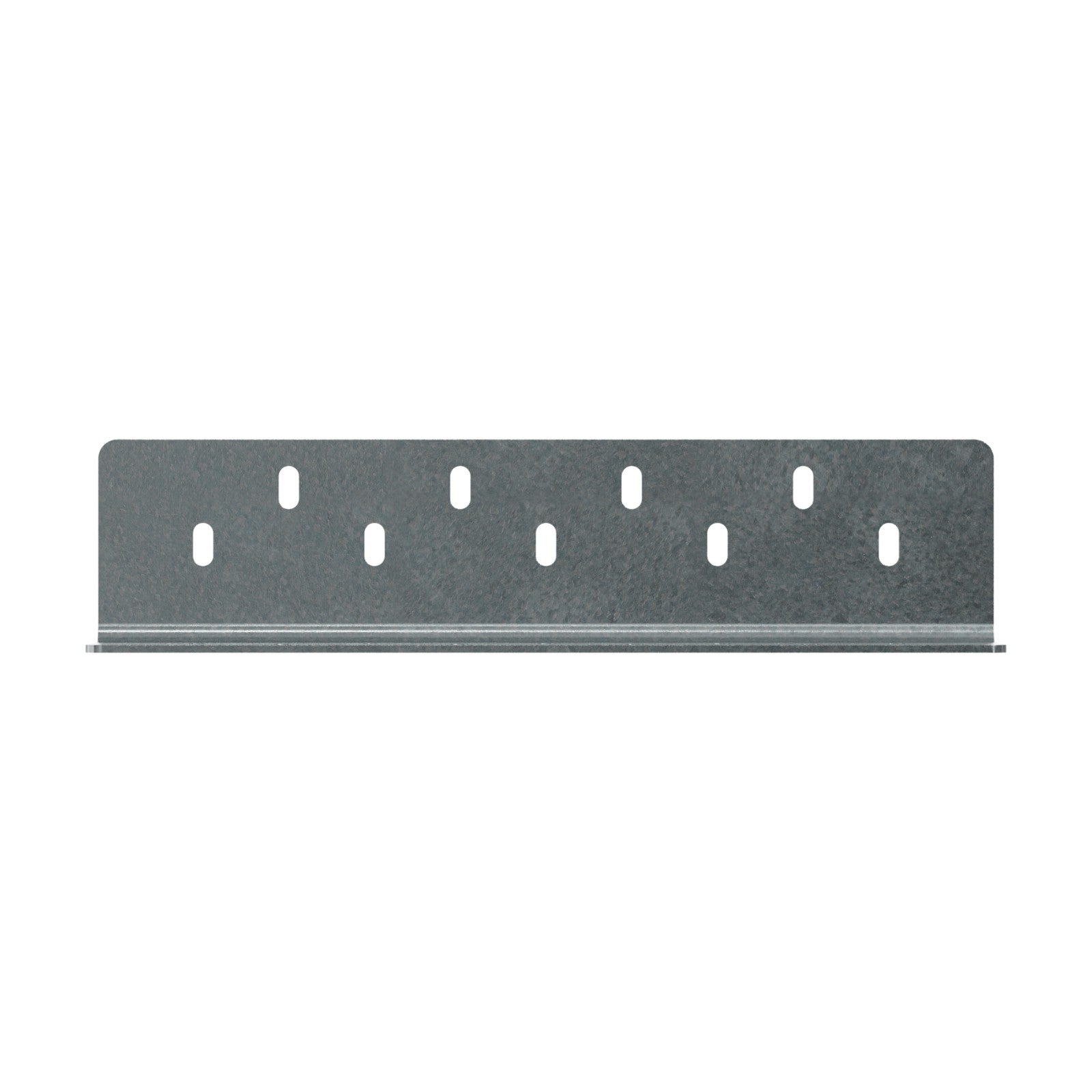

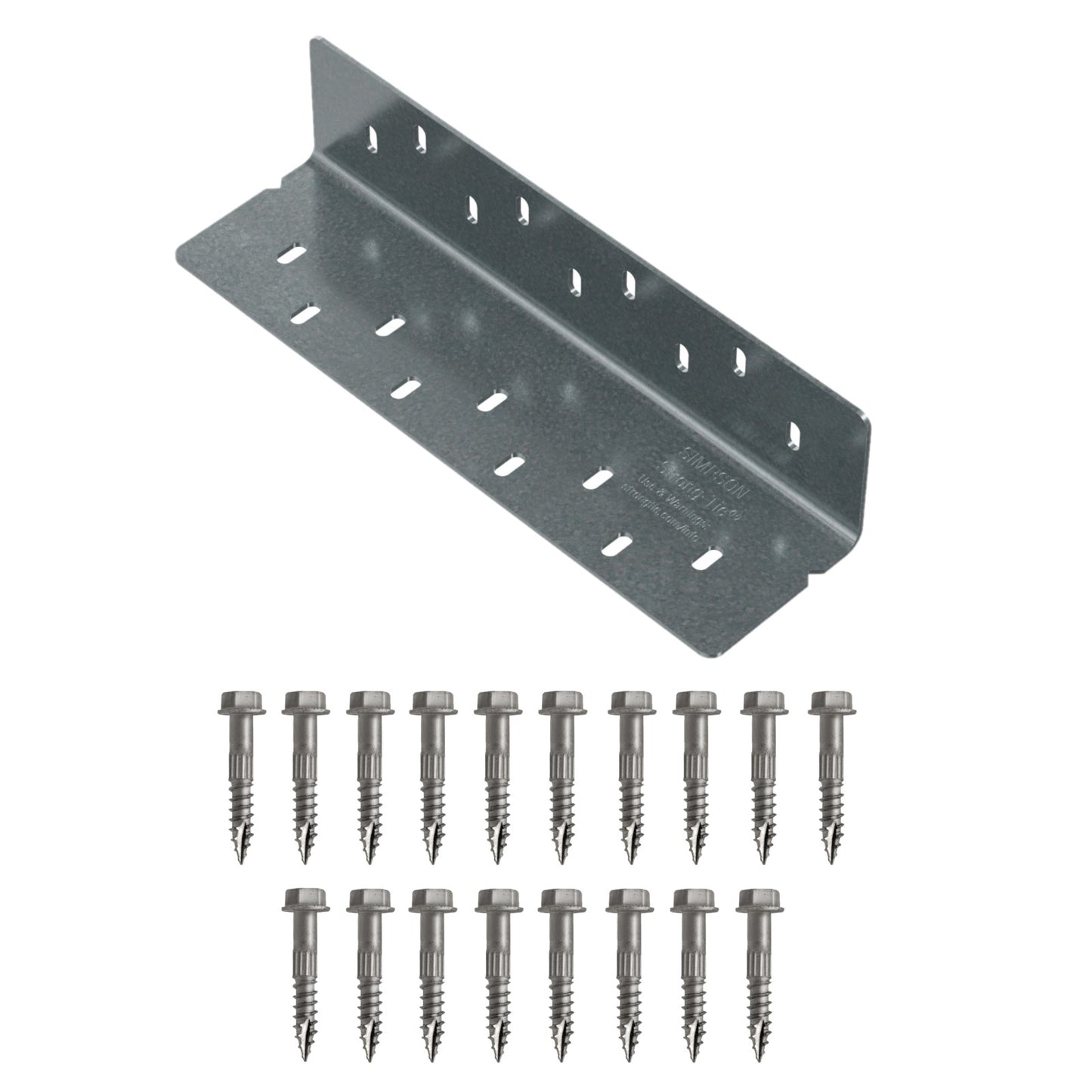

Simpson HSLQ312-SDS2.5 3" X 12" Heavy Shear Transfer Angle - Galvanized

Simpson HSLQ312-SDS2.5 3" X 12" Heavy Shear Transfer Angle - Galvanized

Regular price $33.87
Sale price $33.87 Regular price
0% off
shipping truck, lead time icon
Ships Mar 29 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

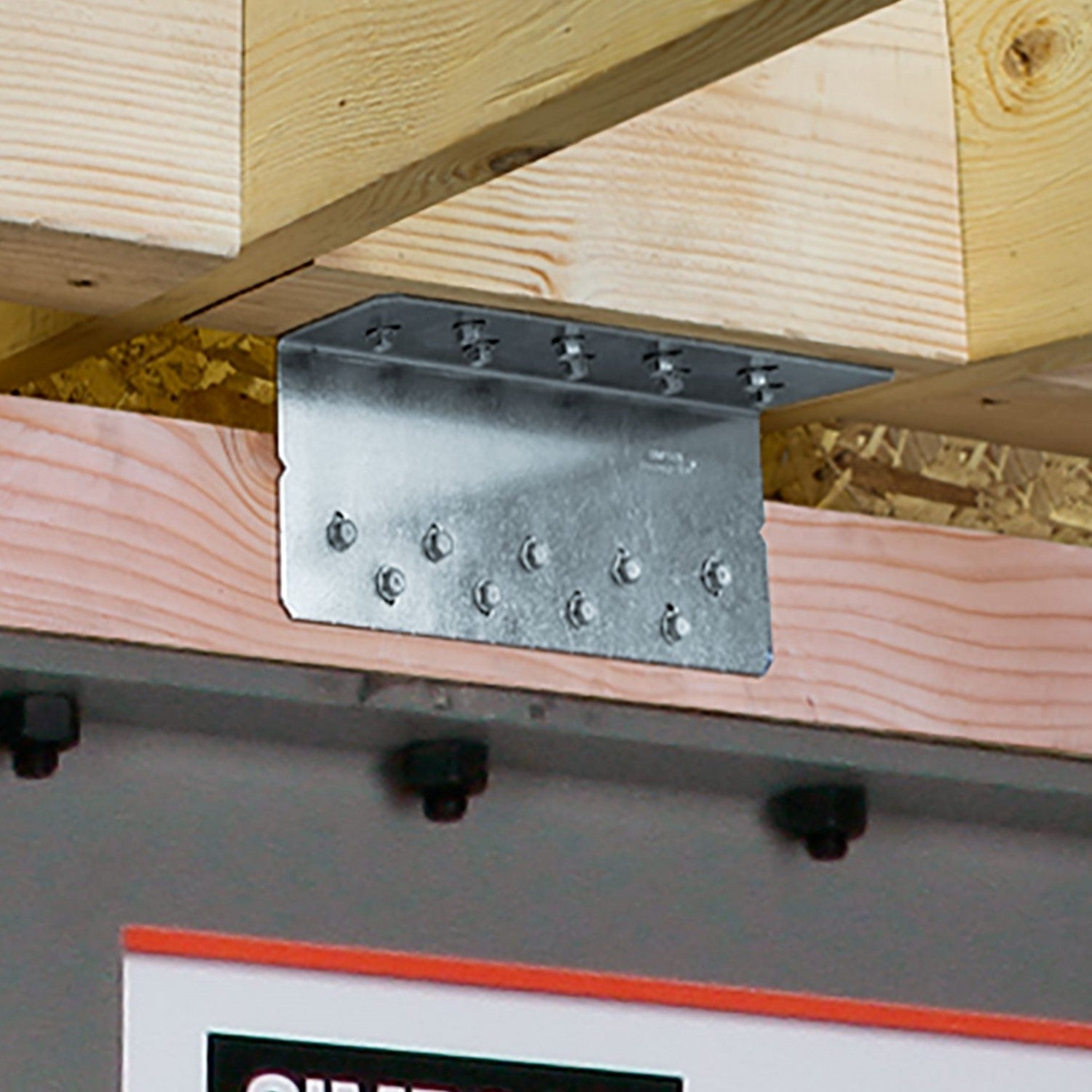

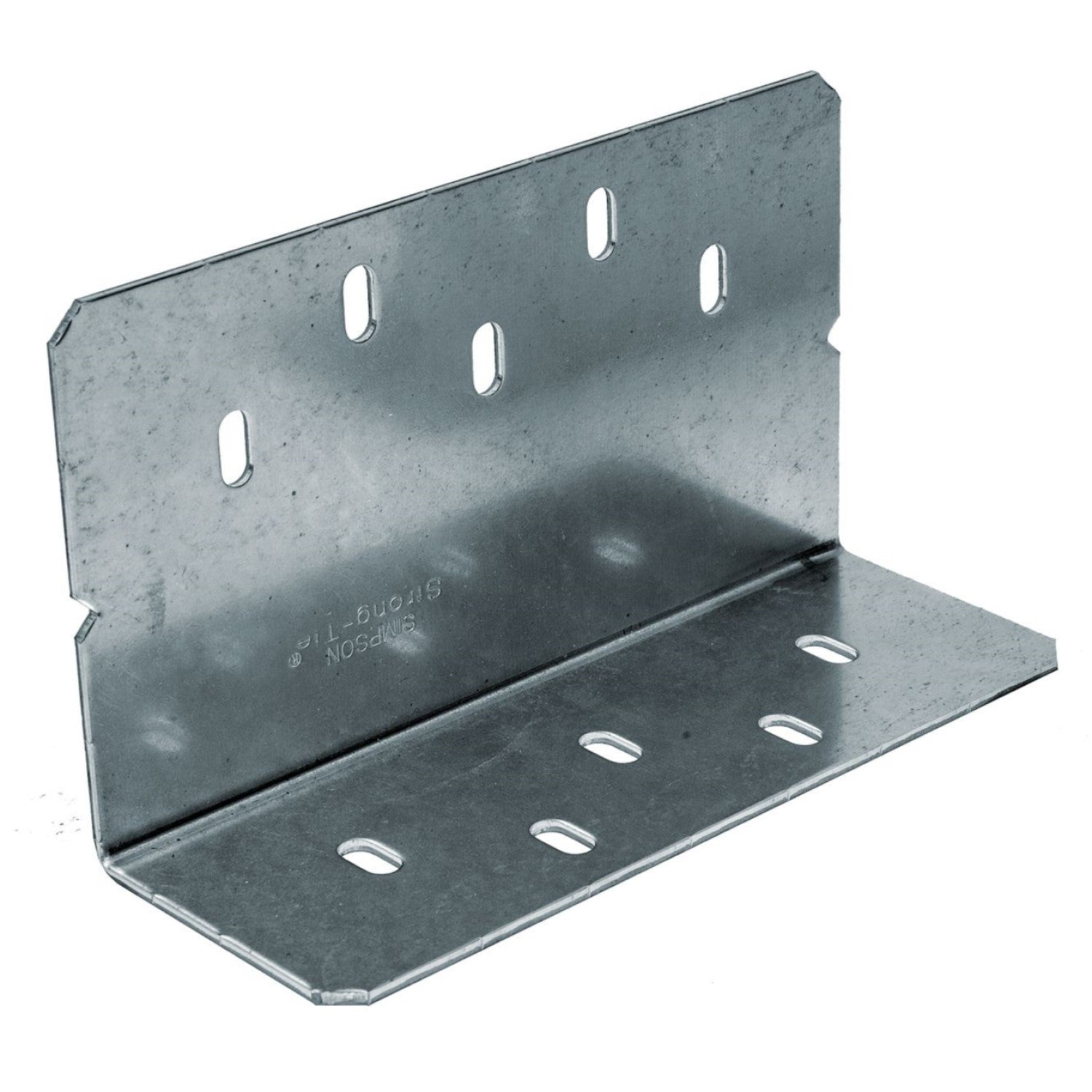

The Simpson Strong-Tie HSLQ heavy shear transfer angle is designed to transfer lateral loads from wood solid sawn joists or blocking into a wood solid sawn element such as a moment frame nailer. The angle offers versatility by allowing up to a 2" gap between the structural members and easy installation with Strong-Drive® SDS Heavy-Duty Connector screws that are included with the HSLQ. The HSLQ is manufactured with a gap indication notch to make proper installation easy.

Installation

  • Use all specified fasteners; see General Notes.
  • Use long leg with notch indicator. (Notch indicates maximum allowed gap.)
  • Minimum 4x8 wood members are required.
  • Add filler shims where required in order not to load the angle in any direction other than lateral, as indicated.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

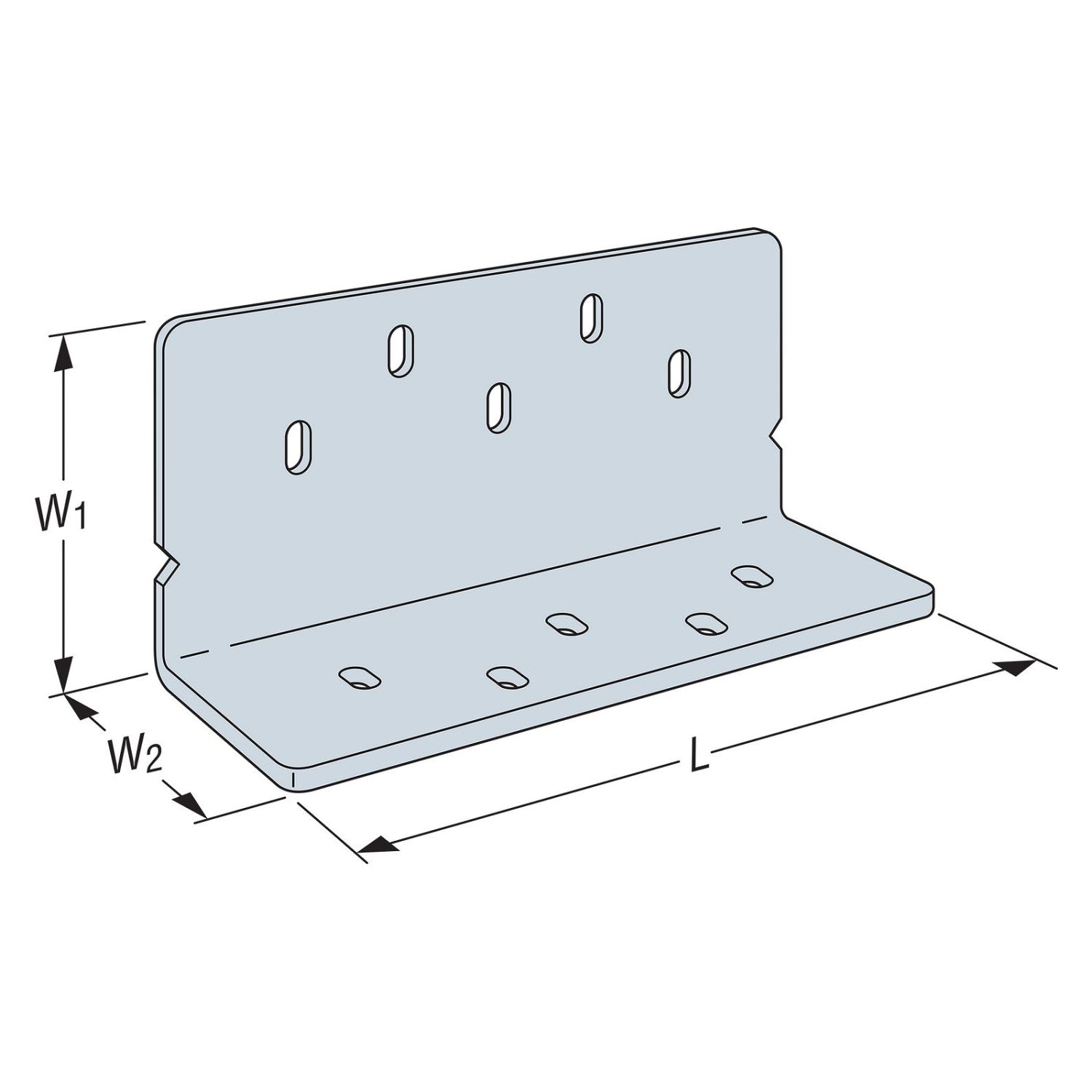

Specifications:


Fasteners required: (18)1/4" x 2-1/2" SDS
Thickness: 12 Gauge
Width: 3-1/4"
Length: 11-3/4"
Manufacturer name: Simpson Strong-Tie Company Inc
Product Guide: View Spec Sheet
