SKU: HSLQ37-SDS2.5

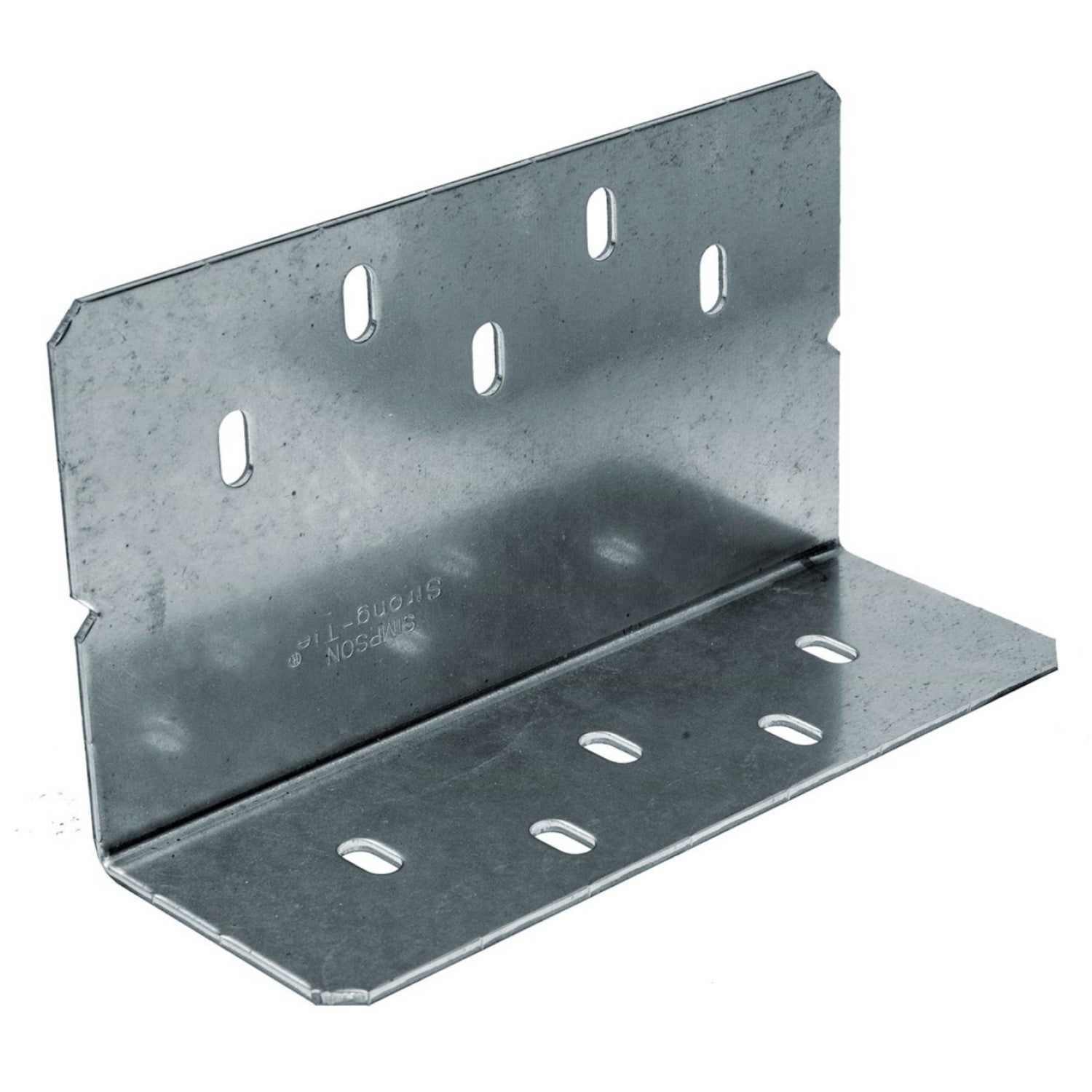

Simpson Strong-Tie HSLQ37-SDS2.5 3x7 Heavy Shear Transfer Angle Bracket w/Screws - G90 Galvanized

Regular price $2499
Ships Nov 20 when you order now

Description

The Simpson Strong-Tie HSLQ Heavy Shear Transfer Angle Bracket is engineered to transfer lateral loads from solid sawn wood joists or blocking into a solid sawn wood element such as a moment frame nailer. Designed for high-capacity shear transfer in wood-to-wood applications, the HSLQ provides a reliable connection point where structural continuity is critical.

Manufactured from durable 12 gauge steel and finished with a G90 galvanized coating, the HSLQ offers light corrosion resistance, making it well suited for dry, interior installations. Multiple size options are available to accommodate a range of framing conditions and project requirements. Whether you're working on moment frame construction, shear walls, or other lateral load-resisting systems, the HSLQ delivers dependable performance backed by Simpson Strong-Tie engineering and testing.

Key Features

  • Heavy-duty angle designed specifically for shear transfer applications
  • Transfers lateral loads from solid sawn joists or blocking into solid sawn wood members
  • Ideal for use with moment frame nailers and lateral force-resisting systems
  • Manufactured from structural steel for strength and durability
  • G90 galvanized finish for light corrosion resistance in indoor environments
  • Available in multiple size configurations to suit various framing requirements
  • Engineered and tested by Simpson Strong-Tie

Applications

  • Moment frame construction
  • Shear wall assemblies
  • Lateral load transfer between wood framing members
  • Wood-to-wood structural connections
  • Residential and commercial interior framing projects

The HSLQ is commonly used where lateral loads must be transferred efficiently from joists or blocking into a supporting wood element, ensuring structural stability in high-load areas.

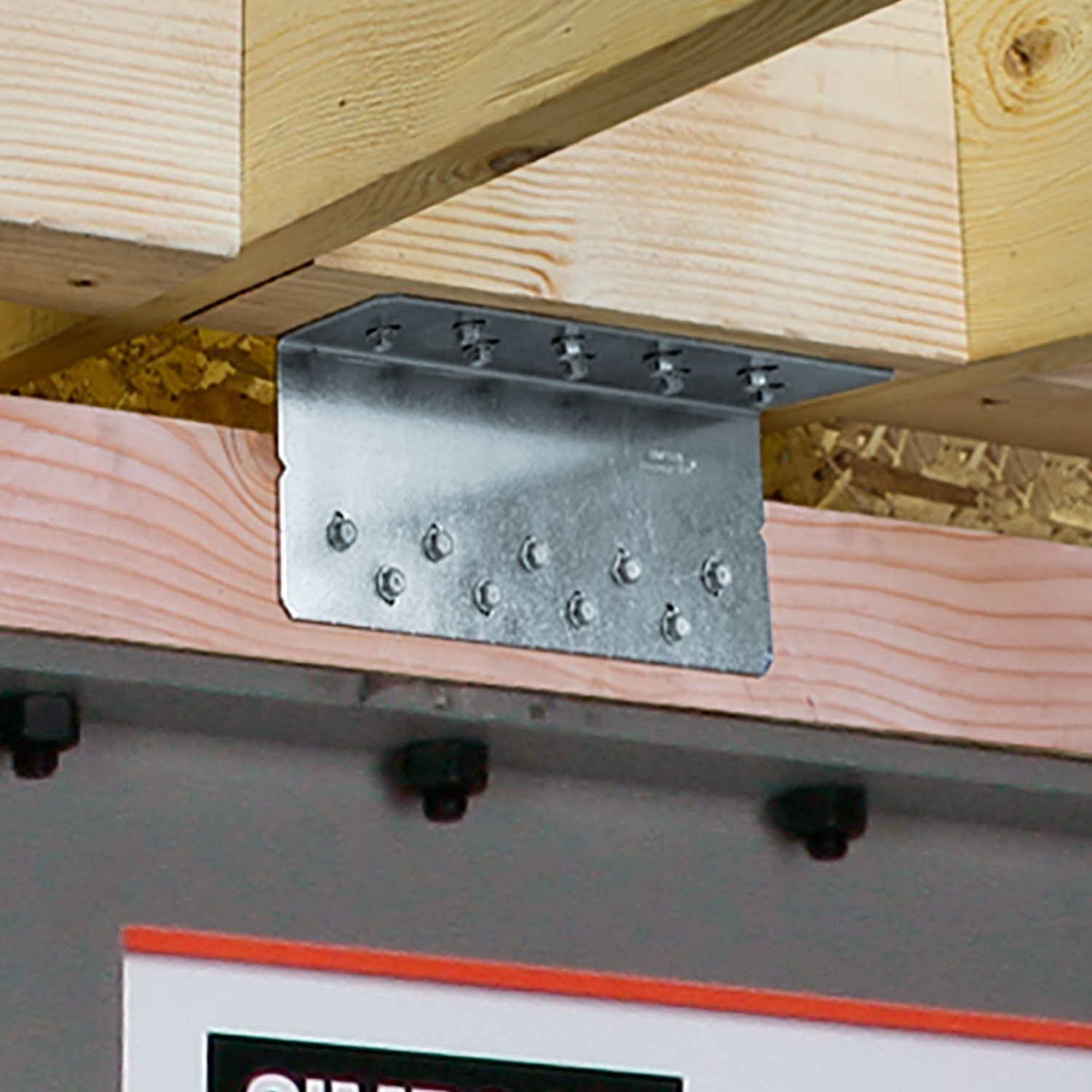

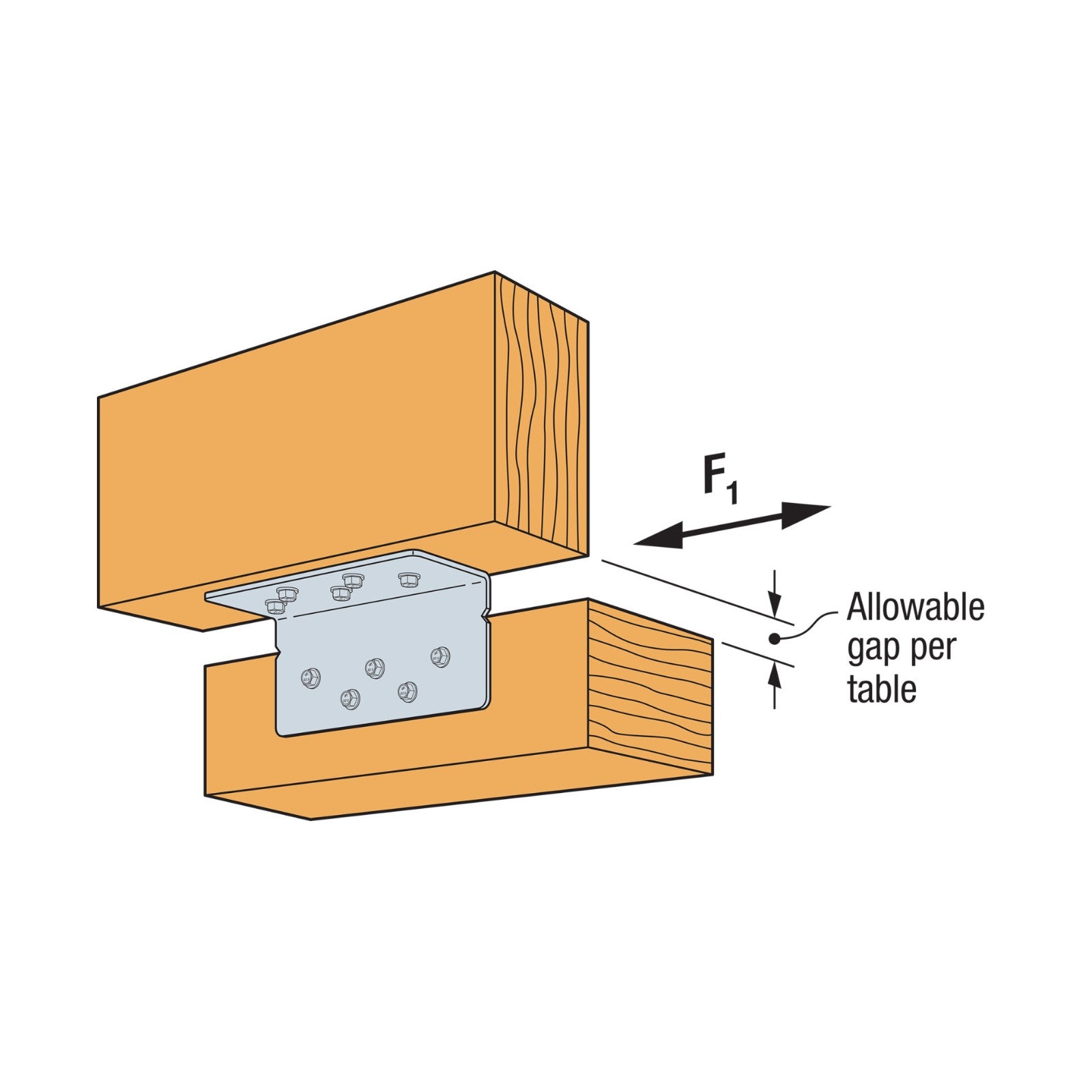

Installation

  • Install with the provided Simpson Strong-Tie SDS Connector Screws
  • Ensure full bearing and proper alignment between joists/blocking and the receiving member
  • Fill all required fastener holes to achieve published load values
  • Designed for installation in dry, interior environments
  • Refer to the Simpson Strong-Tie Wood Construction Connectors catalog and installation instructions for load tables and approved fasteners

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

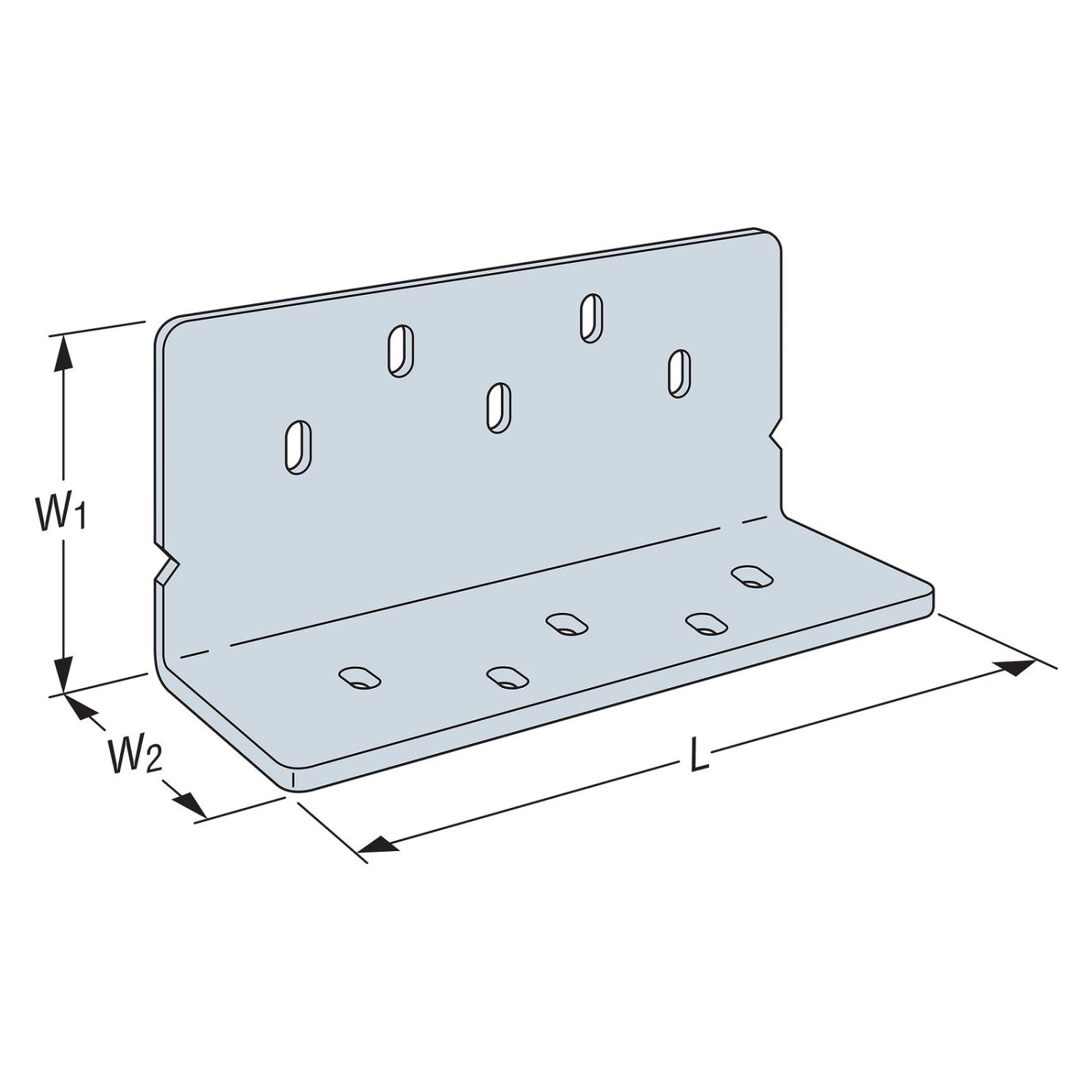

Specifications

Size: 3x7
Width: W1: 3-1/4" W2: 2-3/4"
Length: 7-1/4"
Thickness: 12 Gauge
Material: Carbon Steel
Finish: G90 Galvanized
Manufacturer Name: Simpson Strong-Tie
Fasteners Required: (10)1/4" x 2-1/2" SDS - fasteners included
