SKU: HSLQ412-SDS2.5

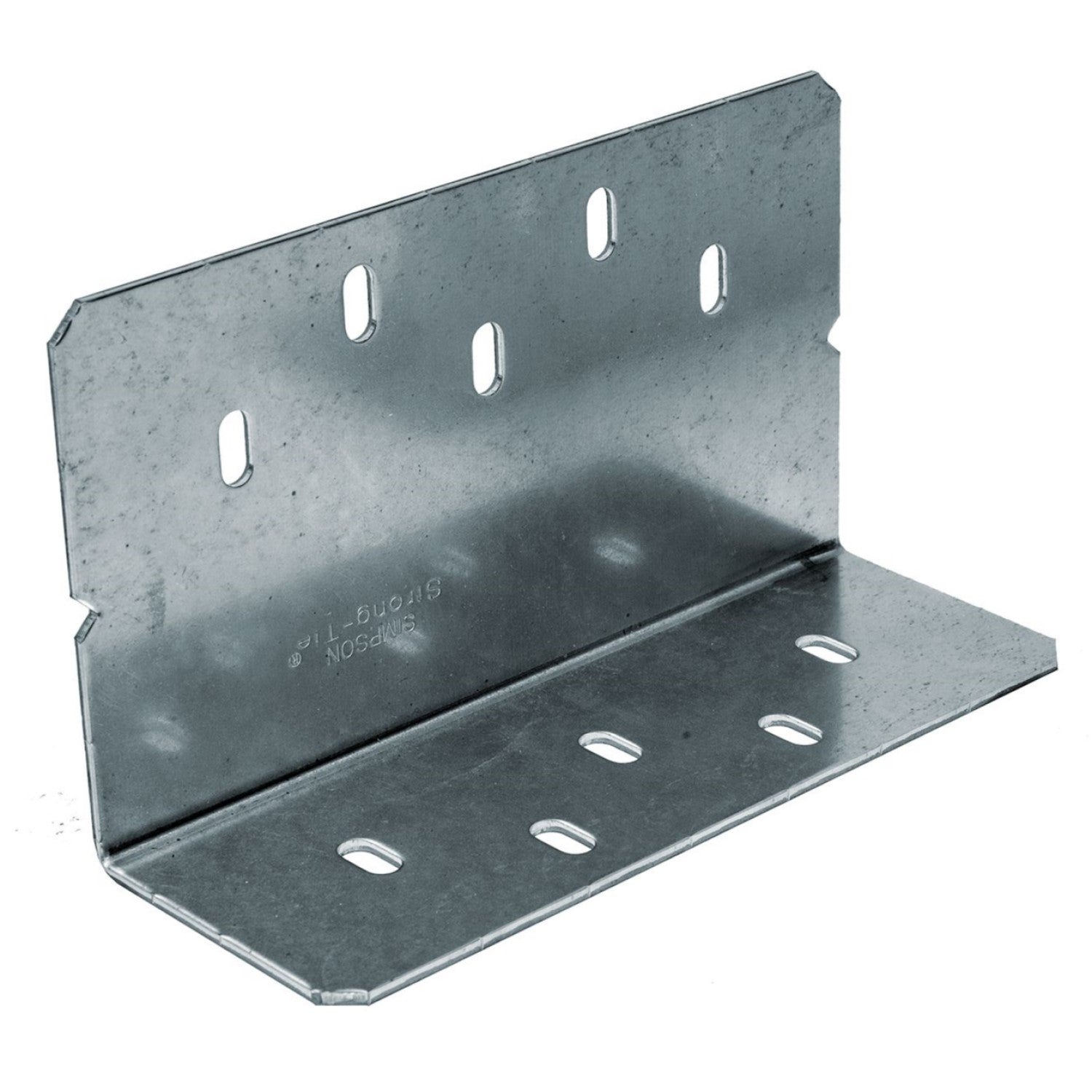

Simpson HSLQ412-SDS2.5 4" X 12" Heavy Shear Transfer Angle W/Screws - Galvanized

Simpson HSLQ412-SDS2.5 4" X 12" Heavy Shear Transfer Angle W/Screws - Galvanized!

Skip to product information
1 of 3
$36.27

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 5 when you add 6 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

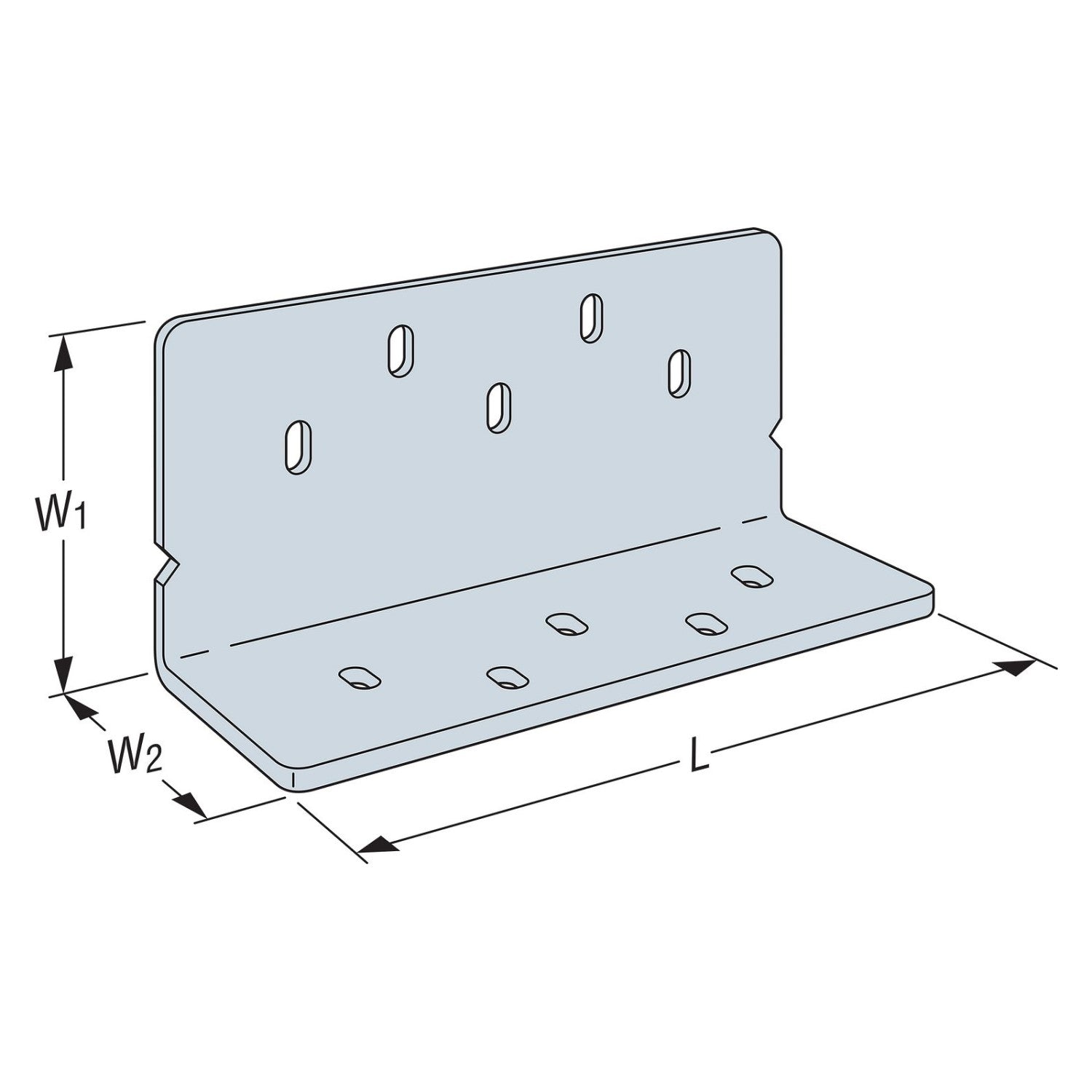

Specifications

Length: 11-3/4"
Fasteners required: (18)1/4" x 2-1/2" SDS - fasteners included
Manufacturer name: Simpson Strong-Tie Company Inc
Thickness: 12 Gauge
Width: 4-1/4"
Description

The Simpson Strong-Tie HSLQ heavy shear transfer angle is designed to transfer lateral loads from wood solid sawn joists or blocking into a wood solid sawn element such as a moment frame nailer. The angle offers versatility by allowing up to a 2" gap between the structural members and easy installation with Strong-Drive® SDS Heavy-Duty Connector screws that are included with the HSLQ. The HSLQ is manufactured with a gap indication notch to make proper installation easy.

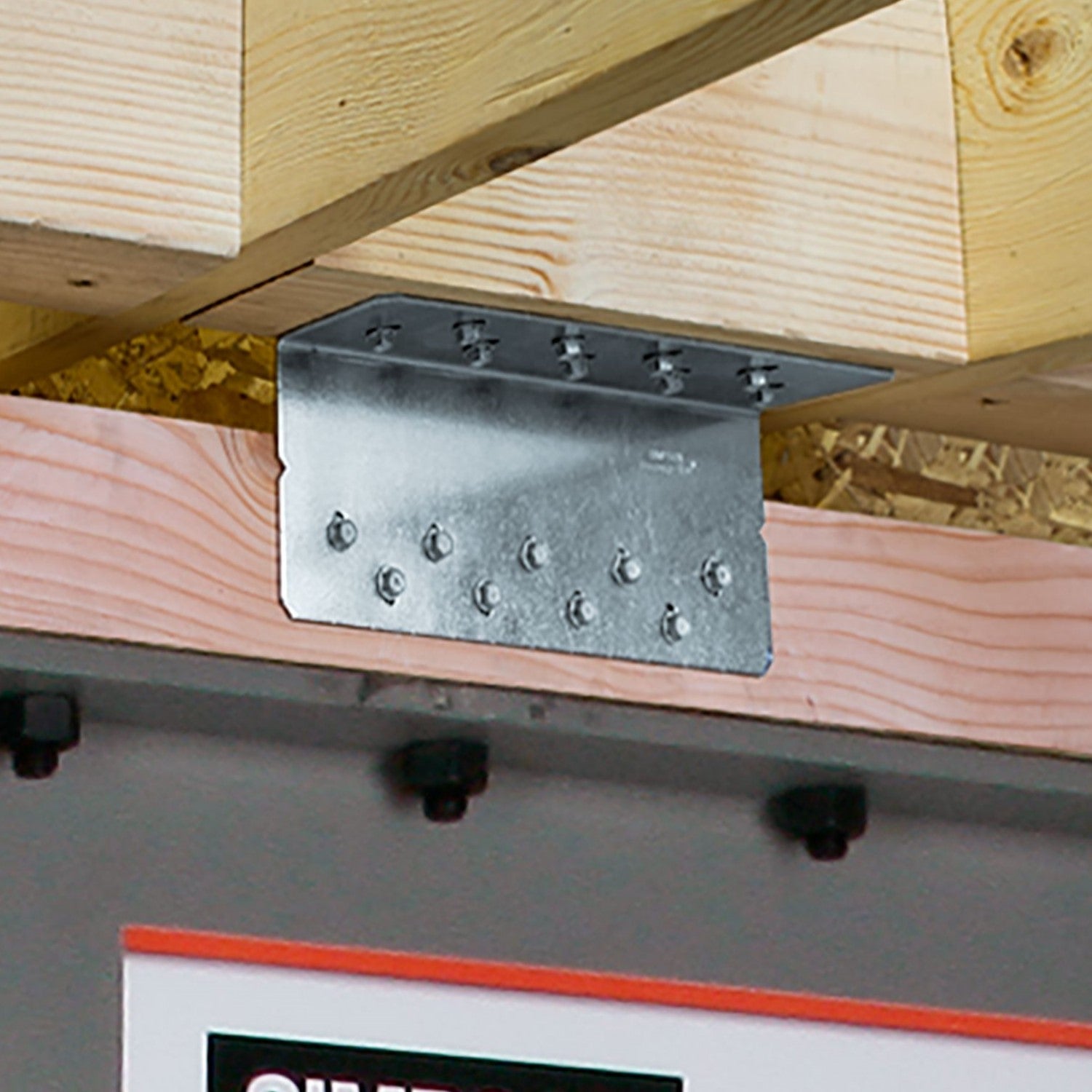

Installation

  • Use all specified fasteners; see General Notes.
  • Use long leg with notch indicator. (Notch indicates maximum allowed gap.)
  • Minimum 4x8 wood members are required.
  • Add filler shims where required in order not to load the angle in any direction other than lateral, as indicated.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
