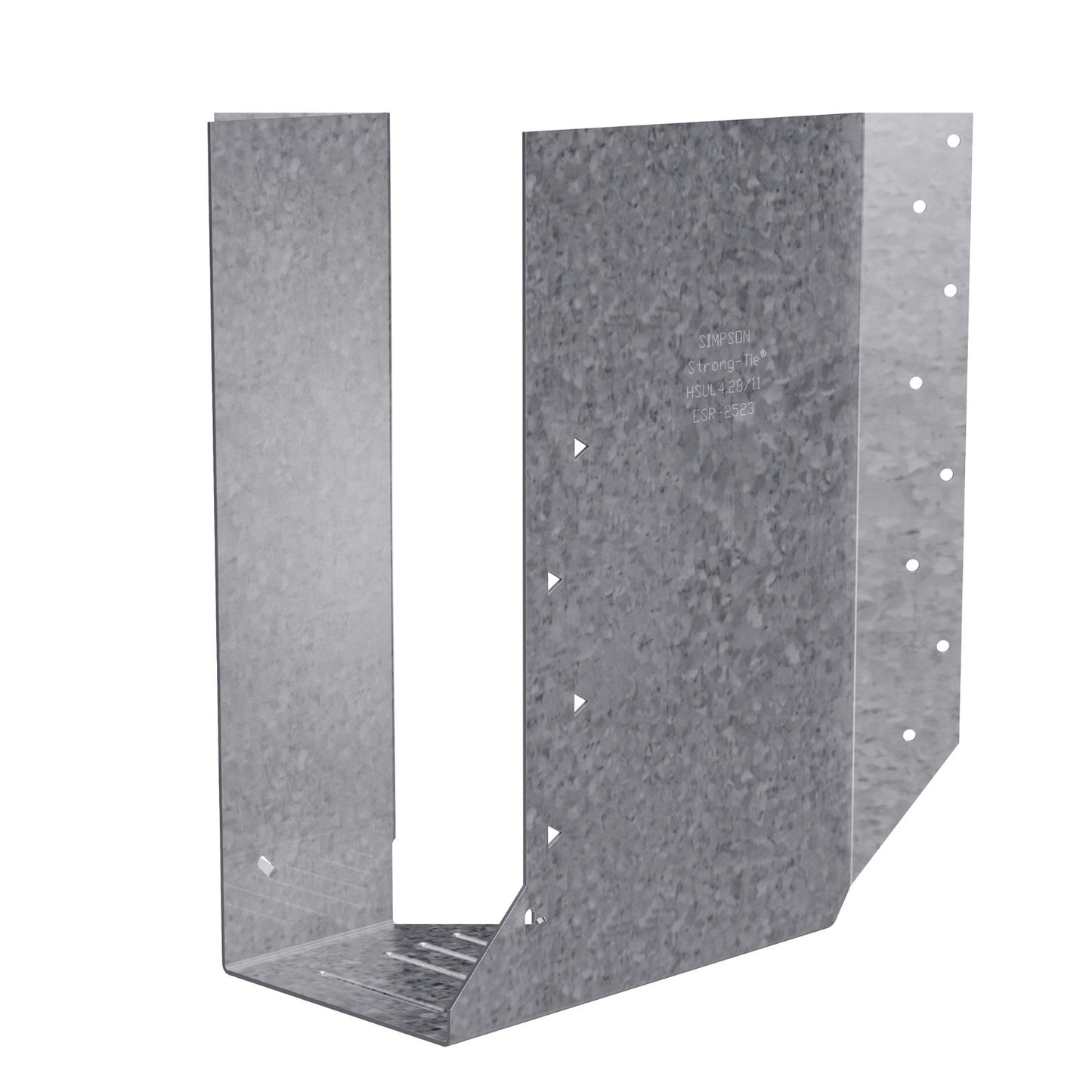

Simpson HSUL4.28/11 I-Joist Hanger Skewed Left - G90 Galvanized

SKU: HSUL4.28-11
$44.49

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product
  • Simpson Strong-Tie HSUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie HSUL4.28/11 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


    Installation:
    • Use all specified fasteners.
    • These hangers will normally accommodate a 40° to 50° skew.
    • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
    • The joist end may be square cut or bevel cut.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


    California Residents: WARNING

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product
  • Simps...

    Read More

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product
  • Simpson Strong-Tie HSUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie HSUL4.28/11 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


    Installation:
    • Use all specified fasteners.
    • These hangers will normally accommodate a 40° to 50° skew.
    • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
    • The joist end may be square cut or bevel cut.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


    California Residents: WARNING

    Show Less

    finish spec:
    G90 Galvanized

    manufacturer name:
    Simpson Strong-Tie

    fasteners required:
    Face - (16) 0.162" x 3-1/2" NailsJoist - (2) 0.148" x 1-1/2" Nails

    for treated lumber:
    no

    height:
    11-1/8"

    joist size:
    4-1/8" X 11-7/8"

    thickness:
    14 Gauge

    width spec:
    4-5/16"

    Product Spec Sheet:
