SKU: HSUR214-2

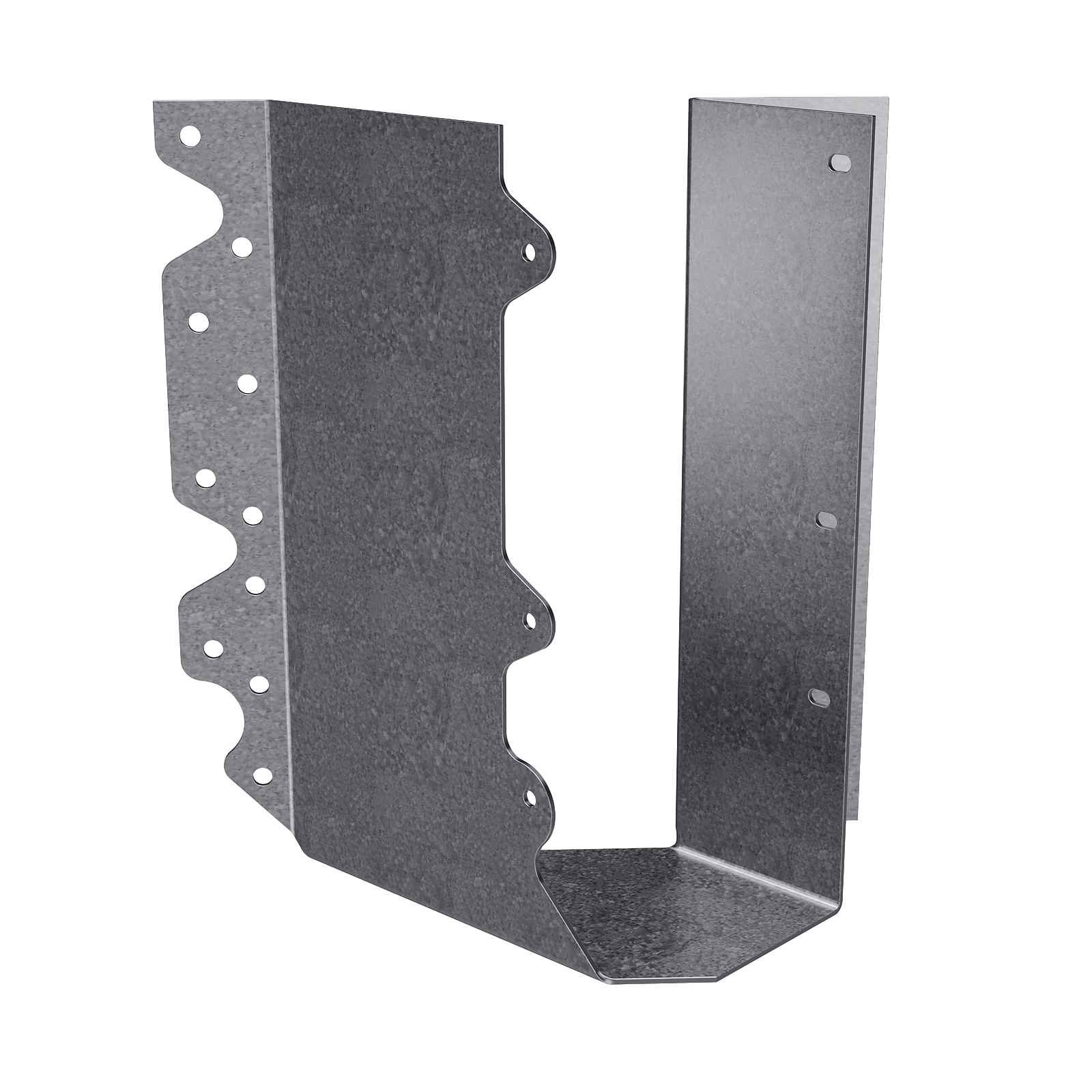

Simpson HSUR214-2 Double Joist Hanger Skewed Right - G90 Galvanized

Simpson HSUR214-2 Double Joist Hanger Skewed Right - G90 Galvanized

Regular price $70.33
Sale price $70.33 Regular price
0% off
Made to Order
Ships in 1-3 business days.

Description:

This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

Simpson Strong-Tie HSUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie HSUR214-2 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:

Material: Galvanized Steel
Height: 12-11/16"
Fasteners required: Face: (26) 0.162 x 3-1/2"; Joist: (8) 0.162 x 2-1/2"
Thickness: 14 Gauge
Quantity: 1
Width: 3-1/8"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Joist size: Double 2X14
Product Guide: View Spec Sheet

Features

•Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
•These hangers cannot be modified but will accommodate a 40°- to 50°-skewed joist
•Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
•Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC)

Installation

• Use all specified fasteners.
• These hangers will normally accommodate a 40 to 50 skew.
• Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
• The joist end may be square cut or bevel cut.
