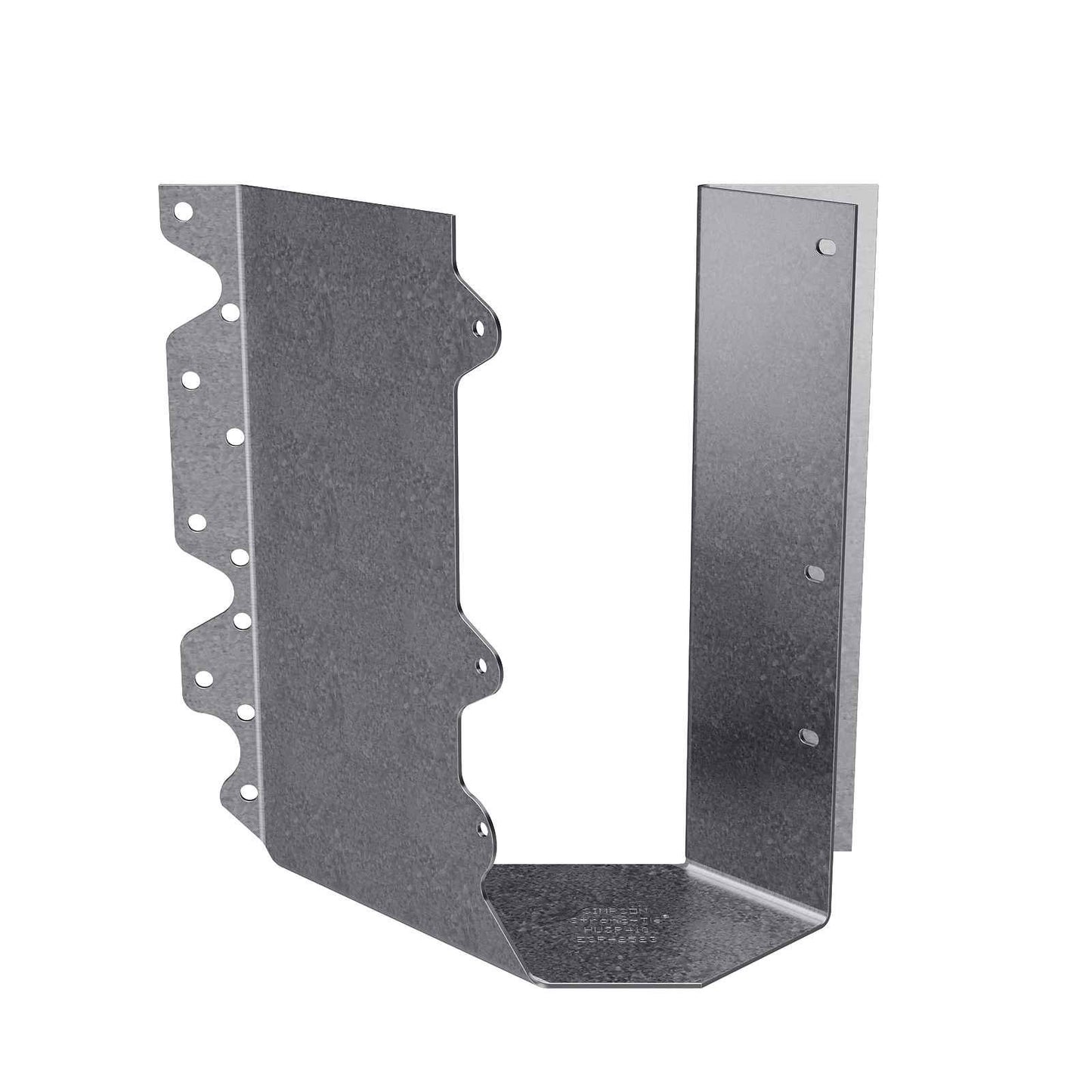

Simpson HSUR410Z Joist Hanger Skewed Right - ZMAX
Simpson HSUR410Z Joist Hanger Skewed Right - ZMAX
Ships in 1-3 business days.
Description:
Description:
This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product
Simpson Strong-Tie HSUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie HSUL410Z skewed joist hanger features a Zmax galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 8-1/2"
Fasteners required: Face: (20) 0.162 x 3-1/2"' Joist: (6) 0.162 x 3-1/2"
Thickness: 14 Gauge
Quantity: 1
Width: 3-9/16"
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
Joist size: 4X10
Product Guide: View Spec Sheet
Features
Features
•Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
•These hangers cannot be modified but will accommodate a 40°- to 50°-skewed joist
•Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
•Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC)
Installation
Installation
• Use all specified fasteners.

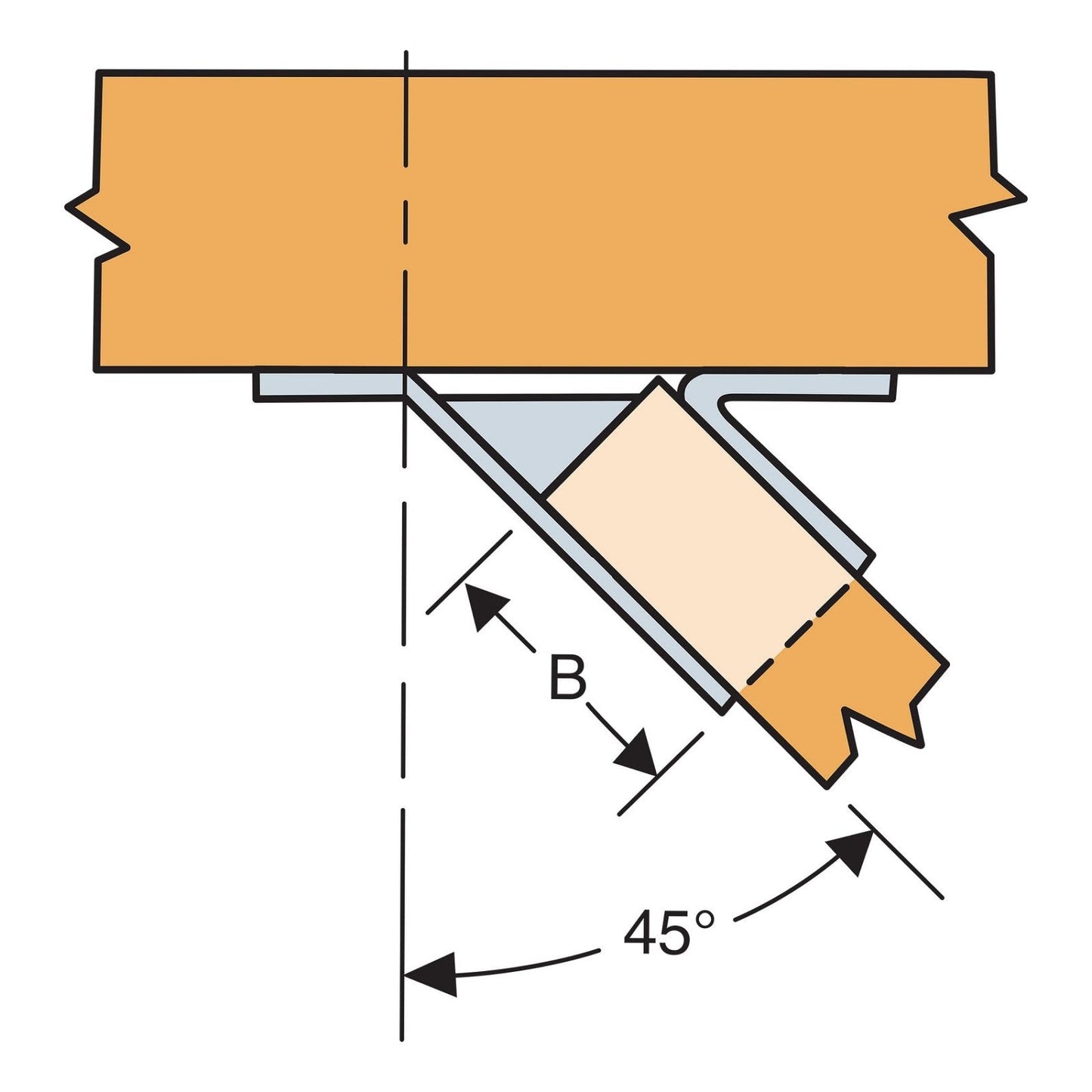

• These hangers will normally accommodate a 40 to 50 skew.

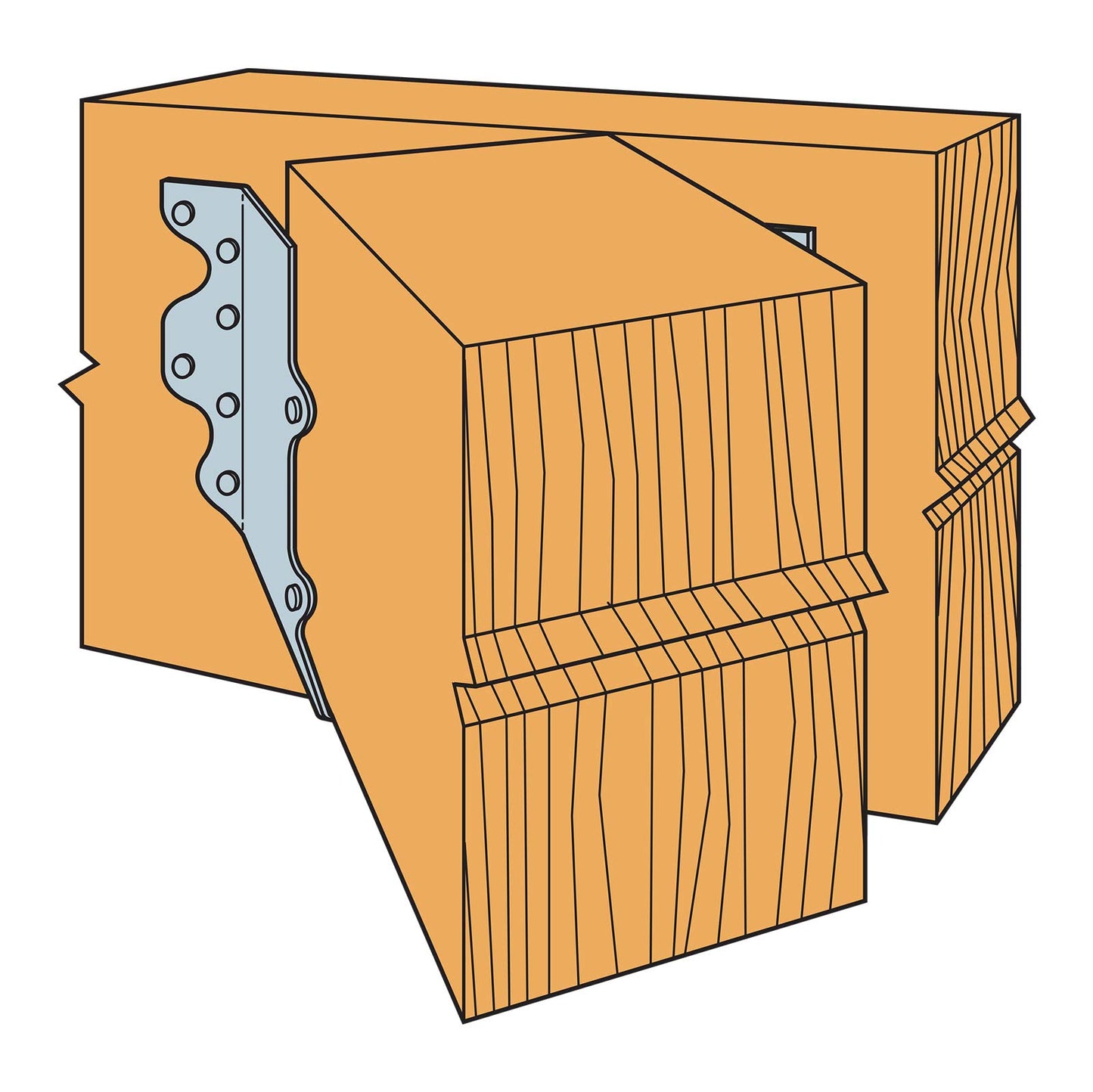

• Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
• The joist end may be square cut or bevel cut.
