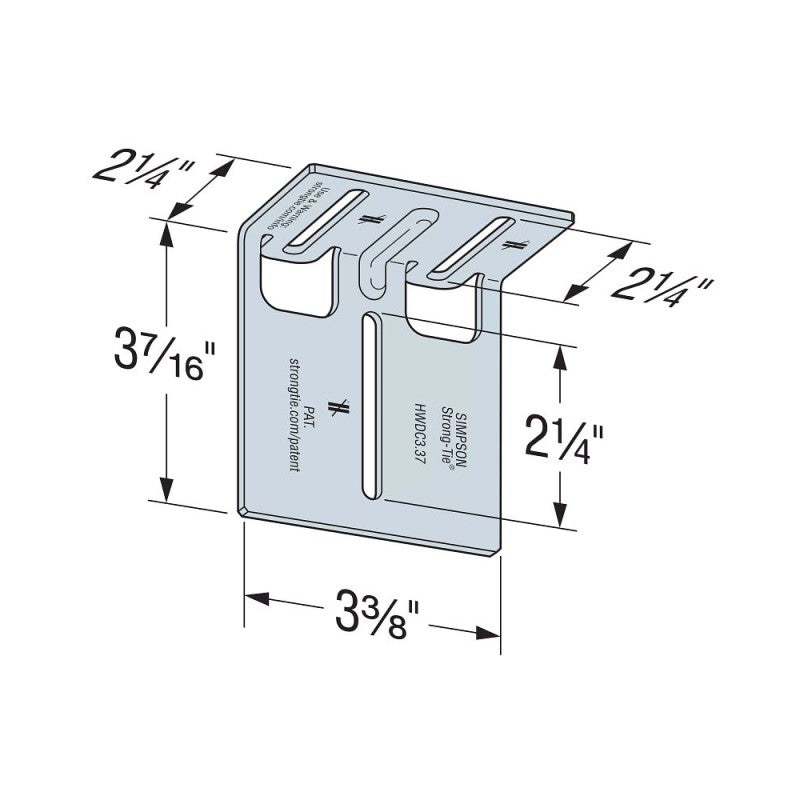

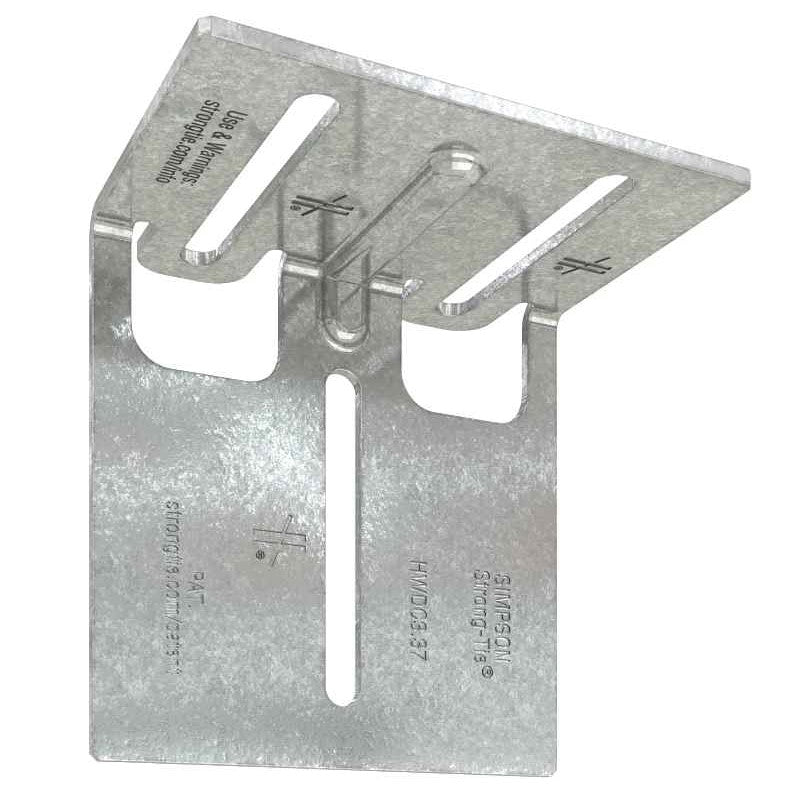

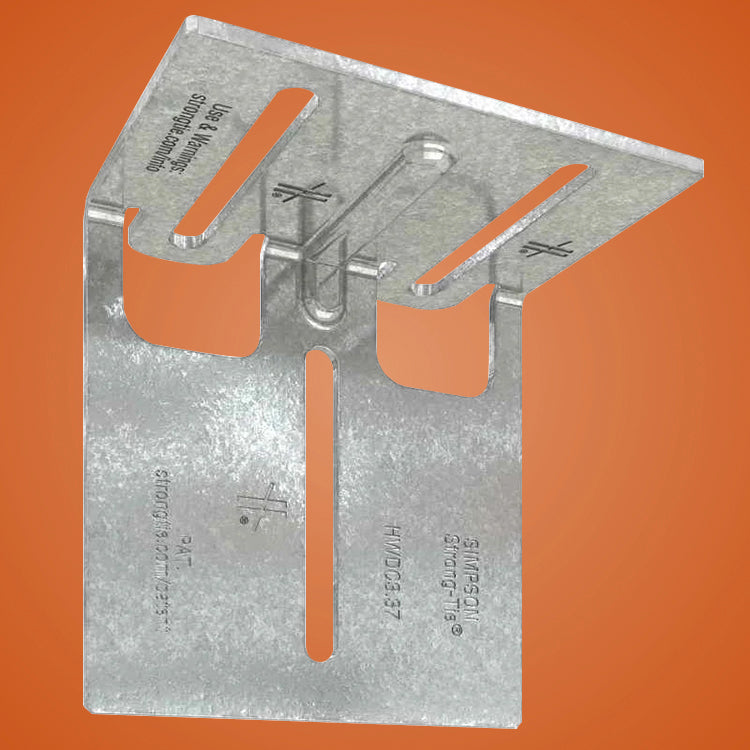

Simpson HWDC3.37-KT25 Head-Of-Wall Drift-Clip Connector, Pkg 25

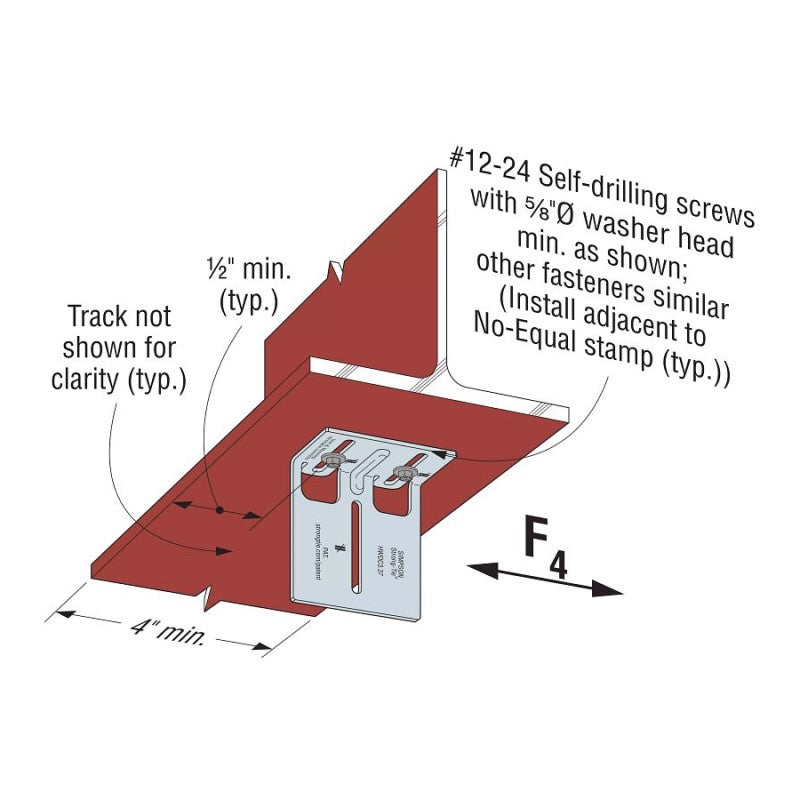

The Simpson Strong-Tie head-of-wall drift-clip connector (HWDC) is used to secure the head of a wall to the bottom of a slab or beam. The unique design allows anchor screws to be installed closer to the bend, providing a stronger and stiffer connection while also allowing horizontal and vertical movement during seismic and high-wind events. HWDC connectors are an optimal solution for adding strength to window or door jambs at head-of-wall connections and include XLSH78B1414 shoulder screws for installation. Tested load values are provided for anchorage to steel and concrete.
