Shop more HWDC Head-Of-Wall Drift-Clip Connectors
SKU: HWDC5.25-KT25

Simpson HWDC5.25-KT25 Head-Of-Wall Drift-Clip Connector, Pkg 25

Simpson HWDC5.25-KT25 Head-Of-Wall Drift-Clip Connector, Pkg 25

Regular price $254.83
Sale price $254.83 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 2 hours 15 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

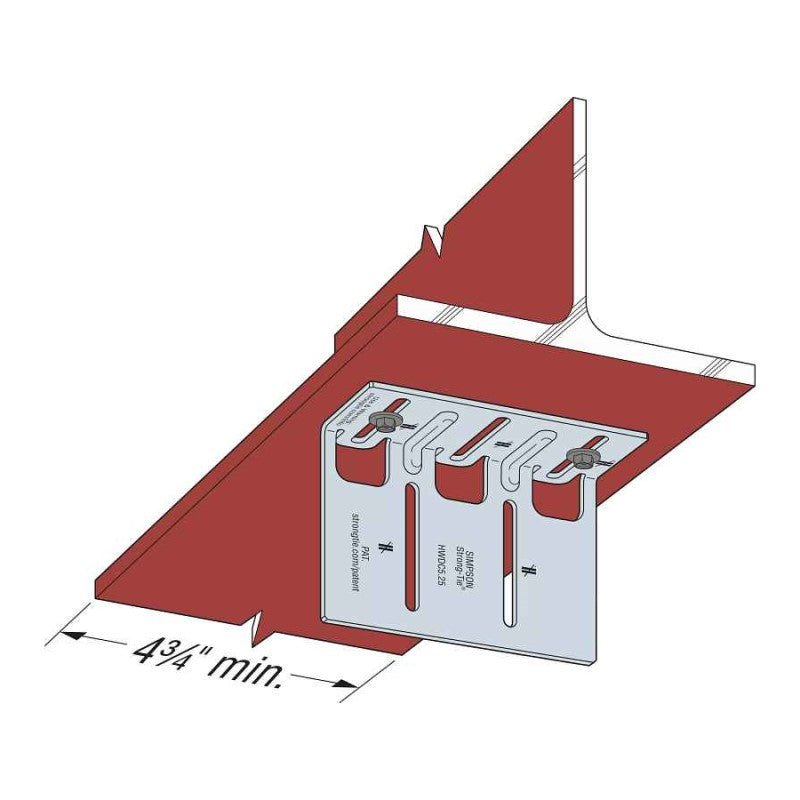

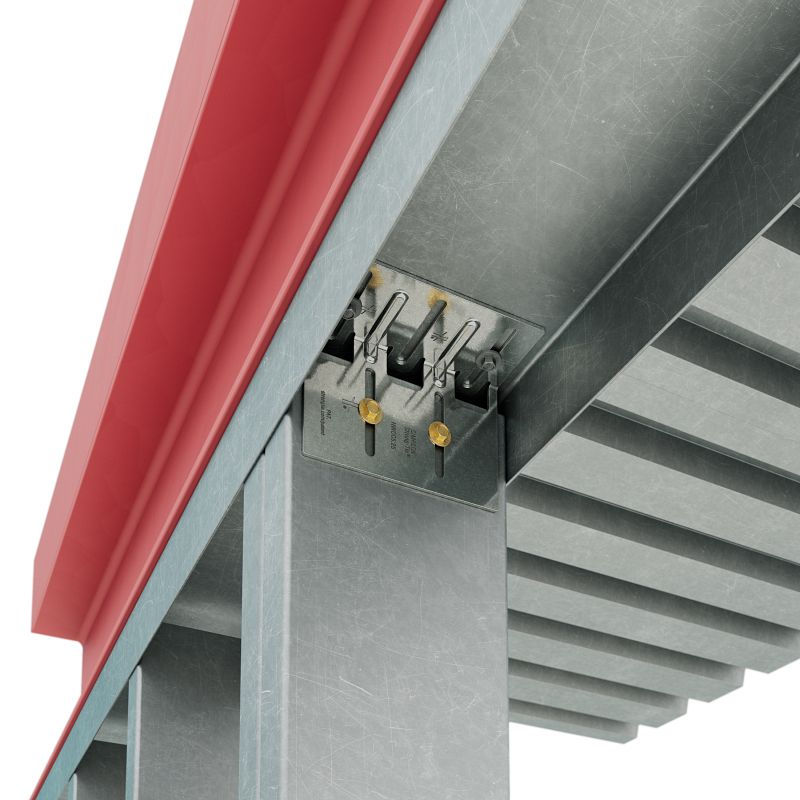

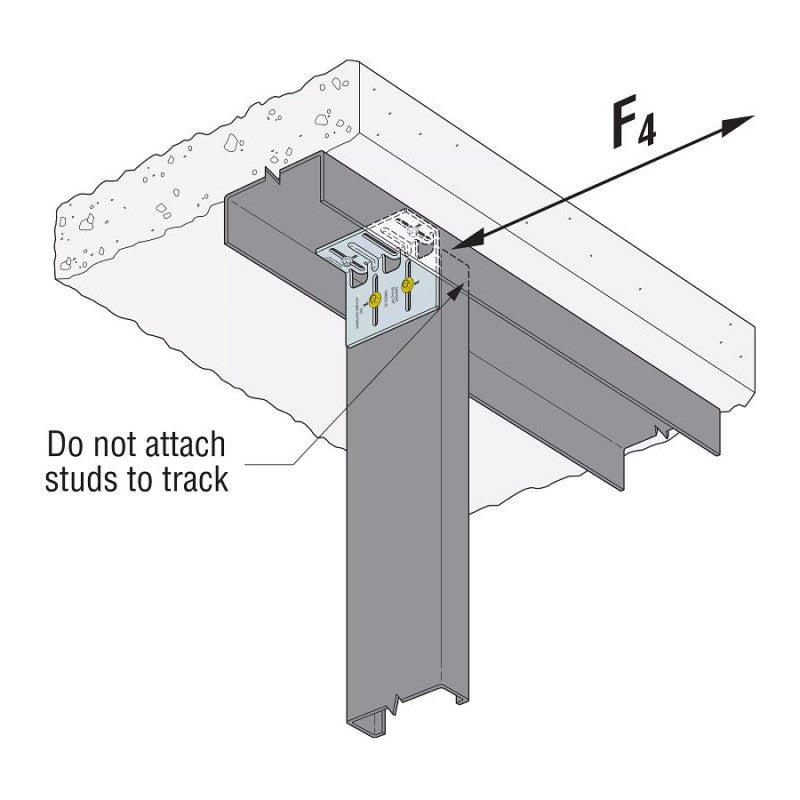

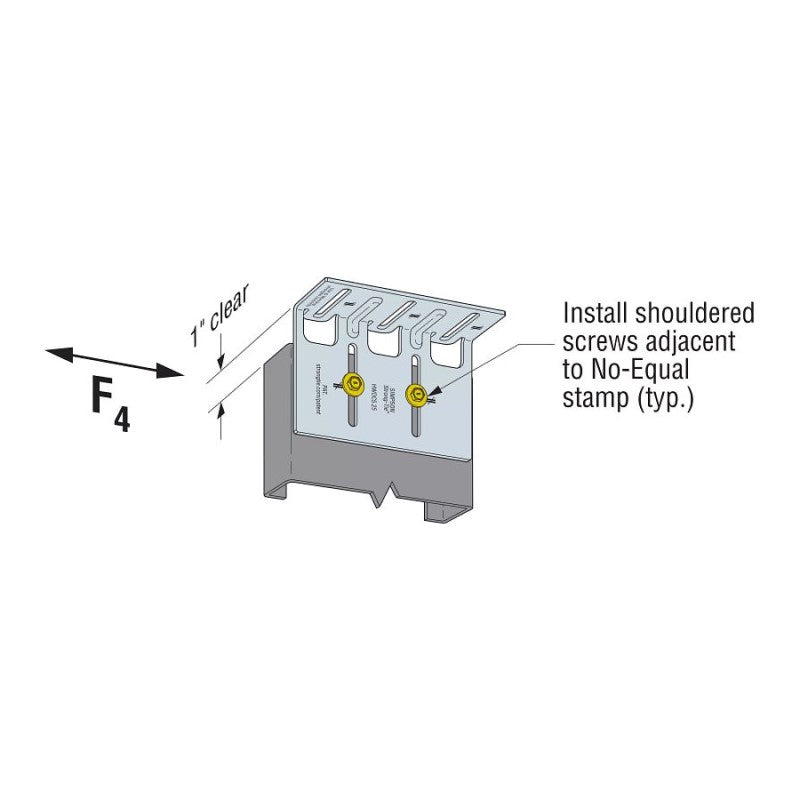

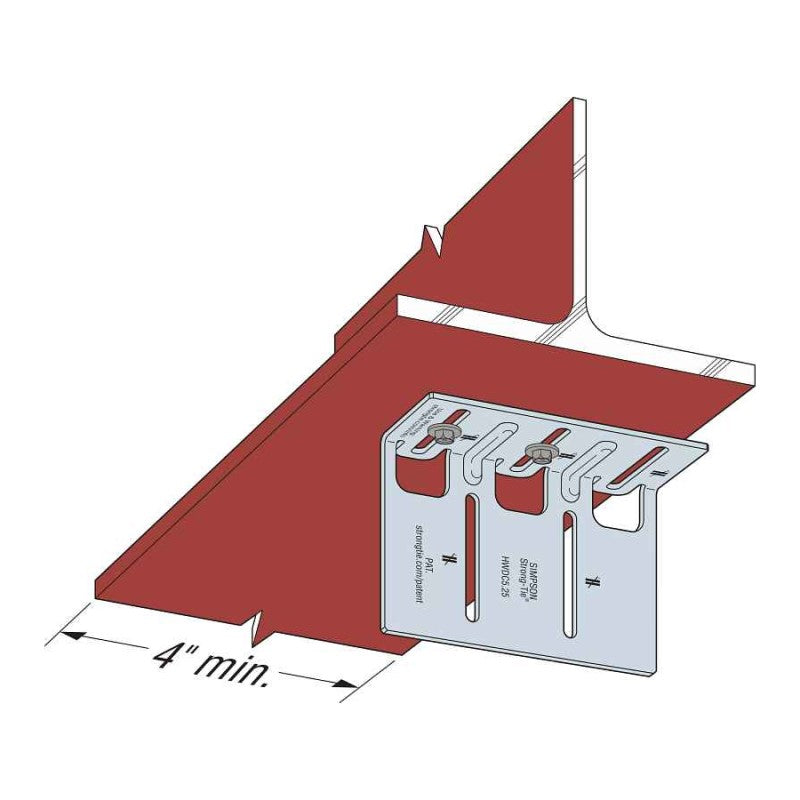

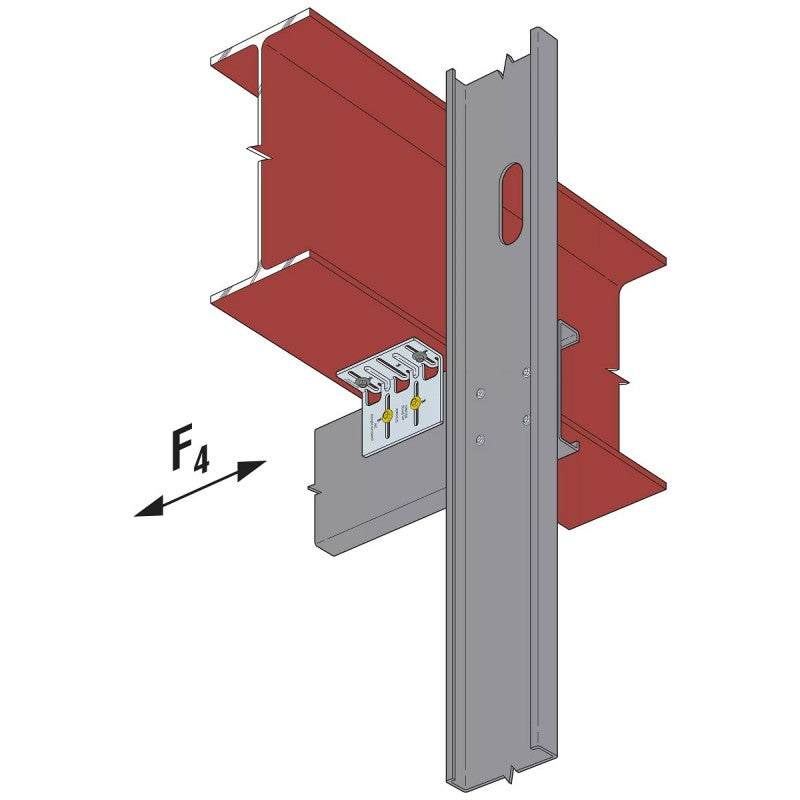

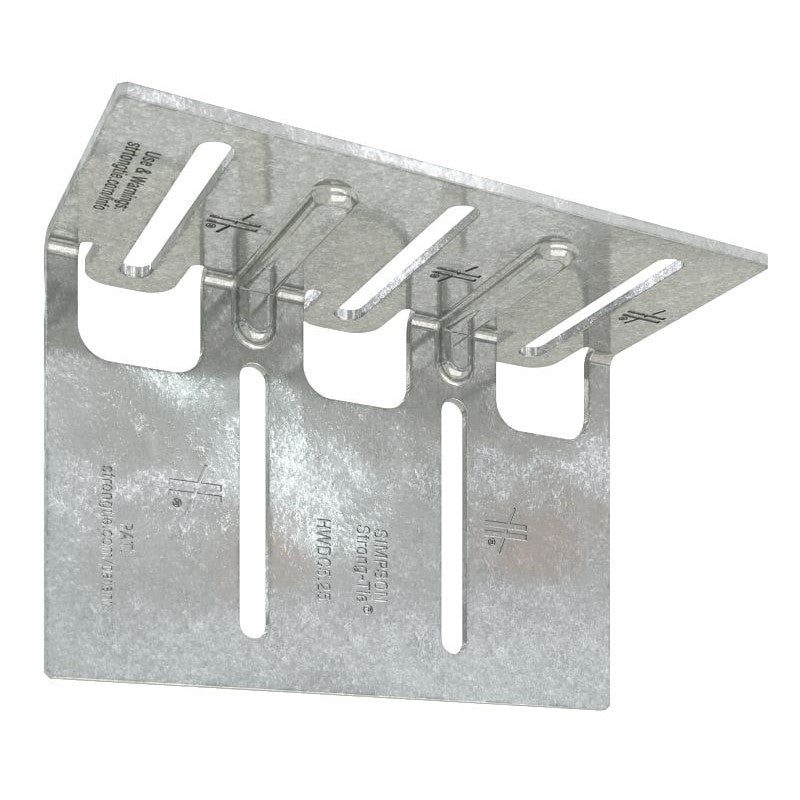

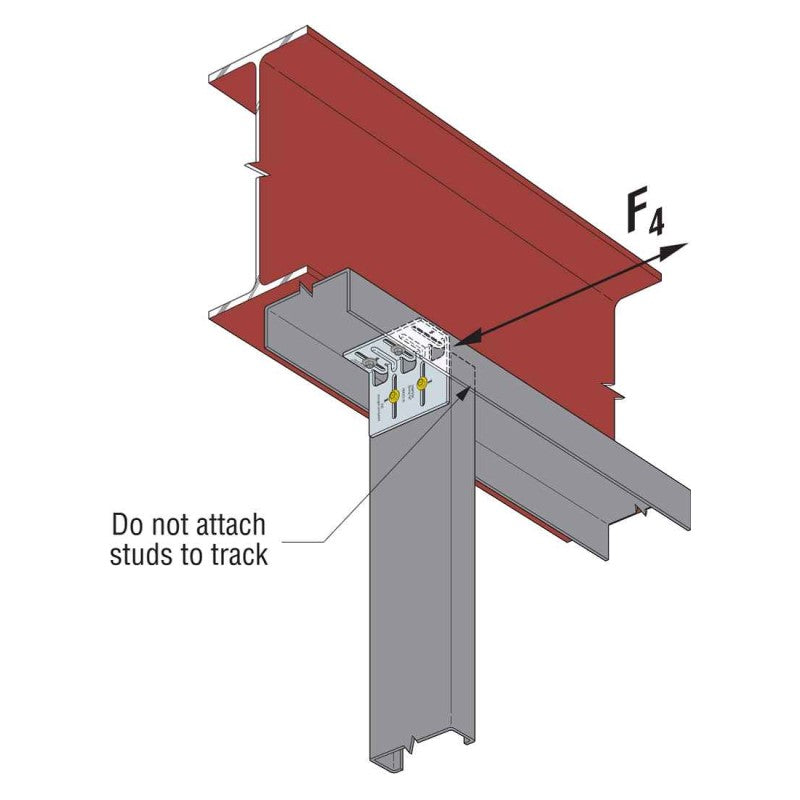

The Simpson Strong-Tie head-of-wall drift-clip connector (HWDC) is used to secure the head of a wall to the bottom of a slab or beam. The unique design allows anchor screws to be installed closer to the bend, providing a stronger and stiffer connection while also allowing 1" horizontal and 1" vertical movement during seismic and high-wind events. HWDC5.25 provides anchorage location options with a third slot providing a solution for clips overhanging beam flanges.  HWDC connectors are an optimal solution for adding strength to window or door jambs at head-of-wall connections and include XLSH78B1414 shoulder screws for installation. Tested load values are provided for anchorage to steel and concrete.

Specifications:

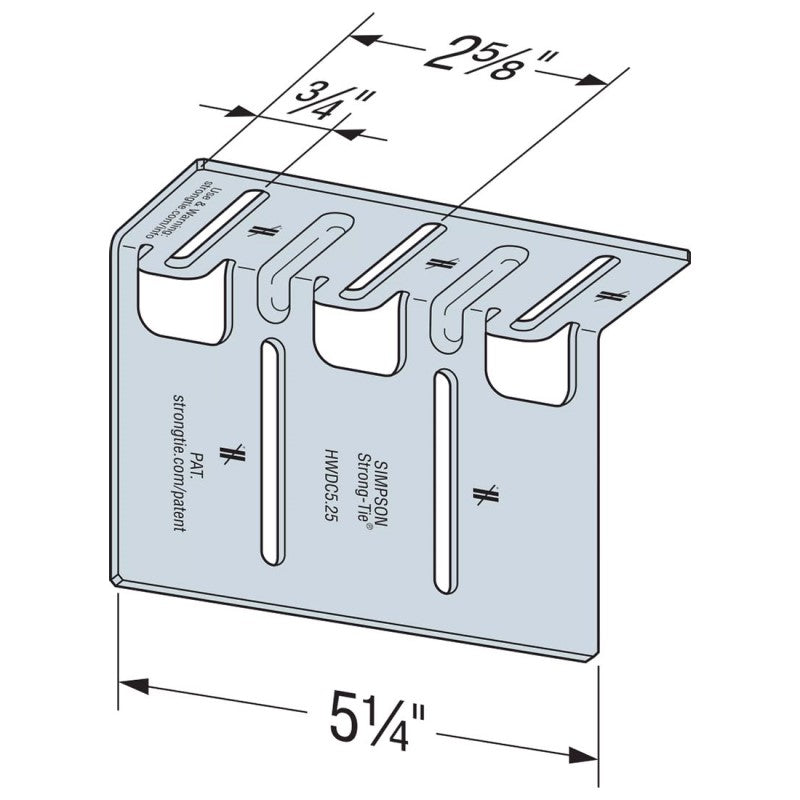

Width: 5-1/4"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
