Name: Simpson Strong-Tie HWP410 High Wind Uplift Purlin Hanger - Gray Paint, Made to Order Non-Returnable
SKU: HWP410
Price: 36.99 USD
Availability: InStock

This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product

The Simpson Strong-Tie HWP High-Wind Purlin Hangers provide superior support for joists connecting to purlins or beams, offering exceptional uplift resistance. Designed to withstand high-wind conditions, these top-flange hangers enhance structural integrity across wood and cold-formed steel construction projects.

Key Features:

High Uplift Capacity: Engineered to provide reliable resistance against extreme wind forces.
Versatile Design: Accommodates sloped and skewed joist seats up to 45°, offering flexibility for various framing needs.

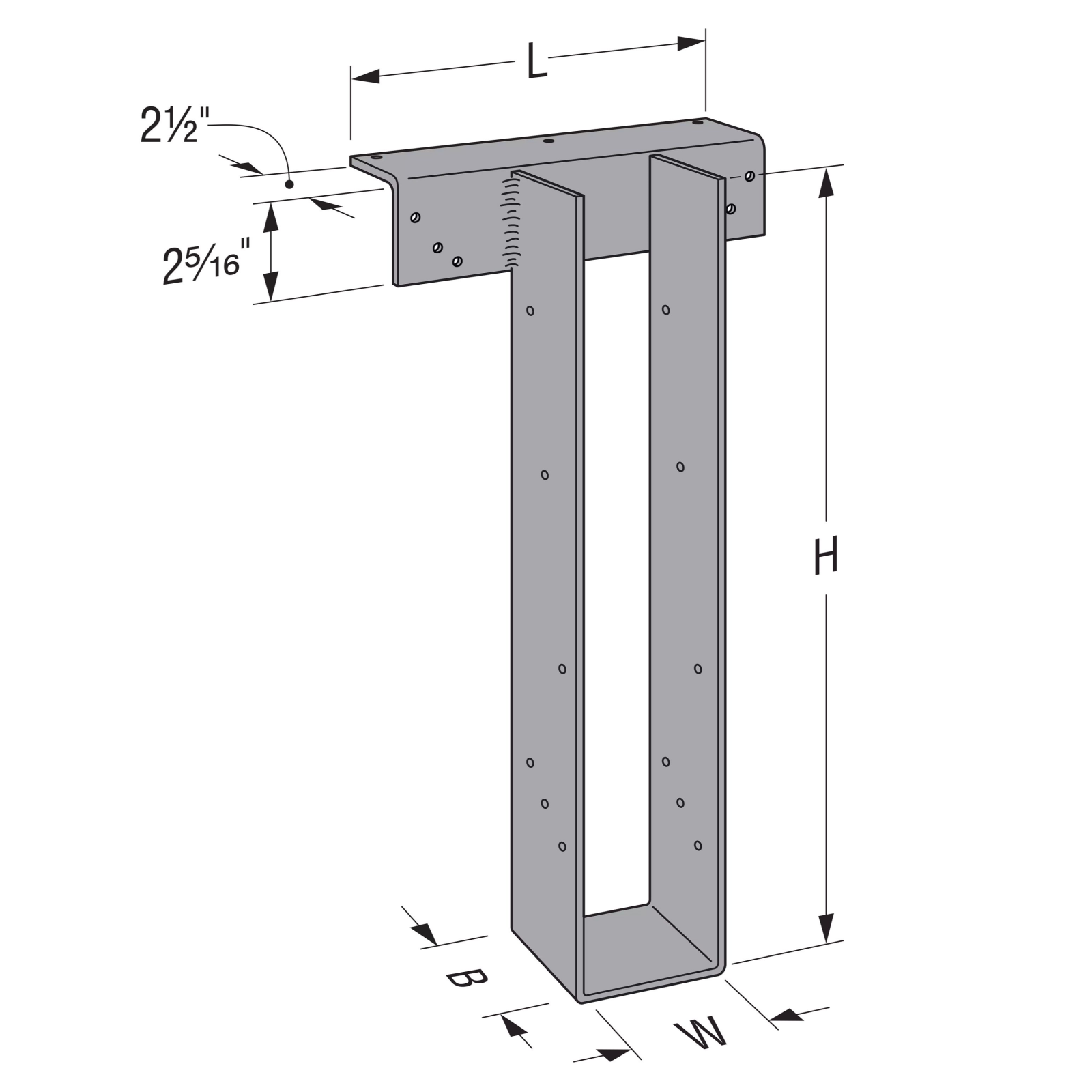

Durable Construction: Built with a 7-gauge top flange and 12-gauge stirrup for long-term structural performance.

Applications:

Wood and Cold-Formed Steel Construction: Suitable for securing joists to purlins or beams in both materials.
High-Wind Areas: Ideal for structures in hurricane or storm-prone regions where uplift resistance is critical.
Customizable Angles: Supports sloped and skewed joist connections, making it adaptable for complex construction layouts.

Installation:

Fastening Requirements: Use all specified fasteners according to manufacturer instructions for secure connections.

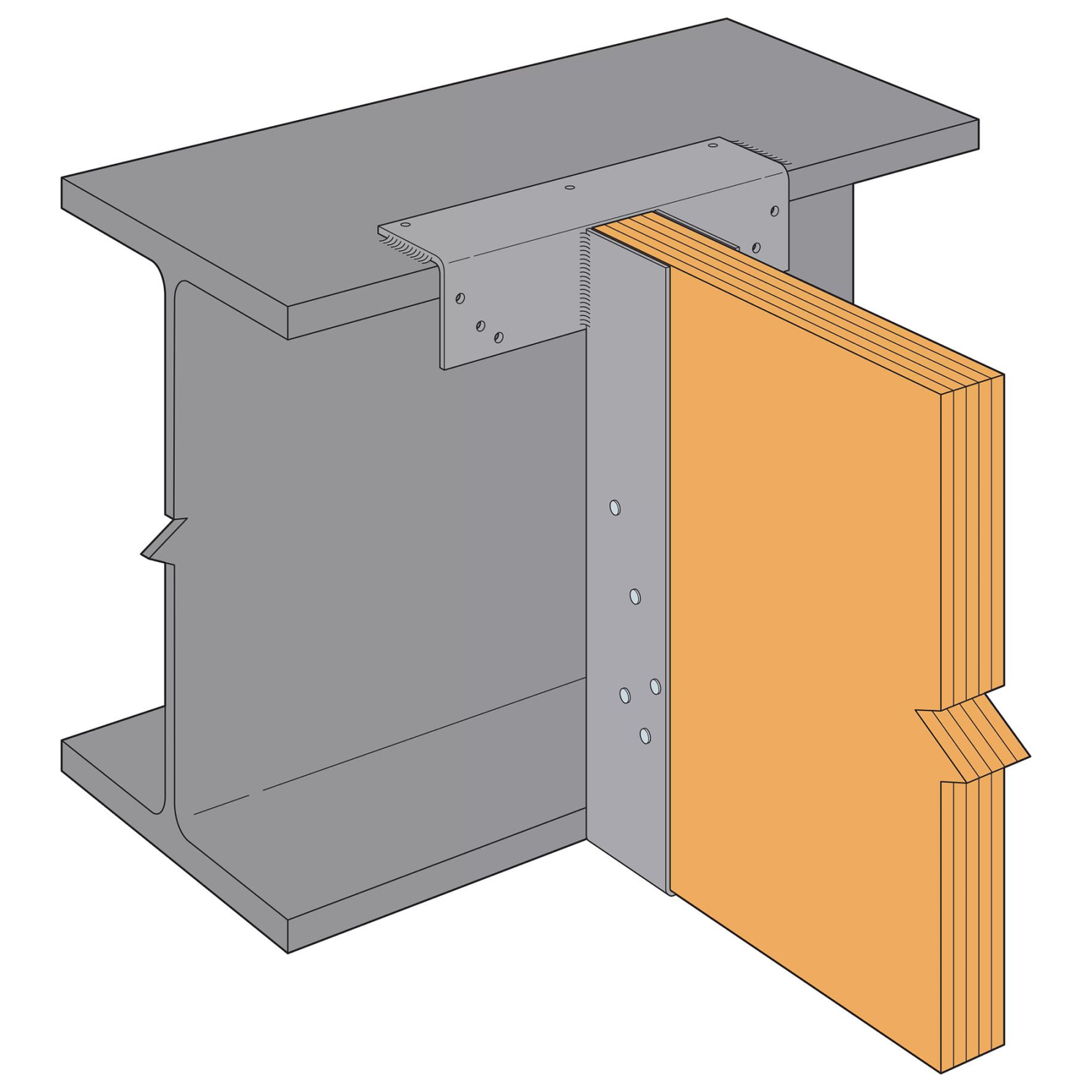

Weldable Top Flange: Can be welded to steel headers using 1 1/2-inch-long fillet welds on each side, matching the material thickness.
Modifications: Supports sloped top flanges up to 35° and opened or closed top flanges up to 30° for additional project flexibility.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
