SKU: HWP68

Simpson HWP68 High Wind Uplift Purlin Hanger - Gray Paint

Simpson HWP68 High Wind Uplift Purlin Hanger - Gray Paint!

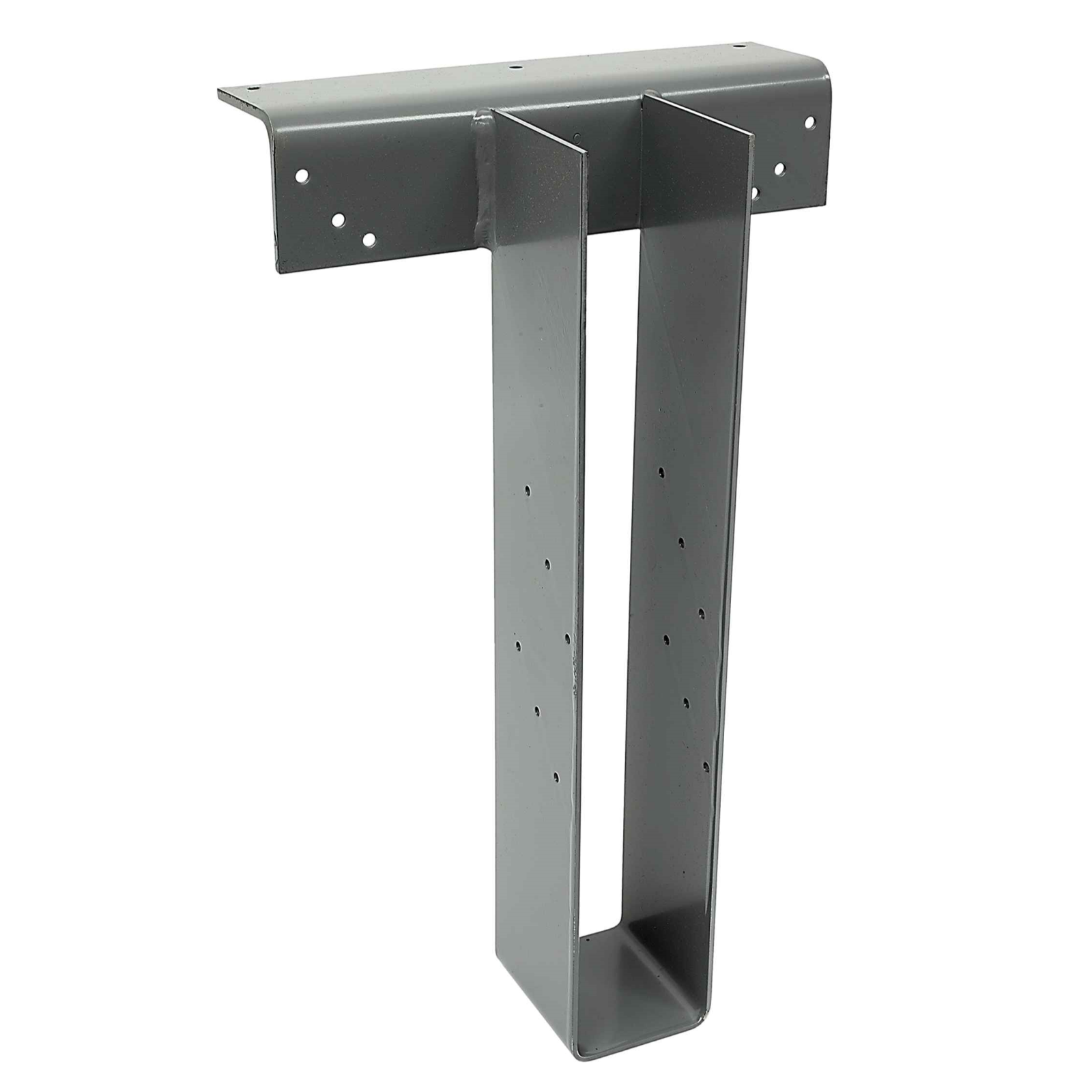

  • HWP High-Wind Purlin Hanger

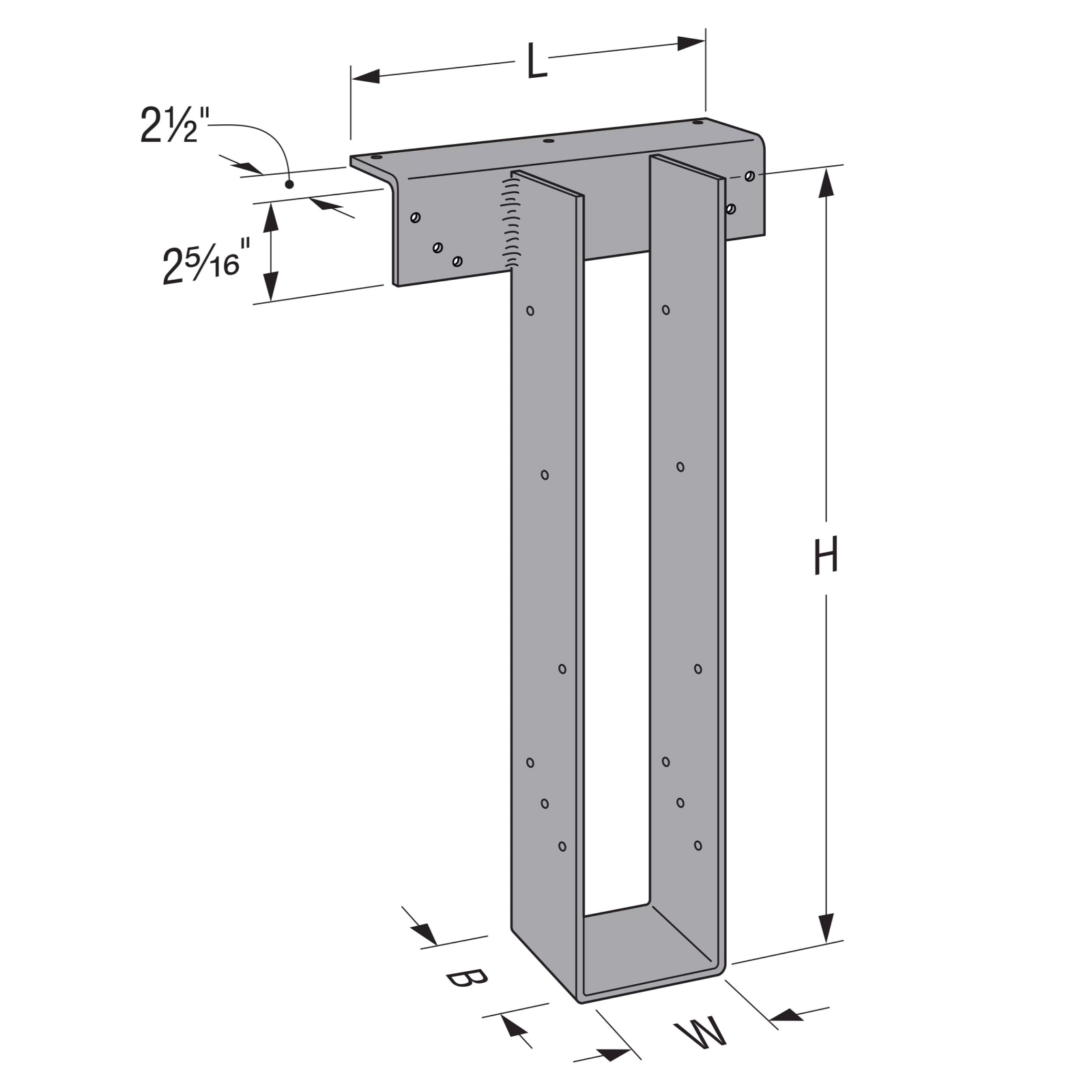

  • HWP High-Wind Purlin Hanger Illustration

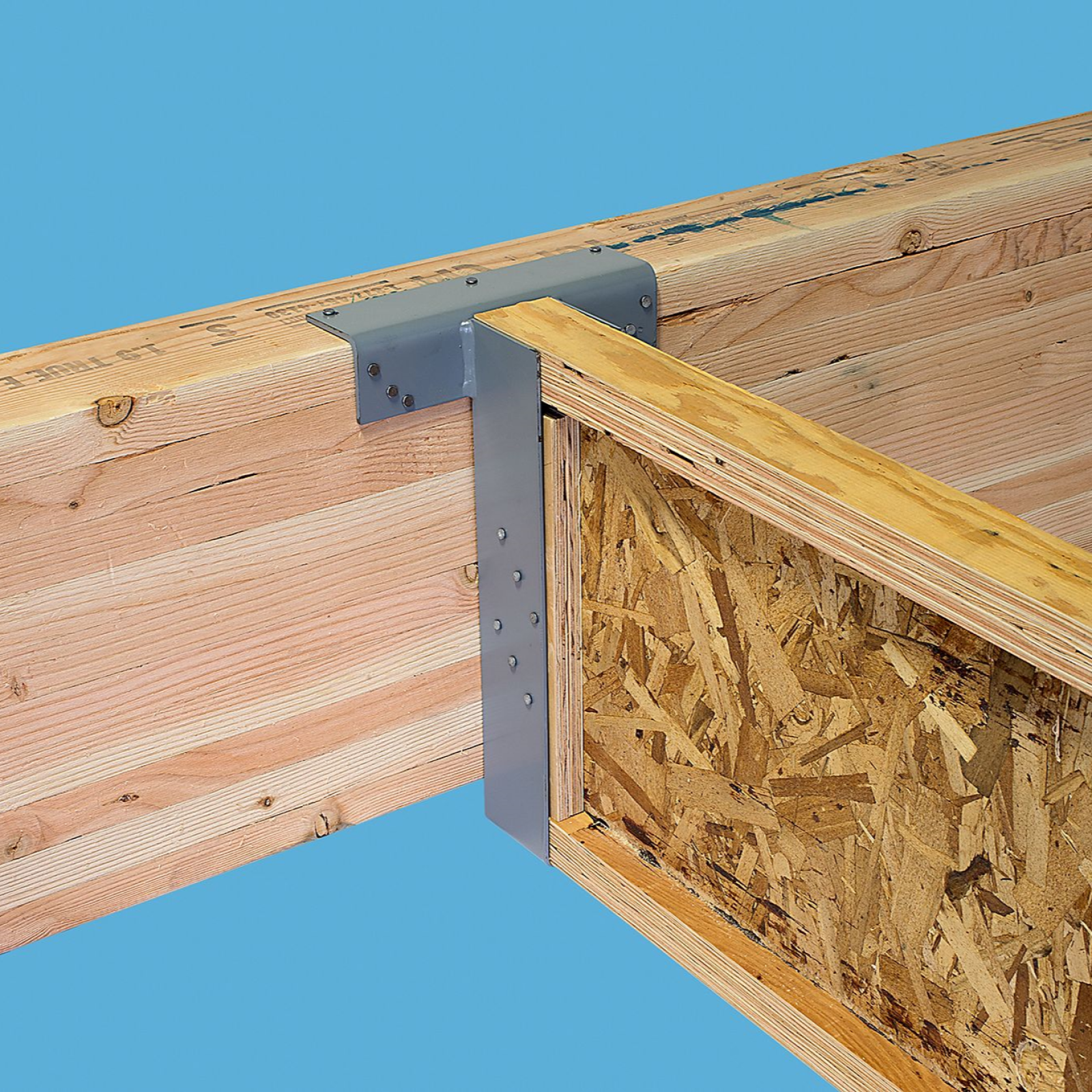

  • HWP High-Wind Purlin Hanger Installed

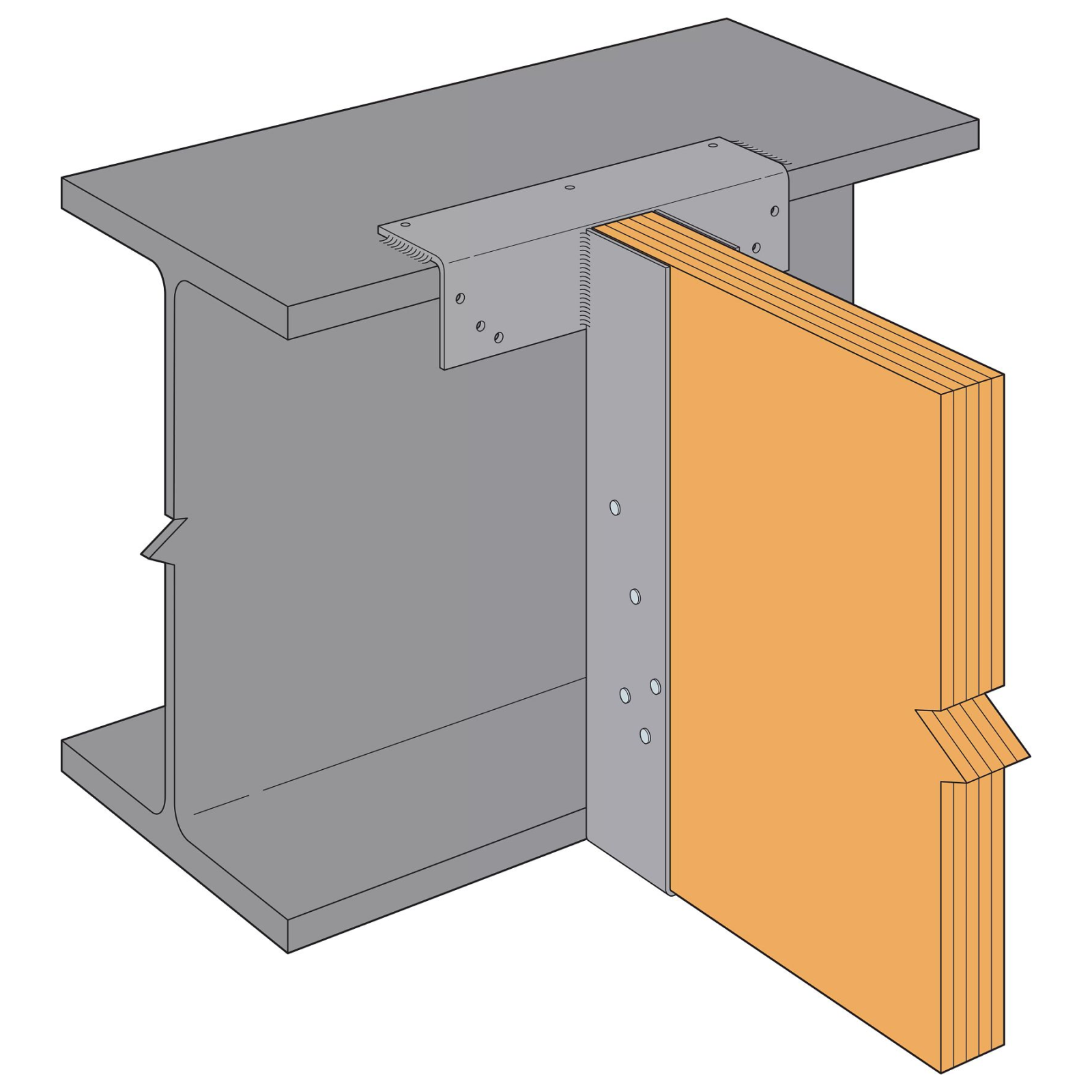

  • HWP Welded Installation to Steel I-Beam
1 4

Continue Browsing

WP/HWP/HWPH/WMU Purlin Top-Flange Hangers
SKU: HWP68

Simpson HWP68 High Wind Uplift Purlin Hanger - Gray Paint

$53.19

Request Bulk Pricing
Request Bulk Pricing
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Gray Paint
Fasteners required: Refer to Spec Sheet
For Treated Lumber: No
Manufacturer name: Simpson Strong-Tie
Description

The HWP is designed to support joists on purlins or beams in both wood and cold-formed steel construction. This top-flange hanger has enhanced uplift and is ideal for high-wind applications. The HWP offers design flexibility and versatility in supporting trusses off of wood or steel and can have a sloped and/or skewed seat up to 45°.

Installation:

  • Use all Specified Fasteners
  • Modifiable with alteration options including opened/closed top-flange and offset top-flange
  • Top flange may be sloped to a maximum of 35° to accommodate a sloped header
  • Features a solid one-piece top flange that provides extra stability in panelized roof applications

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
