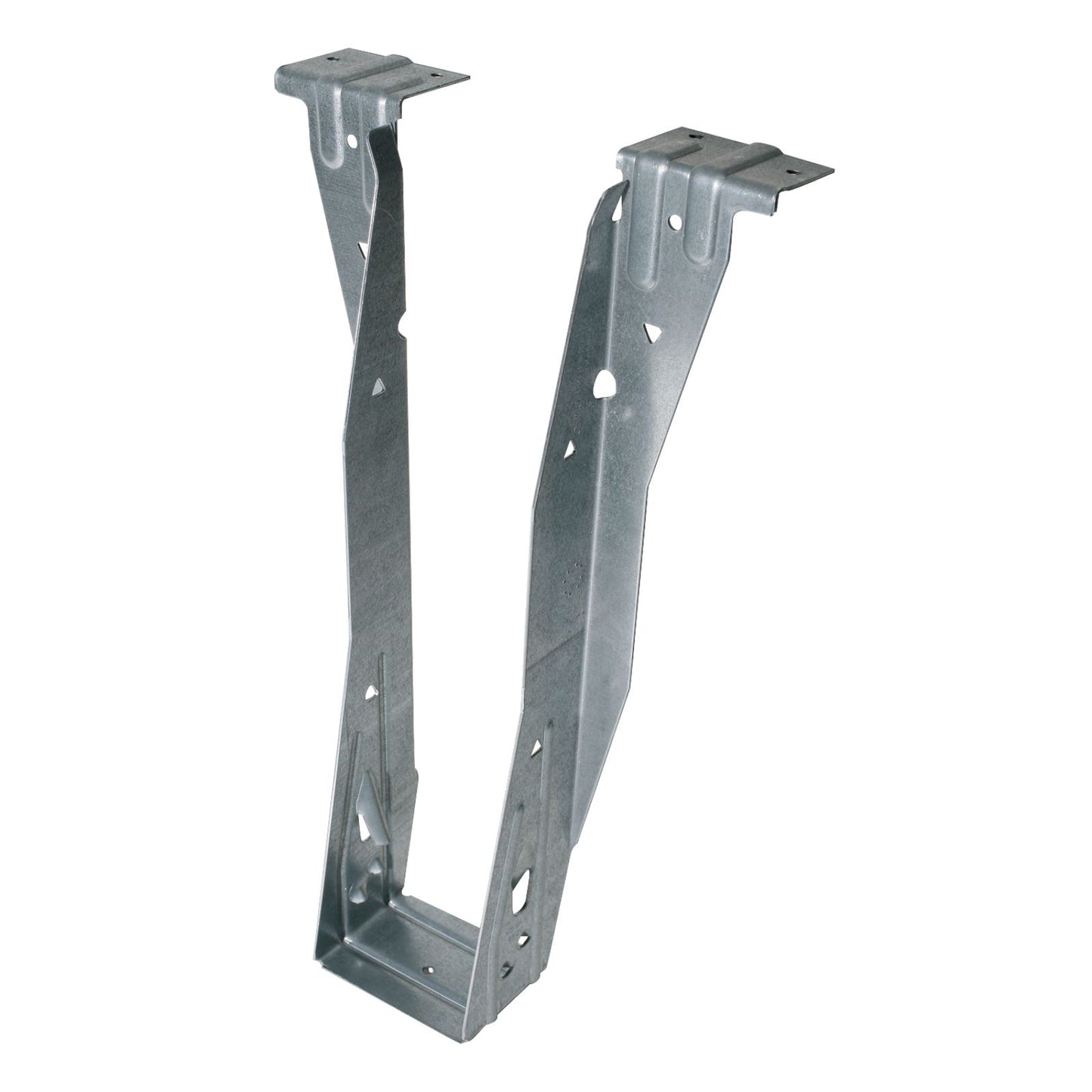

Simpson ITS2.06/9.5 Top Flange I-Joist Hanger - G90 Galvanized
Simpson ITS2.06/9.5 Top Flange I-Joist Hanger - G90 Galvanized!
Continue Browsing
ITS I-Joist & SCL Hangers
Specifications
The innovative ITS sets the standard for engineered wood top flange hangers. The ITS installs faster and uses fewer nails than any other EWP top flange hanger. The new Strong-Grip seat and Funnel Flange features allow standard joist installation without requiring joist nails resulting in the lowest installed cost. The Strong-Grip seat firmly secures I-joists with flange thicknesses from 1 1/8" to 1 1/2". The Strong-Tie ITS2.06/9.5 top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153
Installation:
- Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
- No joist nailing required for standard I-joist installation without web stiffeners. When supporting I-joists with web stiffeners or rectangular SCL member 2-10dx1 1/2" must be installed into optional triangle joist nail holes for standard installation values.
- Optional triangle nail holes may be used for additional load.
- For sloped joists up to 1/4:12 there is no reduction; between 1/4:12 and up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
