SKU: ITS3.56/14

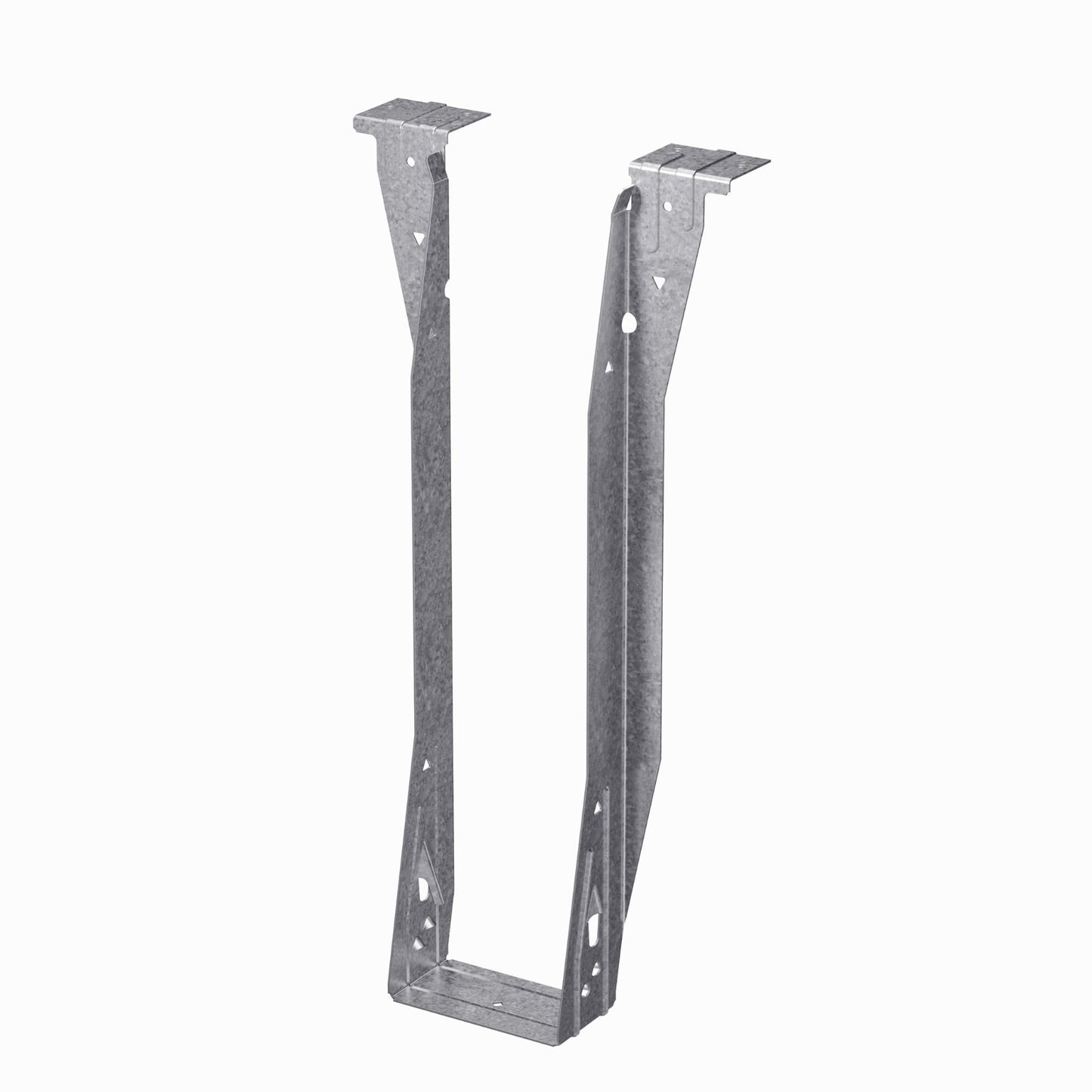

Simpson ITS3.56/14 Top Flange I-Joist Hanger - G90 Galvanized

Simpson ITS3.56/14 Top Flange I-Joist Hanger - G90 Galvanized

Regular price $8.28
Sale price $8.28 Regular price
0% off
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
shipping truck, lead time icon
Ships May 31 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

The innovative ITS sets the standard for engineered wood top flange hangers. The ITS installs faster and uses fewer nails than any other EWP top flange hanger. The new Strong-Grip seat and Funnel Flange features allow standard joist installation without requiring joist nails resulting in the lowest installed cost. The Strong-Grip seat firmly secures I-joists with flange thicknesses from 1 1/8" to 1 1/2". The Strong-Tie ITS3.56/14 top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153


Installation:
  • Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
  • No joist nailing required for standard I-joist installation without web stiffeners. When supporting I-joists with web stiffeners or rectangular SCL member 2-10dx1 1/2" must be installed into optional triangle joist nail holes for standard installation values.
  • Optional triangle nail holes may be used for additional load.
  • For sloped joists up to 1/4:12 there is no reduction; between 1/4:12 and up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 13-15/16"
Fasteners required: (6) 0.148" x 3" Nails
Thickness: 8 Gauge
Width: 3-5/8"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 3-1/2" X 14"
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
-No joist nailing required for standard I-joist installation without web stiffeners. When supporting I-joists with web stiffeners or rectangular SCL member 2-10dx1 1/2" must be installed into optional triangle joist nail holes for standard installation values.
-Optional triangle nail holes may be used for additional load.
-For sloped joists up to 1/4:12 there is no reduction; between 1/4:12 and up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.
