SKU: ITS2.56/9.5

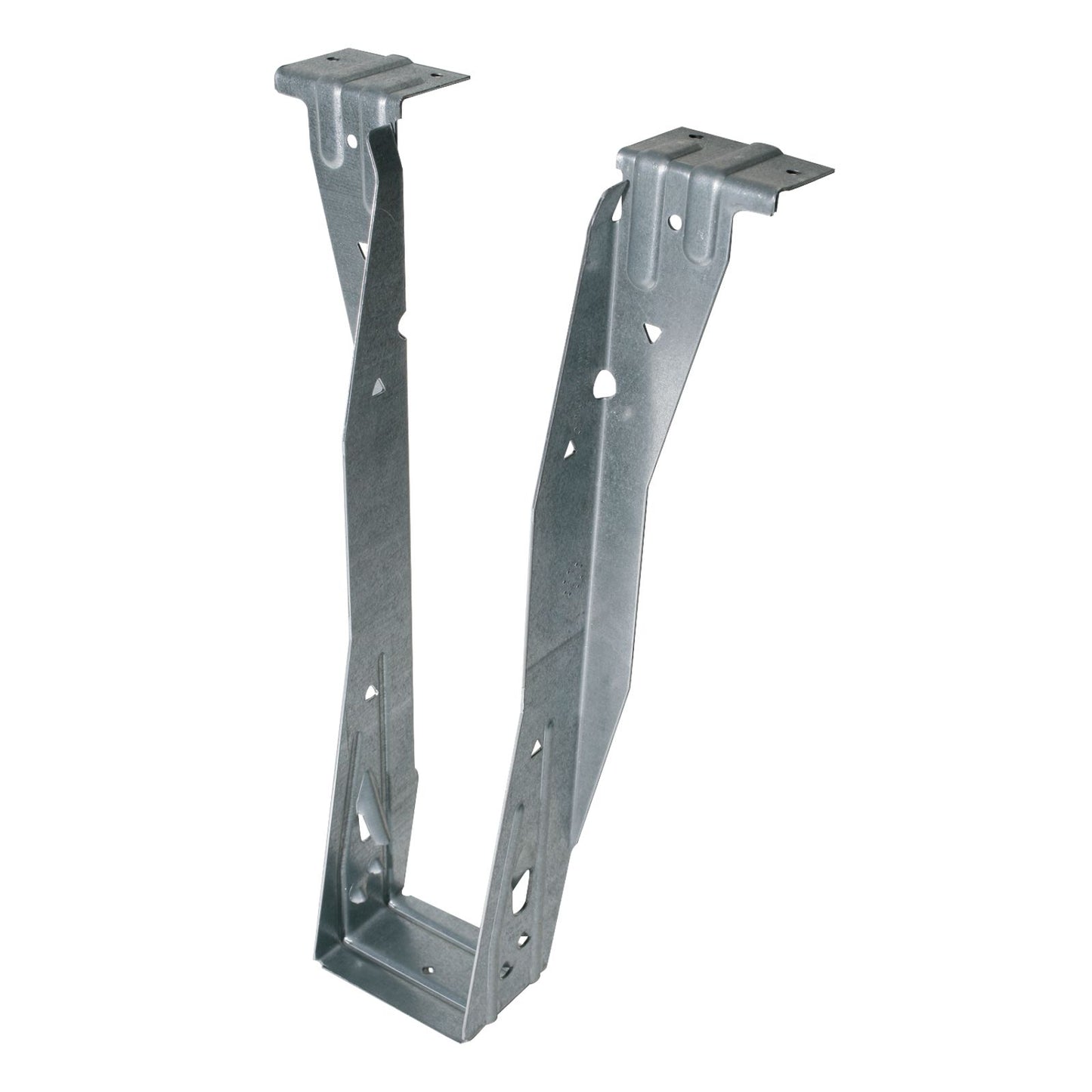

Simpson ITS2.56/9.5 Top Flange I-Joist Hanger - G90 Galvanized

Simpson ITS2.56/9.5 Top Flange I-Joist Hanger - G90 Galvanized

Regular price $4.67
Sale price $4.67 Regular price
0% off
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
shipping truck, lead time icon
Ships today when you order in the next 10 hours 48 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-421-4854.

Description:

The innovative ITS sets the standard for engineered wood top flange hangers. The ITS installs faster and uses fewer nails than any other EWP top flange hanger. The new Strong-Grip seat and Funnel Flange features allow standard joist installation without requiring joist nails resulting in the lowest installed cost. The Strong-Grip seat firmly secures I-joists with flange thicknesses from 1 1/8" to 1 1/2". The Strong-Tie ITS2.56/9.5 top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153


Installation:
  • Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
  • No joist nailing required for standard I-joist installation without web stiffeners. When supporting I-joists with web stiffeners or rectangular SCL member 2-10dx1 1/2" must be installed into optional triangle joist nail holes for standard installation values.
  • Optional triangle nail holes may be used for additional load.
  • For sloped joists up to 1/4:12 there is no reduction; between 1/4:12 and up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 9-7/16"
Fasteners required: (6) 0.148" x 3" Nails
Thickness: 18 Gauge
Width: 2-5/8"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 2-1/2" X 9-1/2"
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
-No joist nailing required for standard I-joist installation without web stiffeners. When supporting I-joists with web stiffeners or rectangular SCL member 2-10dx1 1/2" must be installed into optional triangle joist nail holes for standard installation values.
-Optional triangle nail holes may be used for additional load.-For sloped joists up to 1/4:12 there is no reduction; between 1/4:12 and up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.
