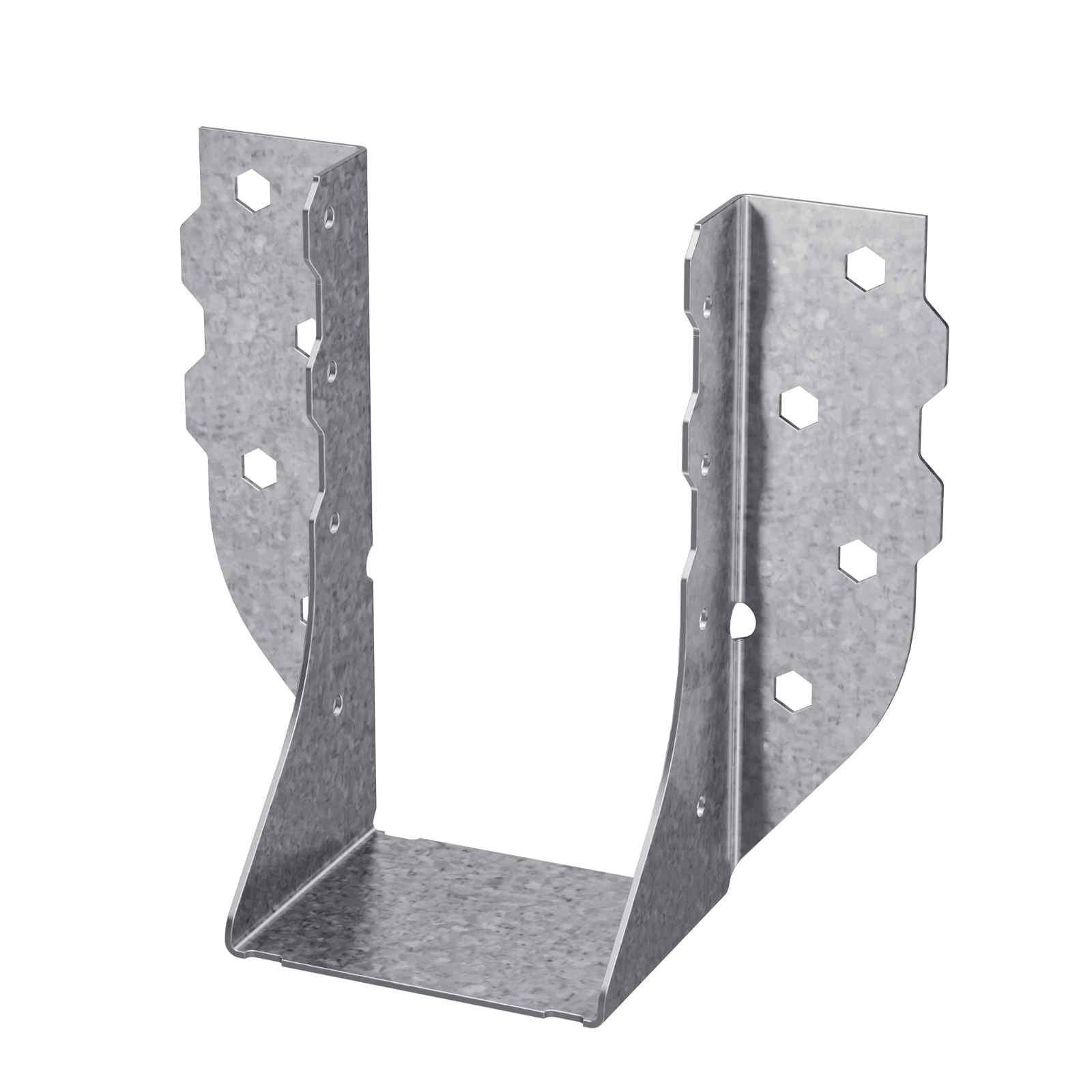

Simpson LGUM210-4-SDS Masonry Girder Hanger W/SDS Screws & Titen HD

SKU: LGUM210-4-SDS

$198.88
Made to Order
Standard Lead Time 2-3 days.

Simpson Strong-Tie LGUM High-capacity beam or girder hangers for concrete or masonry applications. Installation is made easier using Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws (provided) into the wood member and Titen HD® anchors (provided) into the masonry.


  • Use all specified fasteners (included).
  • Attach hanger to a concrete or grouted CMU wall using Titen HD anchors. Note the following:
    • Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
    • Holes shall be drilled 1/2" deeper than the specified Titen HD length (i.e. 41/2" for a 4" long Titen HD anchor)
    • Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor's load capacity.
  • Titen HD is not recommended for exposed exterior applications.
  • Provide moisture barrier between beam and wall per jurisdictional requirements.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie LGUM High-capacity beam or girder hangers for concrete or masonry applications. Installation is made easier using Simpson Strong...

Read More

Simpson Strong-Tie LGUM High-capacity beam or girder hangers for concrete or masonry applications. Installation is made easier using Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws (provided) into the wood member and Titen HD® anchors (provided) into the masonry.


  • Use all specified fasteners (included).
  • Attach hanger to a concrete or grouted CMU wall using Titen HD anchors. Note the following:
    • Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
    • Holes shall be drilled 1/2" deeper than the specified Titen HD length (i.e. 41/2" for a 4" long Titen HD anchor)
    • Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor's load capacity.
  • Titen HD is not recommended for exposed exterior applications.
  • Provide moisture barrier between beam and wall per jurisdictional requirements.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
All Fasteners Included

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

Height:
9-3/16"

Thickness:
12 Gauge

Product Guide:
