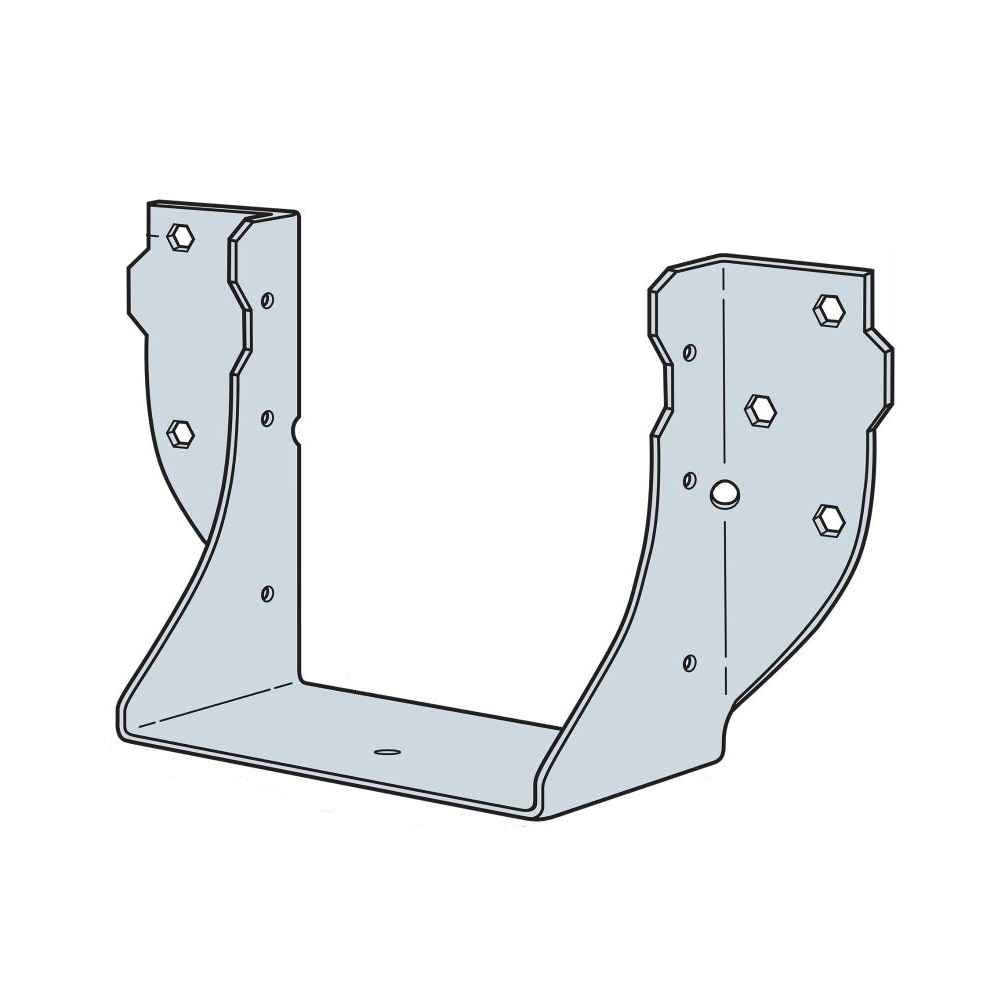

Simpson LGUM26-3-SDS Masonry Girder Hanger W/SDS Screws & Titen HD

Simpson Strong-Tie LGUM High-capacity beam or girder hangers for concrete or masonry applications. Installation is made easier using Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws (provided) into the wood member and Titen HD® anchors (provided) into the masonry.

• Use all specified fasteners (included).
• Attach hanger to a concrete or grouted CMU wall using Titen HD anchors. Note the following:
• Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
• Holes shall be drilled 1/2" deeper than the specified Titen HD length (i.e. 41/2" for a 4" long Titen HD anchor)
• Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor's load capacity.
• Titen HD is not recommended for exposed exterior applications.
• Provide moisture barrier between beam and wall per jurisdictional requirements.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
