Simpson Strong-Tie LUS210-3Z Triple 2x10 Face Mount Hanger - Zmax Finish

ICC Certified

Regular price $849
Ships today when you order in the next 12 minutes

Description

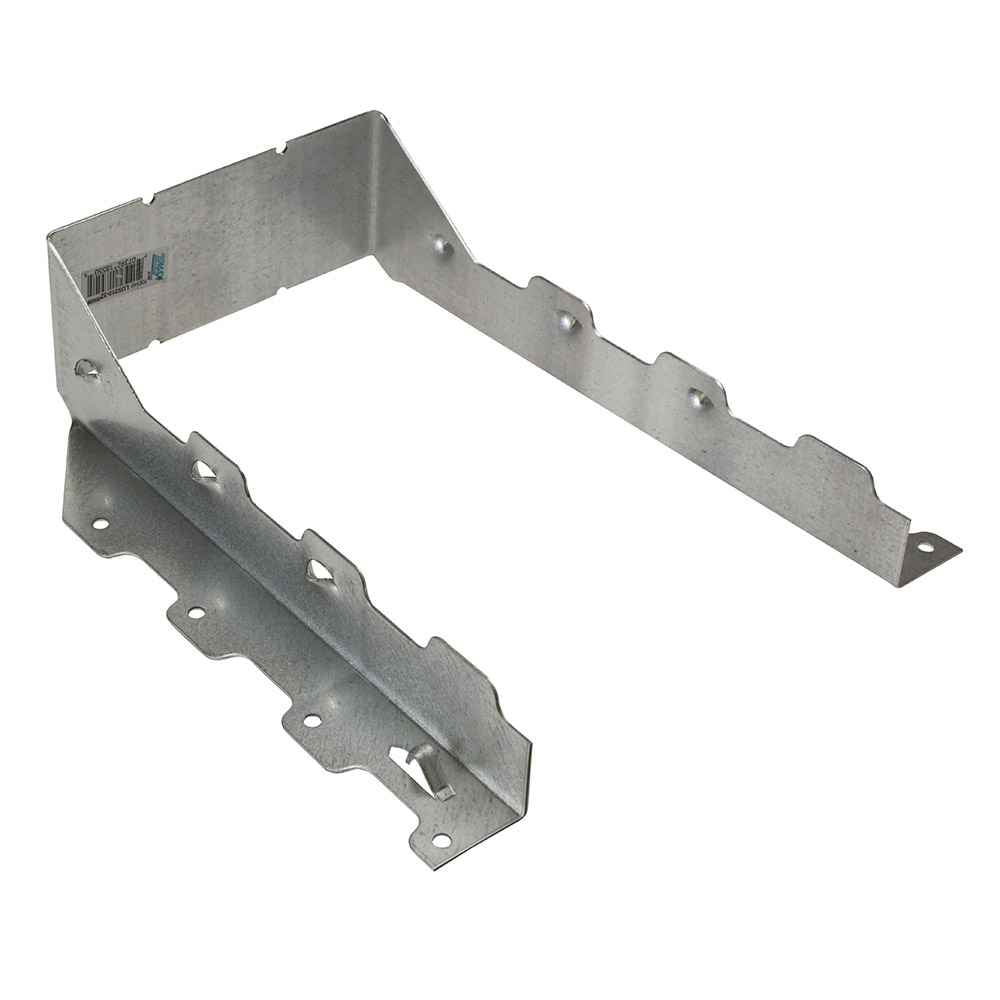

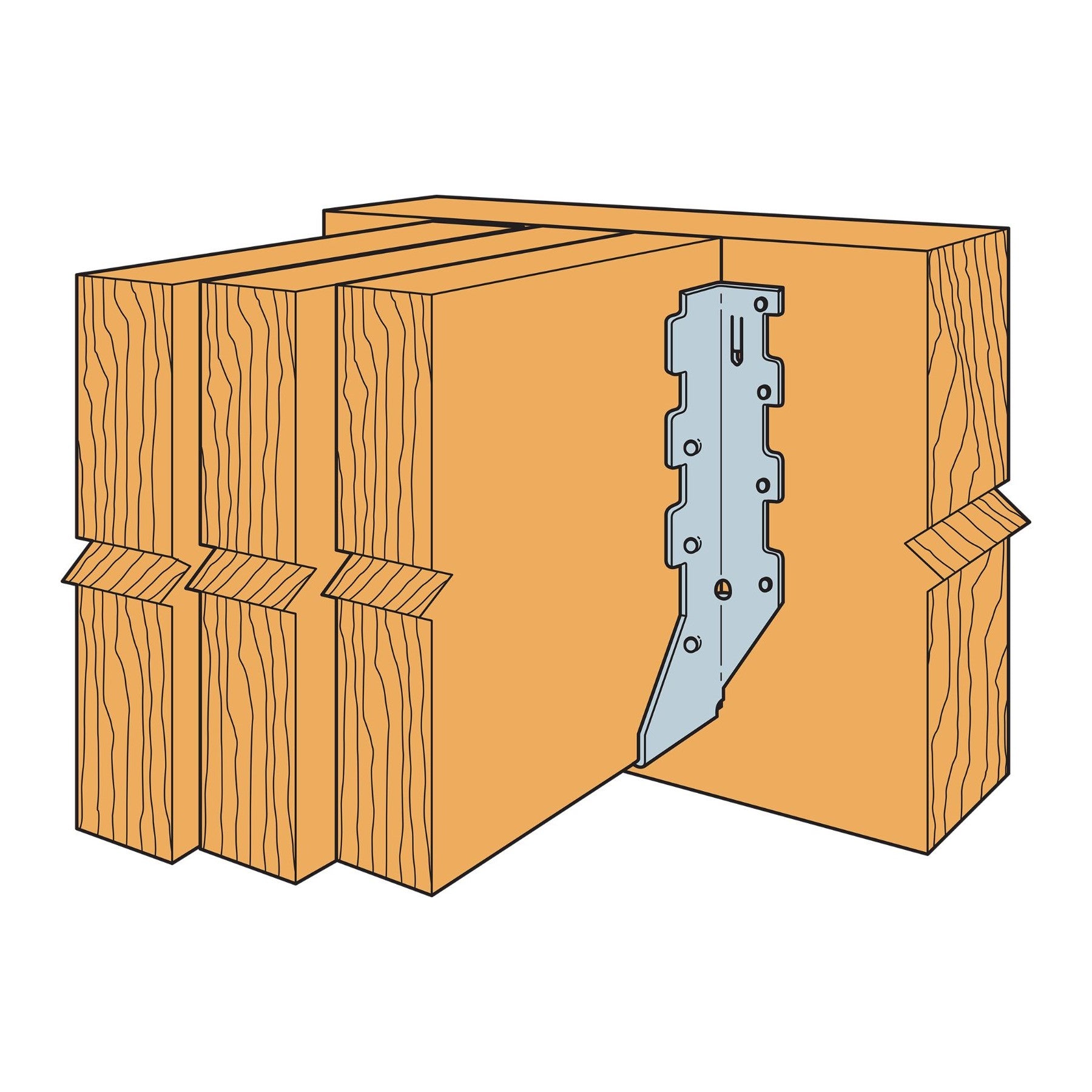

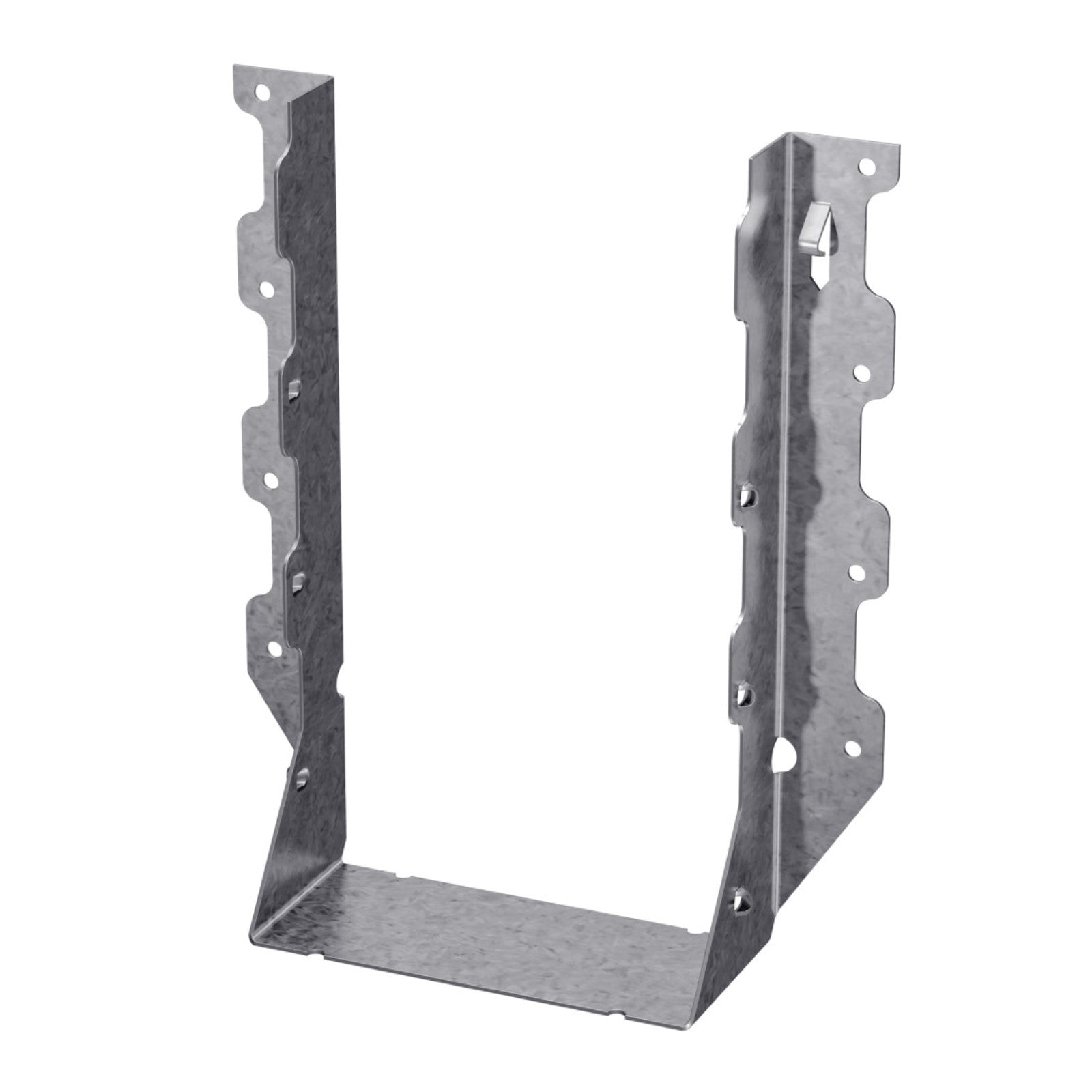

The Simpson Strong-Tie LUS series is designed for superior performance in wood-framed construction, offering a light-capacity U-shaped hanger with the added protection of ZMAX corrosion-resistant coating. Engineered for joists, rafters, and beams, this hanger features double-shear nailing, which distributes loads across two points per joist nail, increasing strength while reducing installation time.

Key Features:

  • ZMAX Coating for Corrosion Resistance: Provides enhanced protection against moisture, humidity, and corrosive environments, making it ideal for outdoor and treated lumber applications.
  • Double-Shear Nailing Technology: Allows for a more secure connection using fewer nails, improving structural integrity.
  • Versatile Applications: Designed for solid sawn lumber and engineered wood products, perfect for decks, floors, and roofing structures.
  • Code-Compliant Strength: Simpson Strong-Tie rigorously tests and rates these hangers to meet building code standards.

Installation Notes:

  • Use Hot-Dip Galvanized Nails: Pairing ZMAX hangers with galvanized fasteners ensures maximum corrosion resistance.
  • Angle Nail Placement for Optimal Strength: Properly driven nails enhance load distribution and structural security.
  • Best for Outdoor & High-Moisture Environments: Suitable for use in decks, porches, gazebos, and other exterior wood structures.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications

Width: 4-5/8"
Height: 8-3/16"
Thickness: 18 Gauge
Joist Size: Triple 2" X 10"
For Treated Lumber: Yes
Material: Carbon Steel
Finish: ZMAX
Manufacturer Name: Simpson Strong-Tie
Quantity: 1
Fasteners Required: Header - (8) 0.162 x 3-1/2" Nails OR (8) #9 x 1-1/2" SD Connector Screws Joist - (6) 0.162 x 3-1/2" Nails OR (6) #9 x 2-1/2" SD Connector Screws
