SKU: MGU5.25-SDS

Simpson MGU5.25-SDS Medium Girder Face-Mount Hanger

Simpson MGU5.25-SDS Medium Girder Face-Mount Hanger!

  • Simpson MGU Medium Capacity Girder Hanger, G90 Galvanized
  • Simpson MGU Medium Capacity Girder Hanger, G90 Galvanized
1 2

Continue Browsing

LGU/MGU/HGU/HHGU Girder Face Mount Hangers
SKU: MGU5.25-SDS

Simpson MGU5.25-SDS Medium Girder Face-Mount Hanger

Call for Price

Request Bulk Pricing
Call to Order
Request Bulk Pricing
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

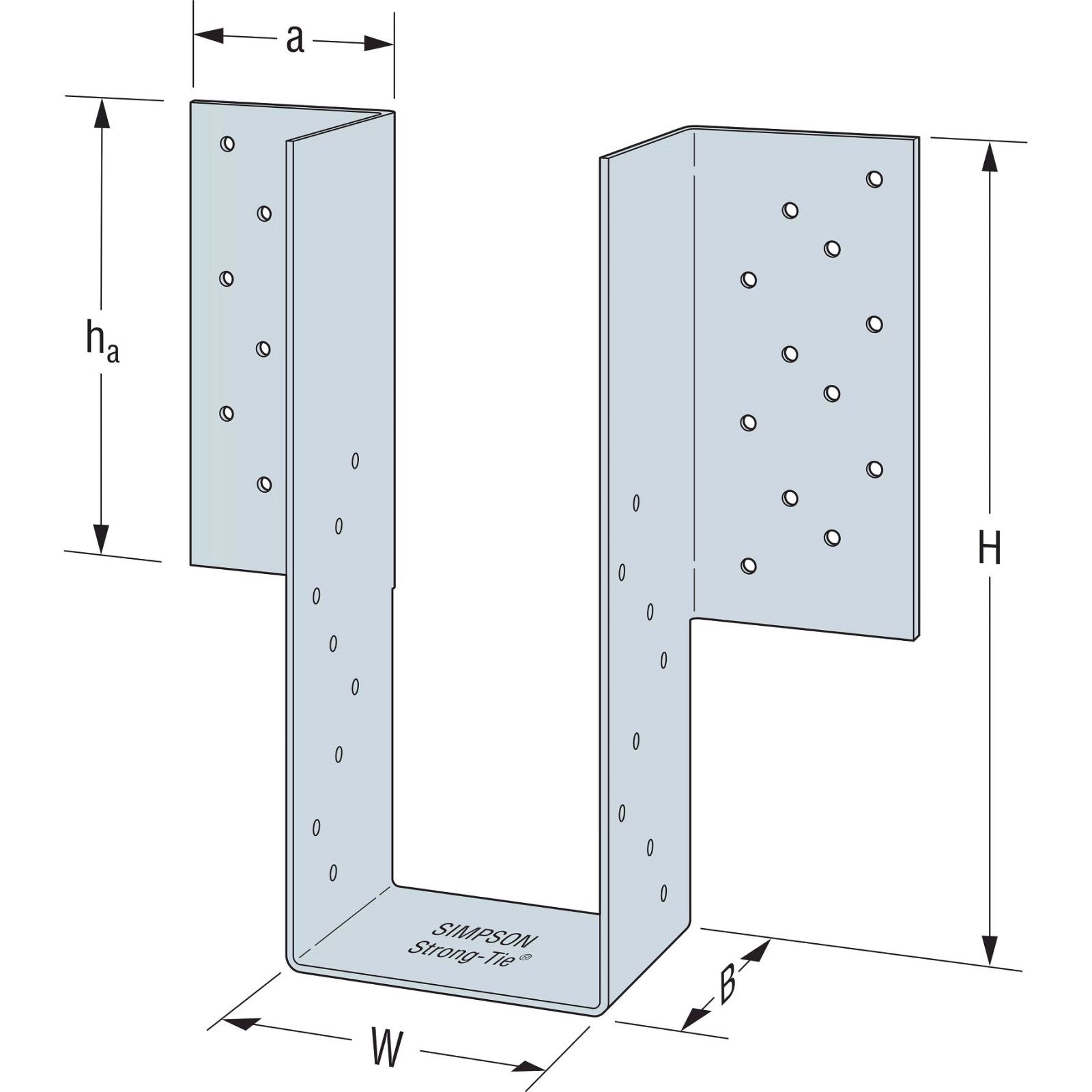

Specifications

Fasteners required: All Fasteners Included
For Treated Lumber: No
Height: 9-1/4"-30"
Joist size: 5-1/8"
Manufacturer name: Simpson Strong-Tie
Description
  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

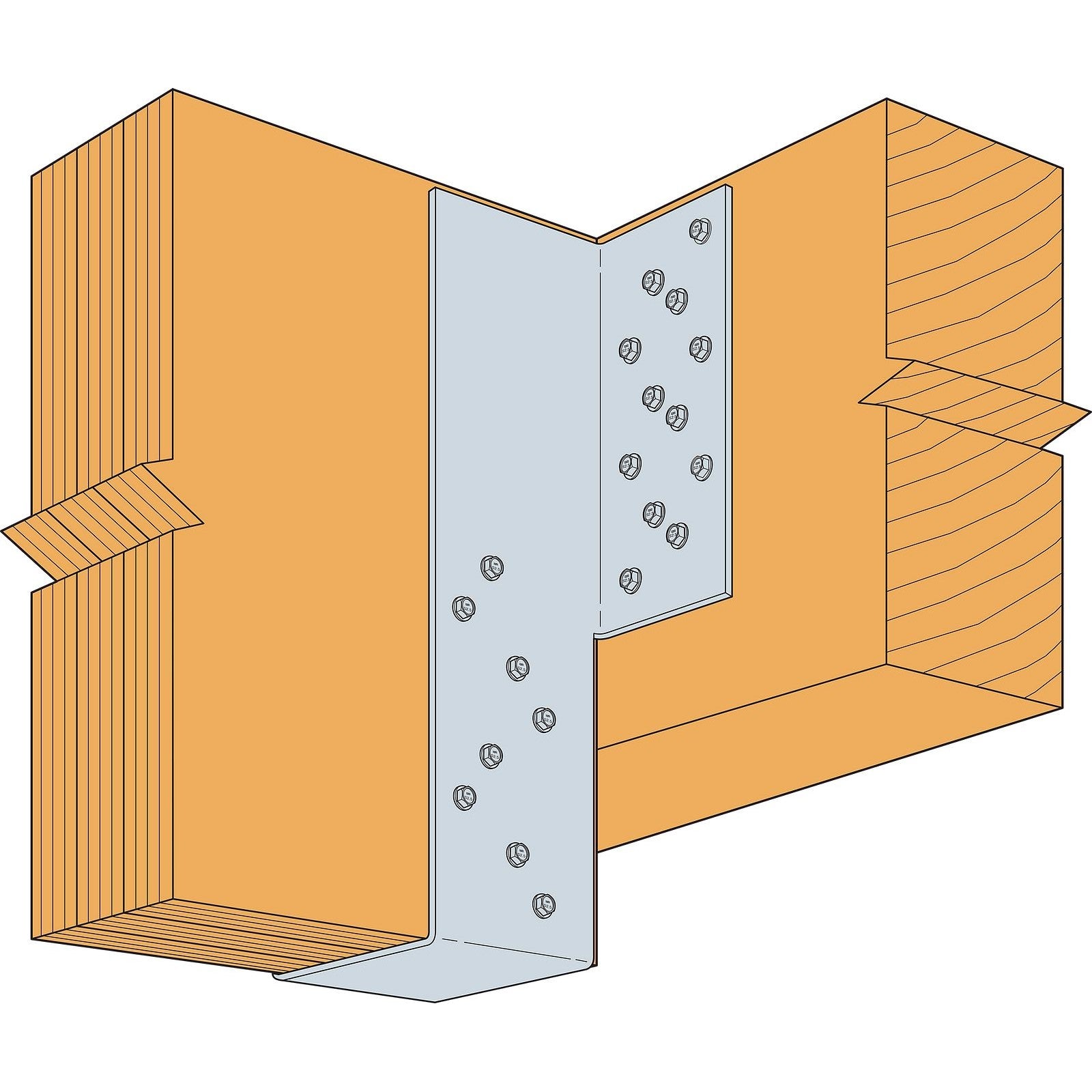

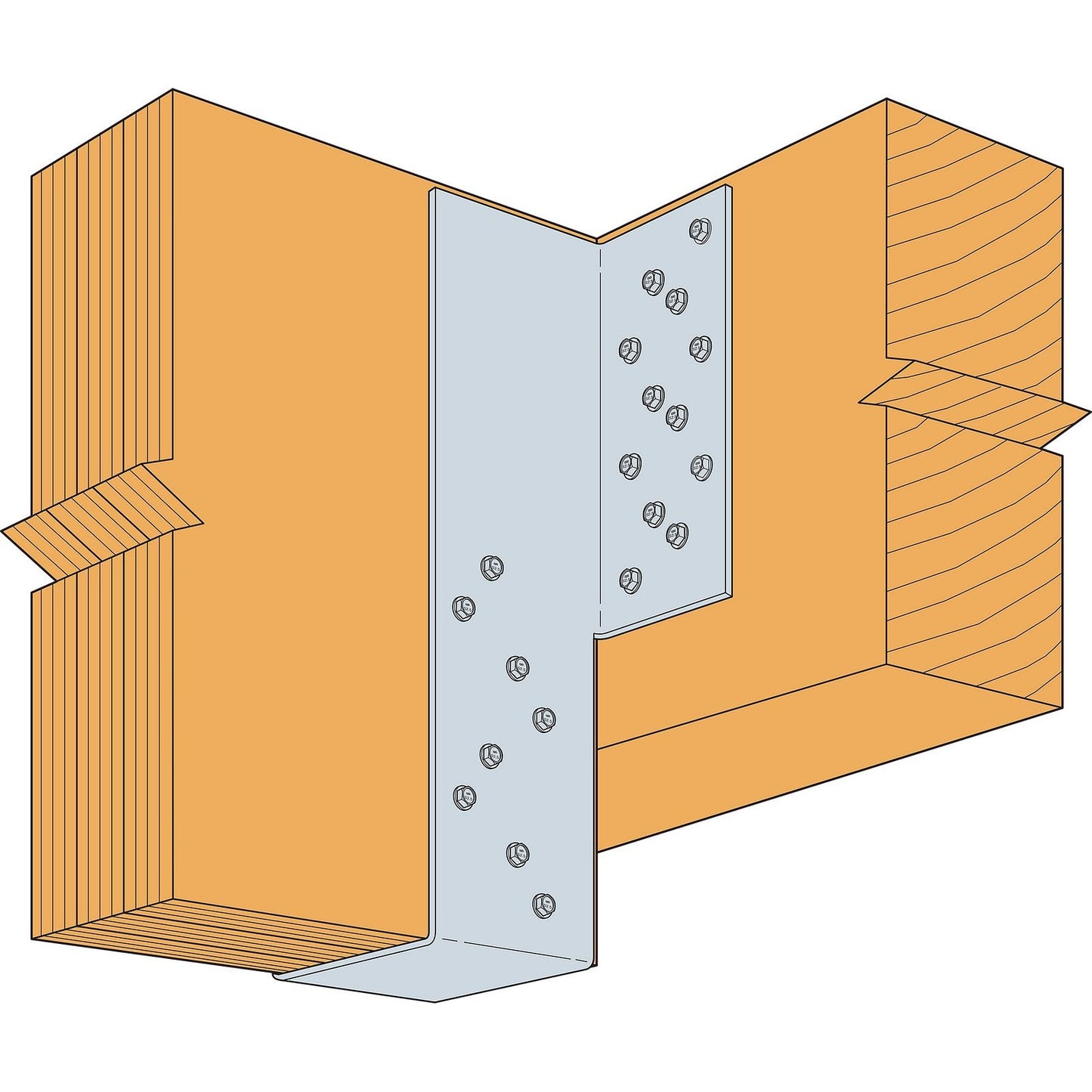

Simpson-Strong-Tie MGU medium-capacity girder hanger is a face-mount hanger used for retrofit on the framing members after they are temporarily placed into position. Installation made fast and easy, without predrilling, using Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws. The MGU is available up to 45° or with one flange concealed.

  • Use all specified fasteners.
  • MGU Medium Girder Face-Mount Hanger can be installed with 1/4" x 2-1/2" SDS Heavy-Duty Connector Screws which come with GU series hangers.
    • These hangers may be replaced with 1/4" x 3-1/2" SDS or 1/4" x 5" SDS screws for two or three-ply LVL headers so that the load may be transferred to all plies instead of using the 1/4" x 2-1/2" SDS Face Screws that come with this MGU hanger. This option does not eliminate the need for uniform fastener requirements along the length of the two or three-ply header.
  • Multiple sizes are available for glulam or structural composite lumber.
  • MGU-series hangers are flame and temperature resistant.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
