Shop more LGU/MGU/HGU/HHGU Girder Face Mount Hangers
SKU: MGU5.62-SDS

Simpson MGU5.62-SDS Medium Girder Face-Mount Hanger

Simpson MGU5.62-SDS Medium Girder Face-Mount Hanger

Call for Price
Call to Order
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

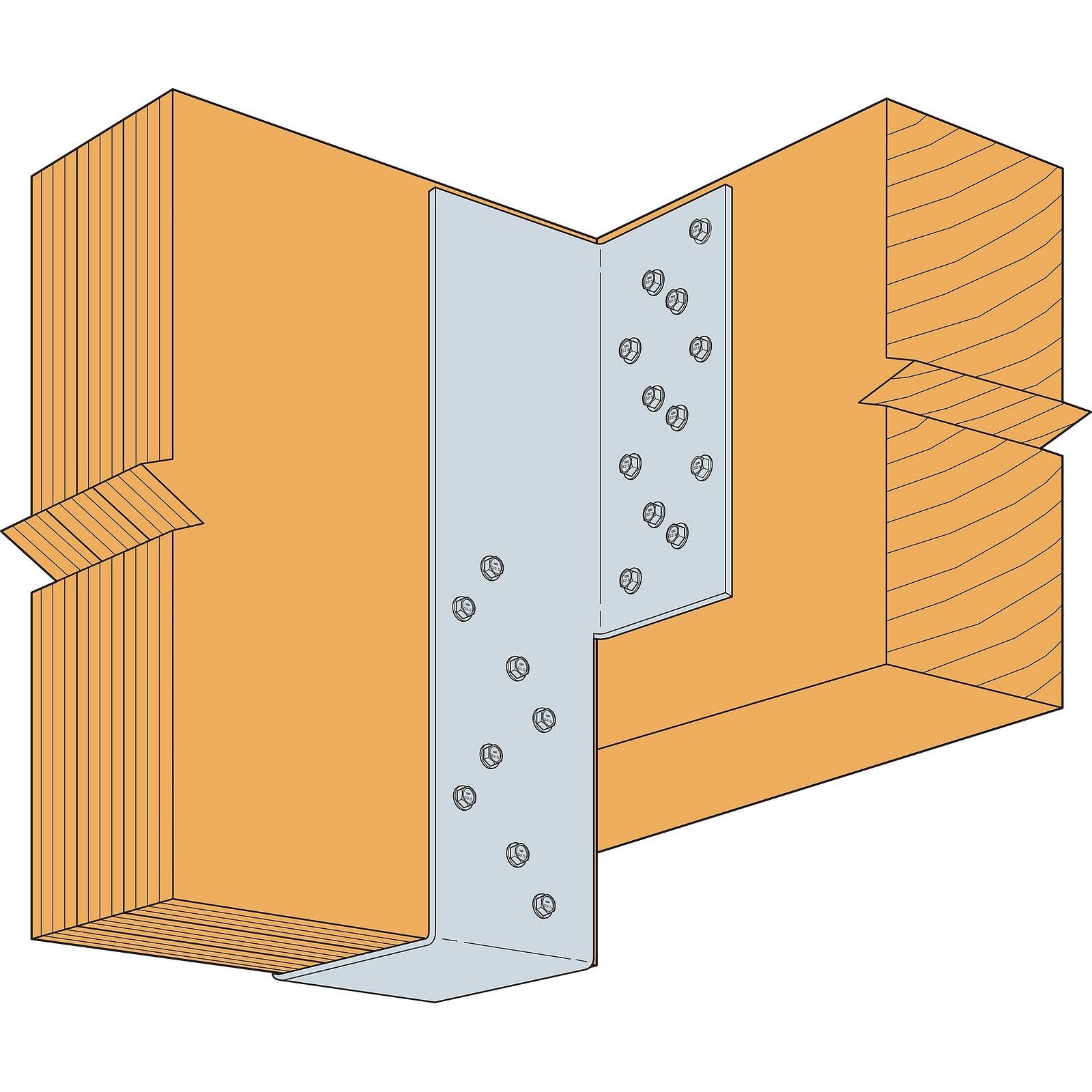

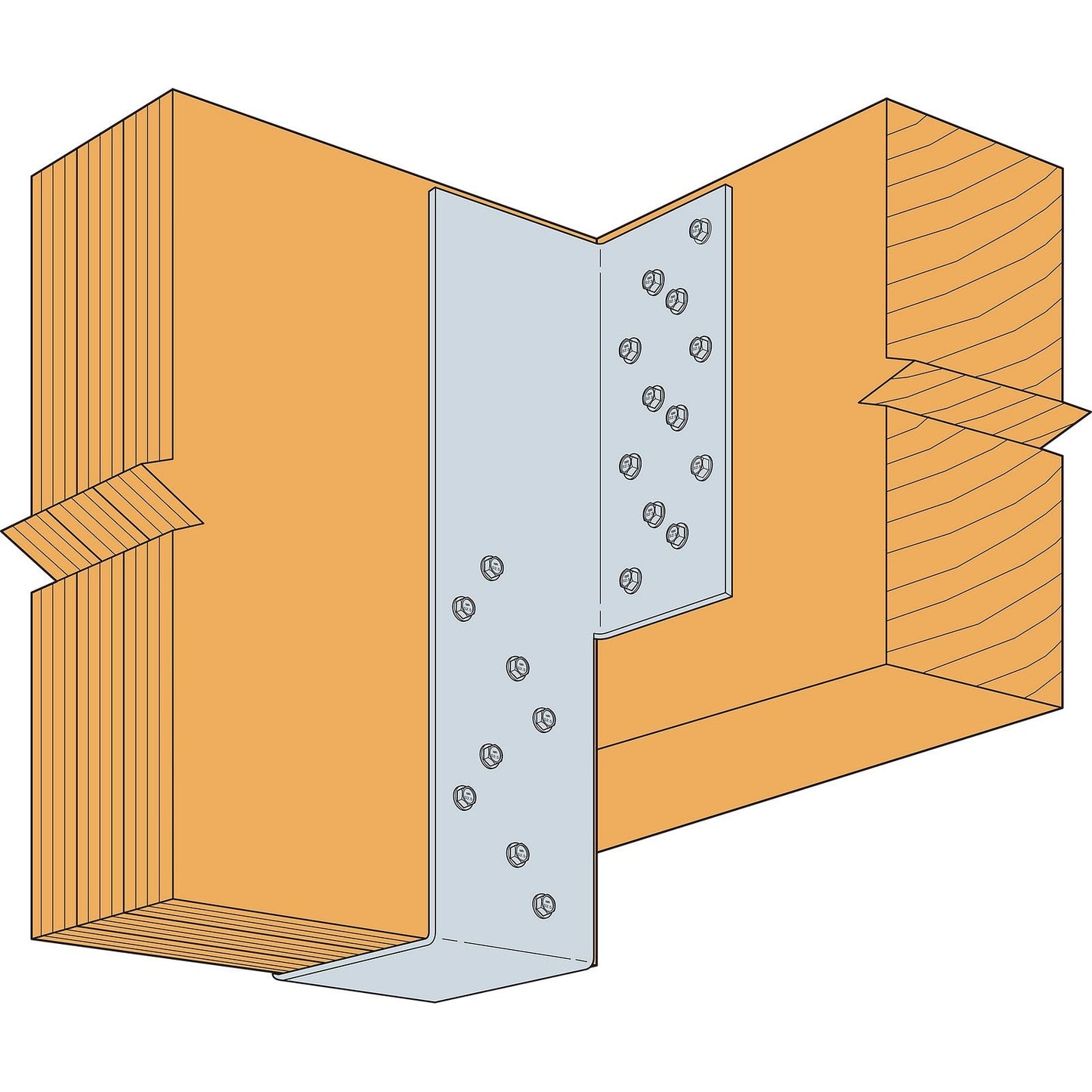

Simpson-Strong-Tie MGU medium-capacity girder hanger is a face-mount hanger used for retrofit on the framing members after they are temporarily placed into position. Installation made fast and easy, without predrilling, using Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws. The MGU is available up to 45° or with one flange concealed.

  • Use all specified fasteners.
  • MGU Medium Girder Face-Mount Hanger can be installed with 1/4" x 2-1/2" SDS Heavy-Duty Connector Screws which come with GU series hangers.
    • These hangers may be replaced with 1/4" x 3-1/2" SDS or 1/4" x 5" SDS screws for two or three-ply LVL headers so that the load may be transferred to all plies instead of using the 1/4" x 2-1/2" SDS Face Screws that come with this MGU hanger. This option does not eliminate the need for uniform fastener requirements along the length of the two or three-ply header.
  • Multiple sizes are available for glulam or structural composite lumber.
  • MGU-series hangers are flame and temperature resistant.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


    California Residents: WARNING

    Specifications:

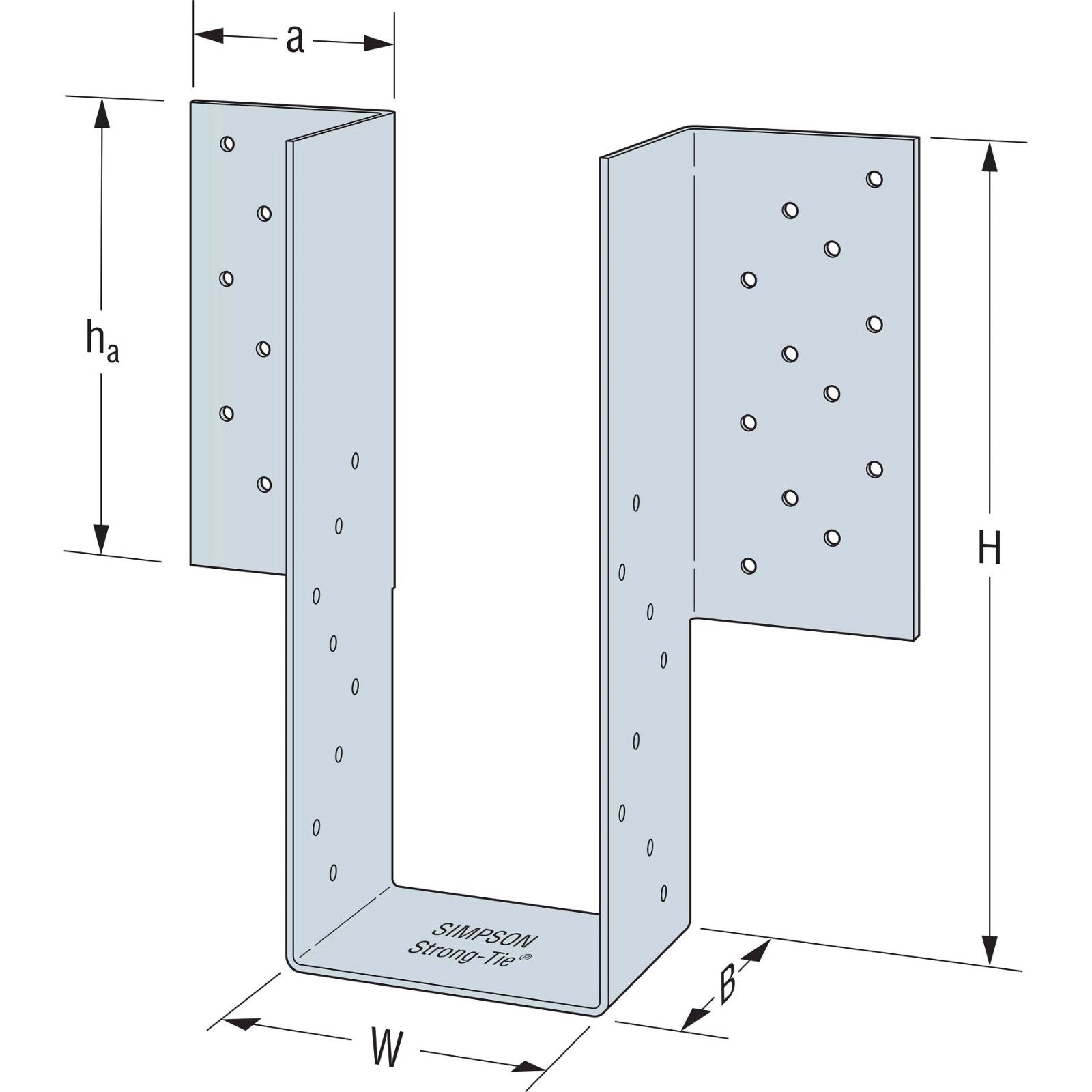

    Height: 9-1/4"-30"
    Fasteners required: All Fasteners Included
    Manufacturer name: Simpson Strong-Tie
    For Treated Lumber: No
    Joist size: 5-1/2"
    Product Guide: View Spec Sheet
