Shop more PA Purlin Anchors
SKU: PA28

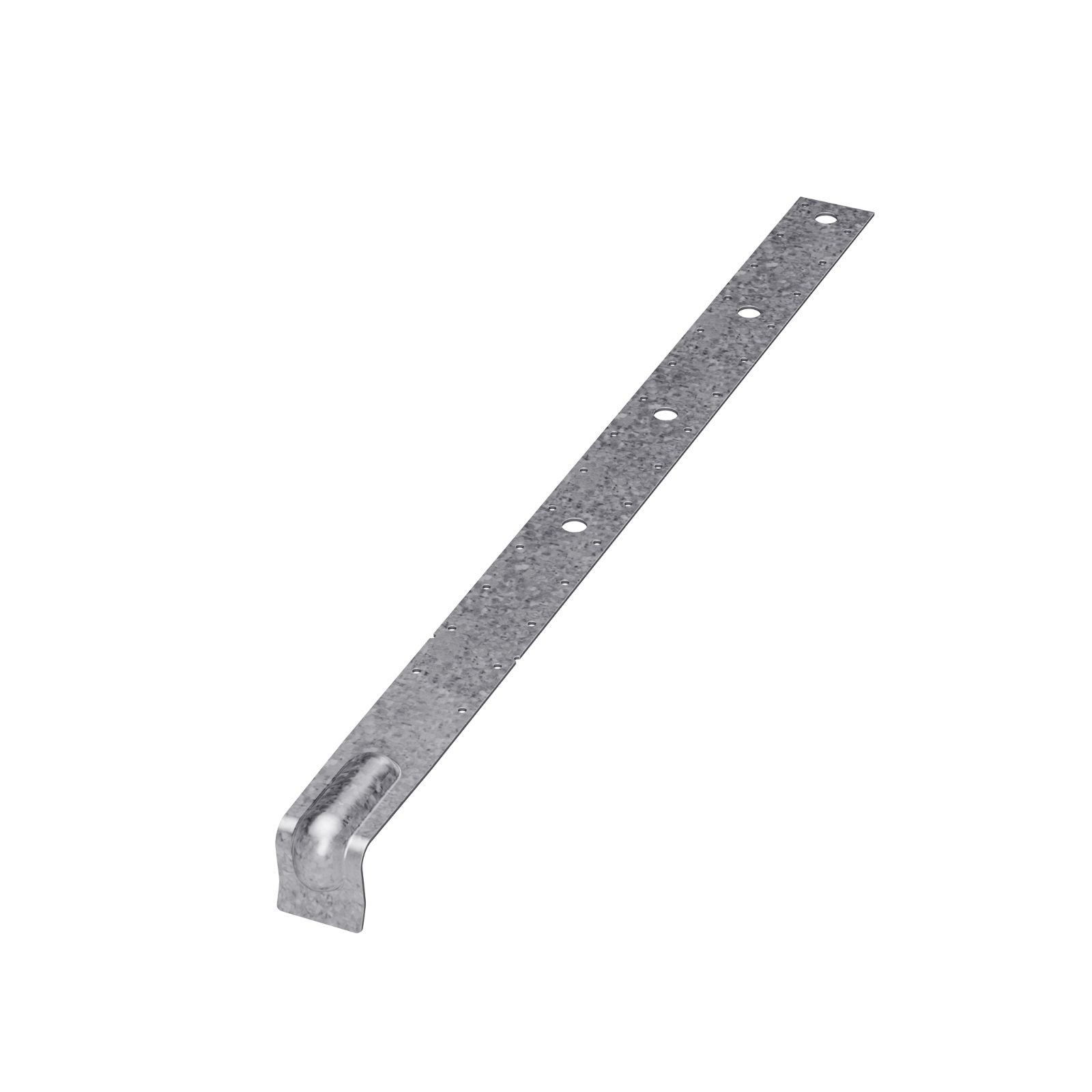

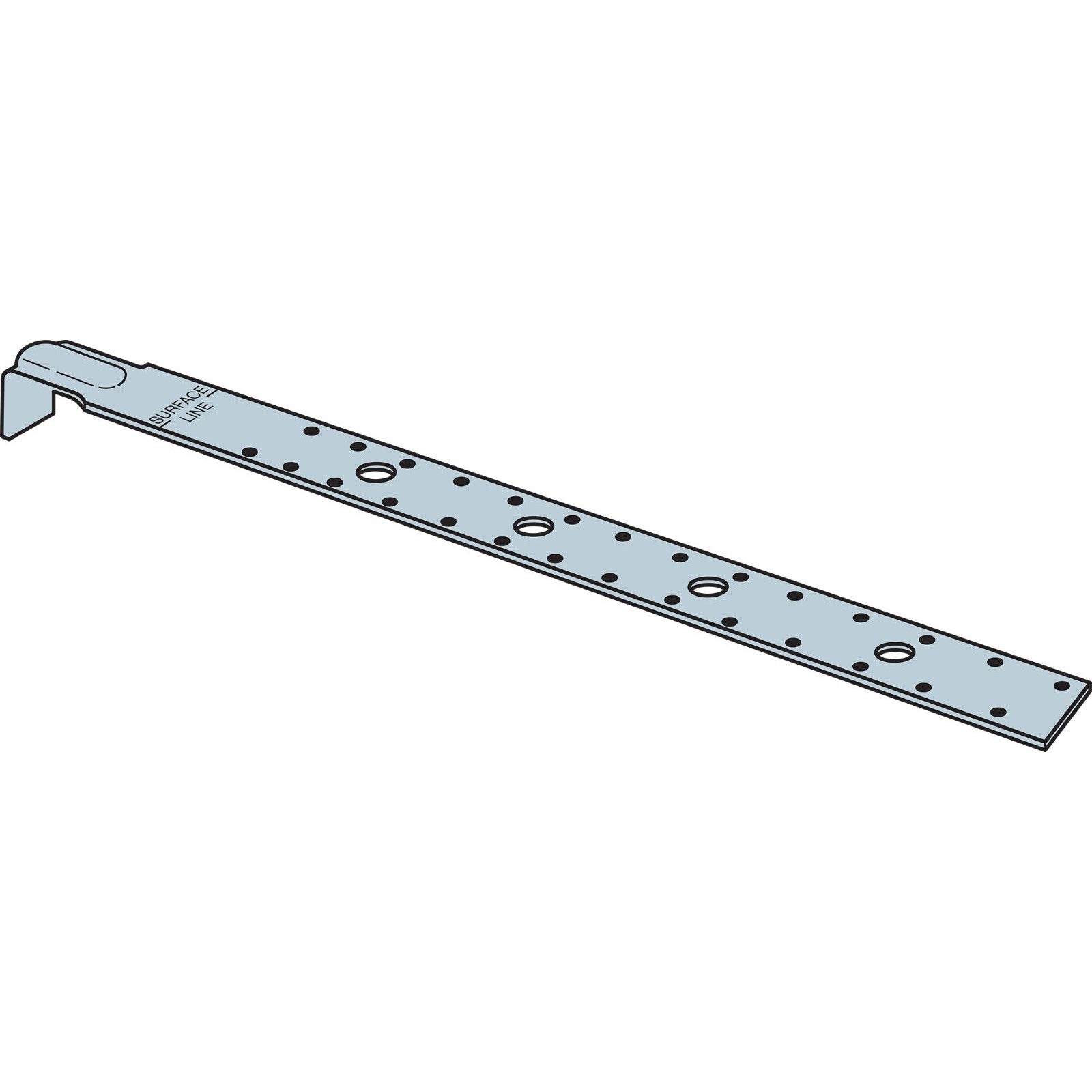

Simpson PA28 Purlin Anchor - Galvanized

Simpson PA28 Purlin Anchor - Galvanized

Regular price $16.48
Sale price $16.48 Regular price
0% off
shipping truck, lead time icon
Ships Mar 29 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Simpson Strong-Tie purlin anchors offer solutions for wood-to-concrete and concrete-block connections which satisfy code requirements. The PA’s dual-embedment line allows installation in concrete or concrete block.
Installation:
  • Use all specified fasteners; some models have extra fastener holes. See General Notes.
  • Purlin anchor must hook around rebar.
  • Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
  • Strap may be bent one full cycle (bent vertical 90° then bent horizontal).
  • PA51/PA68 — for additional length, an MST strap can be attached using 1/2" bolts through existing holes.
  • Refer to technical bulletin PA Foundation Straps for Uplift Resistance (T-PAUPLIFT) for additional information.

  • California Residents: WARNING

Specifications:

Material: Carbon Steel
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Width: 2-1/16"
Length: 29"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners; some models have extra fastener holes. See General Notes.
-Purlin anchor must hook around rebar.
-Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
-Strap may be bent one full cycle (bent vertical 90° then bent horizontal).
-PA51/PA68 — for additional length, an MST strap can be attached using 1/2" bolts through existing holes.
-Refer to technical bulletin PA Foundation Straps for Uplift Resistance (T-PAUPLIFT) for additional information.

View full details
Shop more PA Purlin Anchors
× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
