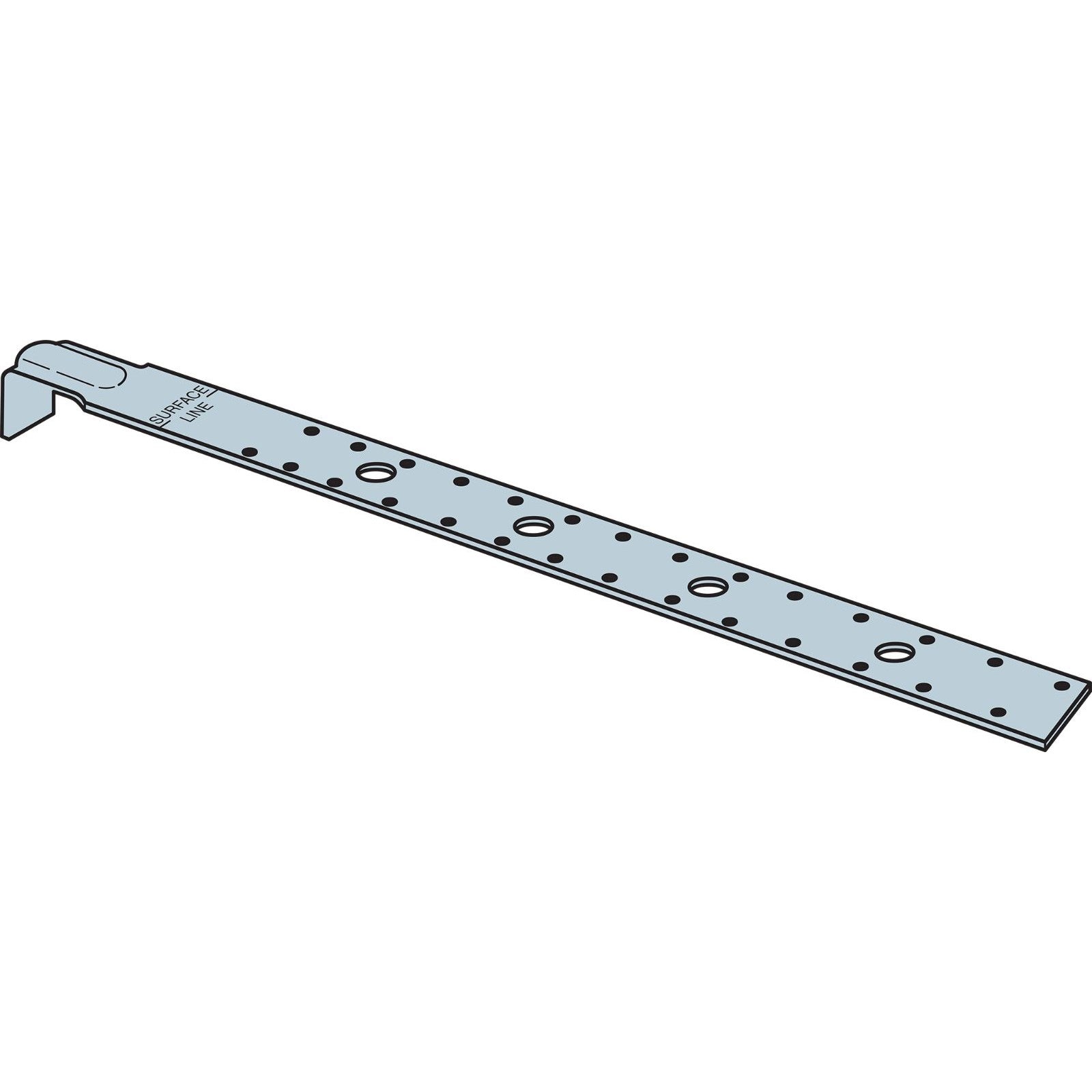

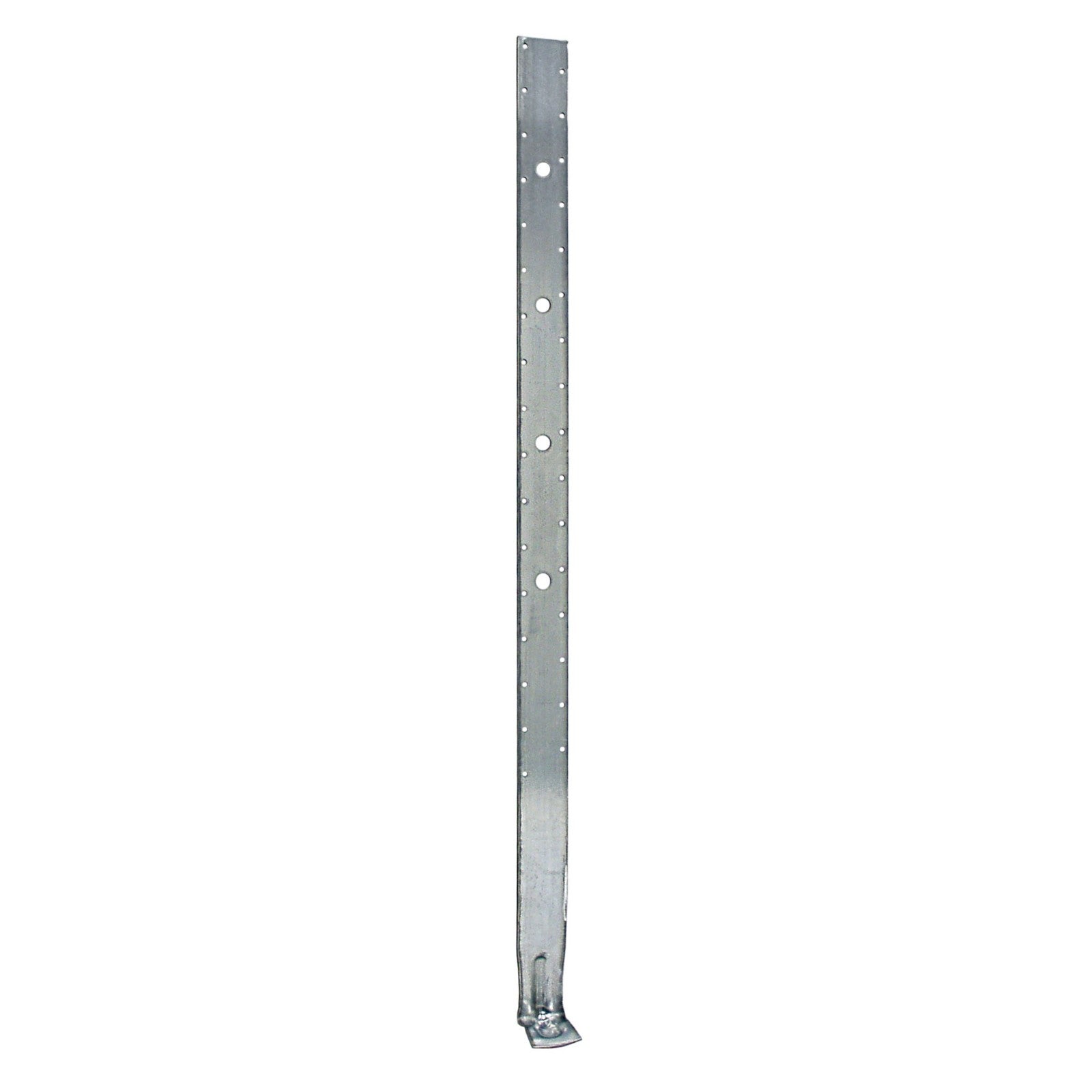

Simpson PA35 Purlin Anchor - Galvanized

SKU: PA35

$17.15
Simpson Strong-Tie purlin anchors offer solutions for wood-to-concrete and concrete-block connections which satisfy code requirements. The PA’s dual-embedment line allows installation in concrete or concrete block.
Installation:
  • Use all specified fasteners; some models have extra fastener holes. See General Notes.
  • Purlin anchor must hook around rebar.
  • Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
  • Strap may be bent one full cycle (bent vertical 90° then bent horizontal).
  • PA51/PA68 — for additional length, an MST strap can be attached using 1/2" bolts through existing holes.
  • Refer to technical bulletin PA Foundation Straps for Uplift Resistance (T-PAUPLIFT) for additional information.

  • California Residents: WARNING

Simpson Strong-Tie purlin anchors offer solutions for wood-to-concrete and concrete-block connections which satisfy code requirements. The PA’s dual-e...

Read More

Simpson Strong-Tie purlin anchors offer solutions for wood-to-concrete and concrete-block connections which satisfy code requirements. The PA’s dual-embedment line allows installation in concrete or concrete block.
Installation:
  • Use all specified fasteners; some models have extra fastener holes. See General Notes.
  • Purlin anchor must hook around rebar.
  • Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
  • Strap may be bent one full cycle (bent vertical 90° then bent horizontal).
  • PA51/PA68 — for additional length, an MST strap can be attached using 1/2" bolts through existing holes.
  • Refer to technical bulletin PA Foundation Straps for Uplift Resistance (T-PAUPLIFT) for additional information.

  • California Residents: WARNING

Show Less

Fasteners Required:
SEE PRODUCT GUIDE DOCUMENT

Finish Spec:
Galvanized

Length Spec:
35"

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
yes

Material:
Carbon Steel

Product Guide Document:
PurlinAnchorGuide.pdf

Thickness:
12 Gauge

Width Spec:
2-1/16"

Product Guide:
