SKU: PA51Z

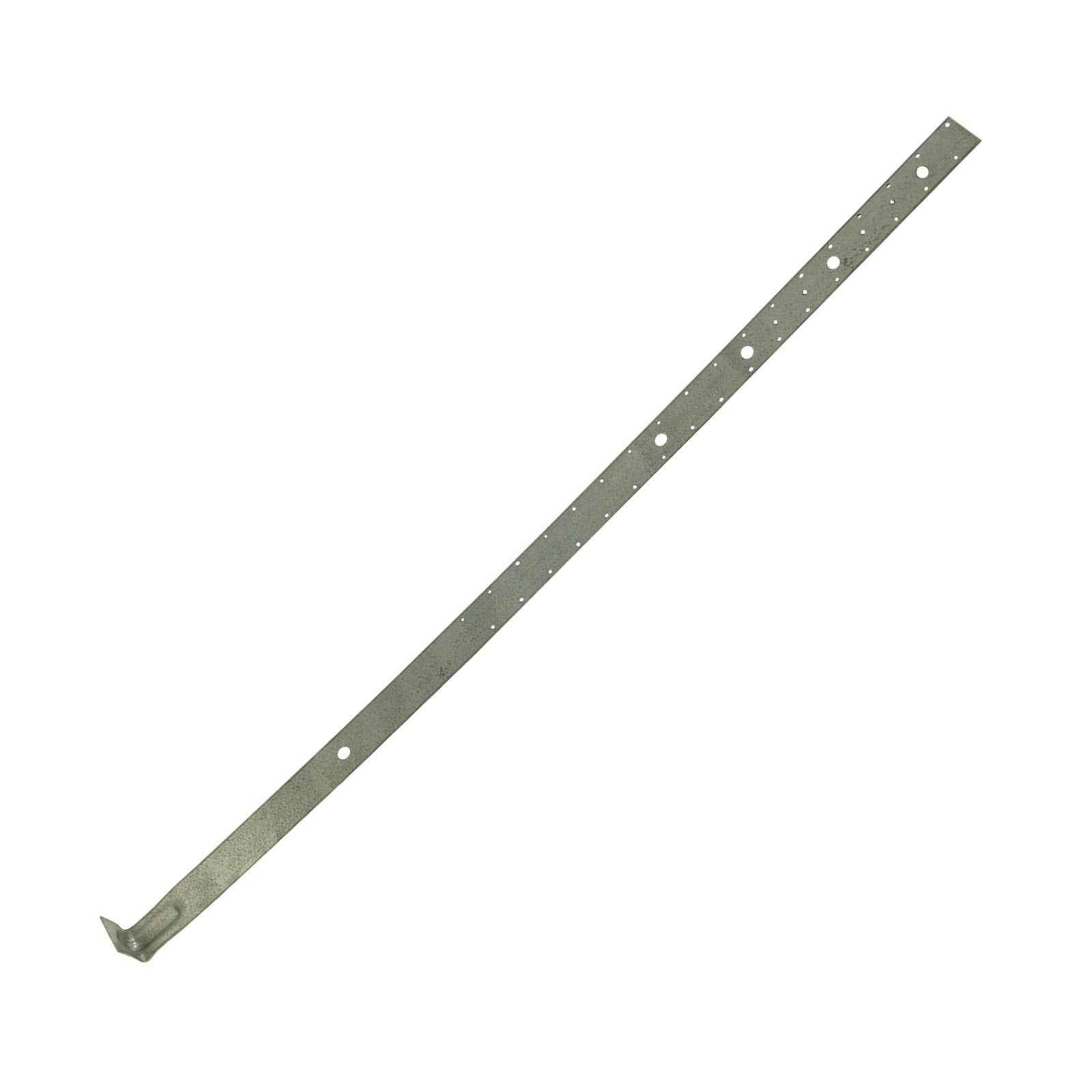

Simpson PA51Z Purlin Anchor - Zmax

Simpson PA51Z Purlin Anchor - Zmax!

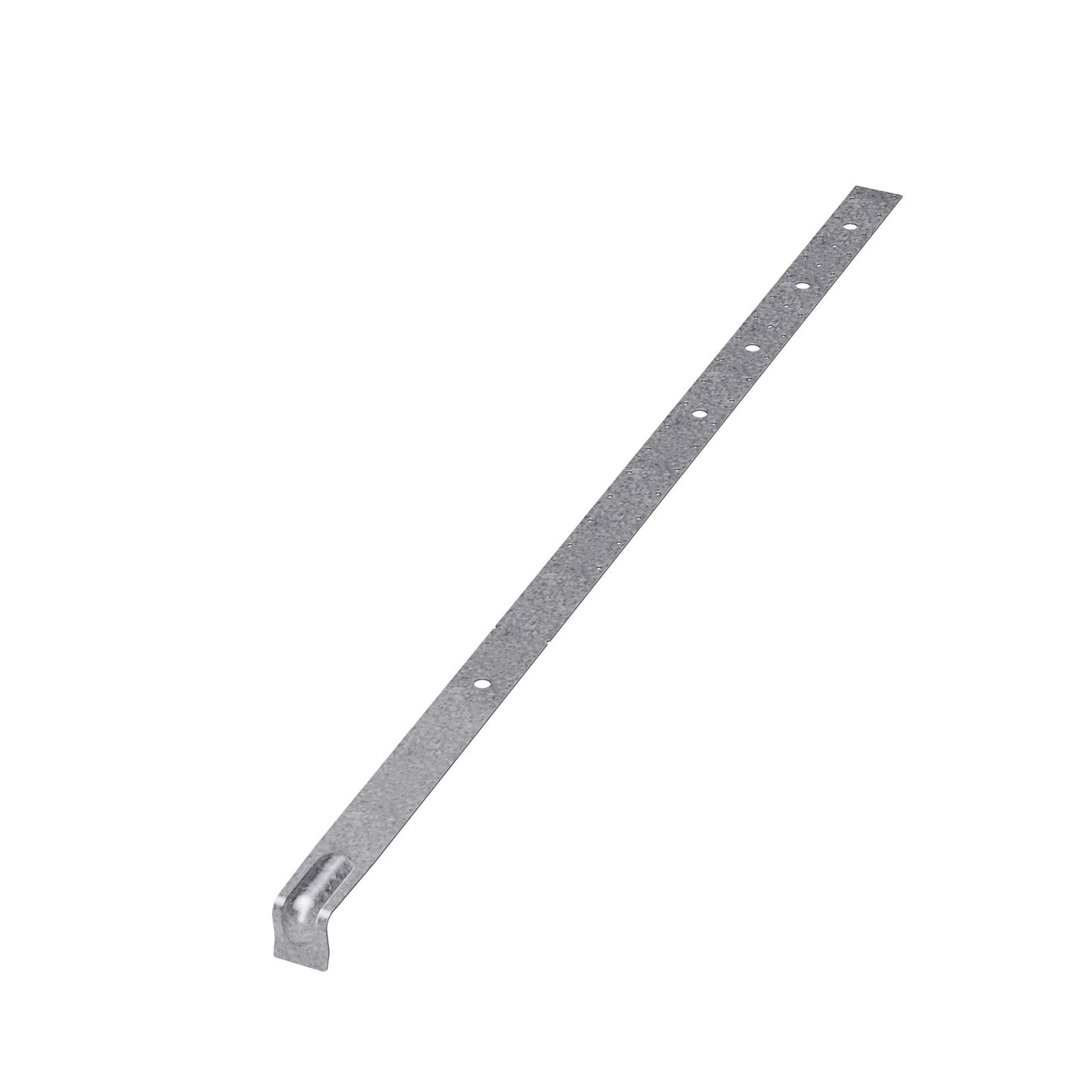

  • Simpson PA51 Purlin Anchor Zmax image 1 of 2

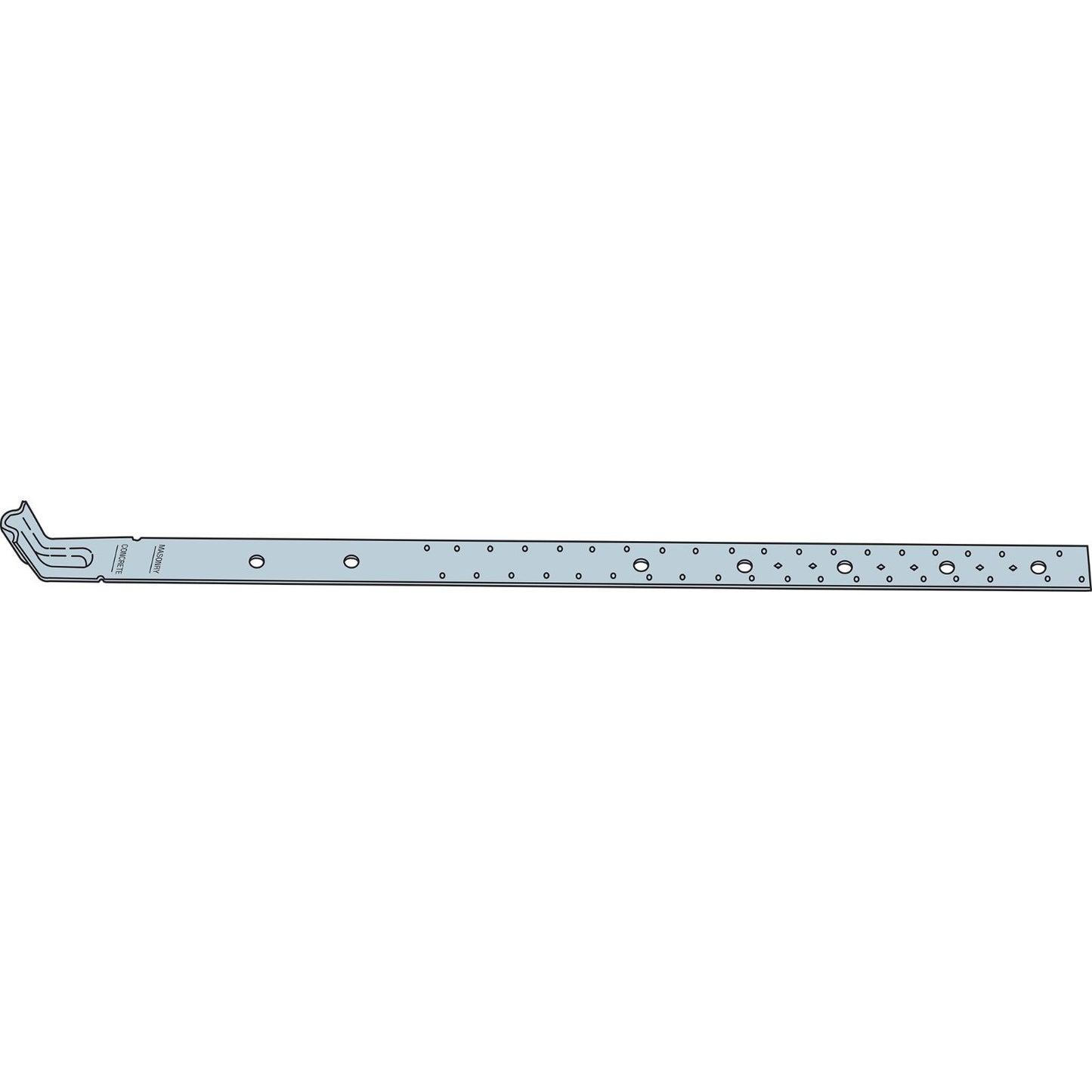

  • Simpson PA51 Purlin Anchor Zmax image 2 of 2
1 2

Continue Browsing

PA Purlin Anchors
SKU: PA51Z

Simpson PA51Z Purlin Anchor - Zmax

$24.75

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 9 and order in the next 4 hours 18 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Length: 51"
Material: Carbon Steel
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
For Treated Lumber: Yes
Manufacturer name: Simpson Strong-Tie
Width: 2-1/16"
Description
Simpson Strong-Tie purlin anchors offer solutions for wood-to-concrete and concrete-block connections which satisfy code requirements. The PA’s dual-embedment line allows installation in concrete or concrete block.
Installation:
  • Use all specified fasteners; some models have extra fastener holes. See General Notes.
  • Purlin anchor must hook around rebar.
  • Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
  • Strap may be bent one full cycle (bent vertical 90° then bent horizontal).
  • PA51/PA68 — for additional length, an MST strap can be attached using 1/2" bolts through existing holes.
  • Refer to technical bulletin PA Foundation Straps for Uplift Resistance (T-PAUPLIFT) for additional information.

    • California Residents: WARNING

More
View full details

Continue Browsing

PA Purlin Anchors

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
