SKU: SULC414

Simpson SULC414 Skewed U-Shaped Hanger Left, Concealed Flanges - G90 Galvanized

$46.08

0% off

Quantity

Accepted payments:

Made to Order
Ships in 1-3 business days.

Request Bulk Pricing

Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

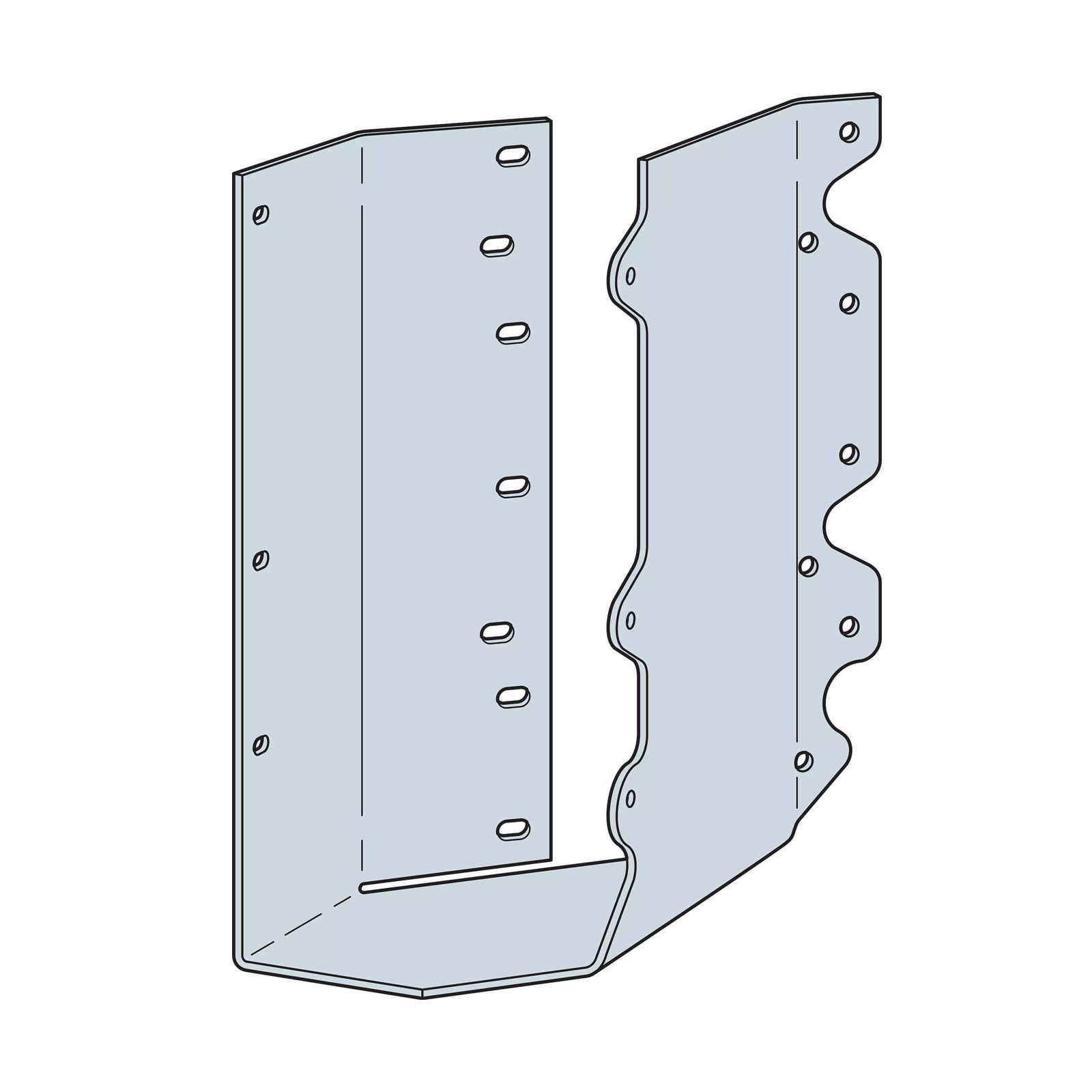

Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SULC414 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications:

Material: Galvanized Steel
Height: 12-1/2"
Fasteners required: Face: (18) 0.162 X 3-1/2" Joist: (8) 0.162 X 3-1/2"
Thickness: 16 Gauge
Quantity: 1
Width: 3-9/16"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Joist size: 4X14
Product Guide: View Spec Sheet

Features

•Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
•These hangers cannot be modified but will accommodate a 40°- to 50°-skewed joist
•A2 (acute) flange turned in to accommodate end-of-wall installation

Installation

• Use all specified fasteners. These hangers will normally accommodate a 40-to-50-degree skew.
• Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
• The joist end may be square cut or bevel cut.

View full details
