SKU: SUR210Z

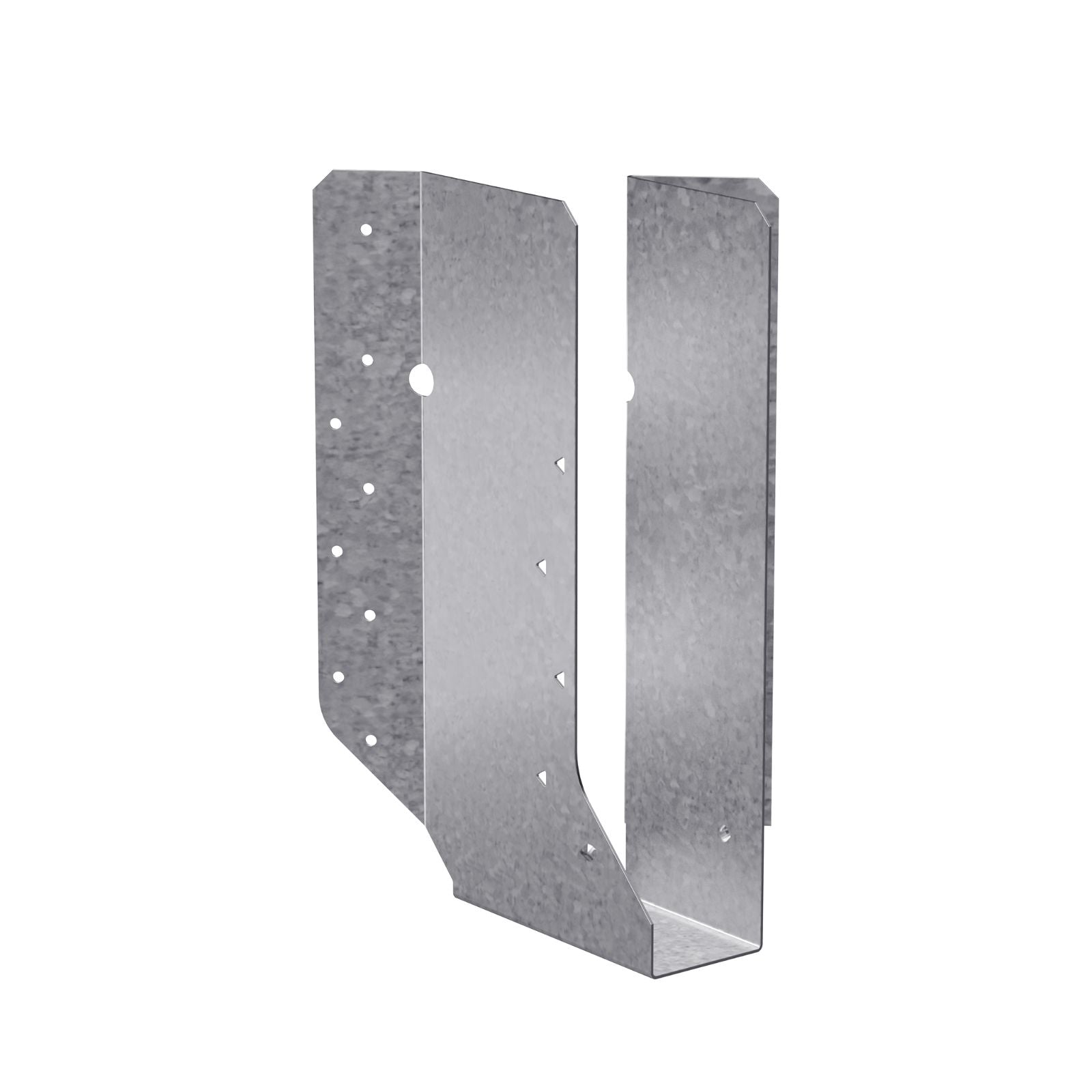

Simpson SUR210Z 2x10 45 Degree Joist Hanger Skewed Right - Zmax Finish

Simpson SUR210Z 2x10 45 Degree Joist Hanger Skewed Right - Zmax Finish!

  • Simpson SUR210Z 2x10 45 Degree Joist Hanger Skewed Right Zmax Finish image 1 of 2
  • Simpson SUR210Z 2x10 45 Degree Joist Hanger Skewed Right Zmax Finish image 2 of 2

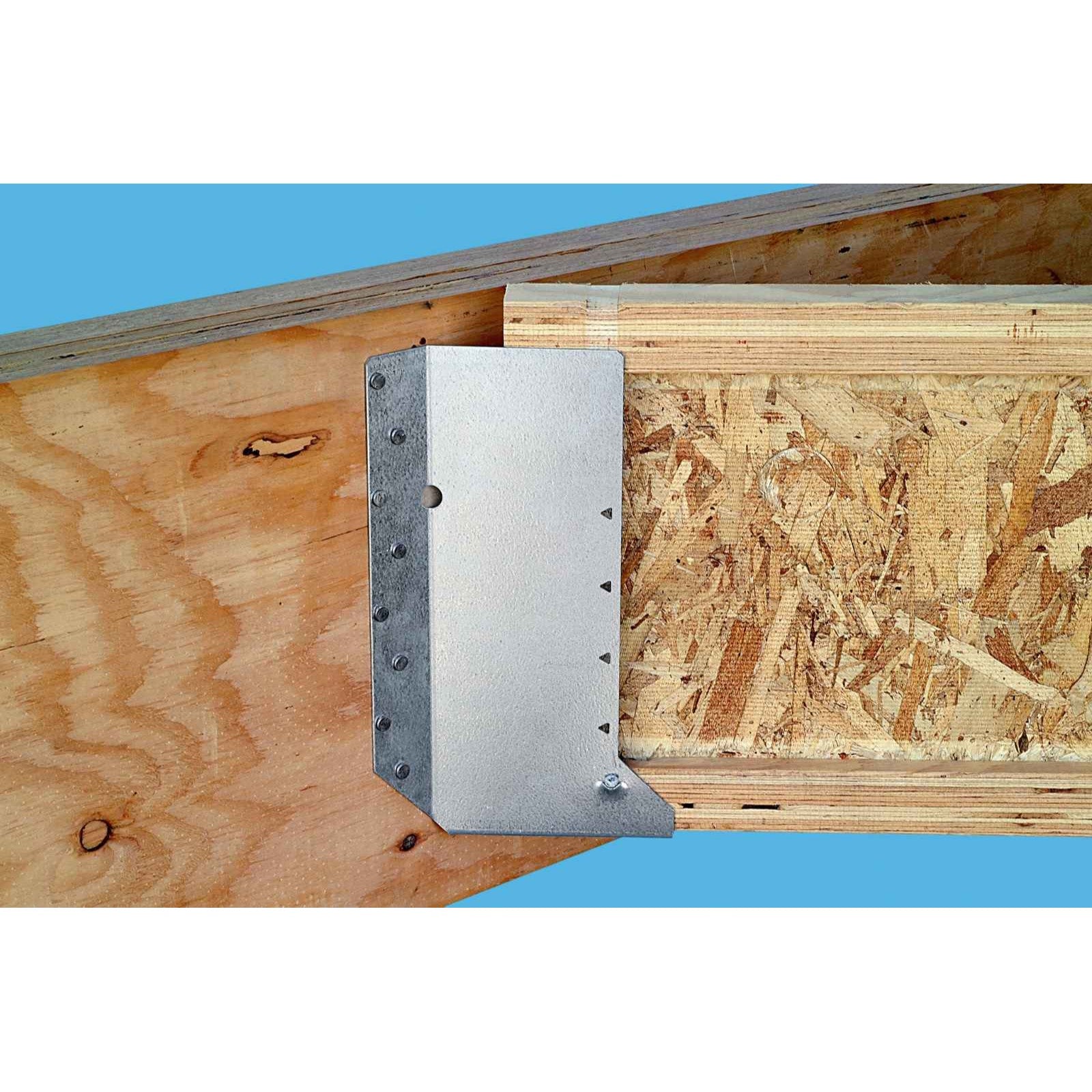

  • Simpson strong-Tie I-Joist Hanger Skewed Right - G90 Galvanized

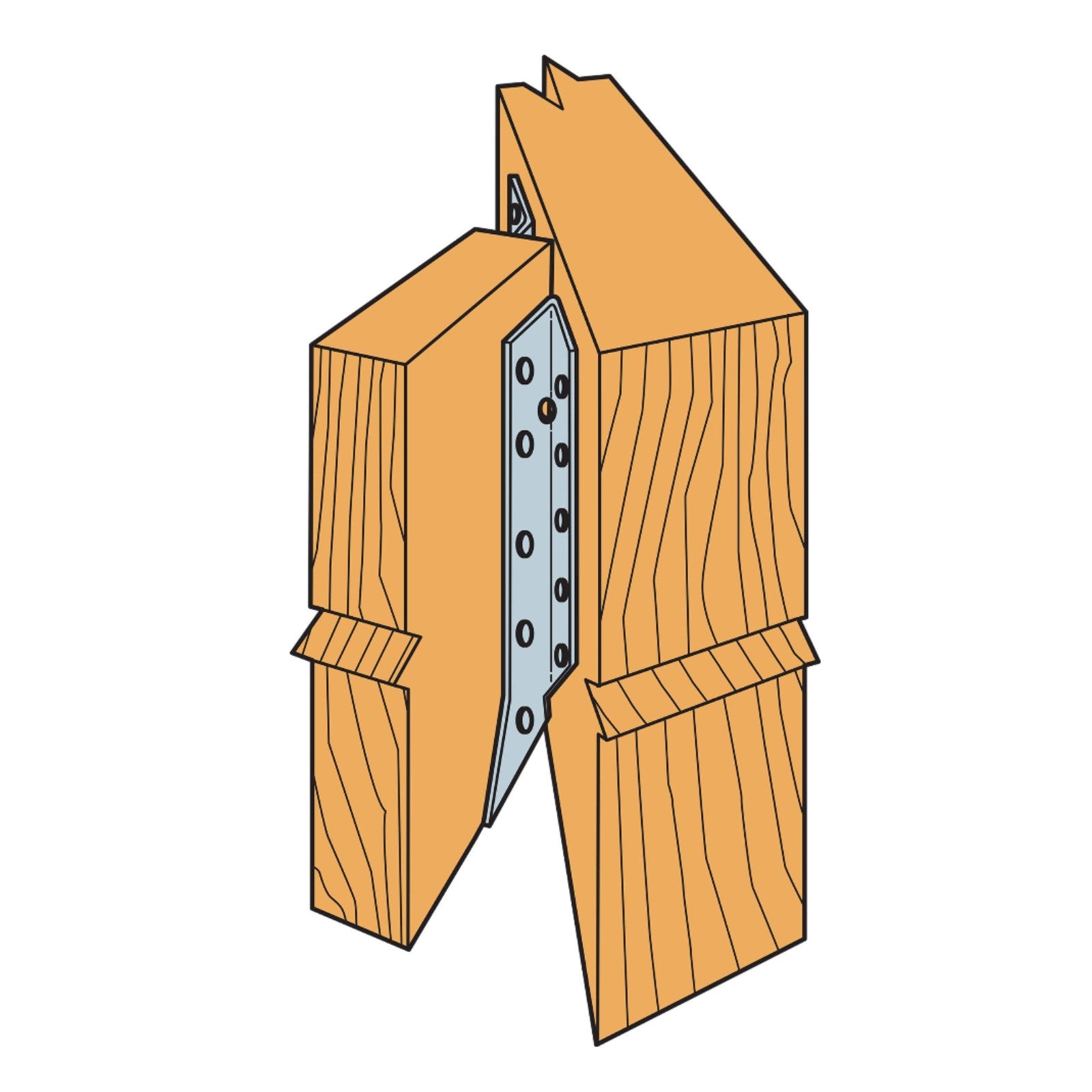

  • Simpson Strong-Tie SUR10Z 45 Degree Joist Hanger Skewed Right installation
1 4

Continue Browsing

SUR/SUL/HSUR/HSUL Skewed 45 Degree Hangers
SKU: SUR210Z

Simpson SUR210Z 2x10 45 Degree Joist Hanger Skewed Right - Zmax Finish

$18.95

Request Bulk Pricing
Request Bulk Pricing
Ships Dec 12
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: ZMAX
Fasteners required: Face - (10) 0.162" x 3-1/2" Nails OR (10) SD9112 Screws Joist - (10) 0.148" x 1-1/2" Nails OR (10) SD9112 Screws
For Treated Lumber: Yes
Height: 8-1/8"
Joist size: 2X10
Manufacturer name: Simpson Strong-Tie
Width: 1-9/16"
Description

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUR210Z skewed joist hanger features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:

  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.
  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.


NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
