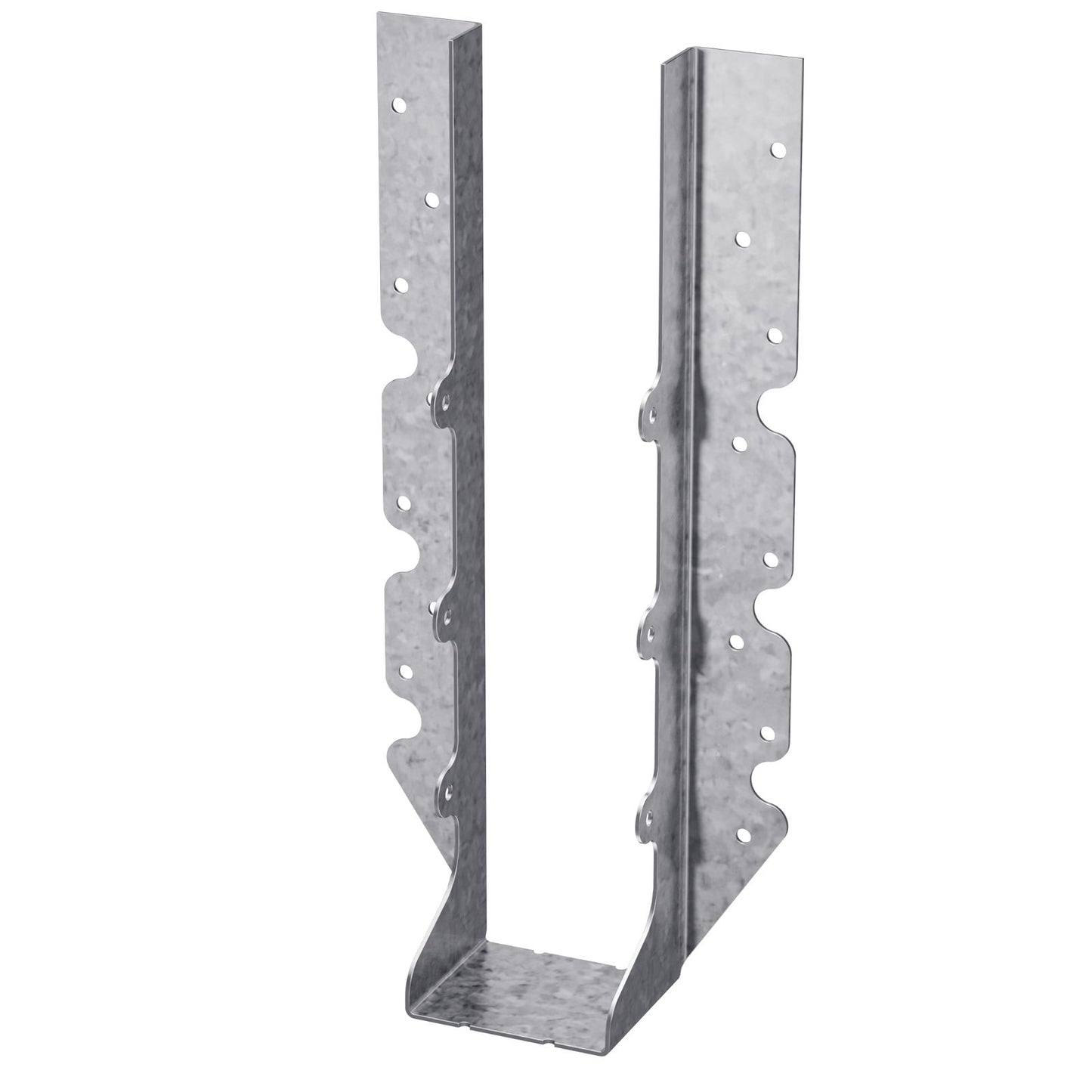

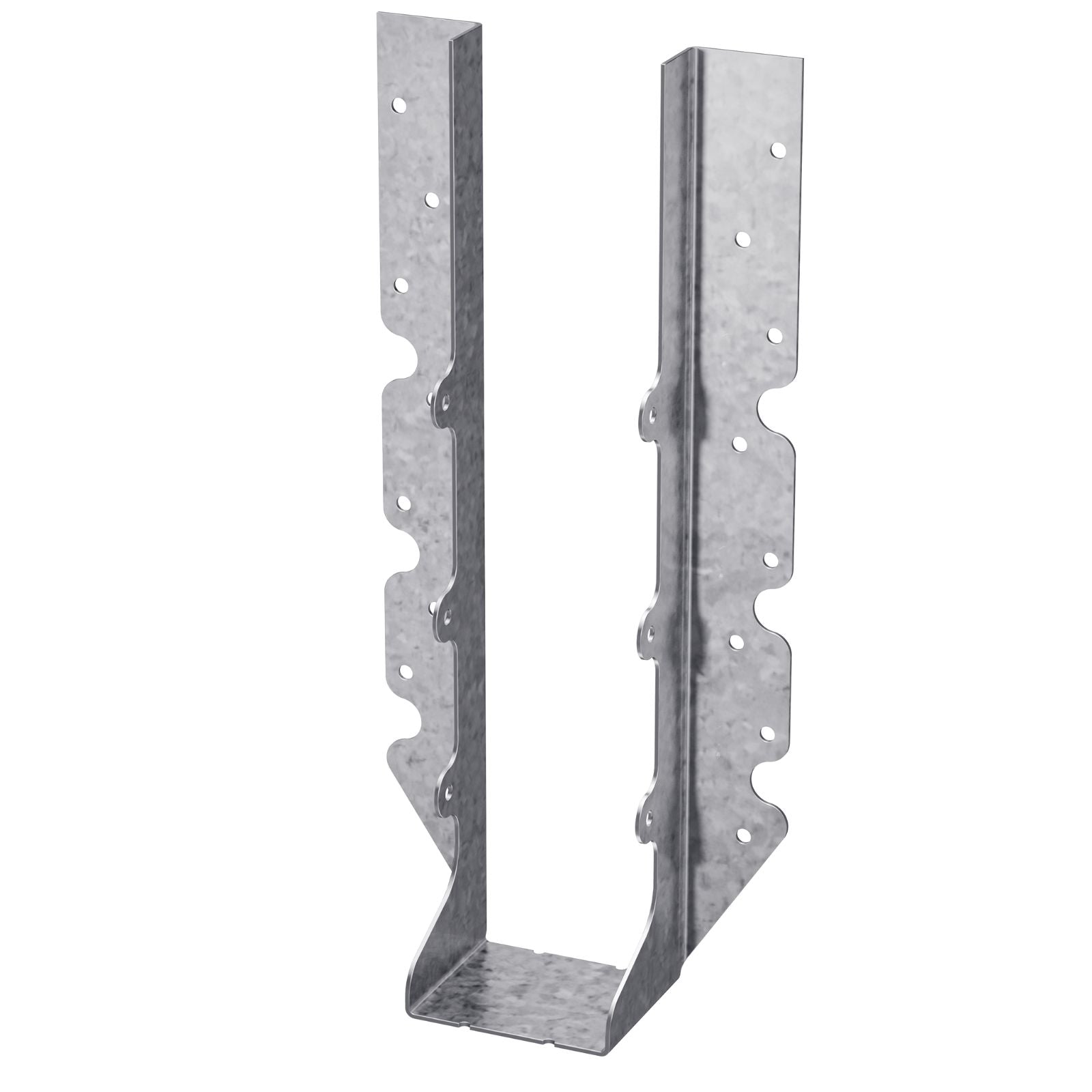

Simpson U314 3x14 Face Mount Joist Hanger - G90 Galvanized

Simpson U314 3x14 Face Mount Joist Hanger - G90 Galvanized!

  • Simpson U314 3x14 Face Mount Joist Hanger G90 Galvanized

Continue Browsing

U/LU/LUC Face Mount Joist Hangers
SKU: U314

Simpson U314 3x14 Face Mount Joist Hanger - G90 Galvanized

$11.44

Request Bulk Pricing
Request Bulk Pricing
Ships Dec 16
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Header - (16) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 1-1/2" Nails
For Treated Lumber: No
Height: 10-1/2"
Joist size: 3X14
Manufacturer name: Simpson Strong-Tie
Width: 2-9/16"
Description

Simpson Strong-Tie U face mount hangers are a durable hanger designed for use with solid sawn lumber. The Strong-Tie U314 joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Joists sloped up to 1/4:12 achieve load tables.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
