SKU: U210-3

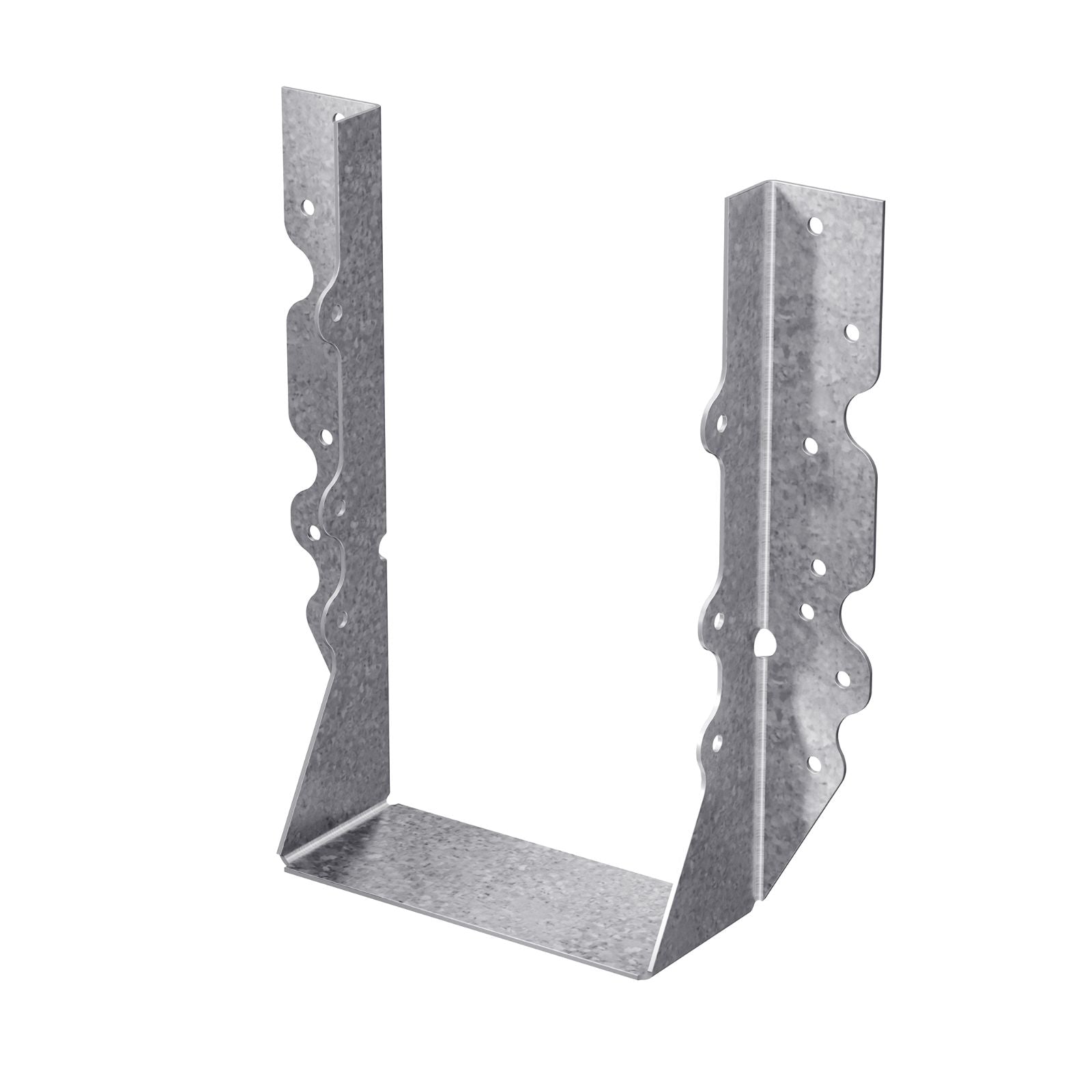

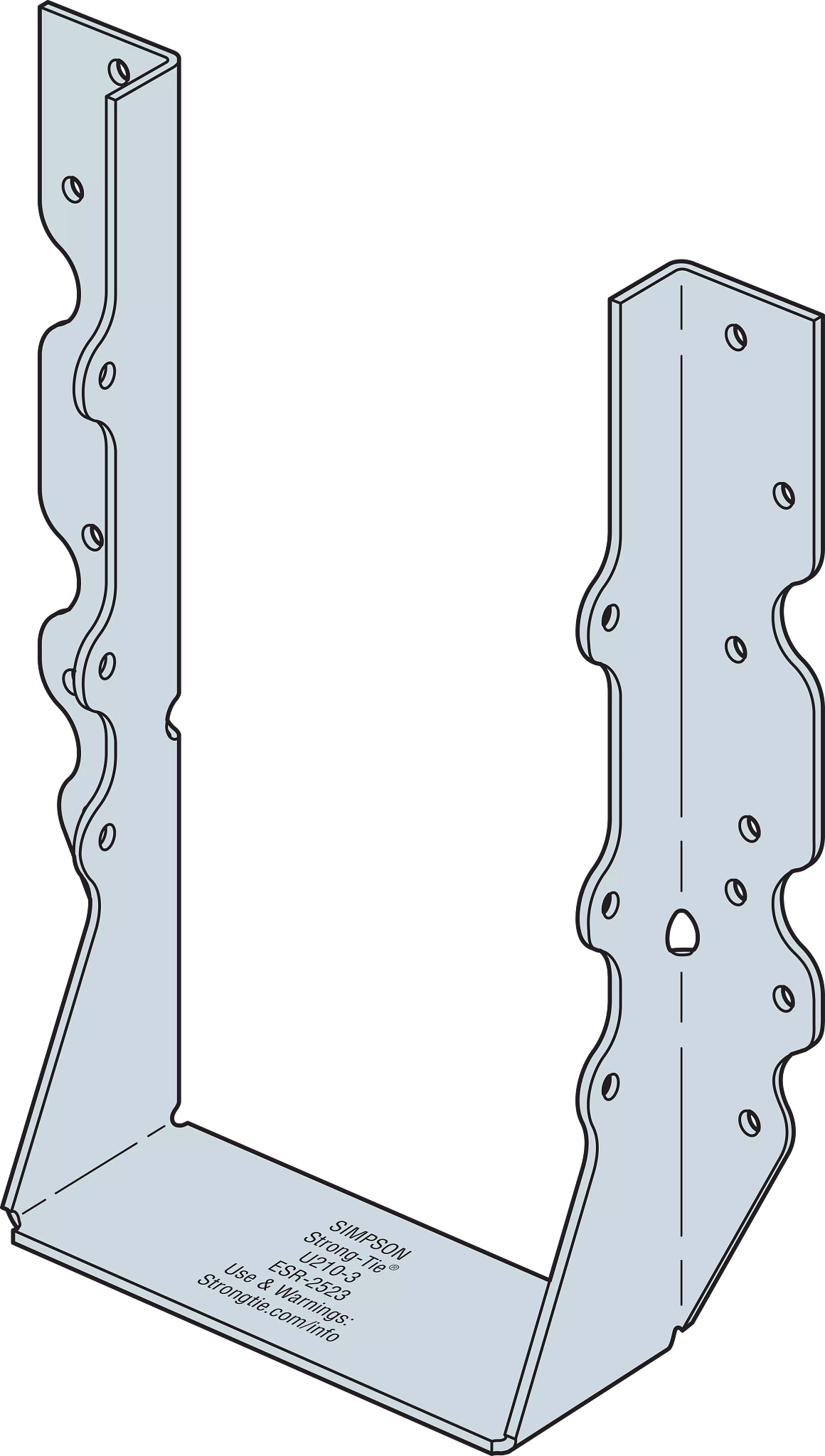

Simpson U210-3 Triple 2x10 Face Mount Joist Hanger - G90 Galvanized

$18.95

0% off

Quantity

Ships today when you order in the next 2 hours 50 minutes

Request Bulk Pricing

Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Simpson Strong-Tie U face mount hangers are a durable hanger designed for use with solid sawn lumber. The Strong-Tie U210-3 joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

Installation:

Use all specified fasteners.
Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
Joists sloped up to 1/4:12 achieve load tables.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications:

Height: 7-3/4"
Fasteners required: Header - (14) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 3" Nails
Width: 4-5/8"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: Triple 2X10
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
-Joists sloped up to 1/4:12 achieve load tables.
