SKU: W1-R100

Simpson W1-R100 Wedge Tie - G90 Galvanized, Pkg 100

Name: Simpson W1-R100 Wedge Tie - G90 Galvanized, Pkg 100
SKU: W1-R100
Price: 47.99 USD
Availability: InStock

Quantities

100 500

$47⁹⁹

Ships today when you order in the next 6 hours and 3 minutes

Description

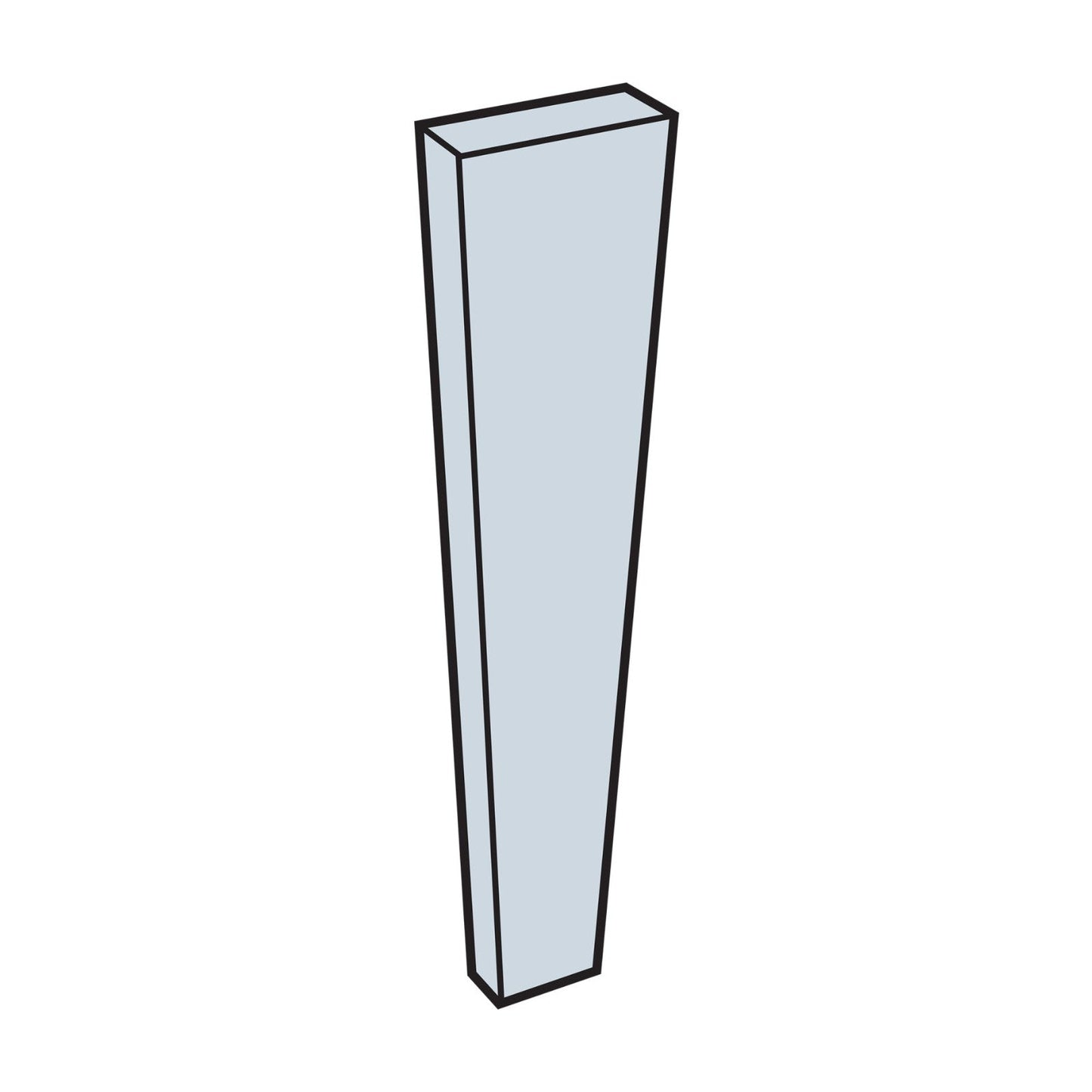

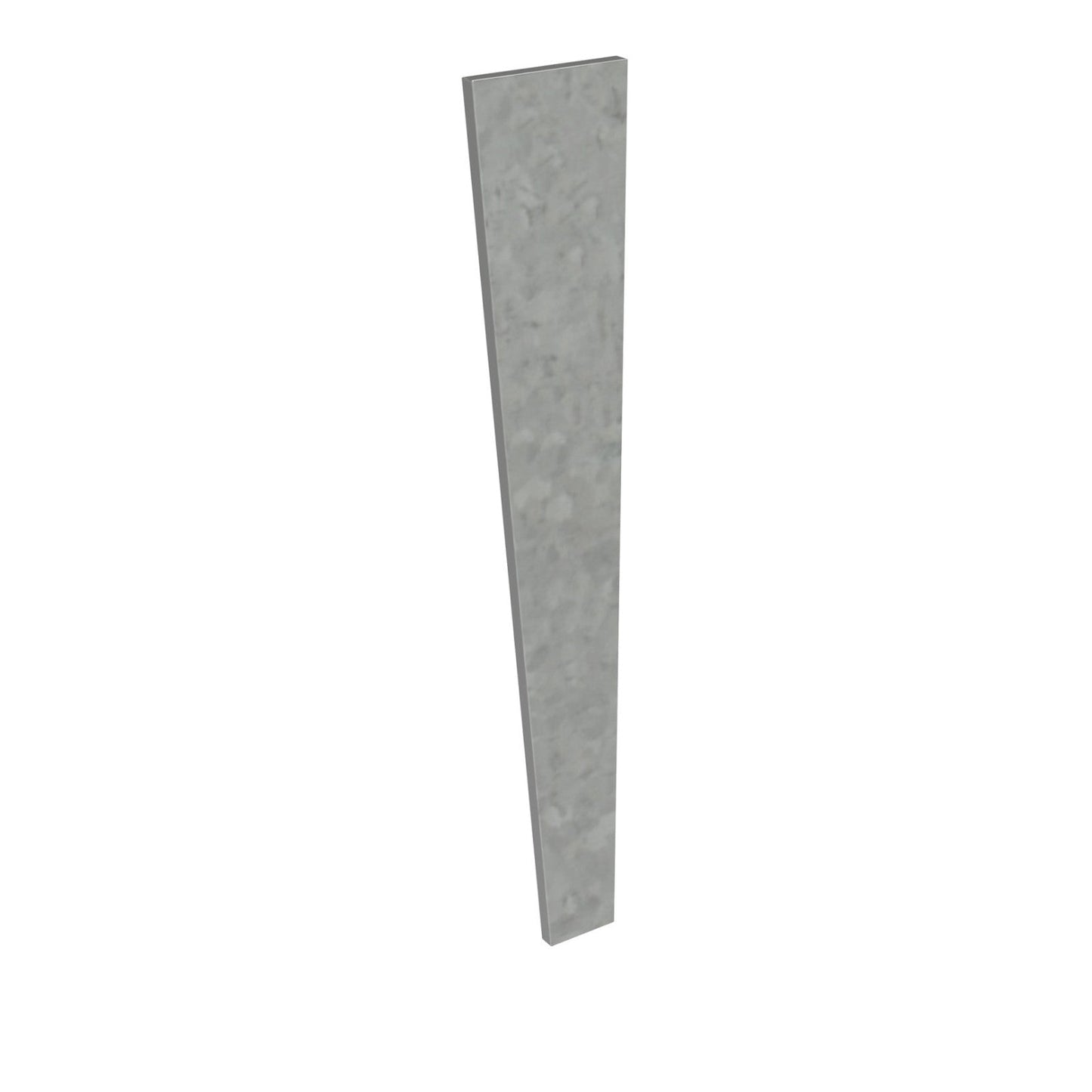

The Simpson Strong-Tie W1 Wedge Tie is a crucial component in concrete formwork systems, designed to secure WT series wedge form ties during concrete pours. Constructed from durable 14-gauge galvanized steel, the W1 wedge ensures reliable performance in low foundation wall applications.

Key Features:

Material: 14-gauge galvanized steel for enhanced durability and corrosion resistance.
Design: Tapered shape accommodates wood expansion and contraction due to moisture content.
Compatibility: Fits both composite and lumber WT models.
Dimensions: Each wedge measures 3-1/2 inches in length.

Applications:

Securing concrete forms in place during pours.
Ideal for low foundation wall applications up to 4 feet high.
Suitable for wall thicknesses ranging from 6 to 12 inches.

Installation:

Use two W1 wedges per WT form tie.
Insert wedges into the designated slots on each end of the WT tie to hold form boards securely.
Not recommended for wall pours greater than 4 feet high.

Specifications

Thickness: 14 Gauge

Material: Carbon Steel

Finish: G90 Galvanized

Manufacturer Name: Simpson Strong-Tie

Quantity: 100

Additional Info: Installs with the WT wedge form tie

View Spec Sheet

Simpson Strong-Tie Limited Warranty
