SKU: WT6/125

Simpson WT6/125 Wedge Form Tie - G90 Galvanized, Pkg 250

Name: Simpson WT6/125 Wedge Form Tie - G90 Galvanized, Pkg 250
SKU: WT6/125
Price: 202.00 USD
Availability: InStock

Sizes

6" Wall 8" Wall 10" Wall 12" Wall

Type

1-1/4" Formboard 2x Formboard

$202⁰⁰

Ships FREE Nov 12 when you order now

Description

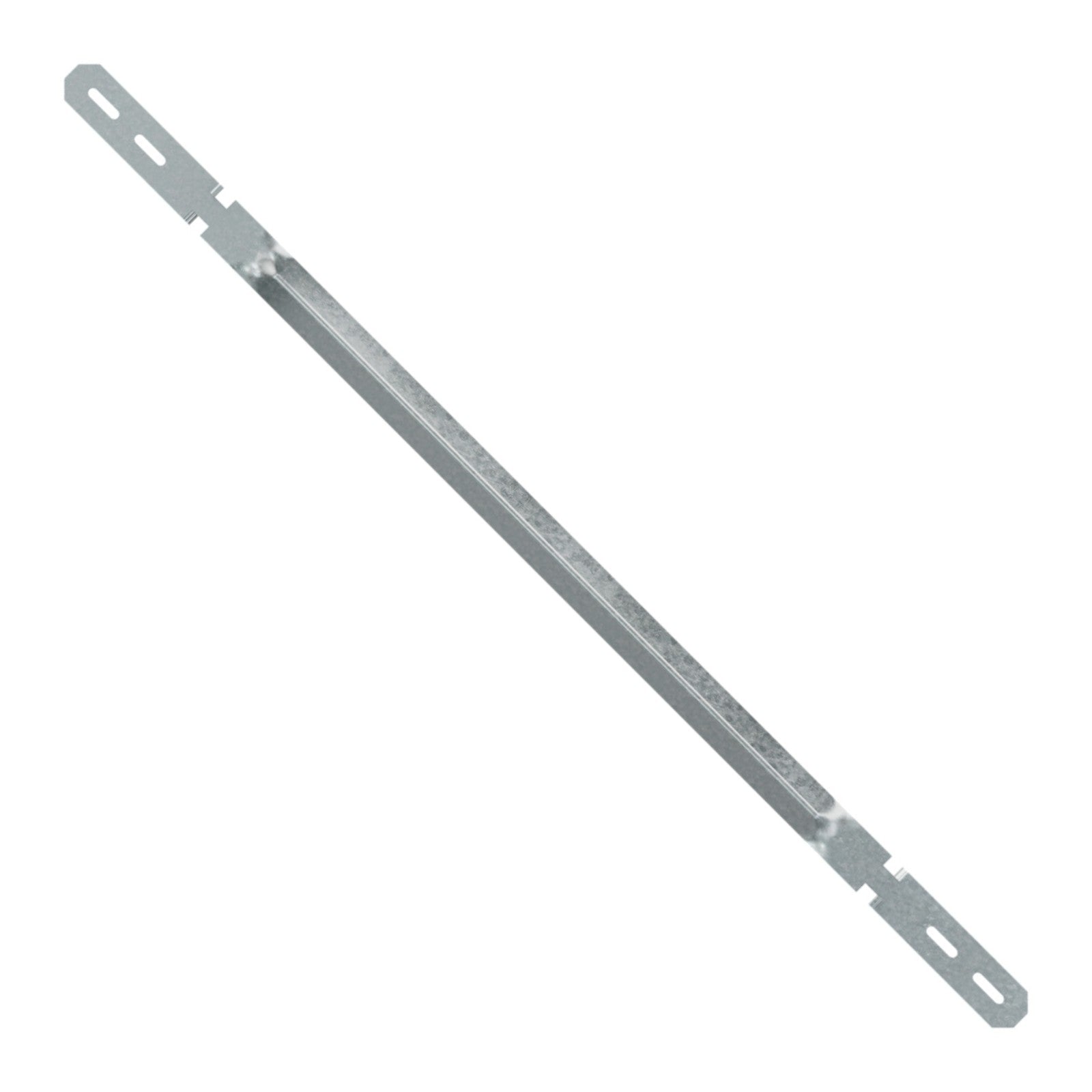

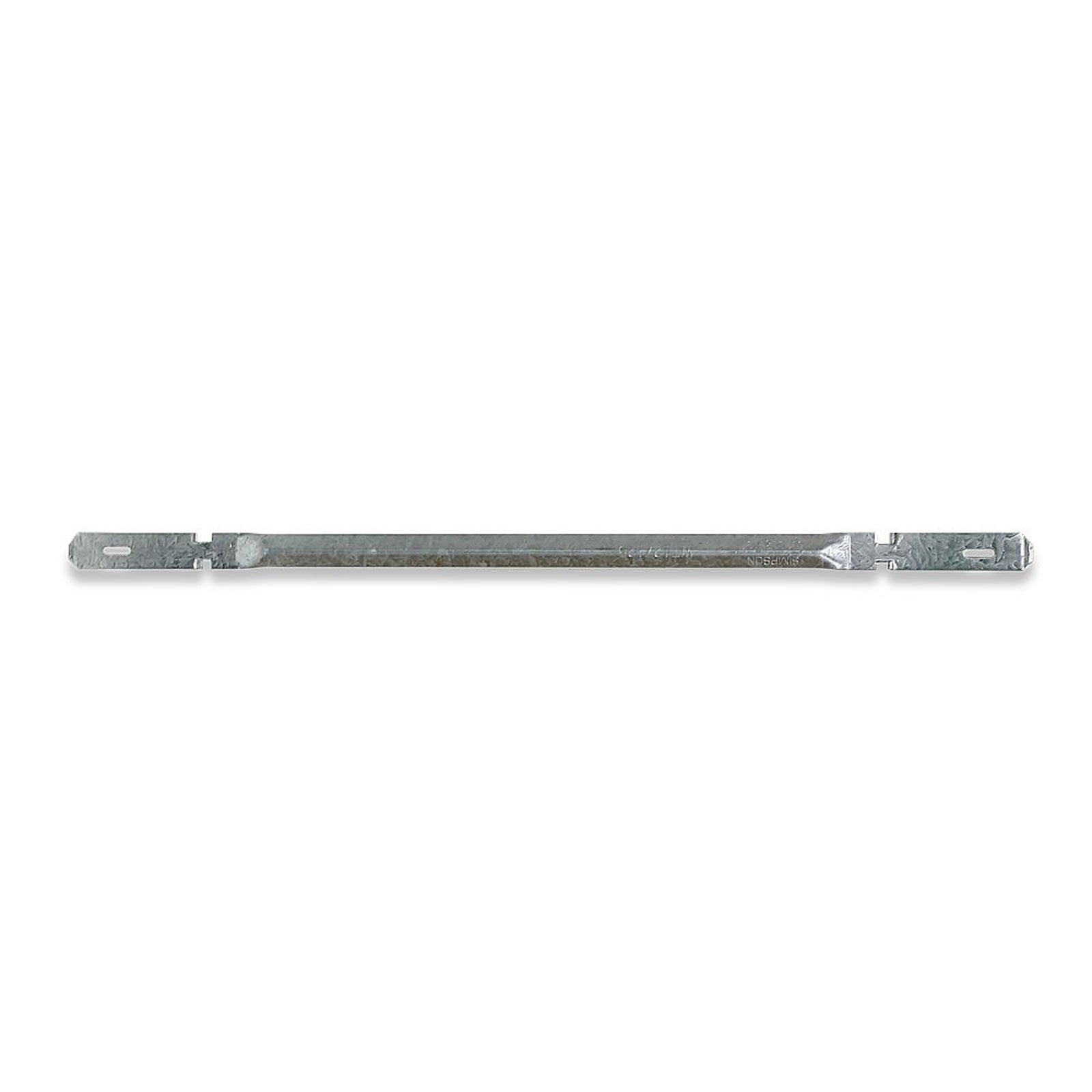

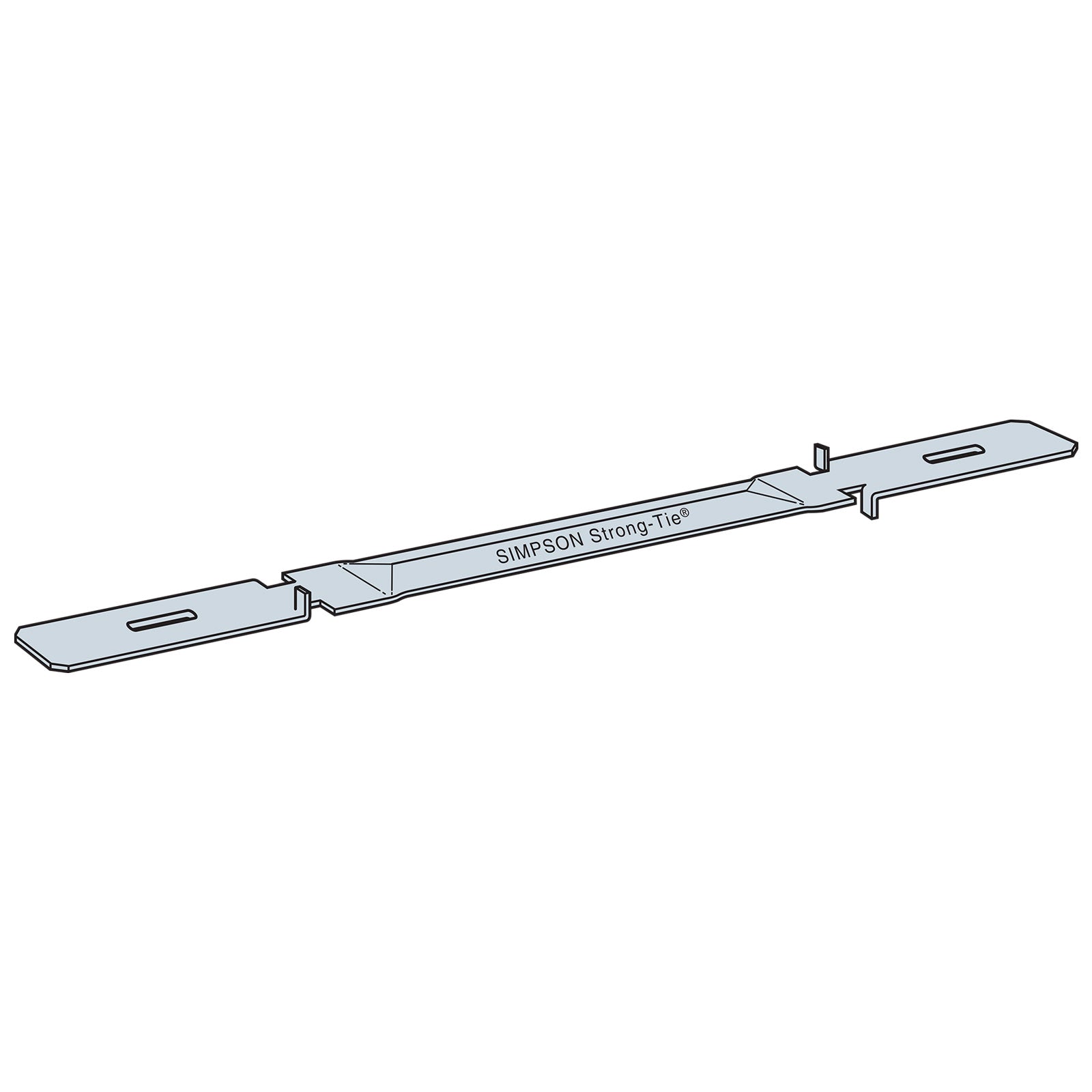

The Simpson Strong-Tie WT Wedge Form Tie is designed to secure concrete forms in place during pouring, ensuring accurate spacing and structural integrity. Its 5/8-inch wide formed "V" design provides rigidity, making it ideal for low foundation wall applications. Constructed from 18-gauge galvanized steel, it offers durability and corrosion resistance.

Key Features:

Material: 18-gauge galvanized steel for enhanced durability and corrosion resistance.
Design: 5/8-inch wide formed "V" shape for rigidity and accurate form spacing.
Compatibility: Available in various lengths to accommodate wall thicknesses from 6 to 12 inches.
Application: Suitable for use with both composite and lumber form boards.

Applications:

Securing concrete forms during pouring for walls up to 4 feet high.
Ideal for low foundation wall applications in residential and commercial construction.

Installation:

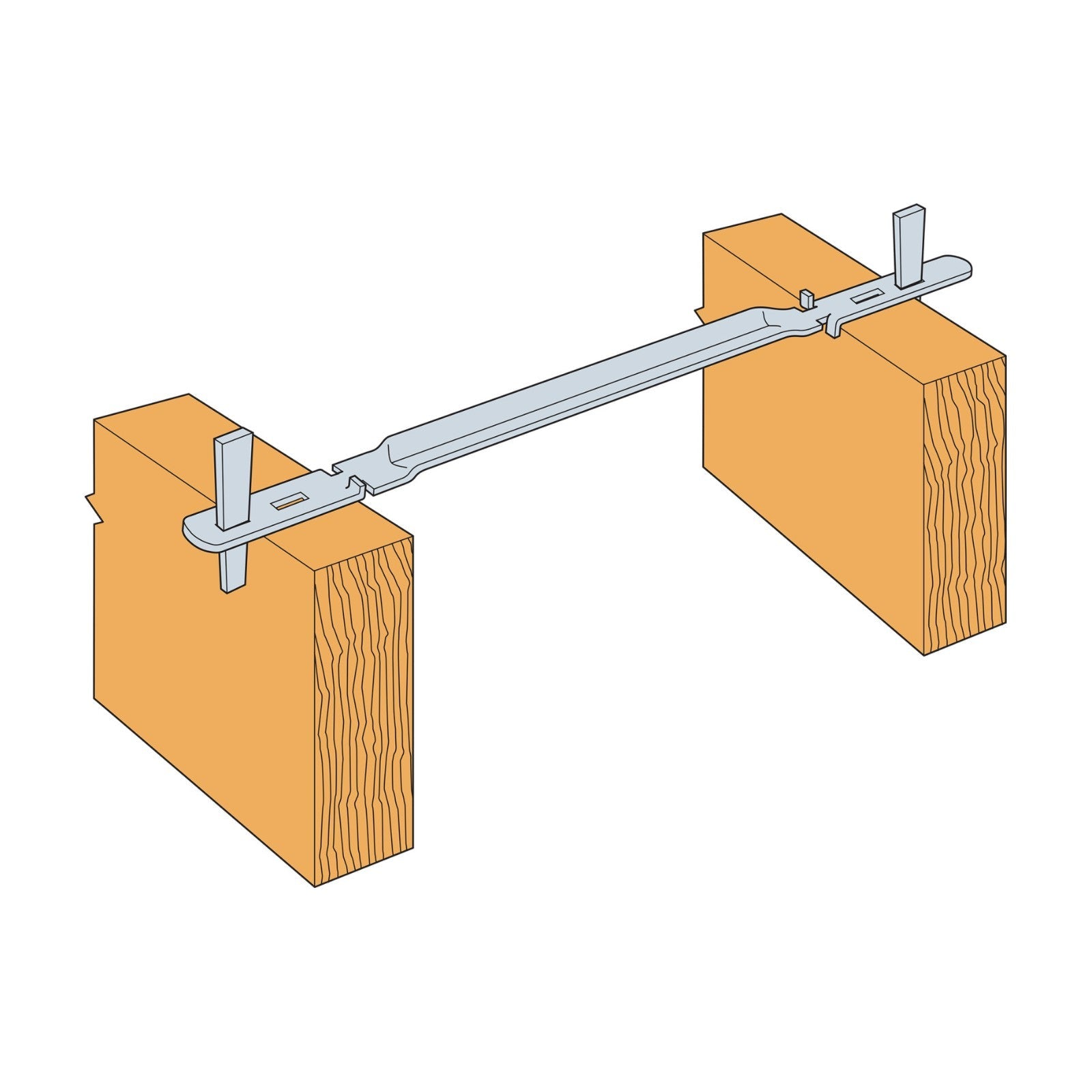

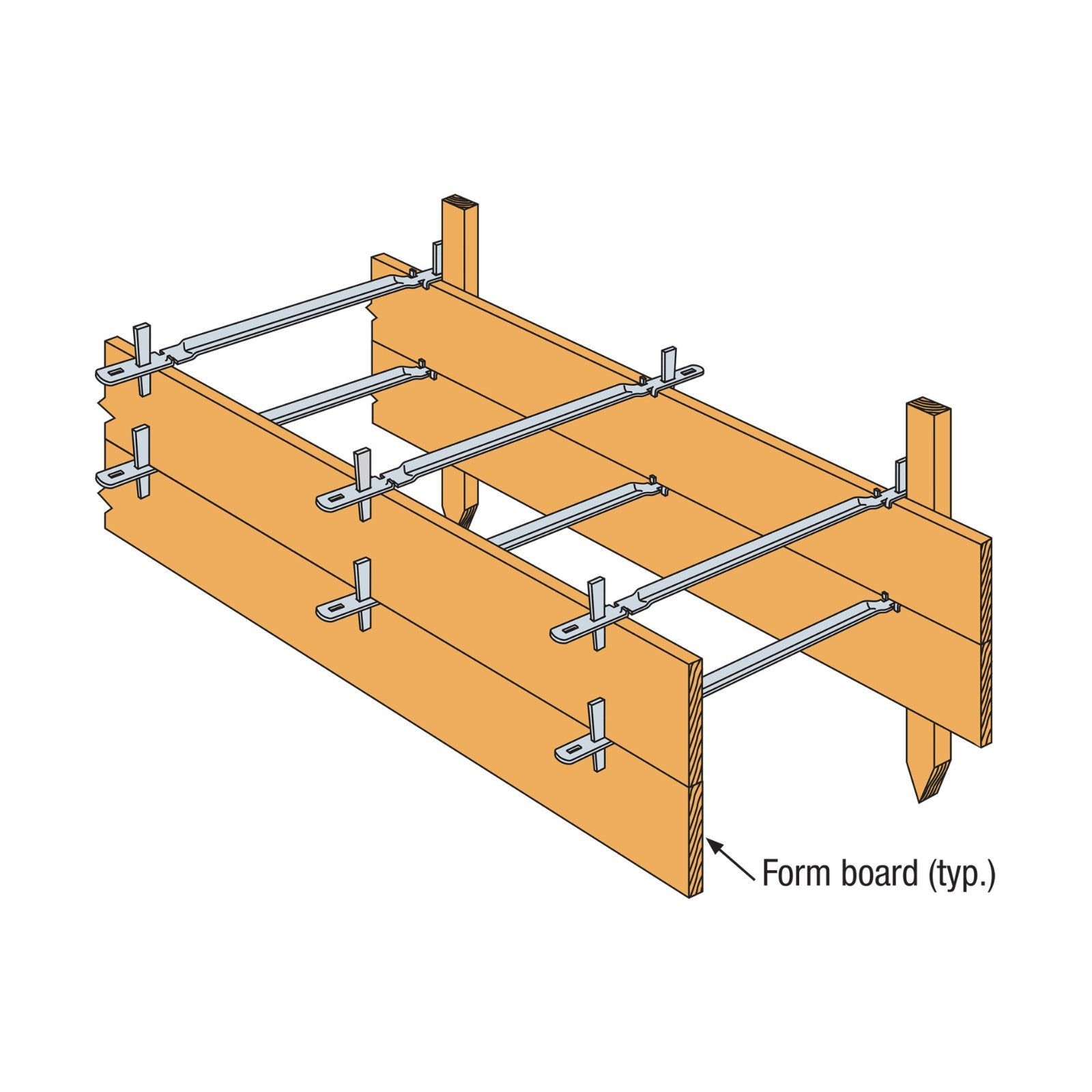

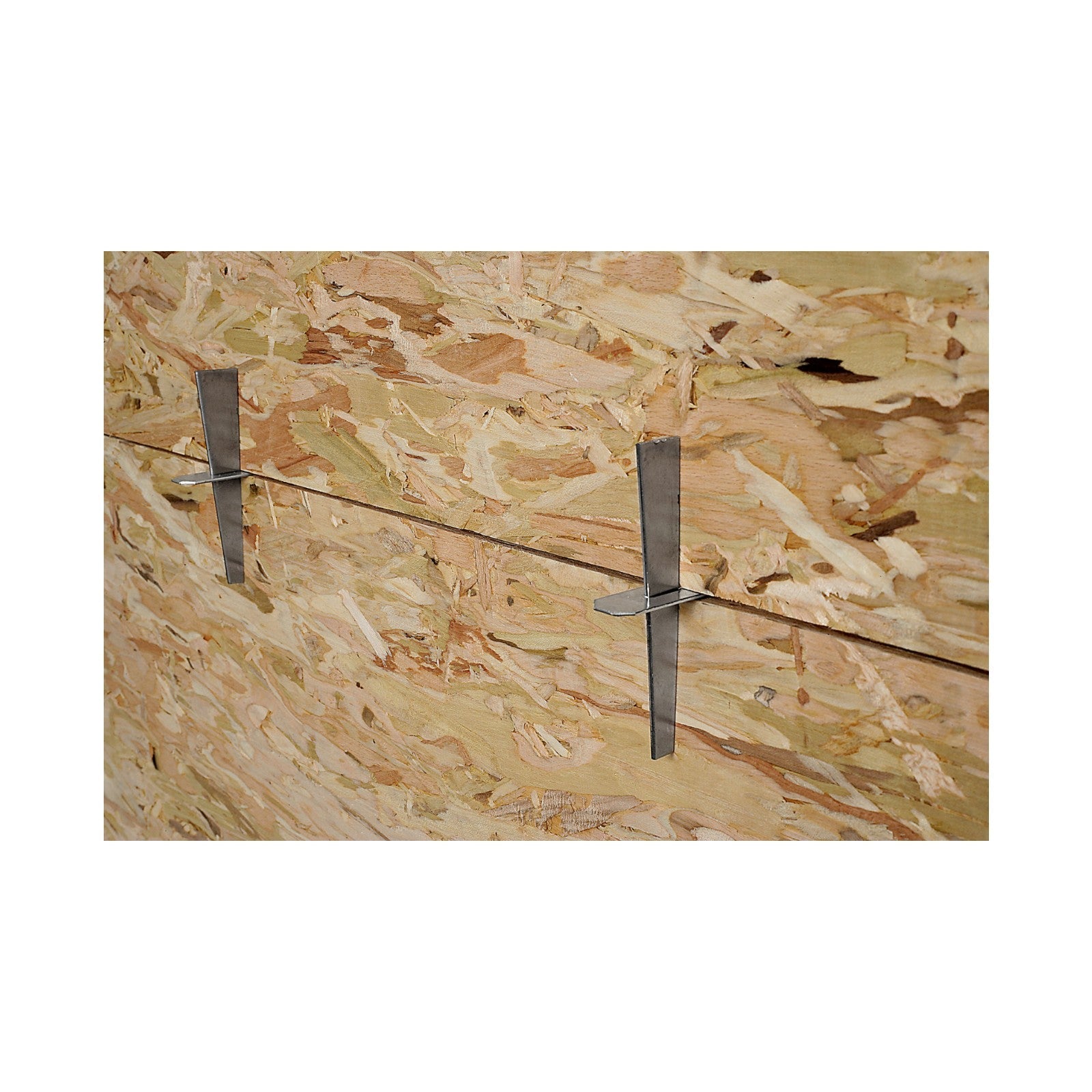

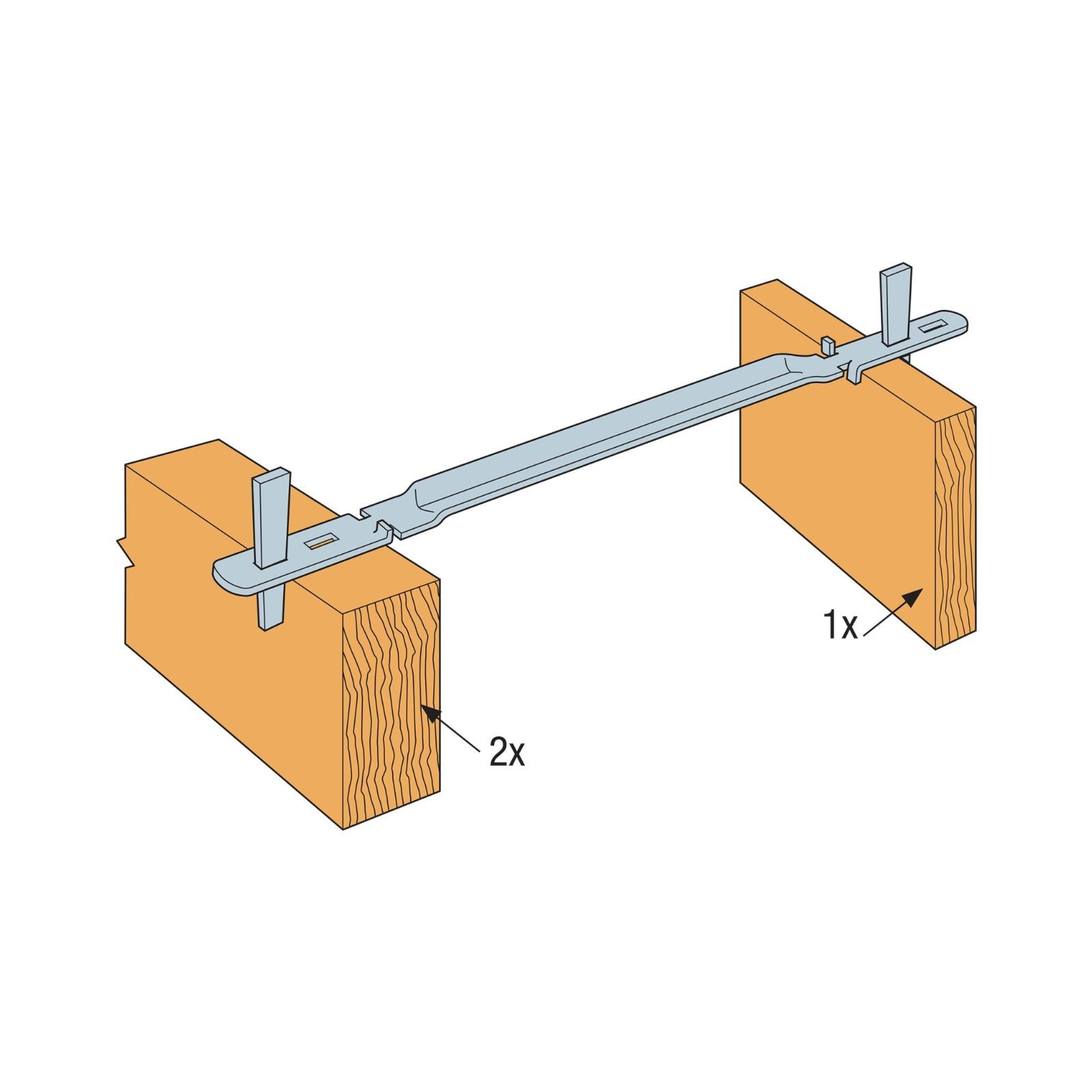

Insert the WT Wedge Form Tie between form boards at the desired spacing.
Use two W1 wedges (sold separately) per tie to secure the forms in place.
Not recommended for wall pours greater than 4 feet high.

Specifications

Size: 6" Wall

Thickness: 18 Gauge

Material: Carbon Steel

Finish: G90 Galvanized

Type: 1-1/4" Formboard

Manufacturer Name: Simpson Strong-Tie

Quantity: 250

Additional Info:
• For 6" thick walls

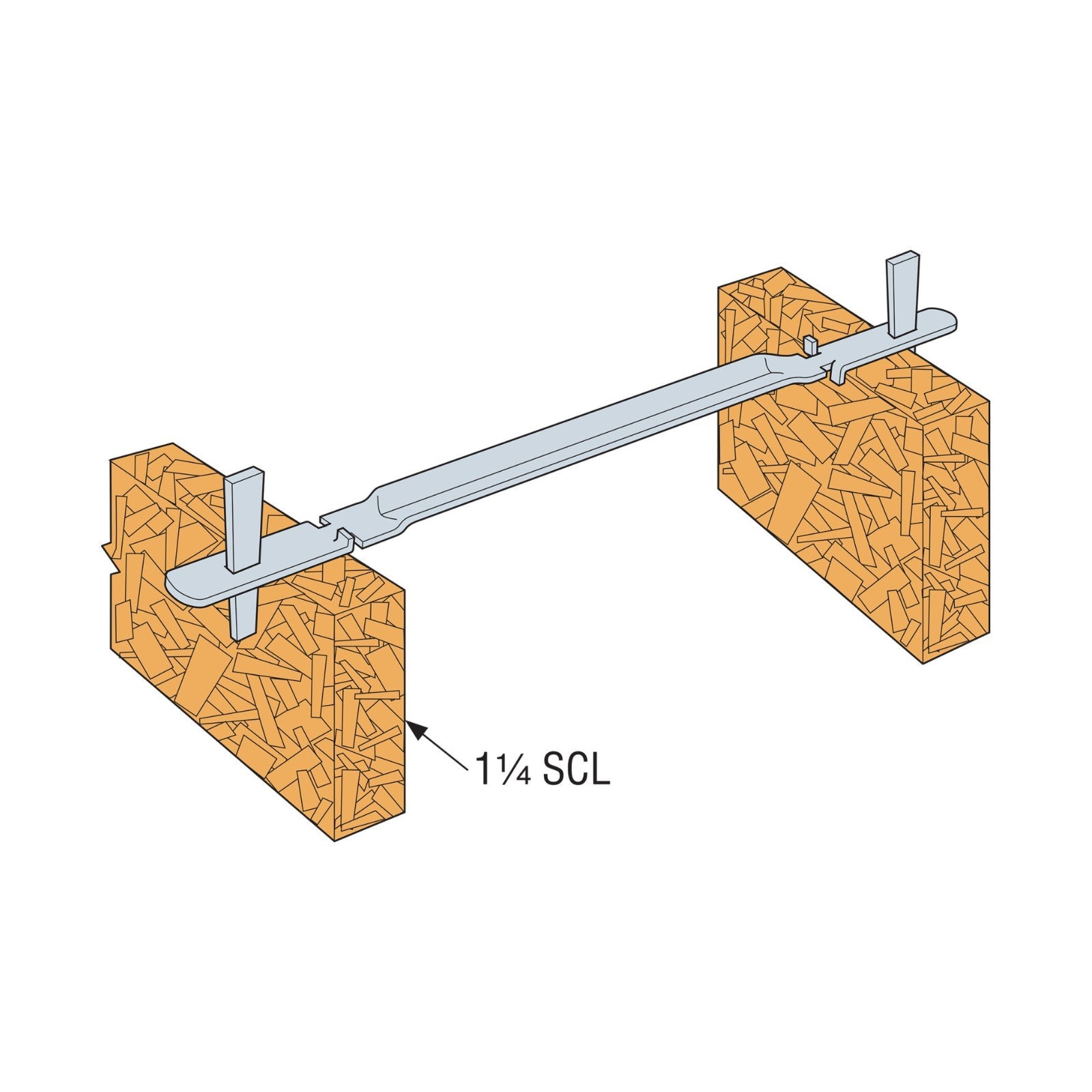

• Use with 1-1/4" SCL Formboard

View Spec Sheet

Simpson Strong-Tie Limited Warranty
