5/8" 6x37 Wire Rope Cable | 304 Stainless

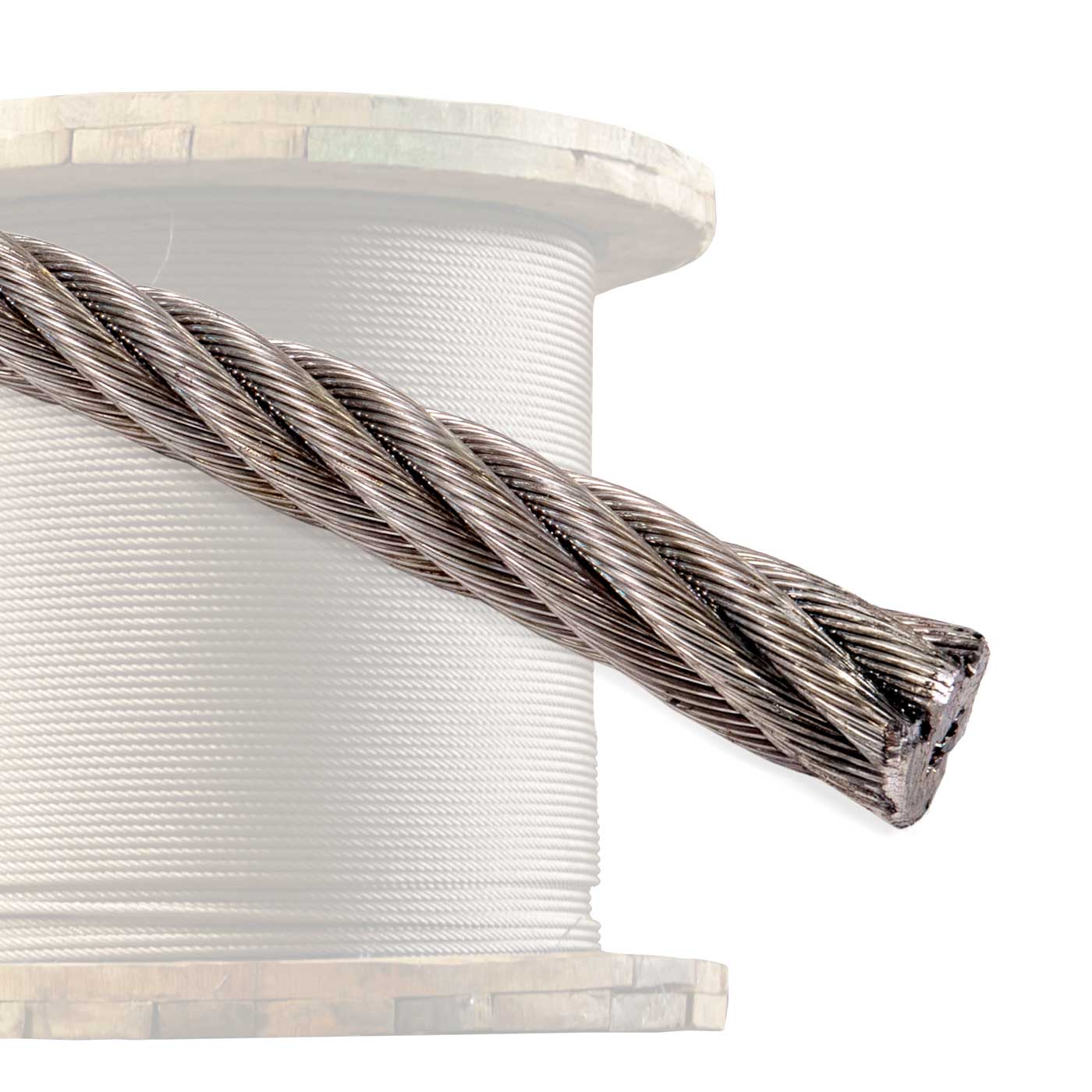

This 5/8" Type 304 stainless steel wire rope features a flexible 6x37 class construction designed for applications that require frequent bending, dependable strength, and corrosion resistance. Commonly used for hoisting, suspension systems, winch lines, and general rigging applications, this wire rope offers an excellent balance of durability, flexibility, and value for both industrial and commercial environments.

Corrosion-Resistant Stainless Steel Cable for Rigging, Hoisting & Winch Systems

The 6x37 class is known for its superior flexibility and fatigue resistance compared to 6x19 wire rope. Its construction allows the rope to bend repeatedly over sheaves and drums while maintaining strength and performance. While it offers slightly less abrasion resistance than a 6x19 rope, it is often preferred for applications involving continuous movement and dynamic loading.

Type 304 stainless steel provides greater corrosion resistance than galvanized wire rope while maintaining higher strength than Type 316 stainless steel. This makes it a cost-effective choice for most environments where rust protection is important but full marine-grade corrosion resistance is not required.

6x37 Wire Rope Configuration

This wire rope is manufactured from Type 304 stainless steel, offering excellent corrosion resistance and long-term durability. It is commonly selected for outdoor, washdown, and moisture-prone environments where carbon steel wire rope may be susceptible to rust.

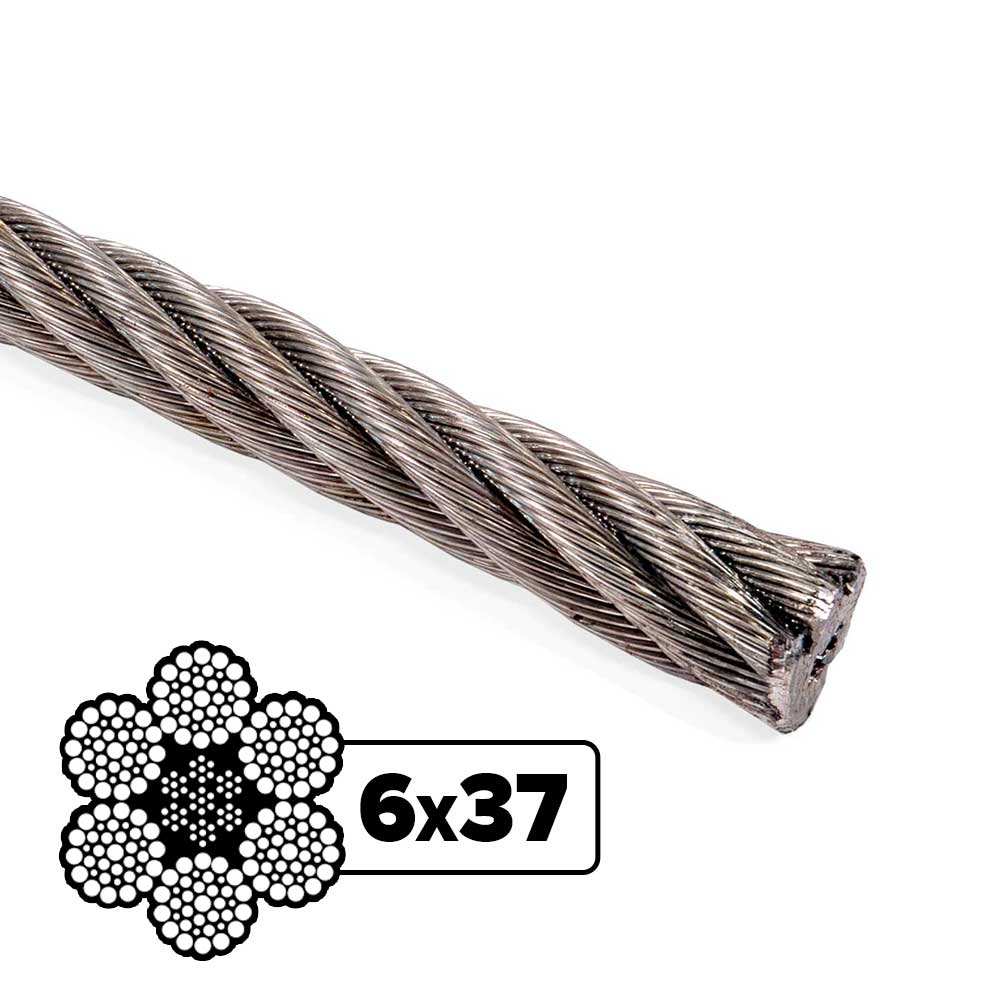

The class of this wire rope is 6x37. These numbers nominally refer to the rope construction, consisting of six outer strands surrounding the core, with approximately 27-49 wires making up each strand. The actual construction supplied is 6x36, which falls within the 6x37 classification and provides the flexibility and fatigue resistance this rope class is known for.

304 Stainless Steel Finish & IWRC Construction

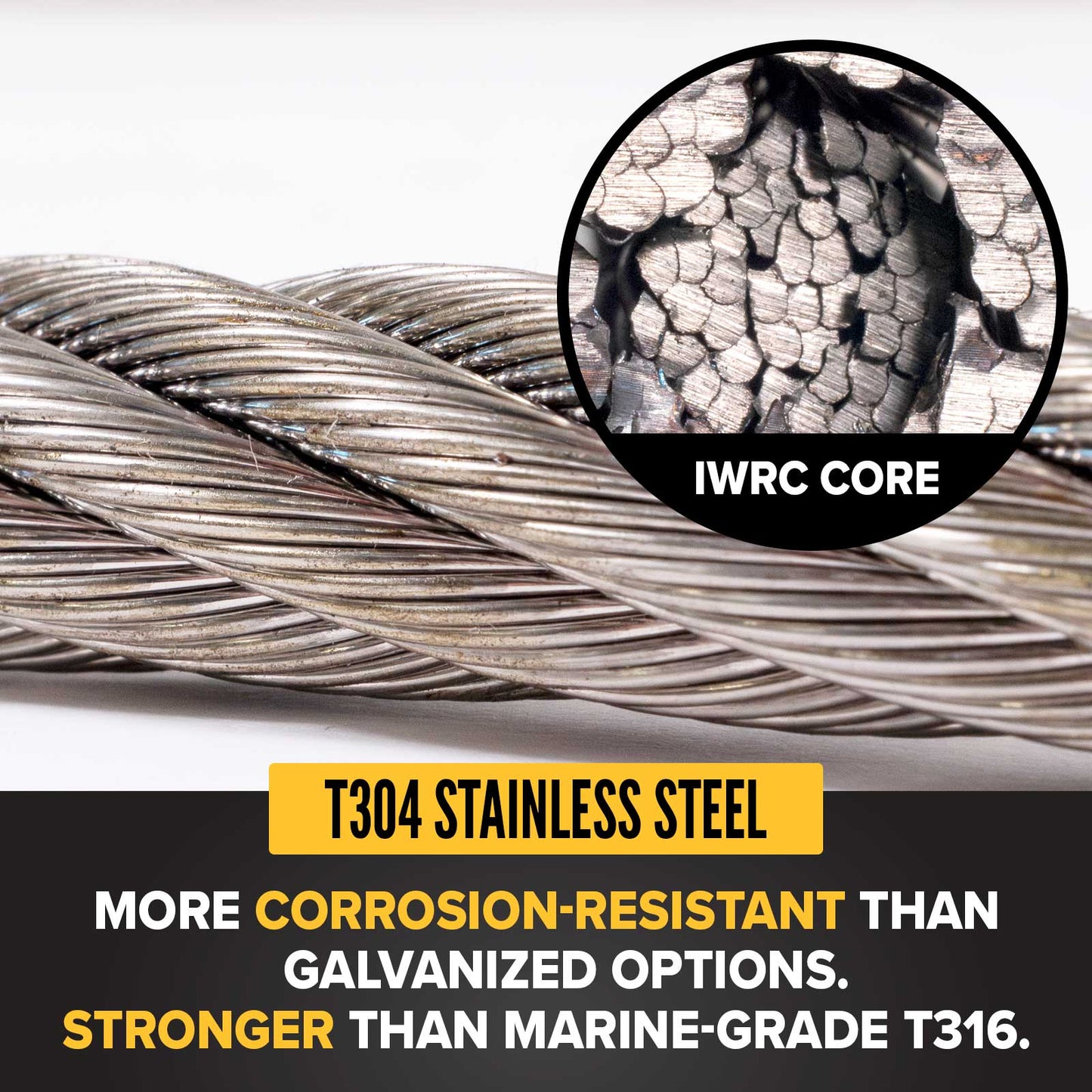

The Independent Wire Rope Core (IWRC) provides greater support than fiber core alternatives. IWRC construction increases crushing resistance, improves load stability, and helps maintain rope shape under demanding operating conditions.

This wire rope performs reliably in temperatures ranging from -40°F to 400°F, making it suitable for a wide range of industrial, construction, and material-handling applications.

Key Features

• Type 304 stainless steel provides excellent corrosion resistance and long service life
• 6x36 construction delivers superior flexibility and fatigue resistance
• More corrosion-resistant than galvanized wire rope
• Higher strength and more economical than Type 316 stainless steel
• IWRC core improves load support and crushing resistance
• Ideal for hoisting, suspension systems, winch lines, and general rigging applications
• Excellent performance in applications involving frequent bending and movement
• Temperature range from -40°F to 400°F
• Meets RR-W-410 and ASTM A1023 dimensional and strength requirements

Accessories & More

Complete your wire rope assembly with compatible wire rope fittings and rigging hardware. We carry a variety of type 304 stainless steel accessories, including wire rope clips and wire rope thimbles, to help you create a secure and reliable assembly. For best results, use type 304 stainless steel components throughout your system, as mixing materials or finishes can lead to galvanic corrosion and reduced performance over time.
