Wire Rope Thimbles for Cable Assemblies
Wire rope thimbles help protect the eye of a wire rope or cable assembly from crushing, abrasion, and shape distortion. By reinforcing the loop where hardware connects, these small components help improve durability and extend the service life of rigging, lifting, marine, and general-purpose cable assemblies.
What Does a Wire Rope Thimble Do?
A wire rope thimble is a formed metal fitting placed inside the eye of a wire rope loop before the connection is secured. Once installed, it creates a smooth bearing surface that helps prevent the cable from kinking, flattening, or wearing against hooks, shackles, and other rigging hardware.
Using the proper thimble helps maintain the shape of the eye while distributing contact pressure more evenly across the assembly. This added protection is especially important when building or repairing wire rope systems.
Wire Rope Thimble Materials
Fasteners Plus offers cable thimbles in galvanized steel and stainless steel options for use across a variety of environments.
-

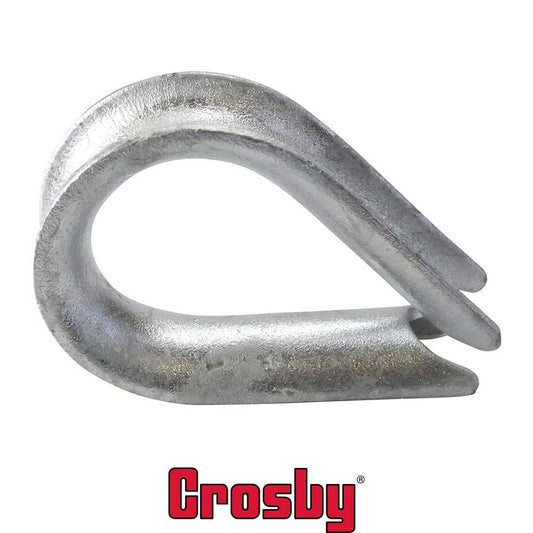

Galvanized Steel Thimbles: A strong, economical choice for construction, agriculture, utility work, and general outdoor use.
-

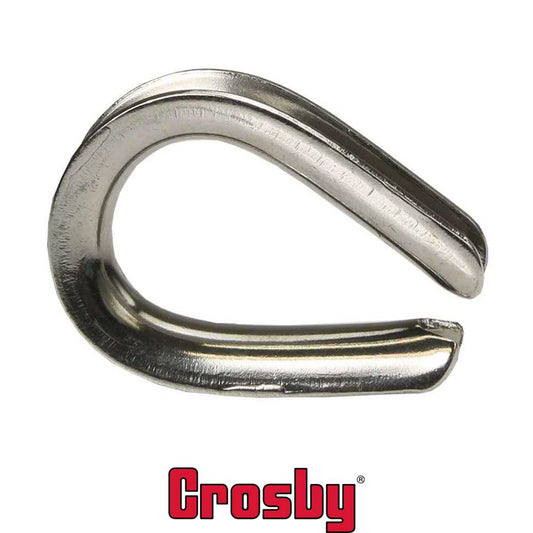

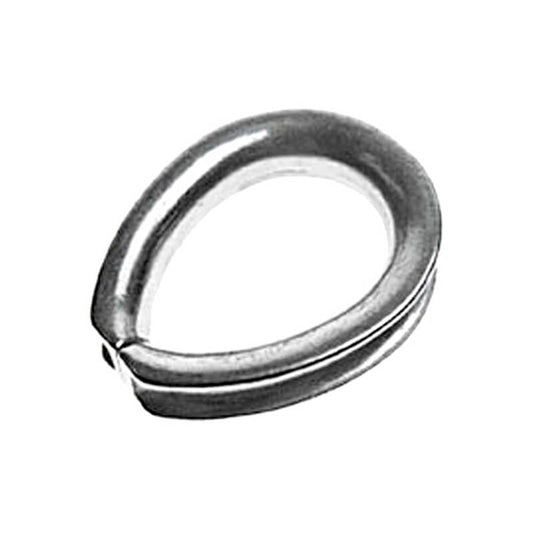

Stainless Steel Thimbles: Recommended for marine, coastal, and highly corrosive environments where additional corrosion resistance is needed.
Choosing the Right Wire Rope Thimble
To select the correct thimble size, match the thimble to the diameter of the wire rope or cable being used. For coated cable, match the thimble to the cable's outside coated diameter rather than the bare cable diameter.
Wire rope thimbles are commonly available in light-duty and heavy-duty styles, depending on the application.

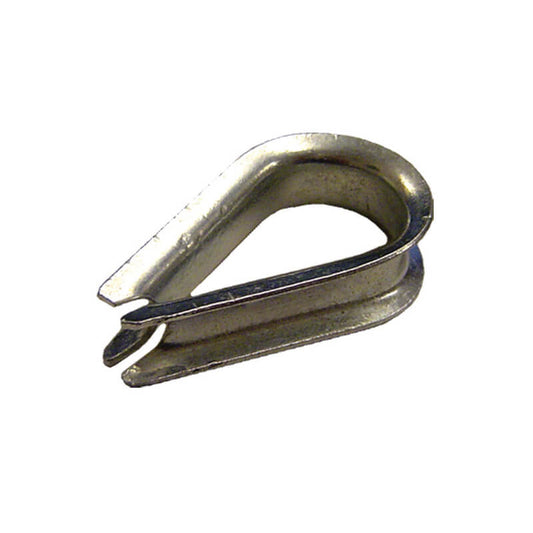

Light-Duty Cable Thimbles
Light-duty thimbles are typically used for static applications and general-purpose cable assemblies where movement, abrasion, and heavy loading are limited.

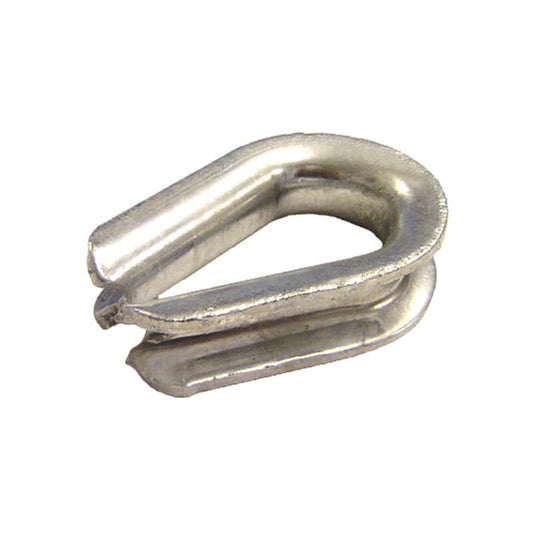

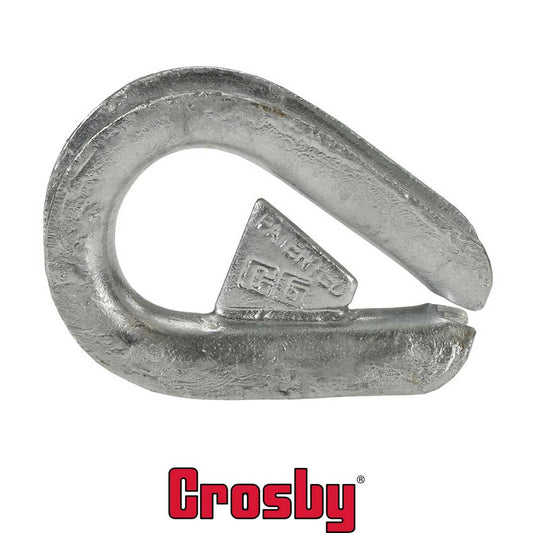

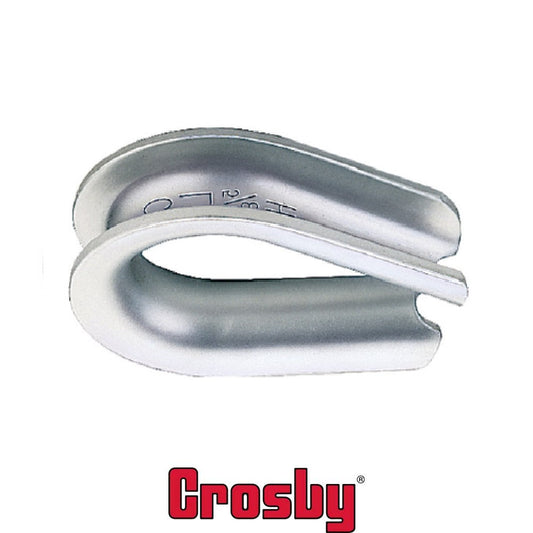

Heavy-Duty Cable Thimbles
Heavy-duty thimbles feature a wider, more durable profile that provides added protection to the wire rope eye. They are better suited for demanding rigging applications and situations where the assembly may experience dynamic loading.
Are Wire Rope Thimbles Load Rated?
Wire rope thimbles are designed to protect and support the eye of a cable assembly, but they are not typically assigned their own break strength. Actual performance depends on the wire rope, termination method, connected hardware, load direction, and application conditions.
Complete Your Wire Rope Setup
Fasteners Plus carries the hardware needed to build dependable cable assemblies, including wire rope, wire rope clips, wire rope sleeves and stops, and other rigging hardware. Our product specialists can help you find the right thimble, clip, sleeve, or fitting for your application.
