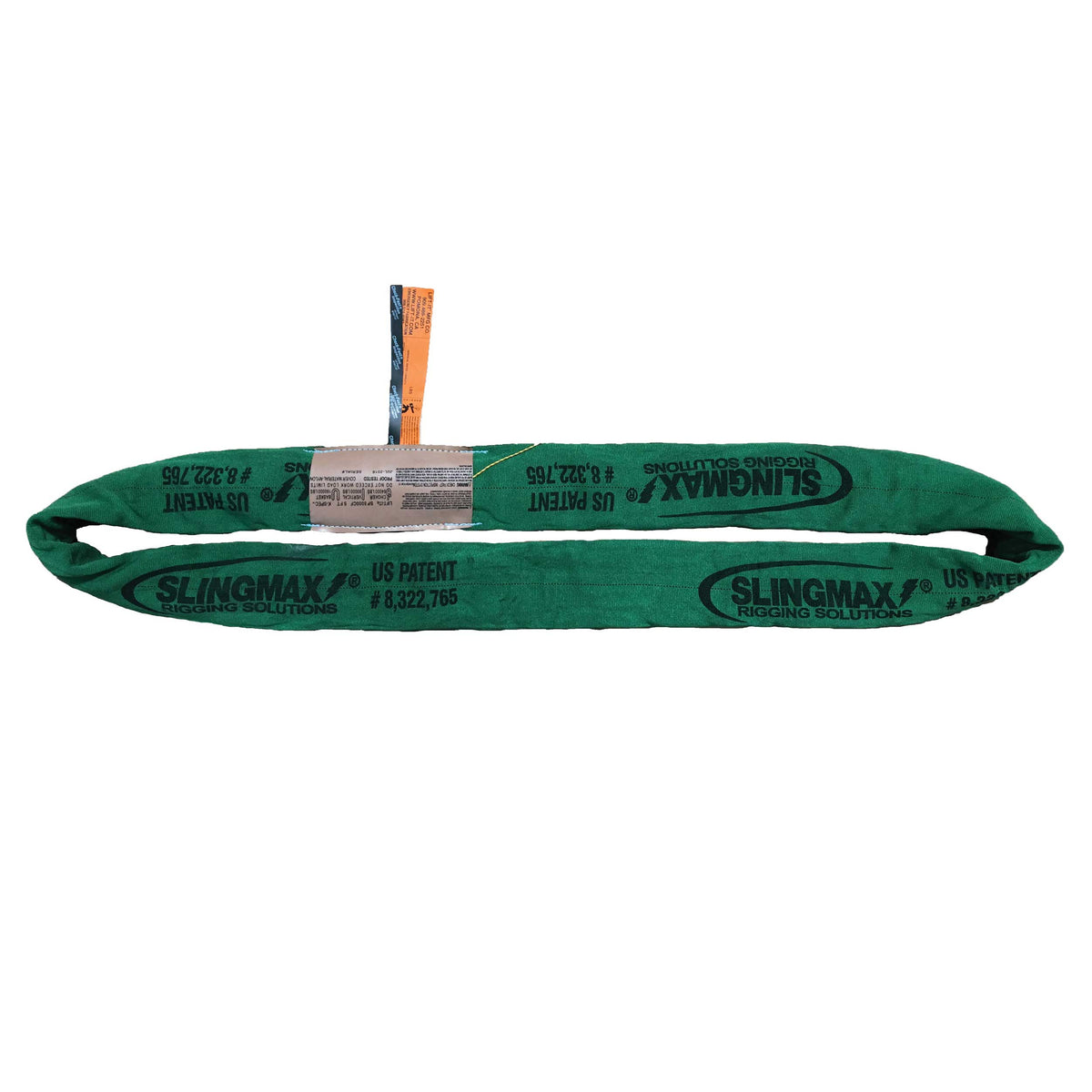

5" x 20' Single-Path High Performance Roundsling | Vertical Cap: 125,000 lbs.
Lengths
Description
Description
A 5 inch single path rigging sling moves into serious capacity territory, still built around a single path of K-Spec® core yarn rather than multiple strands. Whether you know this single path roundsling as a single path round sling, single path rigging sling, single path HMPE sling, or search for it as a single path polyester sling, it's the same single path lifting sling: at less than 10% of the weight of a comparably sized wire rope or chain sling, it's easier for riggers to handle, and being synthetic makes it a good fit for fragile cargo. This highest-capacity model in the line carries a 125,000 lb. vertical capacity.
Key Features
- One path of K-Spec® core yarn, wrapped in a protective outer jacket, forms the load-bearing structure
- Core yarn independently tested as the longest-lasting fiber currently on the market, with only 1% elongation at rated capacity
- A Covermax® jacket built from two layers of industrial-grade nylon protects the core, with over four times the abrasion resistance of polyester
- Repairable if the jacket is damaged but the core yarn is unharmed
- Check-Fast® inspection system flags core yarn damage or overload at a glance
- Non-conductive, non-corrosive, water-resistant, and UV-resistant
- Load-tested to 200% of capacity and meets ASME B30.9 standards
- Temperature range: -40°F (-40°C) to 180°F (82°C)
Applications
- The heaviest jobs this single-path line covers, where capacity matters as much as low weight
- Low-headroom industrial lifts where 1% elongation at rated capacity keeps the load from shifting
- Jobs needing a quick visual overload check between lifts via the Check-Fast® system
Complete Your Sling Setup
Finish your lifting setup with the right supporting hardware and protection. Add sling protection to help guard against abrasion, edges, and wear, and pair your sling with a properly rated wide body shackle such as the Crosby® G-2160 Bolt Type Wide Body Shackle or Van Beest Green Pin® P-6033 Wide Body Sling Shackle.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
Specifications
Specifications
Minimum bending radius: 1.25"
