SKU: SCCF-6-EG

6" 2-Hole Clevis Fitting - Electro-Galvanized

Made in USA

Lengths

4" 5" 6" 7" 8"
$1299

Minimum order quantity: 9
Ships in 7-14 business days.

Description

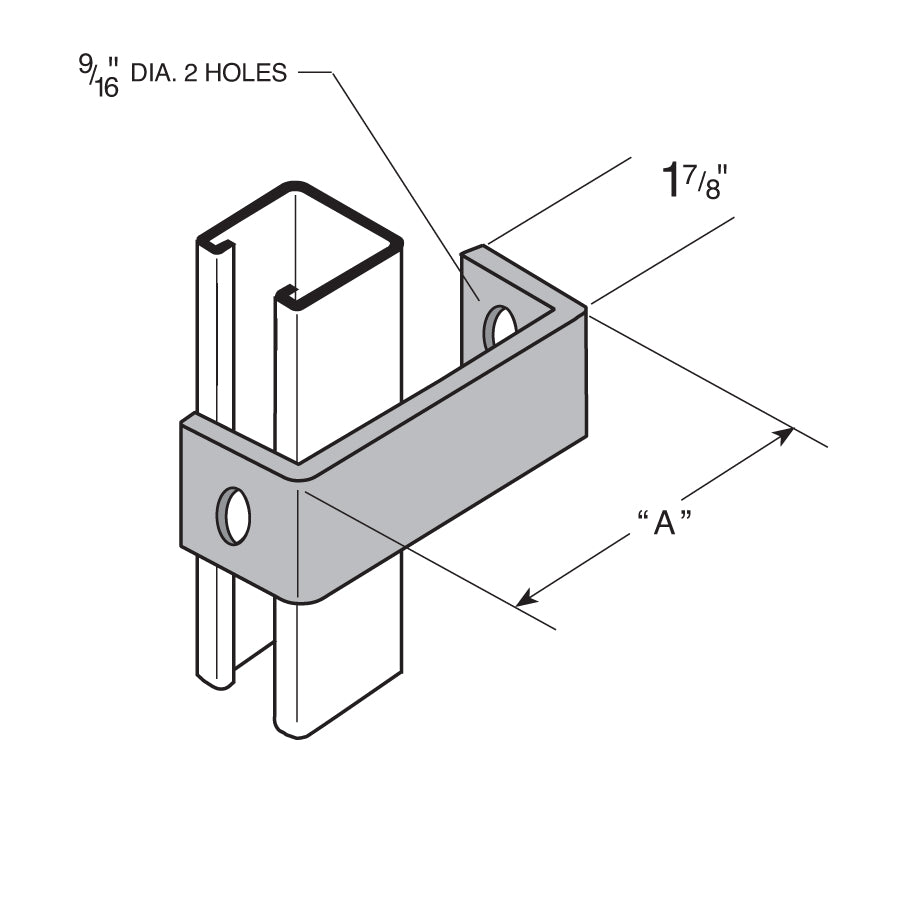

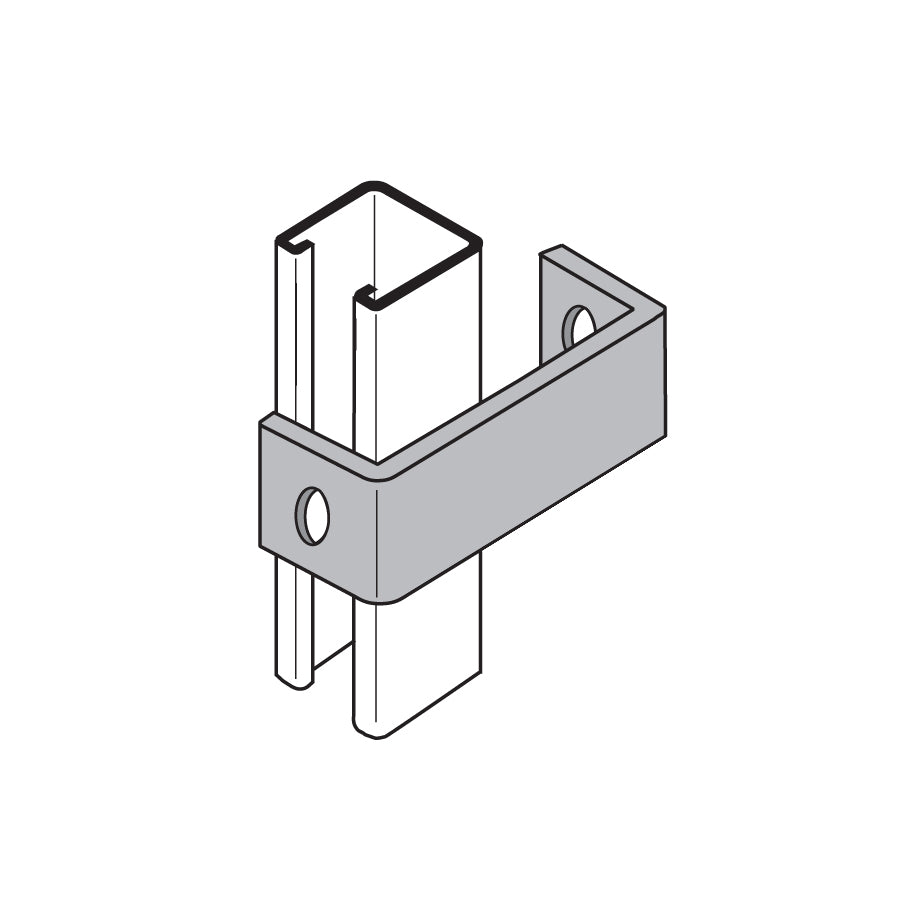

6" 2-Hole Clevis Fitting - Electro-Galvanized connect to one of the two holes to the front of the channel to allow space for a connection to be made to the other. Most of the time that connection is another channel or connecting the existing channel to a support. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.

Specifications
Width: 1-5/8'
Length: 6"
Hole Diameter: 9/16"
Thickness: 1/4"
Hole Spacing End Distance: 13/16"
Hole Spacing Center to Center: 1-7/8"
Material: Carbon Steel
Finish: Electro-Galvanized
Type: Electro-Galvanized Carbon Steel
Standards: Finish = ASTM B-633 (Type III SC1 (0.2 mil thickness)) & Material = ASTM A575 or ASTM A1011 Grade 33
Manufacturer Name: Flex-Strut
